Inspect Compass Circuit

Disconnect the connector from the mirror and inspect the connector on the wire harness side, as shown.

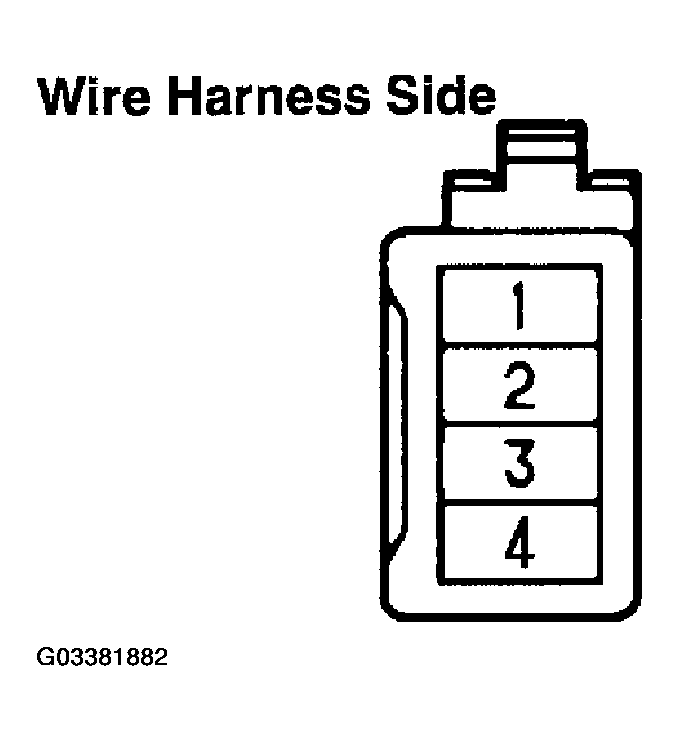

Fig 1: Identifying Mirror Connector Terminals (Wire Harness Side)
G03381882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECKING COMPASS CIRCUITS

Tester connection Condition Specified condition
4 - Ground Constant Continuity
1 - Ground Ignition switch LOCK or ACC No voltage
1 - Ground Ignition switch ON Battery positive voltage

If circuit is not as specified, inspect the circuits connected to other parts.
