Oil Pump: Reassembly

Install drive and driven rotors.
1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.

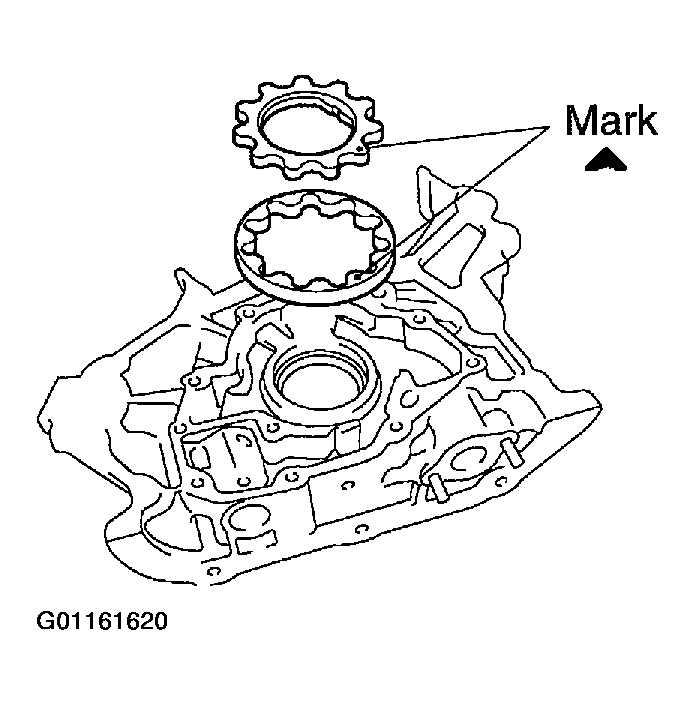

  Fig 1: Installing Drive & Driven Rotor By Aligning Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 10 screws.
Install relief valve.
Insert the relief valve and spring into the pump body hole, and install the plug.
1. Torque : 49.1 N.m (500 kgf.cm, 36 ft.lbf)
