Tilt Steering Column: Inspection

INSPECT STEERING LOCK OPERATION
Check that the steering lock mechanism operates properly.

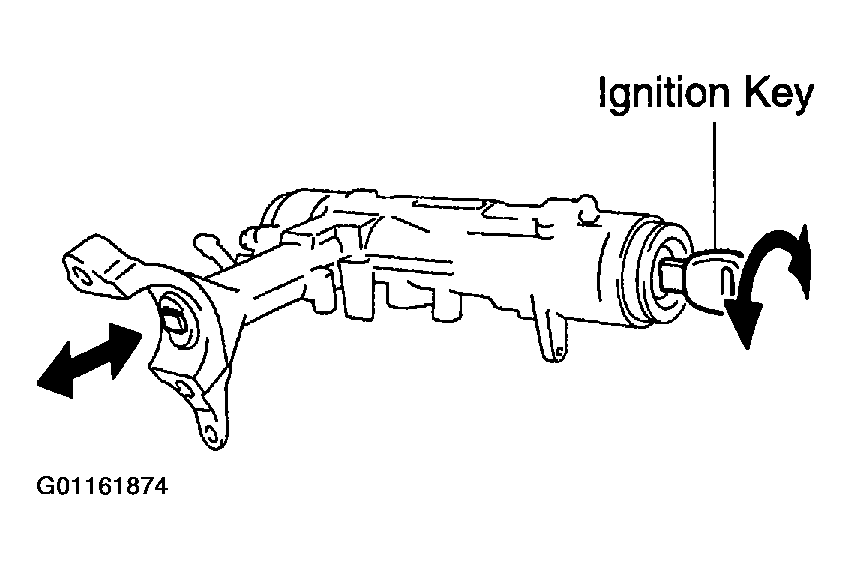

Fig 1: Checking Steering Lock Mechanism Operates Properly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, REPLACE KEY CYLINDER
1. Place the ignition key at the ACC position.

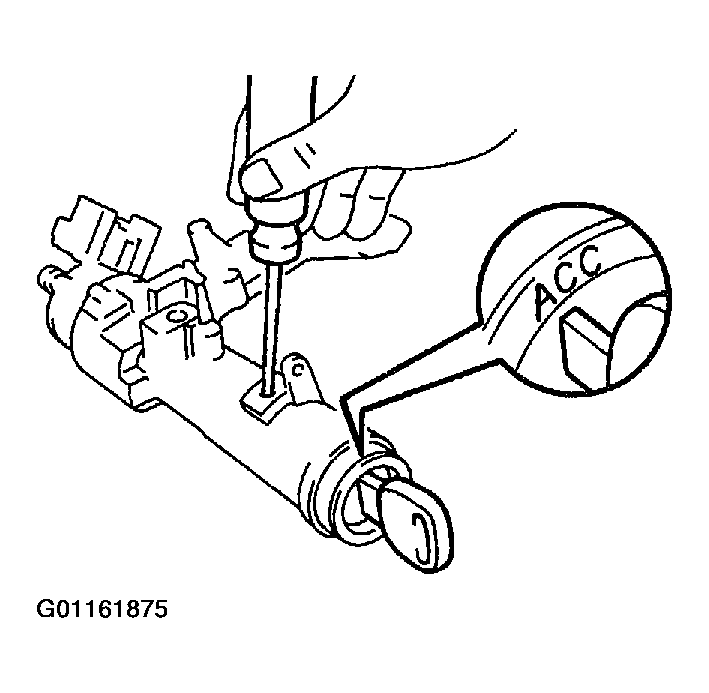

2. Push down the stop pin with a screwdriver, and pull out the key cylinder.
3. Install a new key cylinder.
HINT:

Make sure the ignition key is at the ACC position.
INSPECT IGNITION SWITCH
(See IGNITION SWITCH )

Fig 2: Identifying ACC Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, REPLACE IGNITION SWITCH
1. Remove the 2 screws and ignition switch.
2. Install a new ignition switch with the 2 screws.
INSPECT KEY UNLOCK WARNING SWITCH
(See KEY UNLOCK WARNING SWITCH )
IF NECESSARY, REPLACE KEY UNLOCK WARNING SWITCH
1. Slide the key unlock warning switch out of the column upper bracket.
2. Slide a new key unlock warning switch in the column upper bracket.
INSPECT KEY INTERLOCK SOLENOID
(See INSPECTION )
IF NECESSARY, REPLACE KEY INTERLOCK SOLENOID
1. Remove the 2 screws and key interlock solenoid.
2. Install a new key interlock solenoid with the 2 screws.
INSPECT TRANSPONDER KEY COIL
(See TRANSPONDER KEY COIL )
IF NECESSARY, REPLACE TRANSPONDER KEY COIL WITH KEY CYLINDER LAMP ASSEMBLY
IF NECESSARY, REPLACE TRANSPONDER KEY AMPLIFIER
1. Remove the 2 screws and transponder key amplifier.
2. Install a new transponder key amplifier with the 2 screws.
