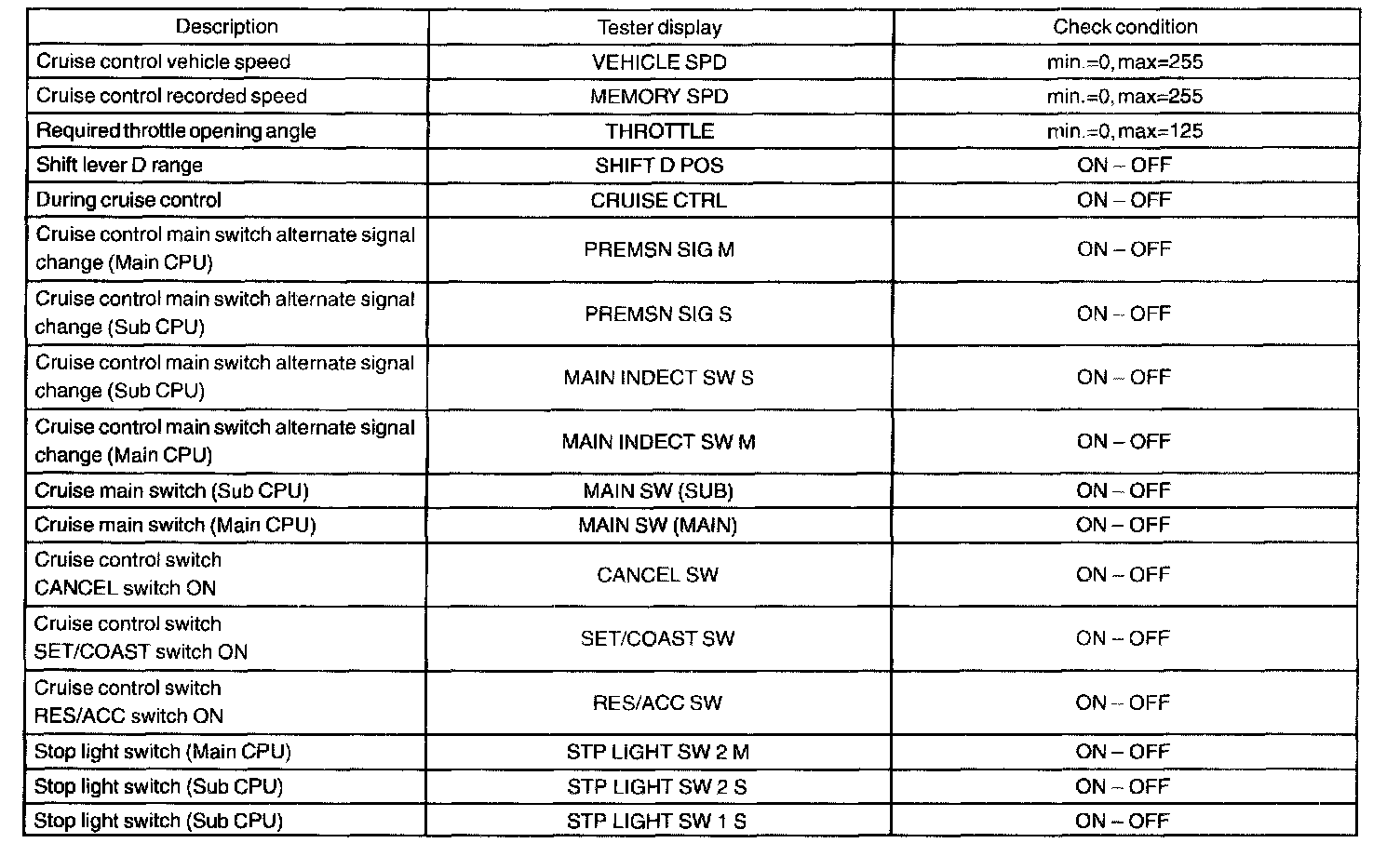

DATA LIST




CRUISE CONTROL (ECM):


HINT: Following the DATA LIST displayed by the hand-held tester, you can read the value to the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the Hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on the tester, read the "DATA LIST".
3. ACTIVE TEST
