Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTIONThis circuit carries the SET/COAST, RESUME/ACCEL and CANCEL voltage signals to the ECM.

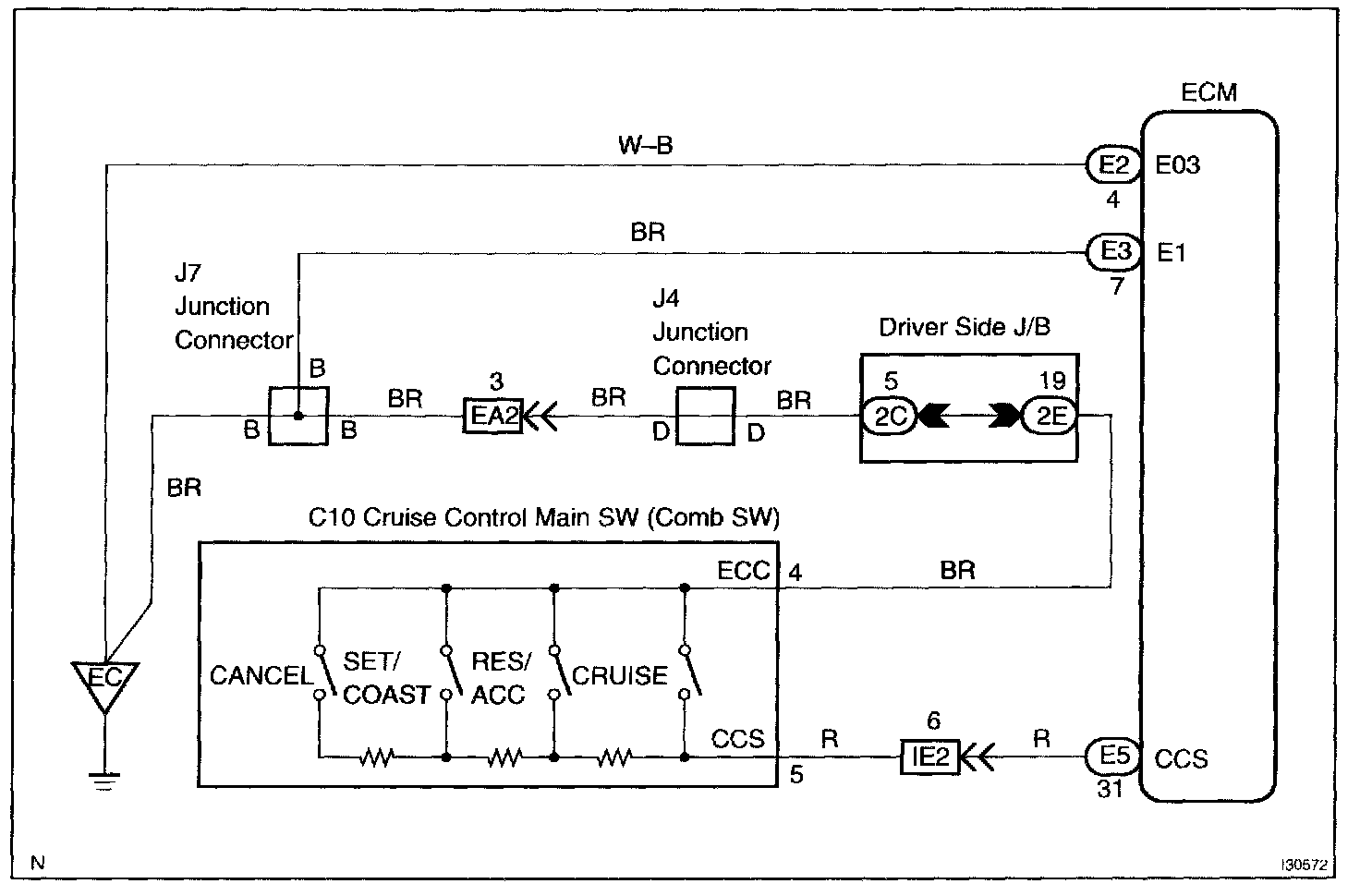

Wiring Diagram:

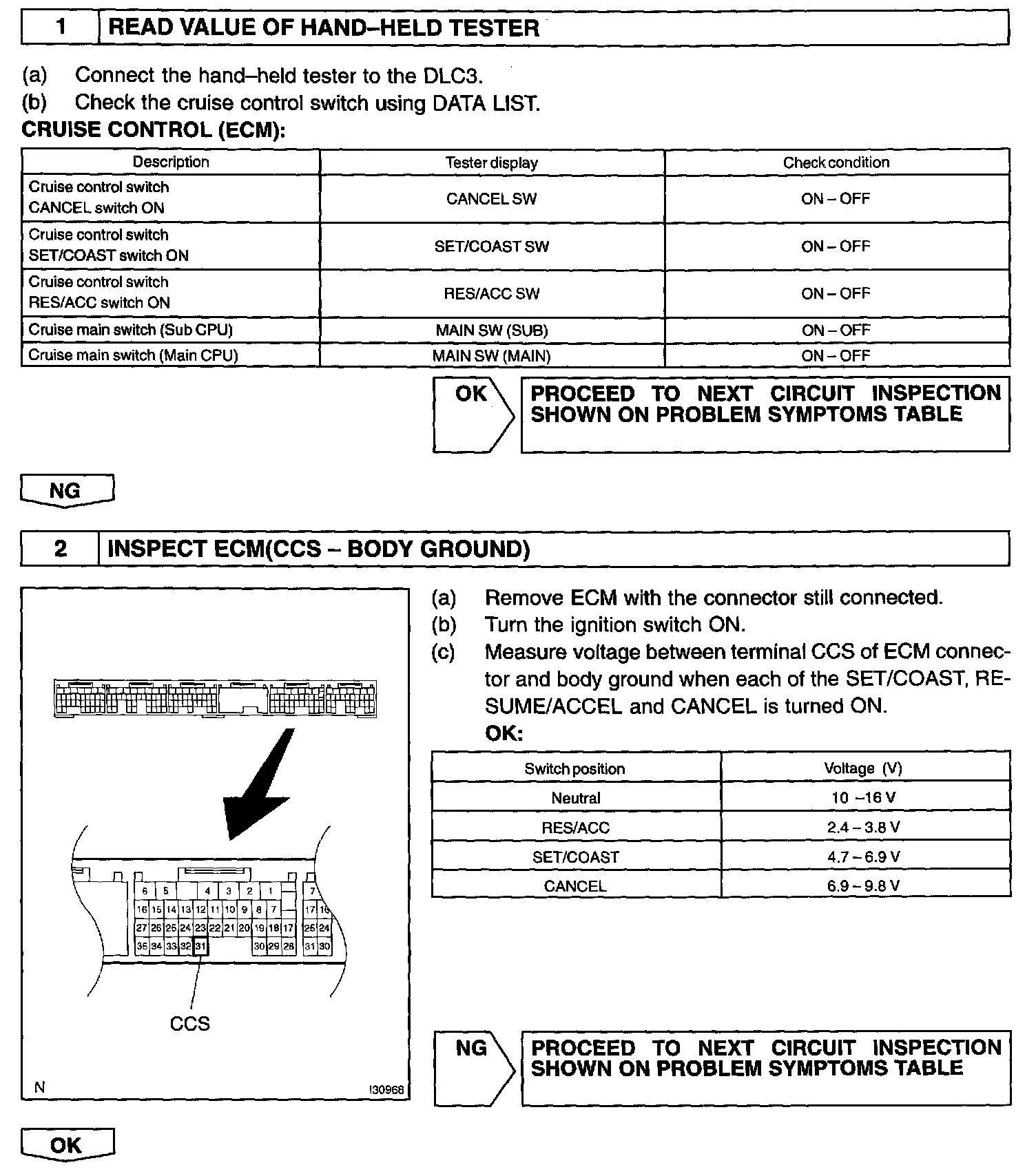

Step 1 - 2:

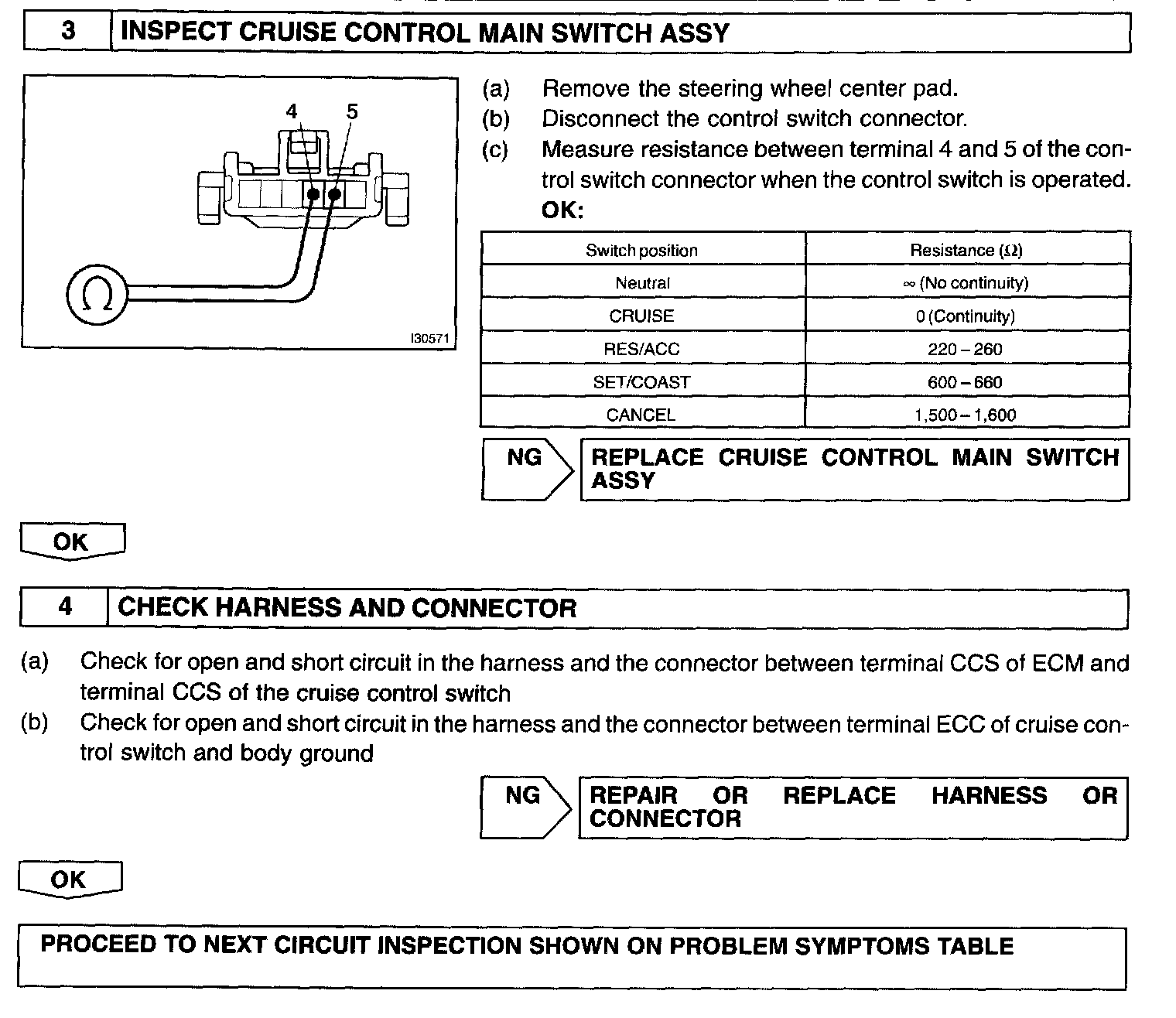

Step 3 - 4:
INSPECTION PROCEDURE
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL voltage signals to the ECM.
INSPECTION PROCEDURE
