Relay Box

Engine Room No.1 R/B , J/B - Engine Compartment Right:

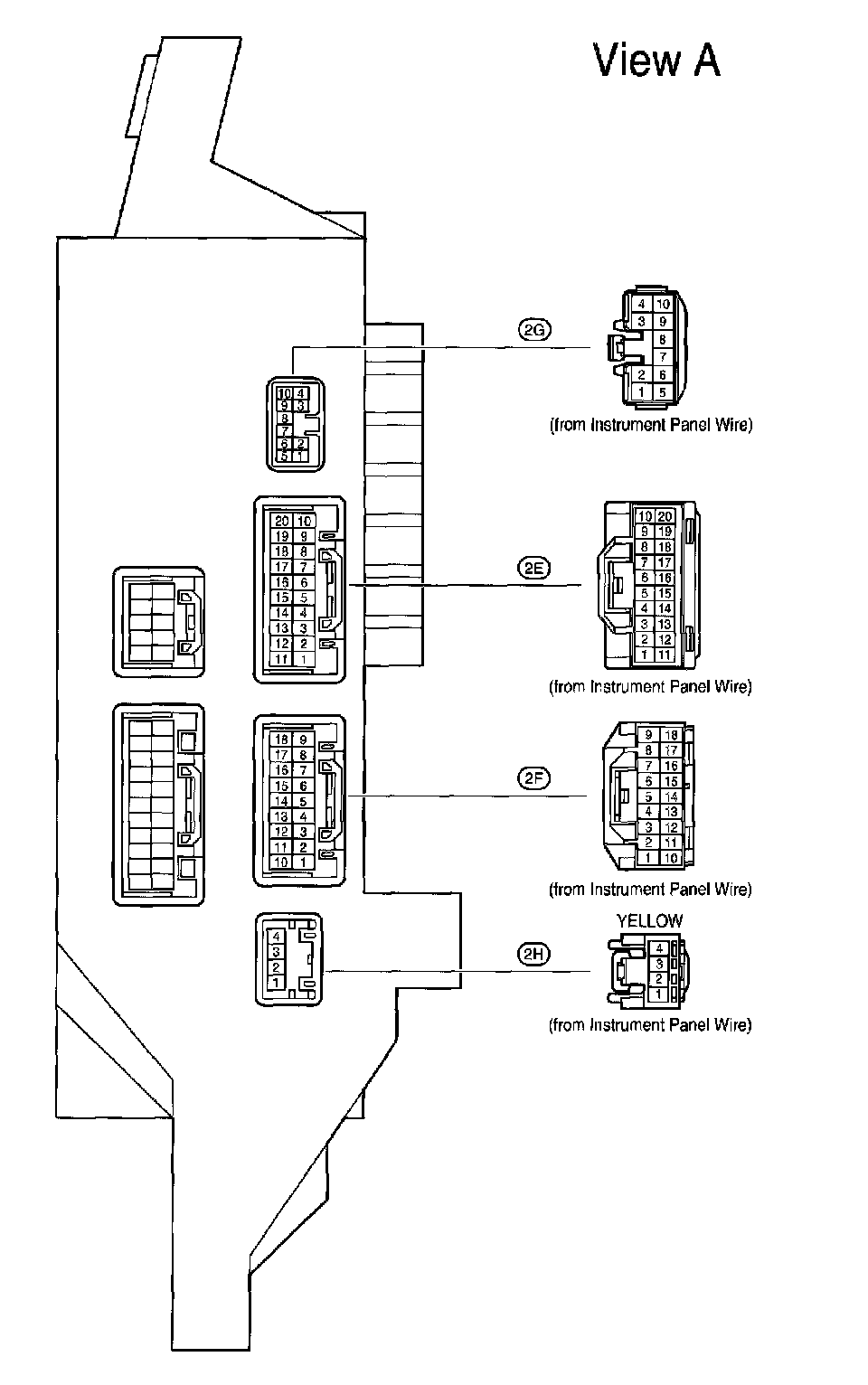

Driver Side J/B - Left Kick Panel (View A):

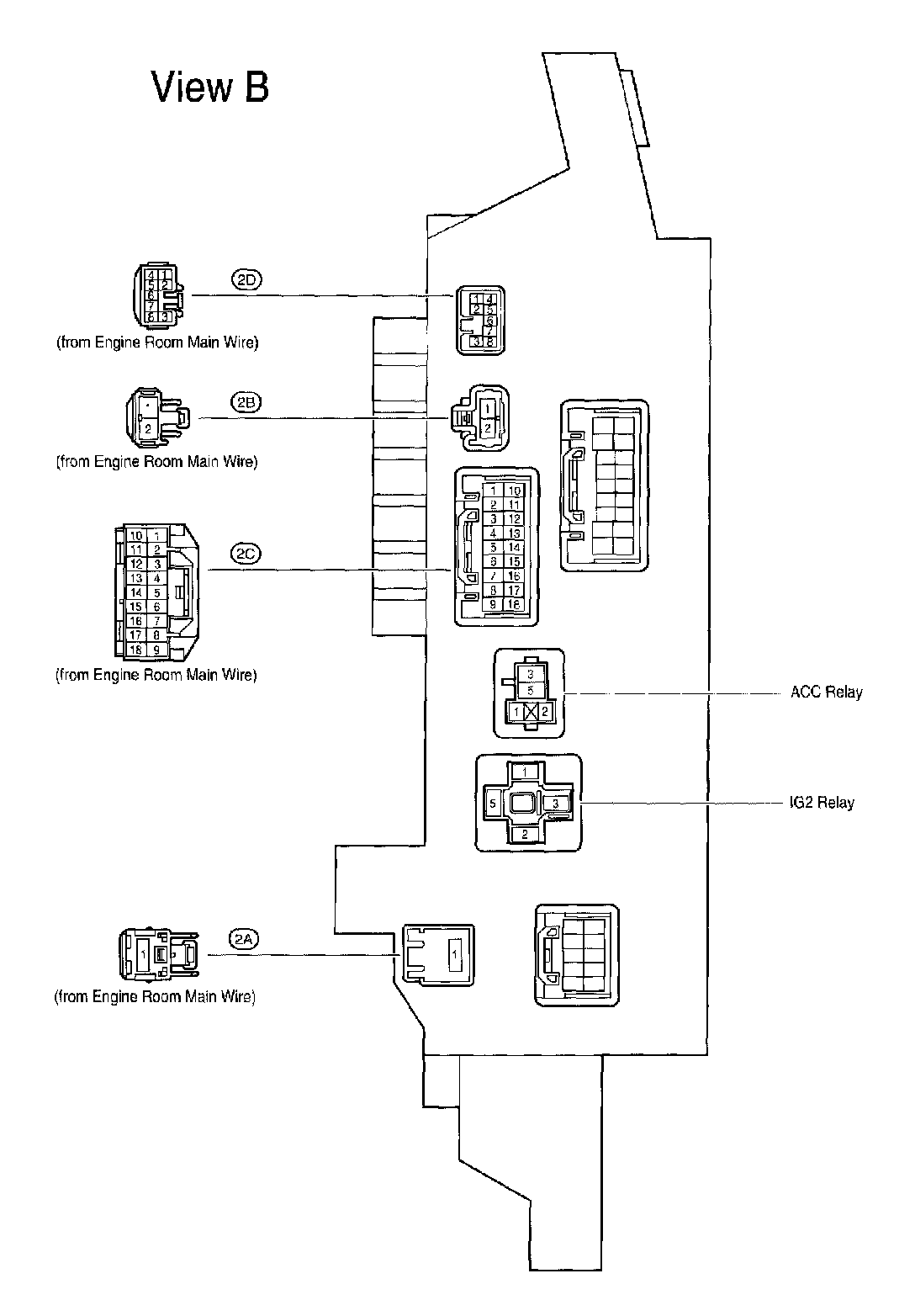

Driver Side J/B - Left Kick Panel (View B):

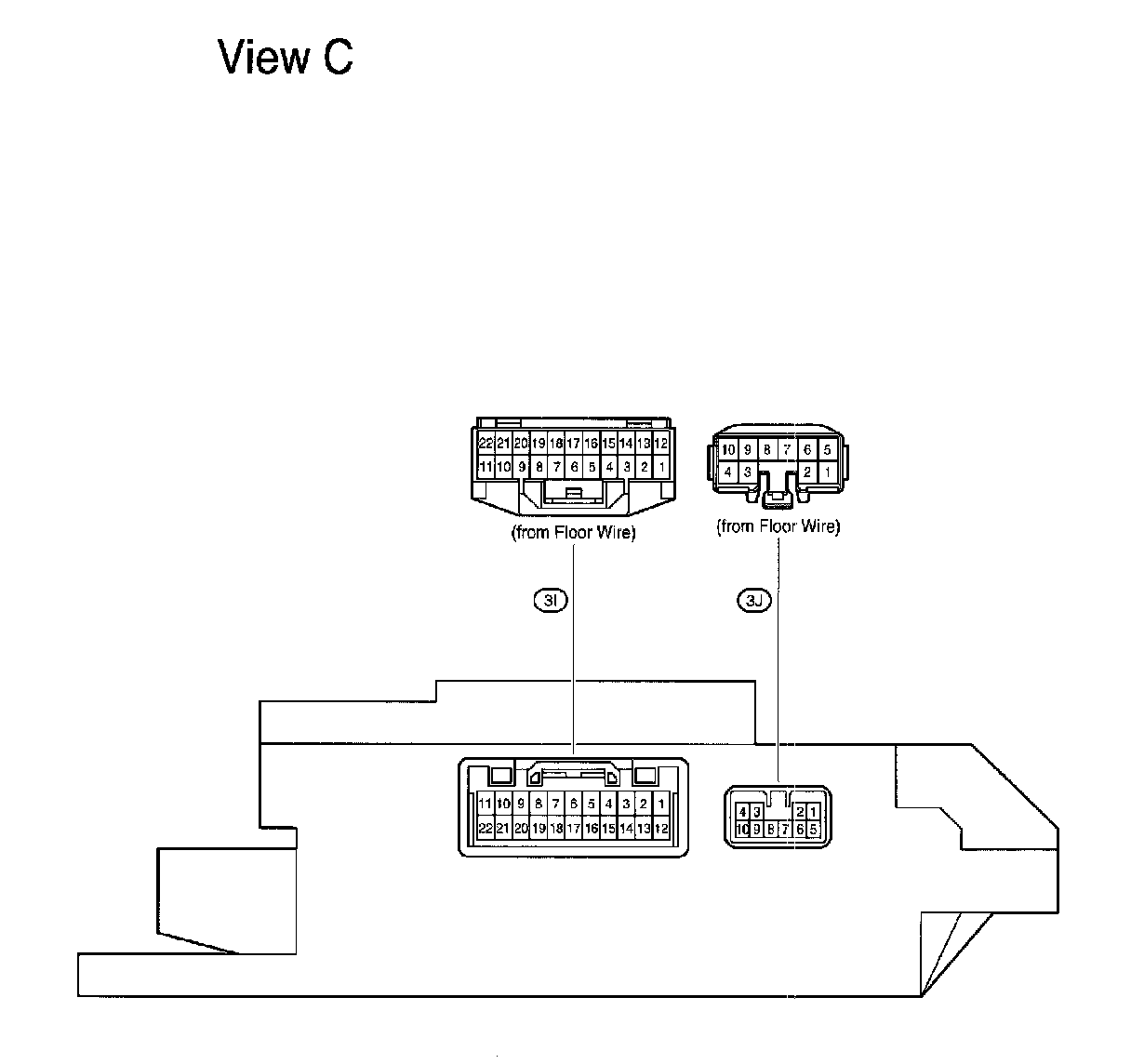

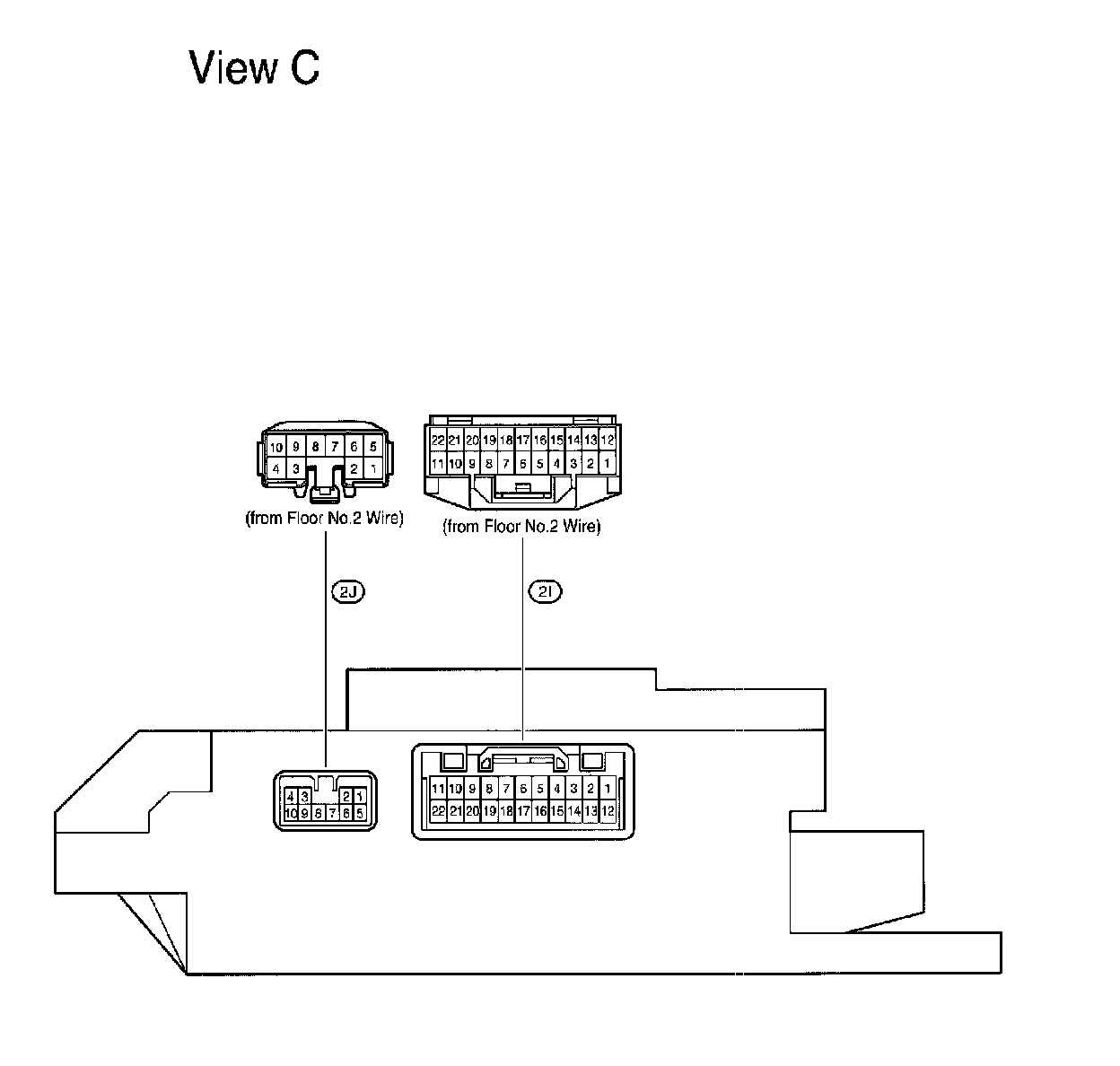

Driver Side J/B - Left Kick Panel (View C):

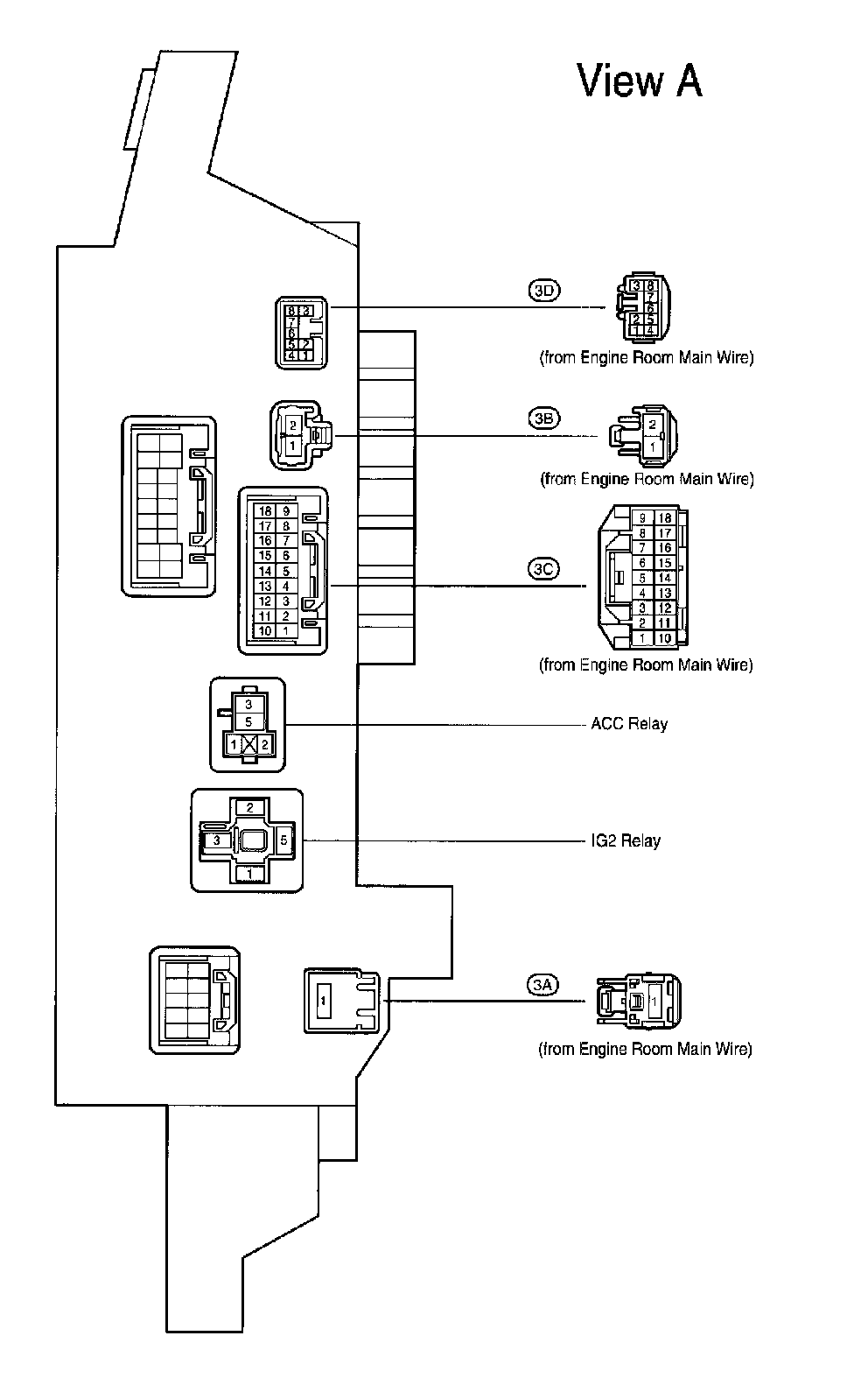

Passenger Side J/B - Right Kick Panel (View A):

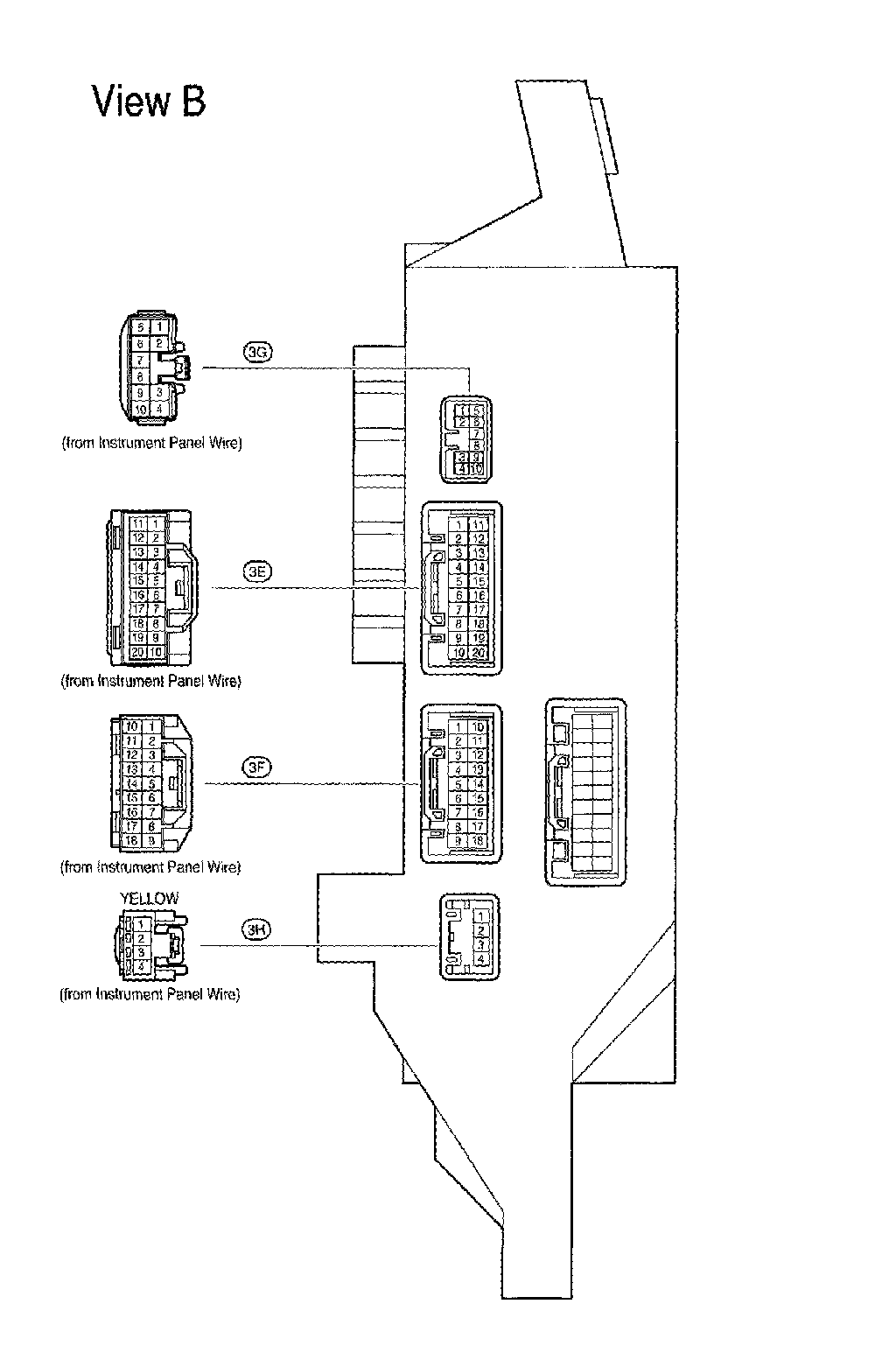

Passenger Side J/B - Right Kick Panel (View B):

Passenger Side J/B - Right Kick Panel (View C):

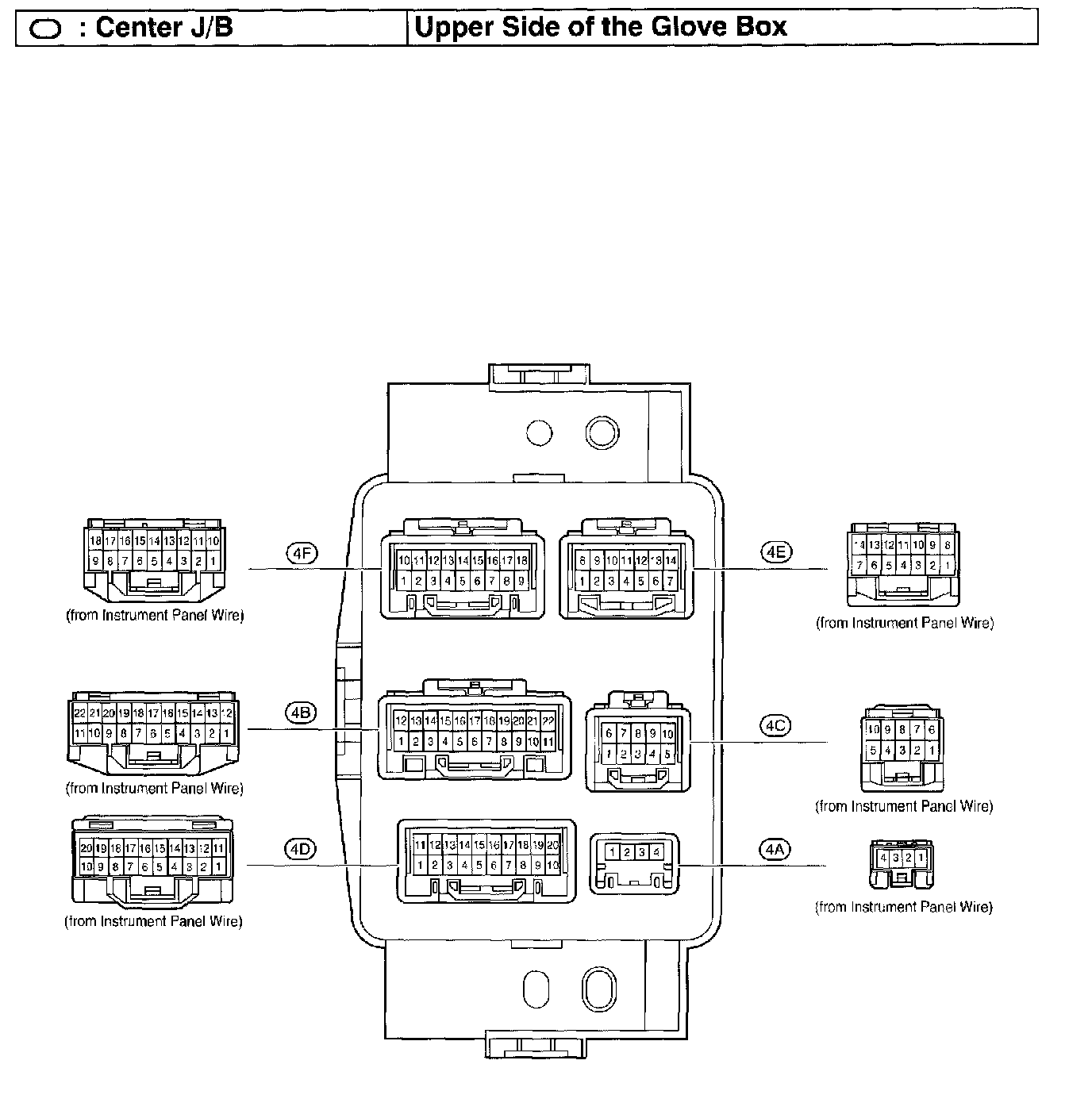

Center J/B - Upper Side Of The Glove Box:

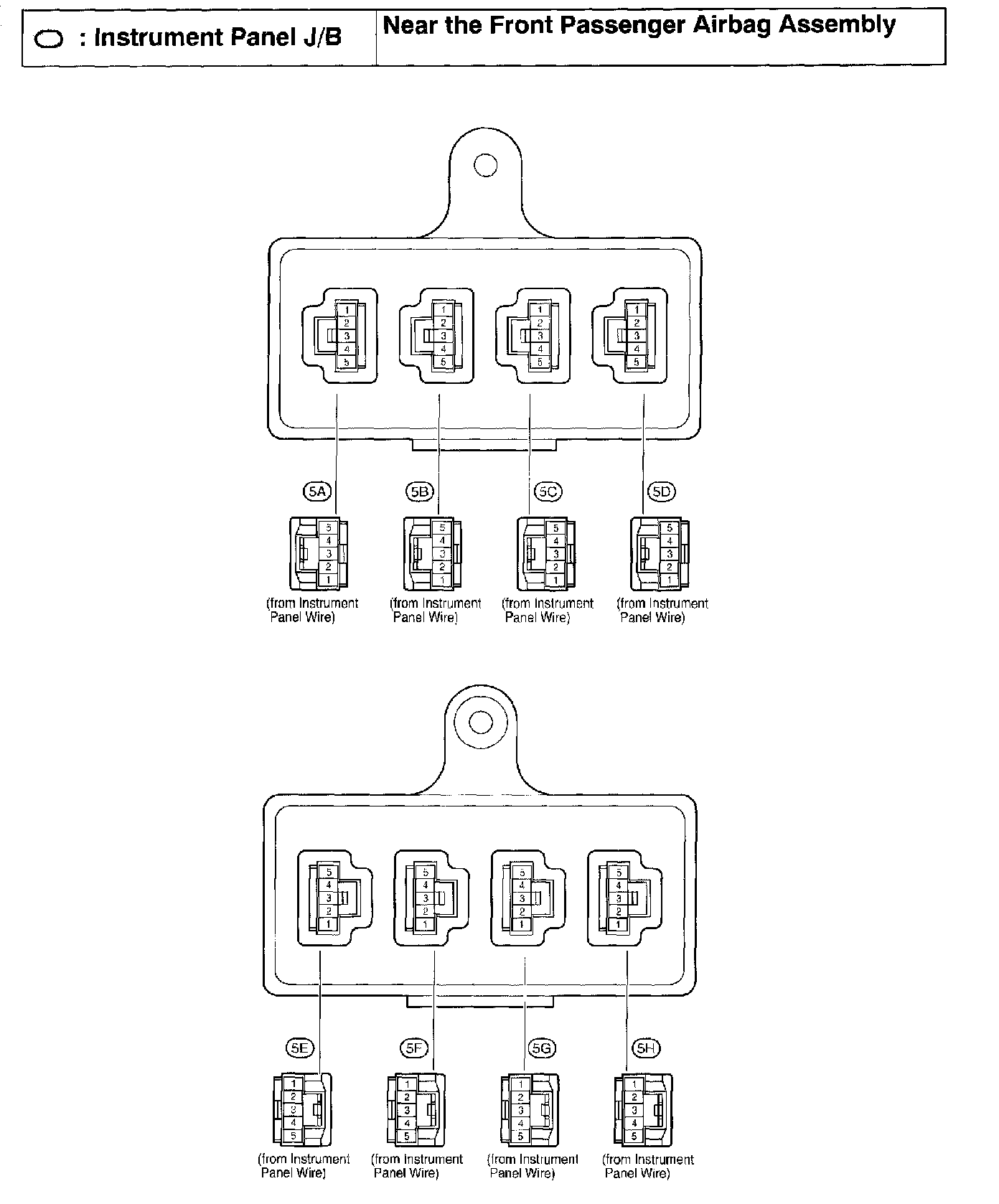

Instrument Panel J/B - Near The Front Passenger Airbag Assembly:

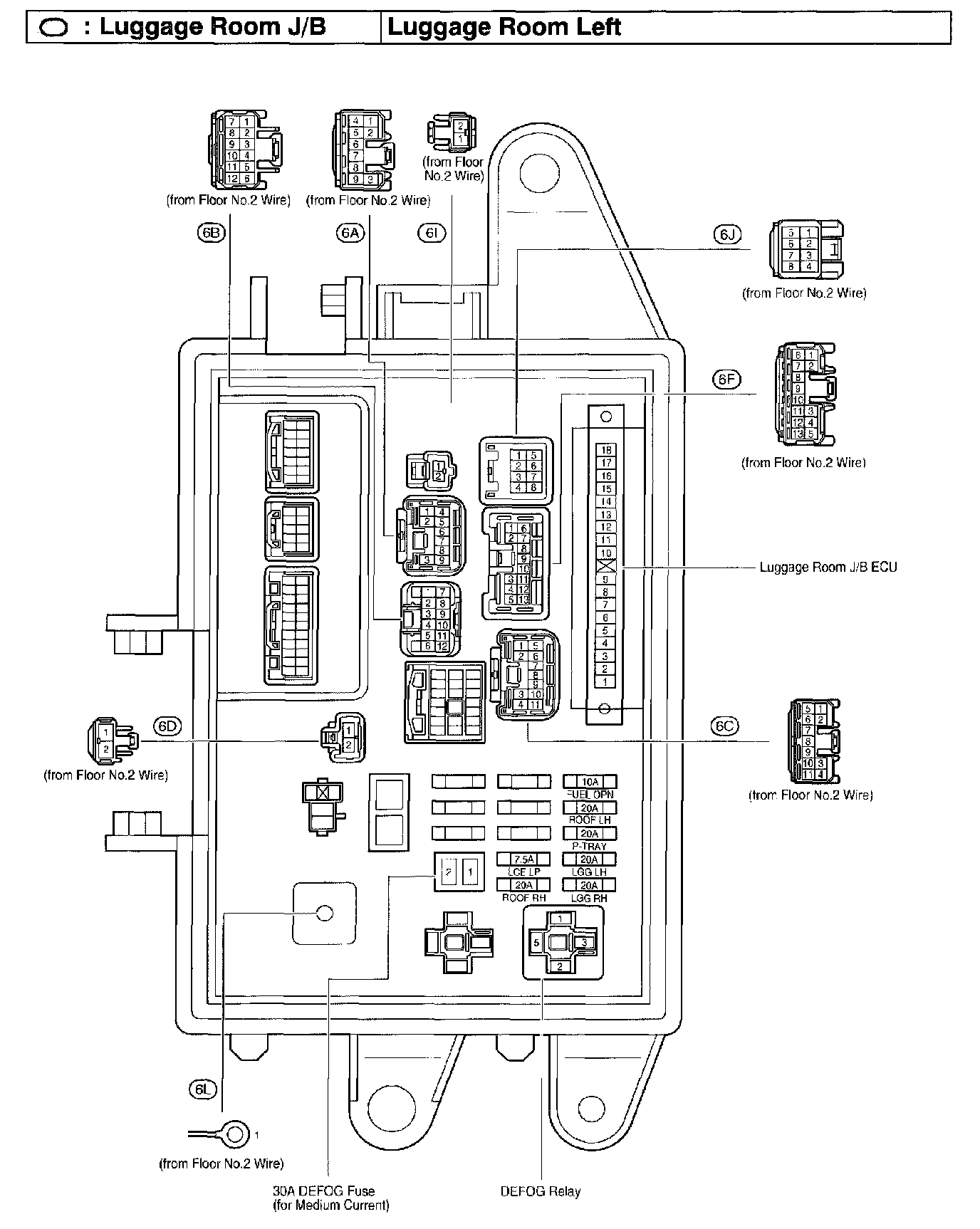

Luggage Room J/B - Luggage Room Left:
