Differential Carrier Assembly

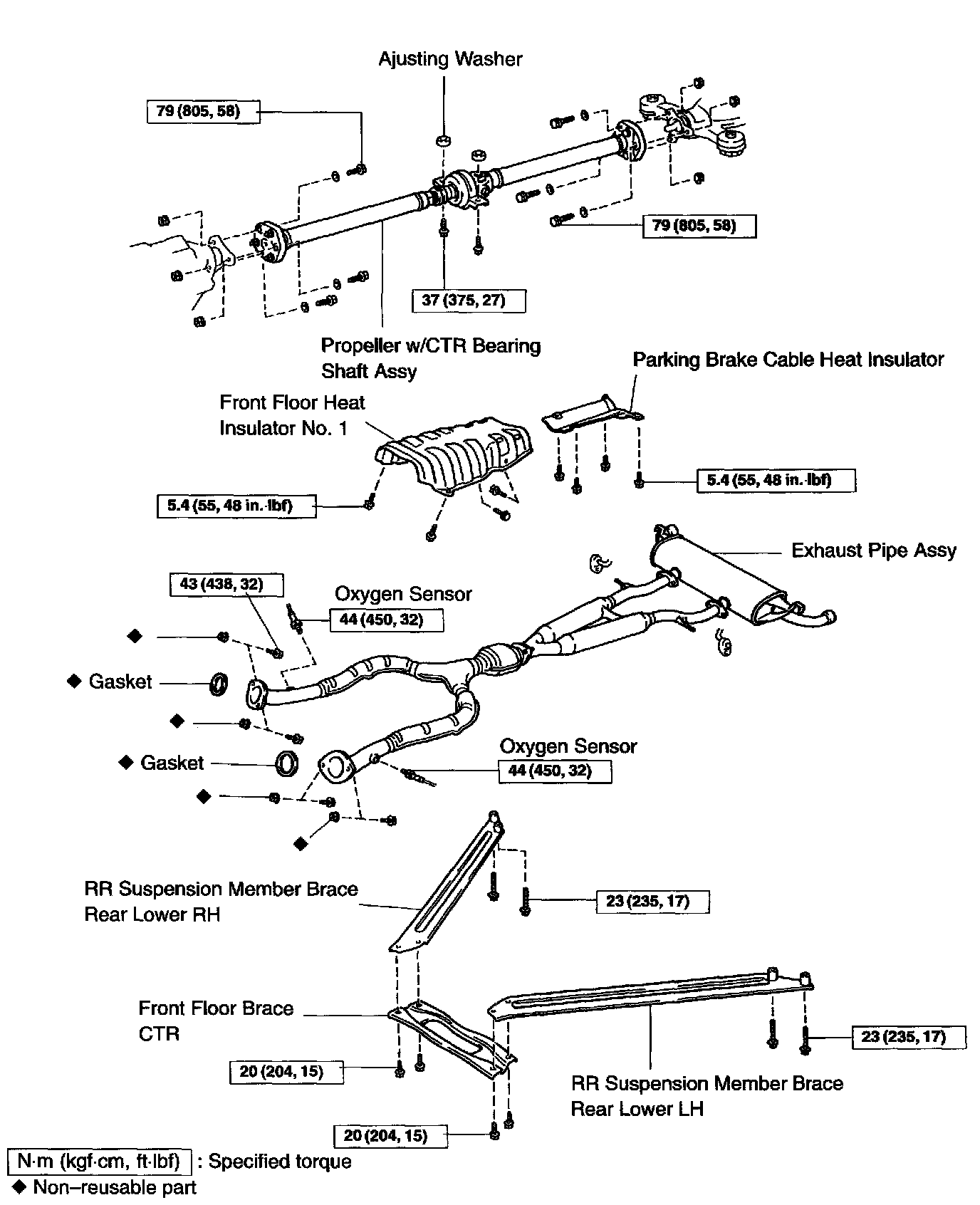

Part 1 Of 3:

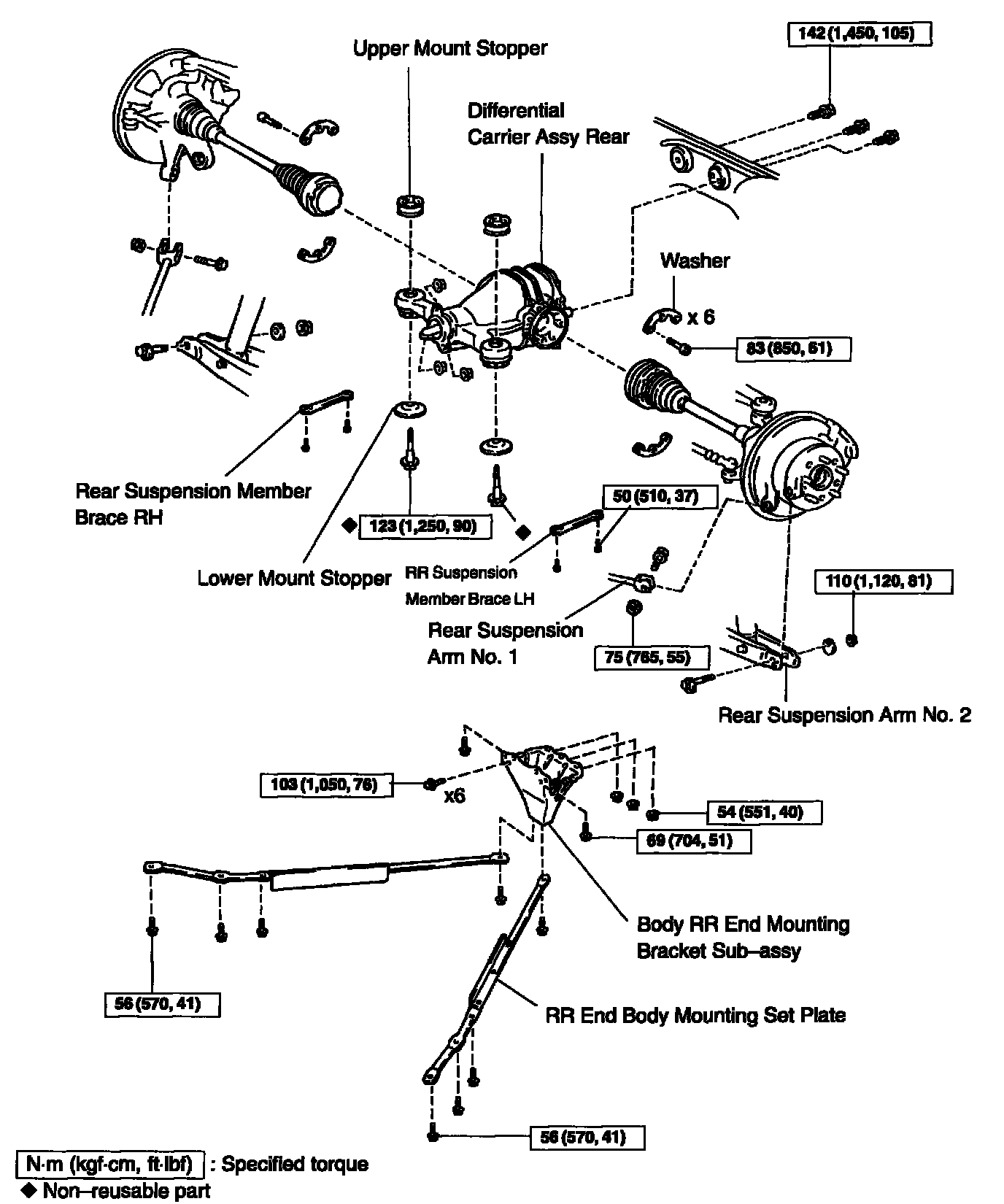

Part 2 Of 3:

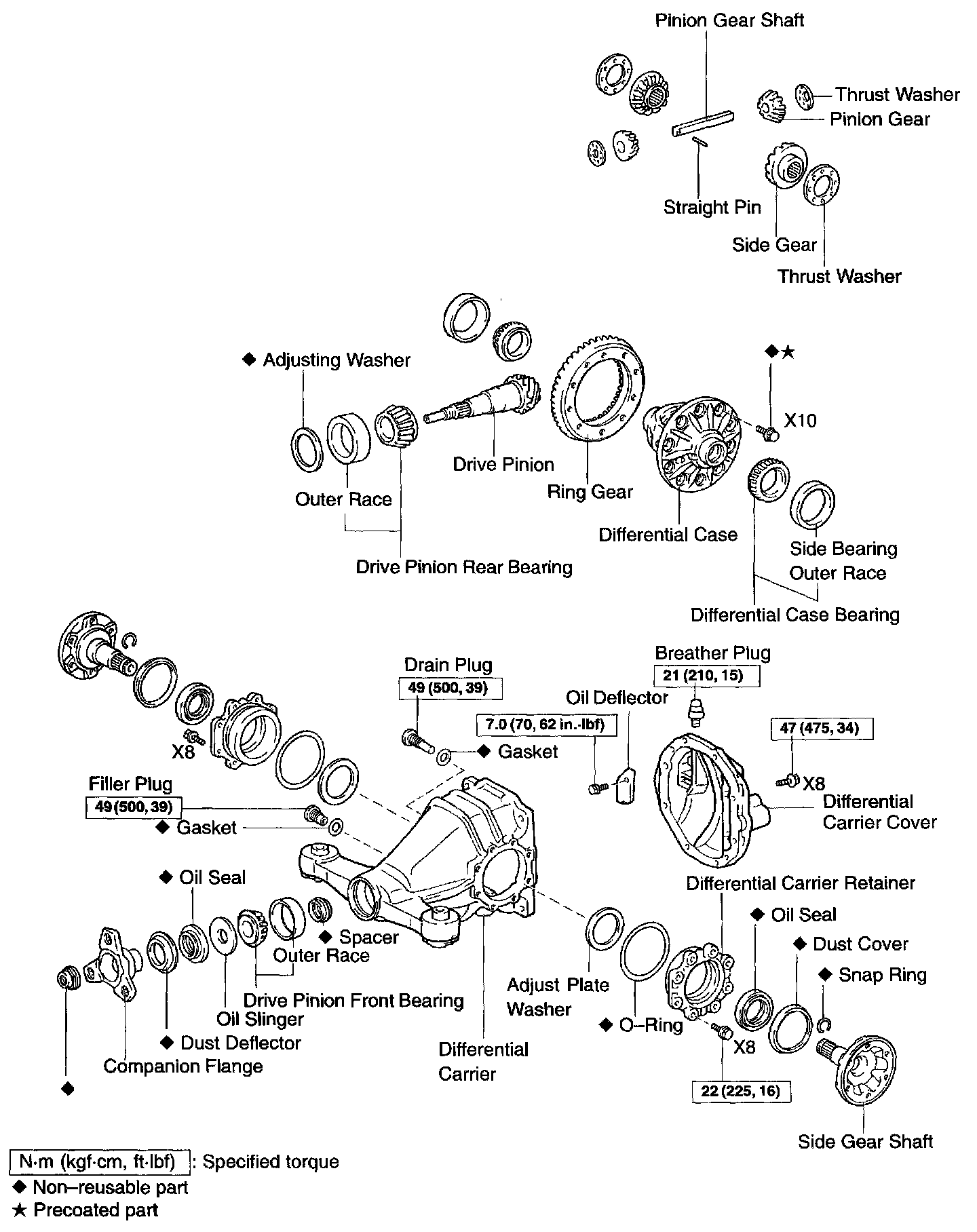

Part 3 Of 3:





DIFFERENTIAL CARRIER ASSY REAR OVERHAUL W/ RELATED COMPONENTS
