Horn System: Replacement

HINT:

Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.

1. REMOVE HIGH PITCHED HORN ASSY
   1. Remove the bolt and high pitched horn assembly then disconnect the connector.
2. REMOVE LOW PITCHED HORN ASSY
   1. Remove the bolt and low pitched horn assembly then disconnect the connector.
3. INSTALL HIGH PITCHED HORN ASSY

   Torque: 19.5 N.m (199 kgf.cm, 14 ft.lbf)

4. INSTALL LOW PITCHED HORN ASSY

   Torque: 19.5 N.m (199 kgf.cm, 14 ft.lbf)

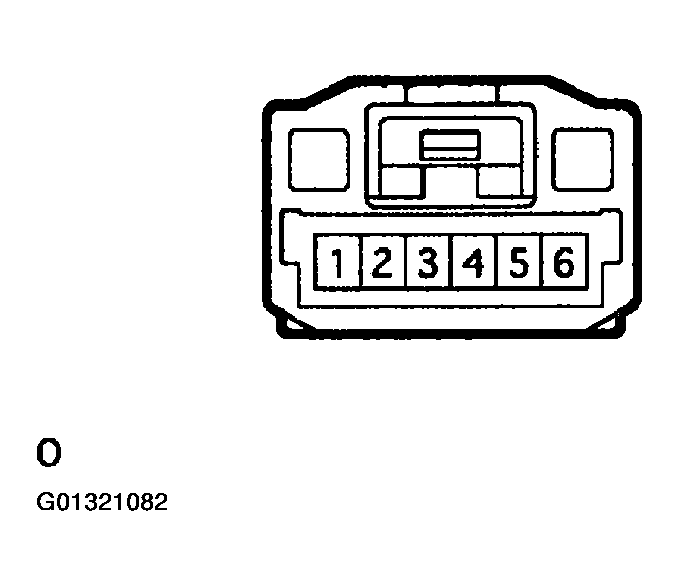

Fig 1: Identifying Horn Button Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

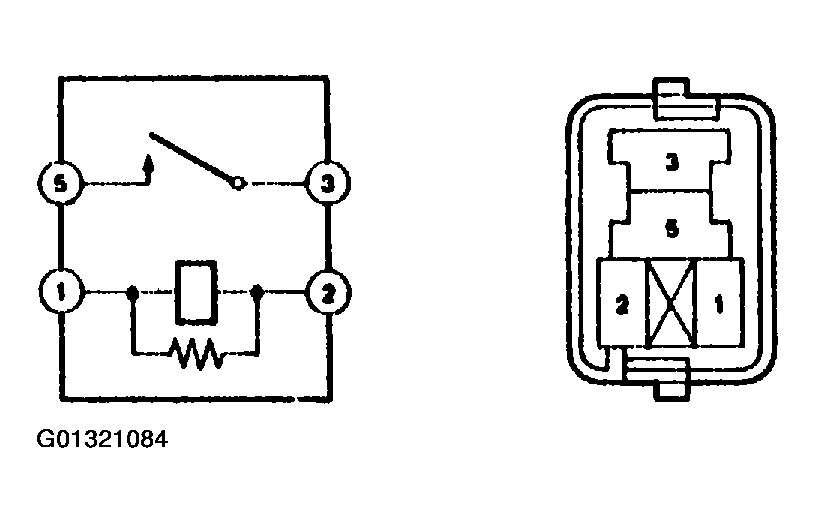

Fig 2: Horn Relay Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
