Cruise Control Main Switch ASSY: Replacement

  1. PRECAUTION
  2. SEPARATE BATTERY NEGATIVE TERMINAL
  3. REMOVE STEERING WHEEL COVER LOWER NO. 2 (See  STEERING COLUMN SYSTEM  )
  4. REMOVE SWITCH & VOLUME CASE (See  STEERING PAD SWITCH MODULATOR  )
  5. REMOVE STEERING PAD SWITCH MODULATOR (See  STEERING PAD SWITCH MODULATOR  )
  6. REMOVE HORN BUTTON ASSY (See  STEERING COLUMN SYSTEM  )
  7. REMOVE STEERING WHEEL ASSY (See  STEERING COLUMN SYSTEM

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  8. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
    1. Remove the 3 screws.

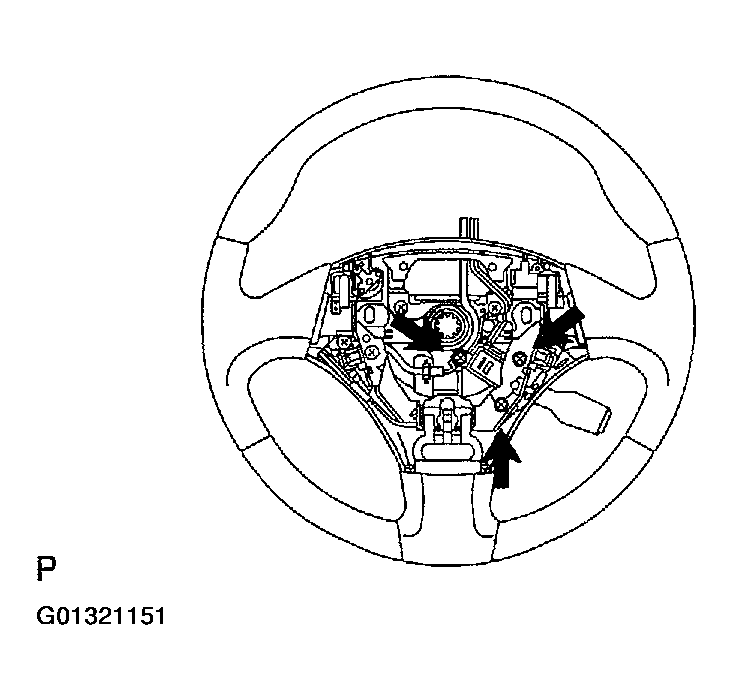

      Fig 1: Removing Cruise Control Main Switch Assembly (1 Of 2)
      G01321151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the steering wheel and remove the 3 screws.
    3. Remove the steering wheel boss cover lower and cruise control main switch assy.

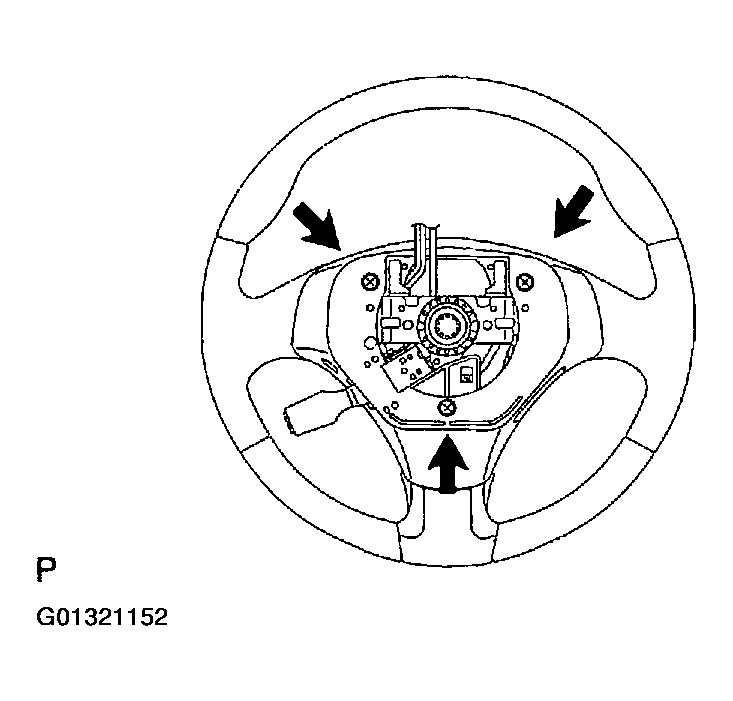

    Fig 2: Removing Cruise Control Main Switch Assembly (2 Of 2)
    G01321152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT STEERING WHEEL CENTER POINT
  10. INSTALL STEERING WHEEL ASSY (See  STEERING COLUMN ASSY  )
  11. INSPECT HORN BUTTON ASSY (See  STEERING COLUMN ASSY  )
  12. INSTALL HORN BUTTON ASSY (See  STEERING COLUMN ASSY  )
  13. INSPECT SRS WARNING LIGHT
