Steering Pad Switch Modulator: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE SWITCH & VOLUME CASE
   1. Apply protective tape to the steering wheel boss cover lower as shown in the illustration.
   2. Using a screwdriver, disengage the 3 claws and remove the switch & Volume Case.

      HINT:

      Tape the screwdriver tip before use.

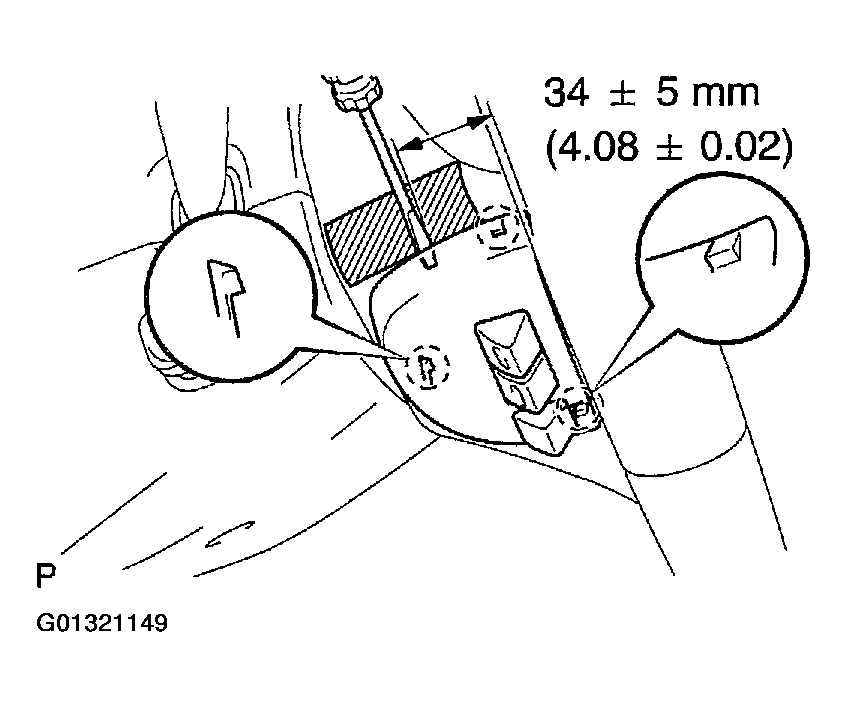

   Fig 1: Disengaging 3 Claws Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE STEERING PAD SWITCH MODULATOR
   1. Remove the 2 screws.
   2. Remove the steering pad switch modulator then disconnect the connector.

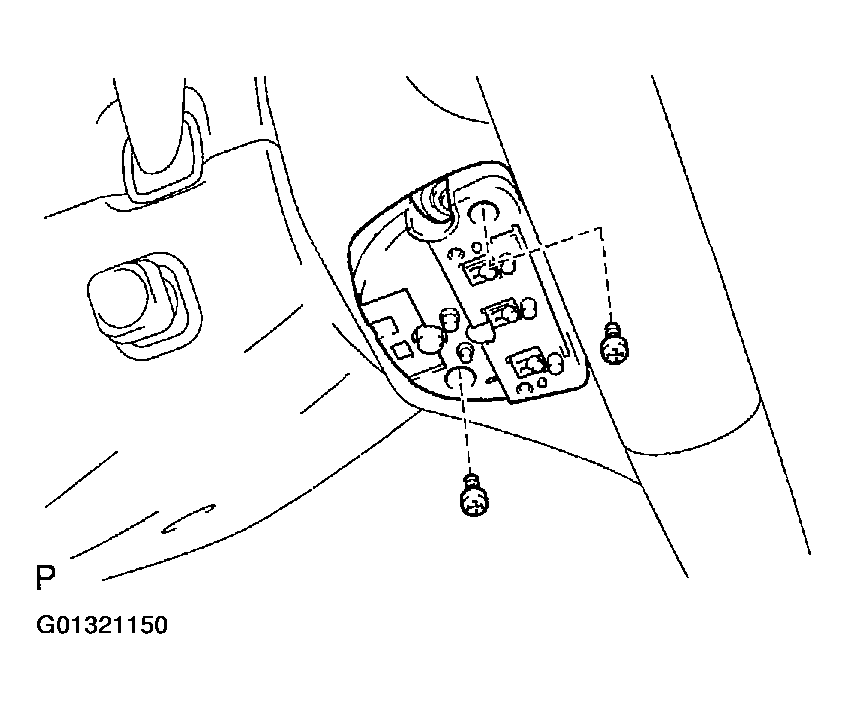

   Fig 2: Removing Steering Pad Switch Modulator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
