Transmitter Battery: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE DOOR CONTROL TRANSMITTER ASSY (See  DOOR CONTROL TRANSMITTER ASSY  ).
2. REMOVE TRANSMITTER BATTERY
   1. Using a screwdriver, remove the 2 screws and cover.
   2. Remove the transmitter battery (lithium battery).
      NOTE:

      • Do not push the terminals with your finger.
      • Prying up the battery (lithium battery) to forcibly remove it will cause deformation of the terminals.

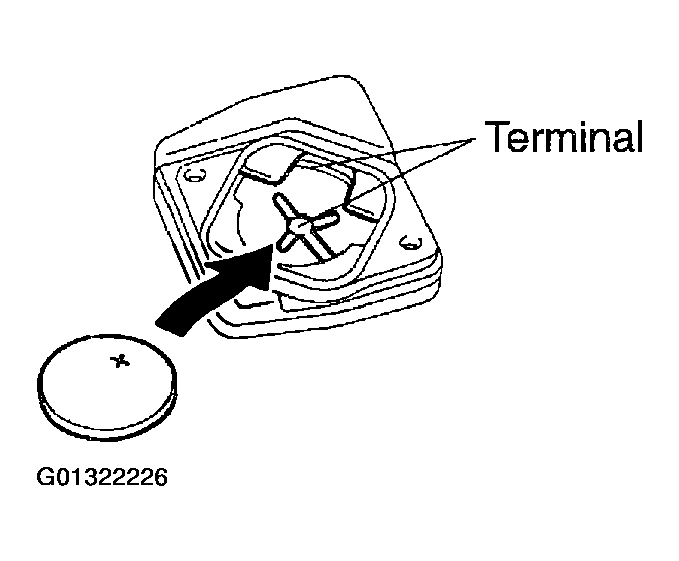

   Fig 1: Removing Transmitter Battery

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL TRANSMITTER BATTERY
   1. Install the transmitter battery (lithium battery) as shown in the illustration.
      NOTE: Install with the battery facing upwards, taking care not to deform the terminals.
   2. Check that the O-ring is not distorted or out of place, and install the cover.
   3. Using a screwdriver, tighten the 2 screws.
      NOTE: If the screws are loose, it may cause faulty contact between the battery (lithium battery) and the terminals.

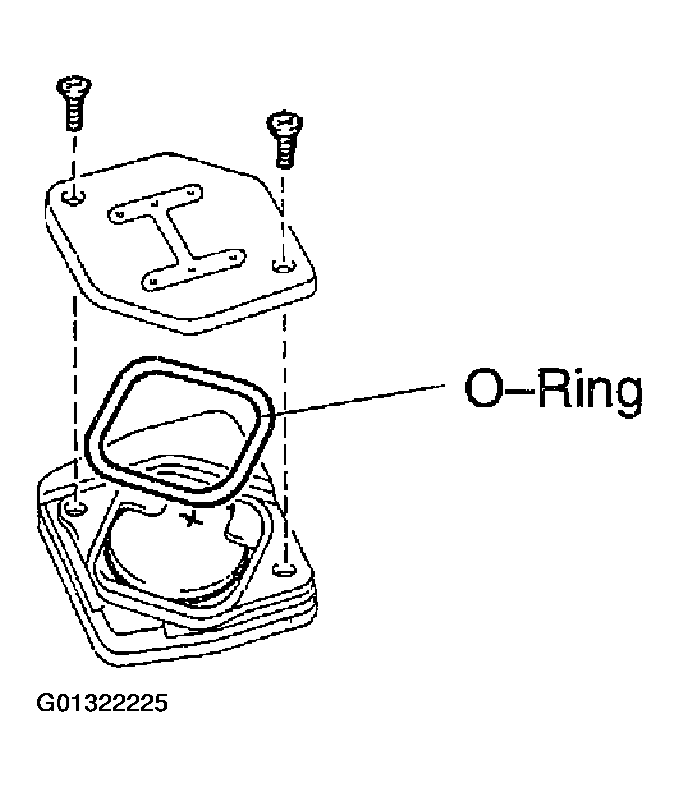

Fig 2: Installing Transmitter Battery

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
