Inner Rear View Mirror ASSY: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE MAP LAMP ASSY
2. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
   1. Using a screwdriver, remove the inner rear view mirror stay holder cover.

   HINT:

   Tape the screwdriver tip before use.

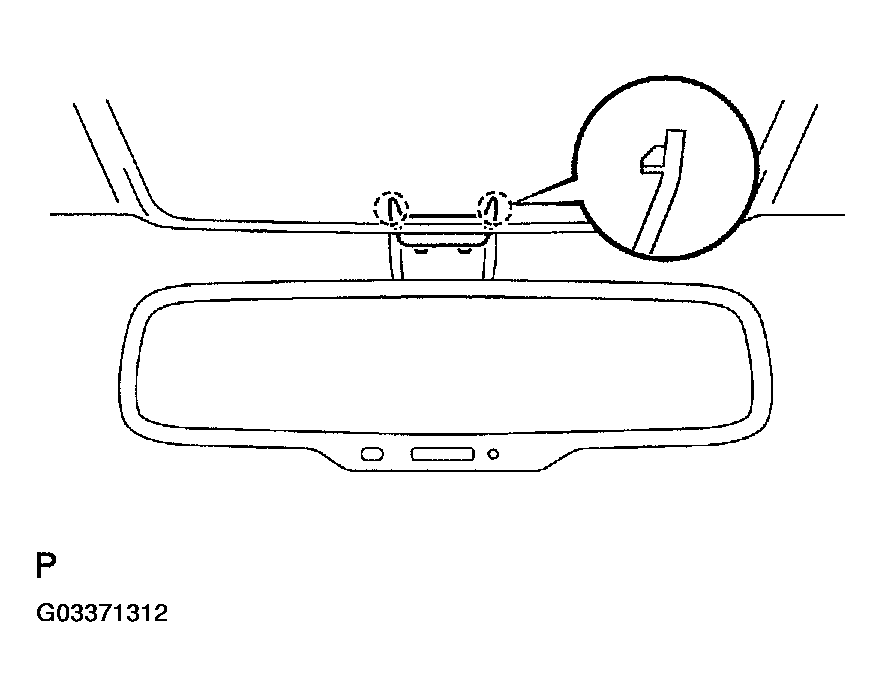

   Fig 1: Removing Inner Rear View Mirror Stay Holder Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE INNER REAR VIEW MIRROR ASSY
   1. Disconnect the inner rear view mirror connector.
   2. Remove the mirror assembly by turning the stay part of the mirror counterclockwise.

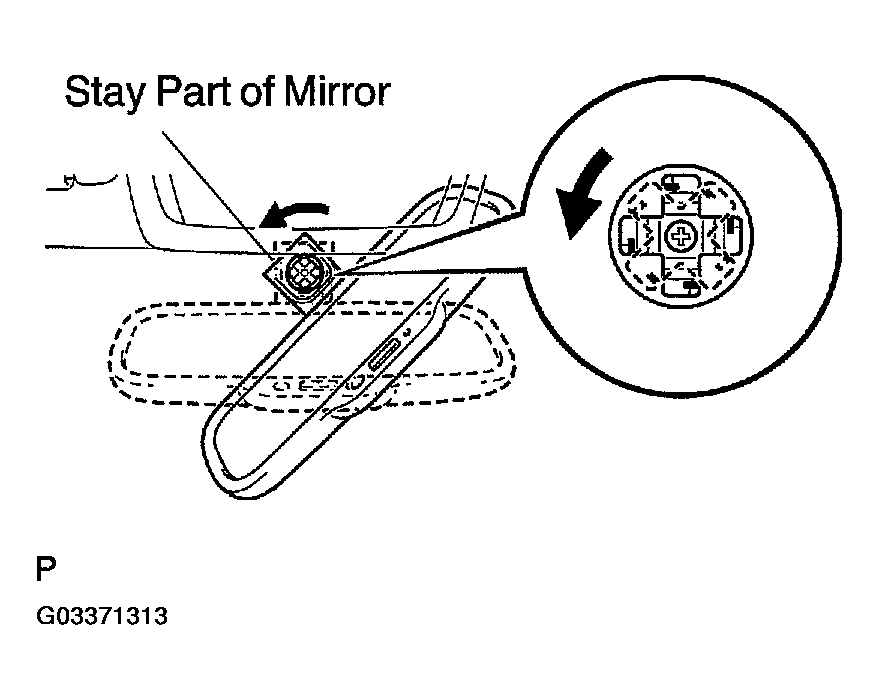

   Fig 2: Removing Inner Rear View Mirror Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL INNER REAR VIEW MIRROR ASSY
   1. Match the claw of the stay part of the mirror with a cut part of the base.
   2. Turn the stay part of the mirror clockwise so that the stay can come to the original position, and then install the mirror assembly.
   3. Connect the inner rear view mirror connector.

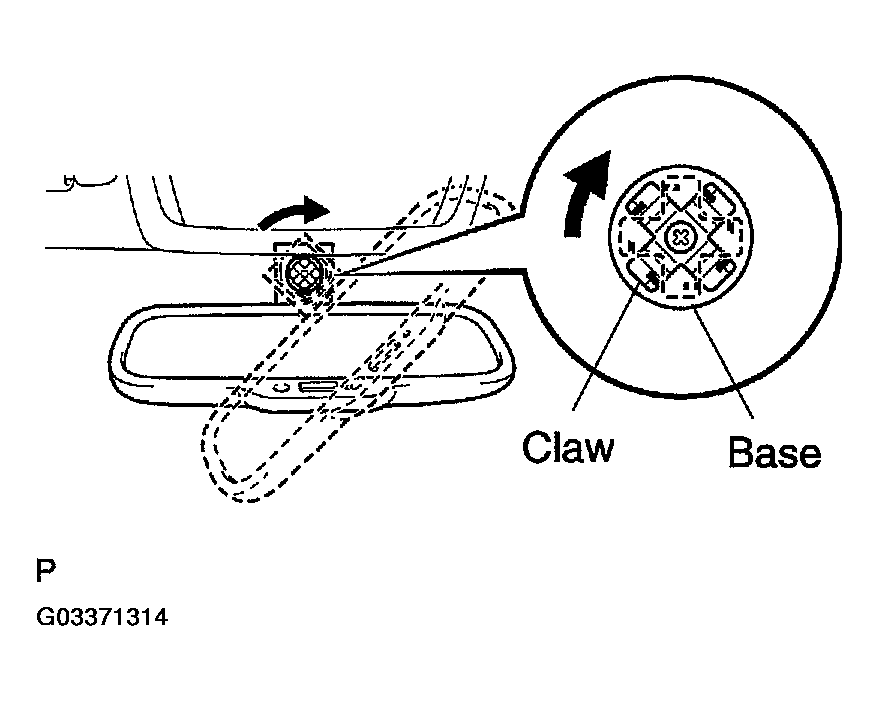

   Fig 3: Installing Inner Rear View Mirror Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
