Inspection Procedure

1. NO: Go to step   3
2. YES: GO TO NEXT STEP

1. Using the hand-held tester, check the rear outer view mirror condition by the data monitor.

   Standard:

Driver side J/B

1. OK: FLOW CHART 2 (See  DOOR MIRROR CIRCUIT (FLOW CHART 2)  )
2. NG: GO TO NEXT STEP

1. Check the continuity between each terminal of the retract switch.

   Standard:

   SPECIFIED CONDITION CHART



   Switch position	Terminals	Specified condition
   Retract	-	No continuity
   Return	4 <--> 5	Continuity

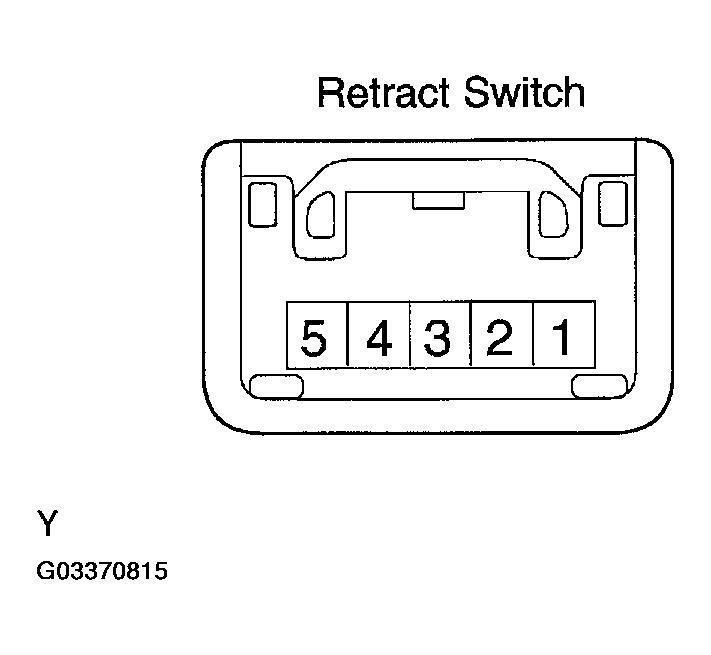

   Fig 1: Identifying Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE OUTER MIRROR SWITCH ASSY
2. OK: GO TO NEXT STEP

1. Disconnect the retract switch and driver side J/B connectors.
2. Check the continuity between each terminal of the retract switch vehicle's side connector and the driver side J/B vehicle's side connector (See TERMINALS OF ECU ).

   Standard:

   TERMINAL CHART



   Terminals (Mirror SW - Driver J/B)	Specified Condition
   M4-4 <--> D5-8 (Retract SW <-->RET)	Continuity

HINT:

• With hand-held tester, proceed to OK-A.
• Without hand-held tester, proceed to OK-B.

1. OK-B: FLOW CHART 2 (See  DOOR MIRROR CIRCUIT (FLOW CHART 2)  )
2. NG: REPAIR OR REPLACE WIRE HARNESS CONNECTOR
3. OK-A: REPLACE DRIVER SIDE JUNCTION BLOCK

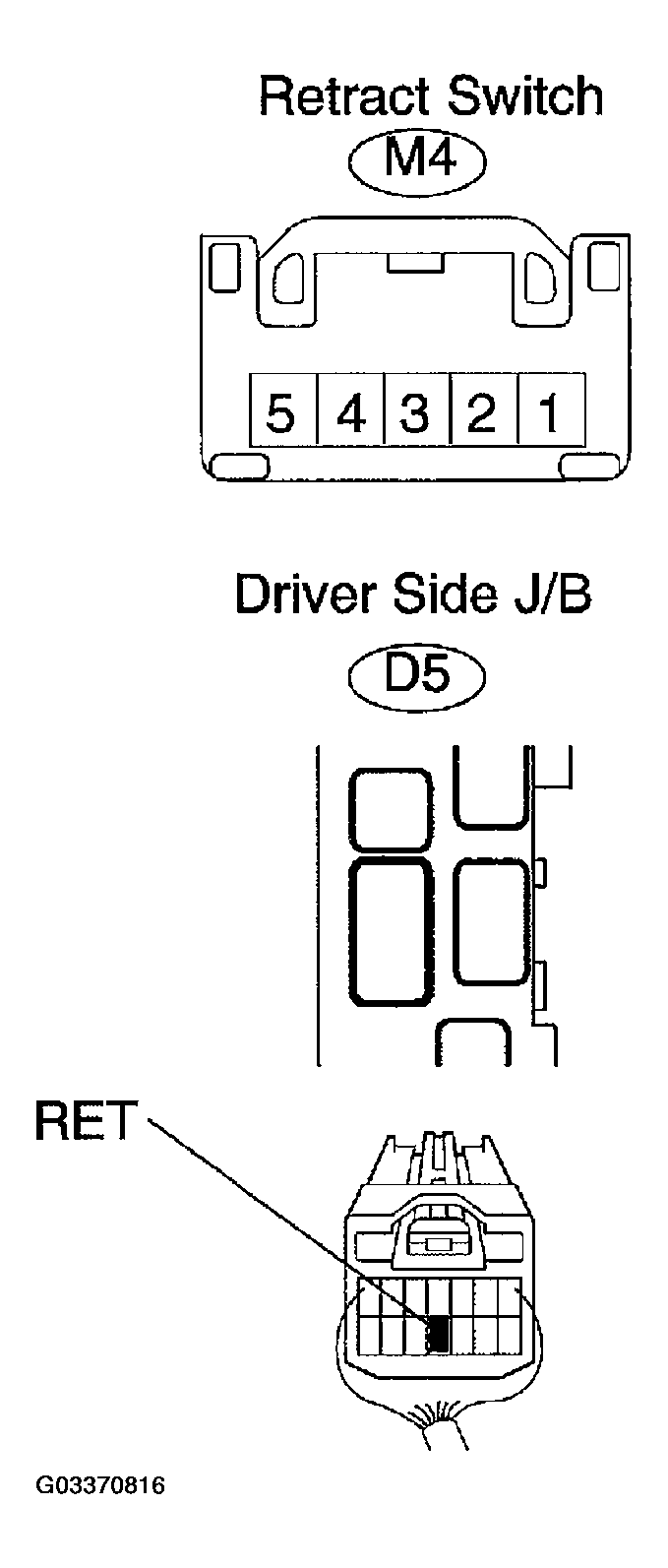

Fig 2: Identifying Connector Terminal
