Driver Power Window Does Not Operate: Wiring Diagram

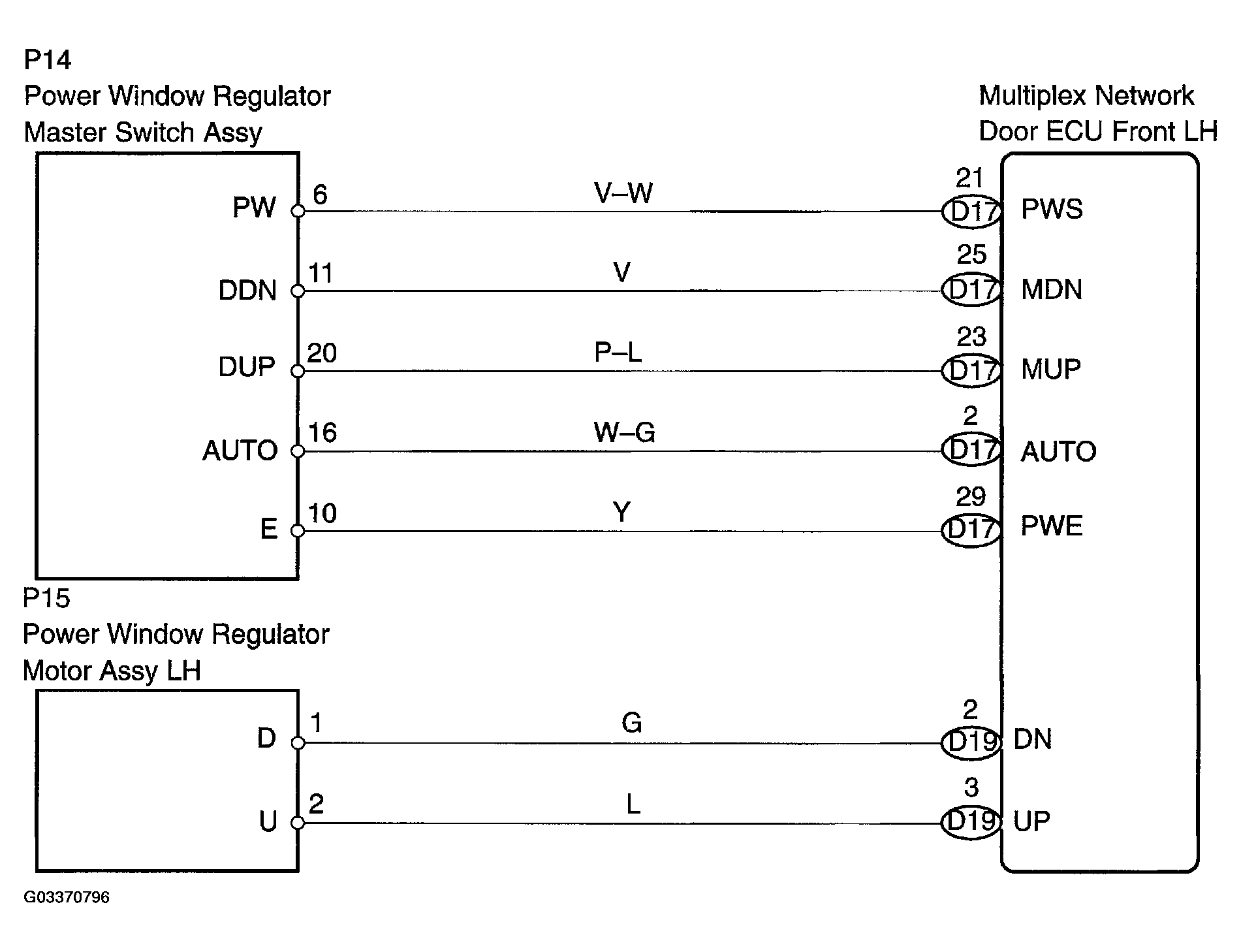

Fig 1: Identifying Power Window Regulator Master Switch Assembly Wiring Diagram
G03370796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
