Power Window Control System - Diagnosis: Location

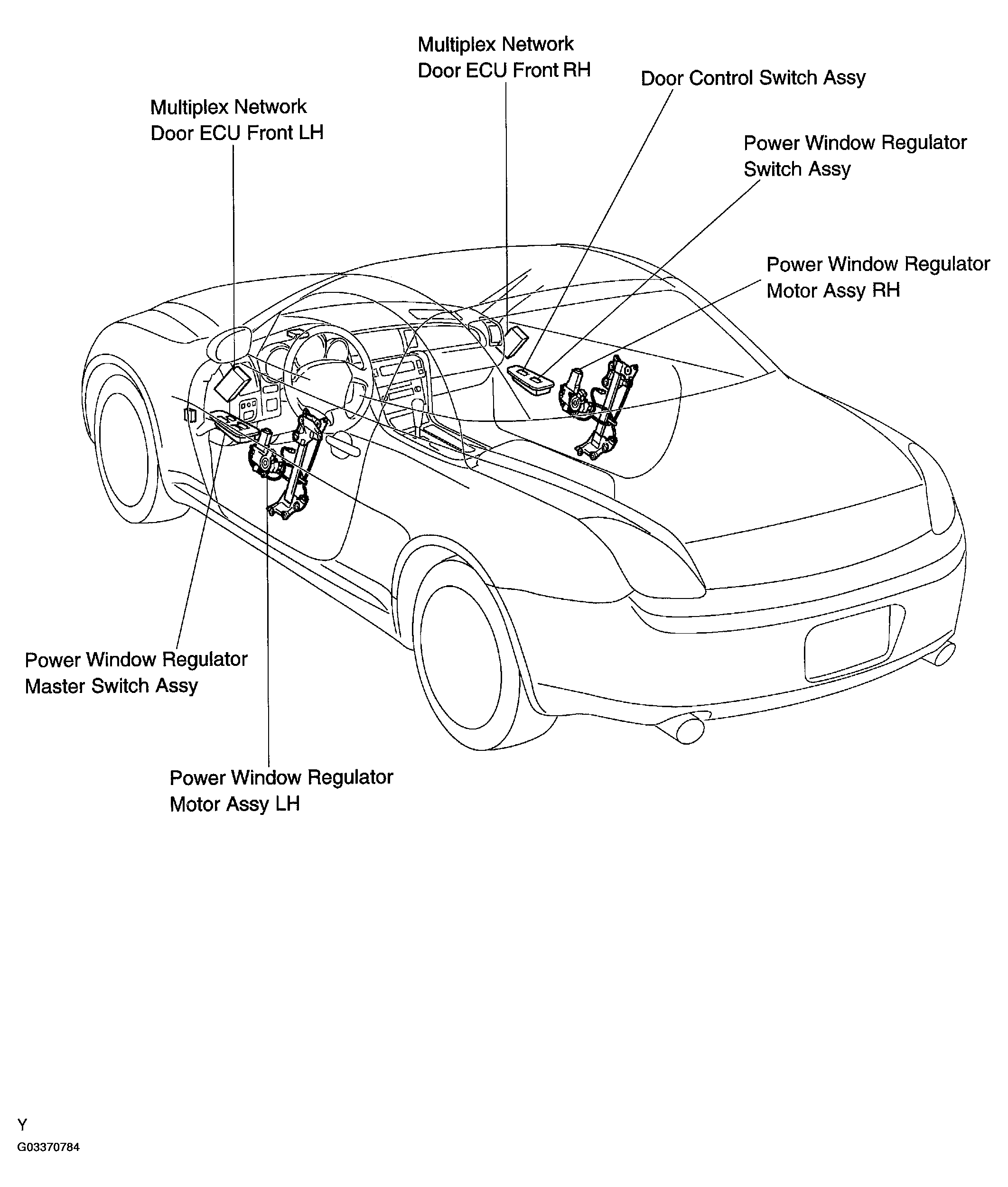

Fig 1: Identifying Parts Location
G03370784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
