Passenger Window Dose Not Operate Via Master Switch: Wiring Diagram

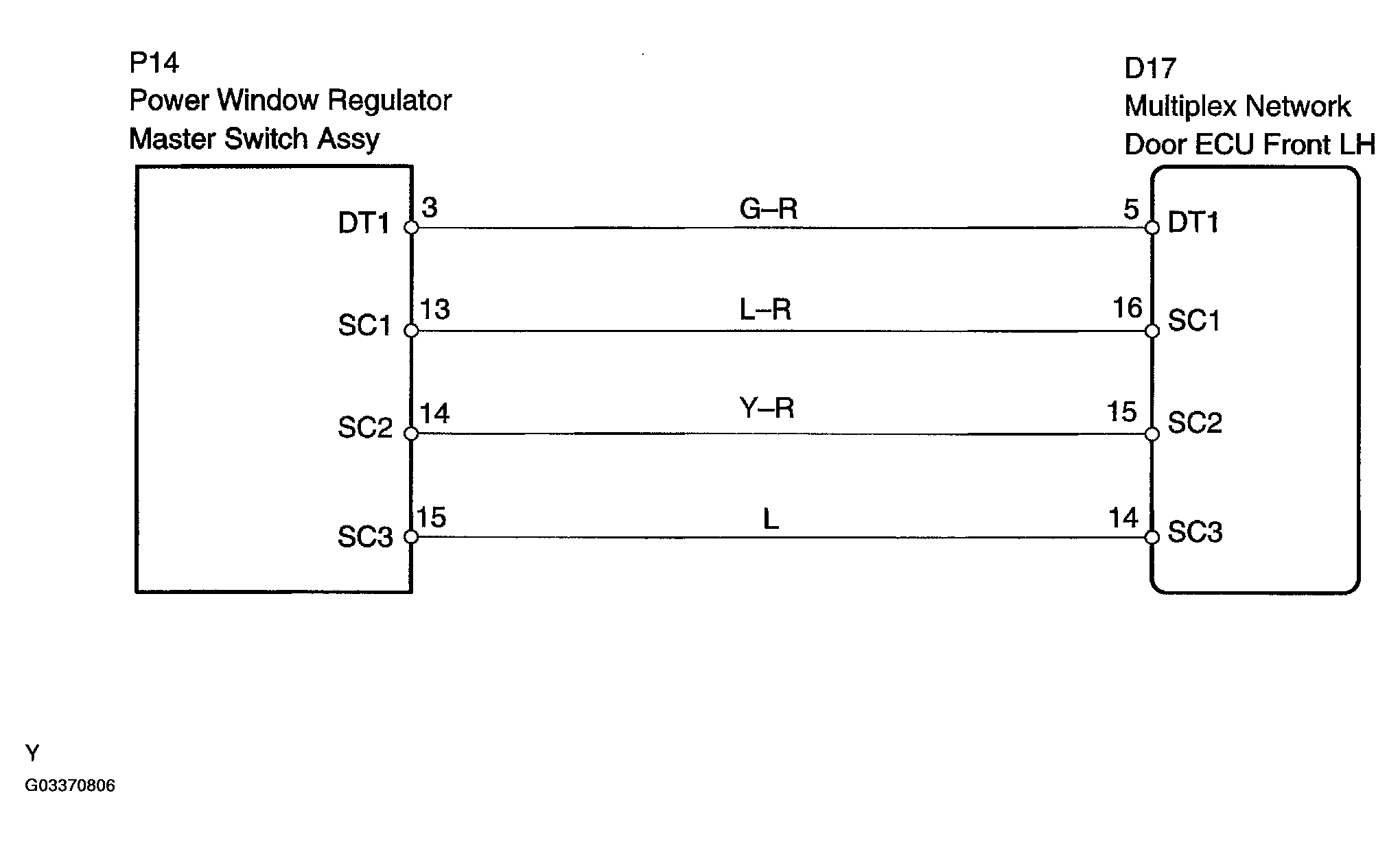

Fig 1: Power Window Regulator Switch Assembly Wiring Diagram
G03370806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
