Power Window Does Not Operate Via Passenger Power Window Switch: Wiring Diagram

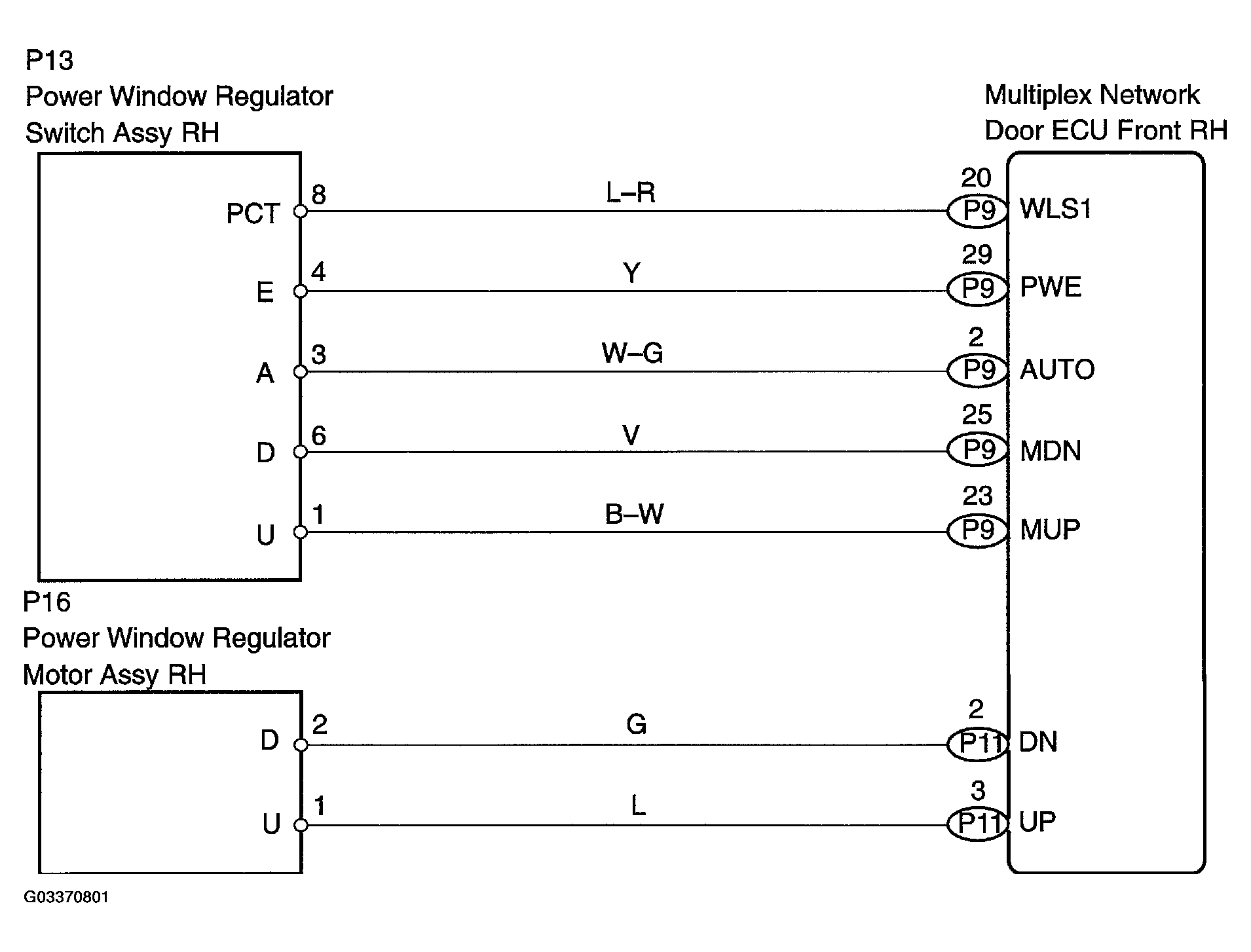

Fig 1: Power Window Regulator Switch Assembly Wiring Diagram
G03370801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
