Quarter Window ASSY RH: Adjustment

HINT:

On the LH side, use the same procedures as on the RH side.

INSPECT QUARTER WINDOW ASSY RH
1. Check that the clearance is within the standard value.

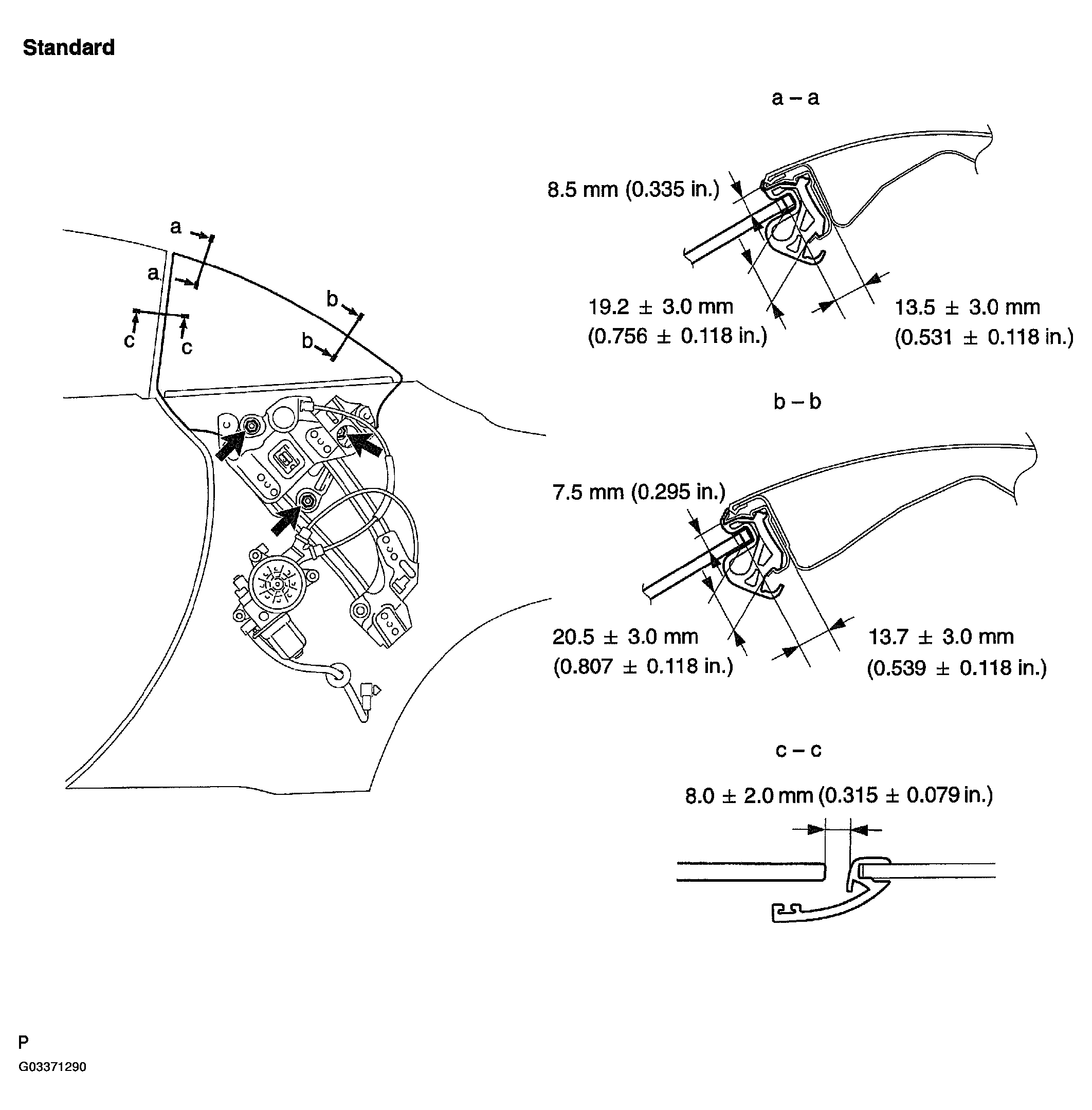

Fig 1: Checking Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST QUARTER WINDOW ASSY RH
1. Adjust the lower part of the glass inward/outward.
  1. (1) Loosen the 2 bolts on the quarter window assy.
  2. (2) Insert the shim to adjust the glass position (inside/outside).
    HINT:

    The shim should be inserted between the power window regulator and body.
  3. (3) Tighten the 2 bolts after adjustment.
  Torque: 8.0 N.m (82 kgf.cm, 71 ft.lbf)

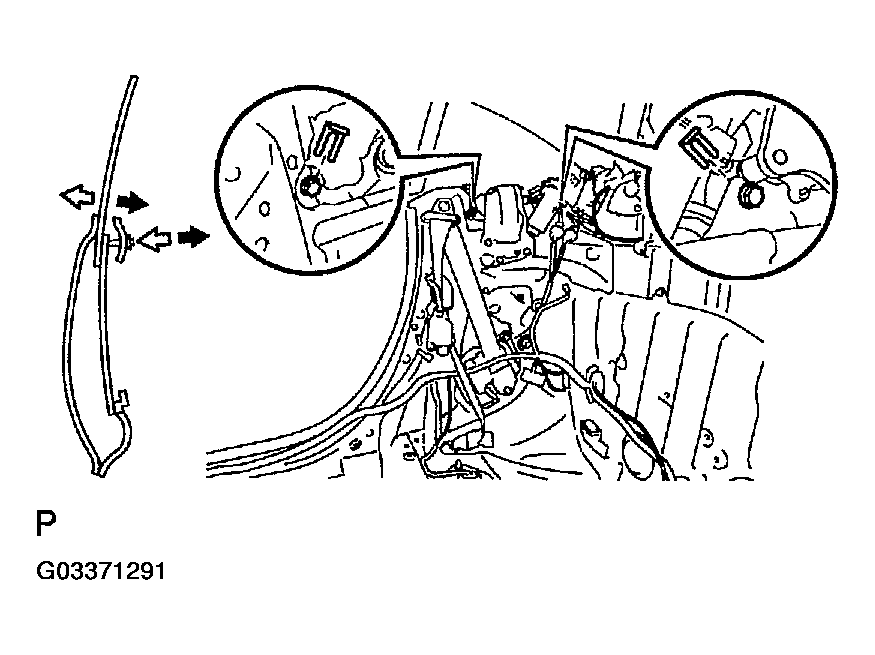

  Fig 2: Inserting Shim Between Power Window Regulator And Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the upper part of the glass inward/outward.
  1. (1) Remove the lock nut for the adjusting bolt.
  2. (2) Using a hexagon wrench, turn the bolt for adjustment.
  3. (3) Tighten the nut after adjustment.
  Torque: 13.0 N.m (133 kgf.cm, 10 ft.lbf)

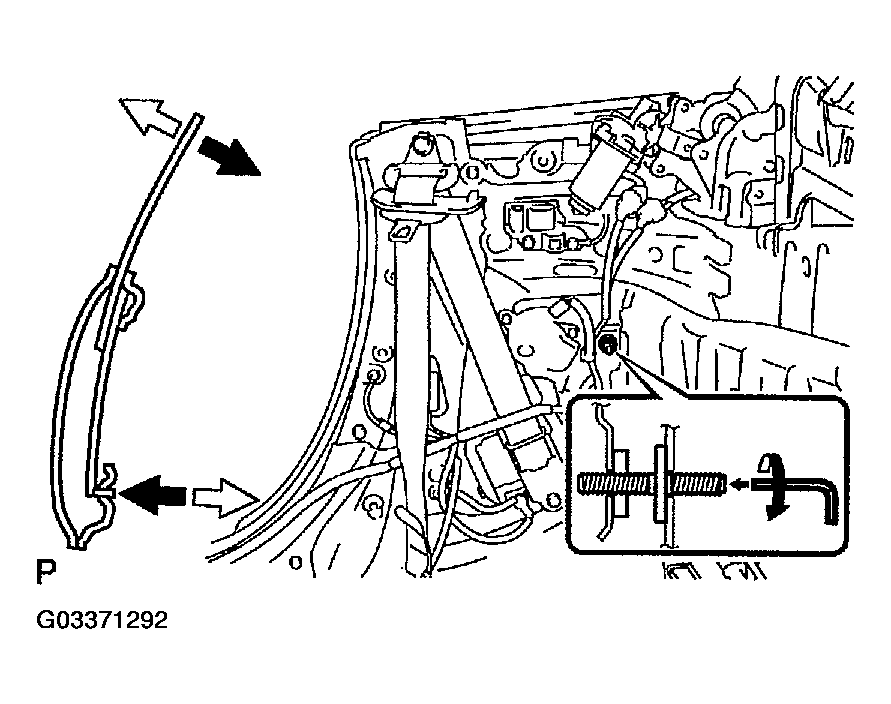

  Fig 3: Removing Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the glass vertically and forward/rearward.
  1. (1) Loosen the 3 bolts on the glass for adjustment.
  2. (2) Adjust the vertical and forward/rearward positions of the glass
    Vertical position: +/- 3 mm (+/- 0.12 in.)

    Horizontal position: +/- 5 mm (+/- 0.20 in.)
  3. (3) Tighten the 3 bolts after adjustment.
  Torque: 8.0 N.m (82 kgf.cm, 71 ft.lbf)

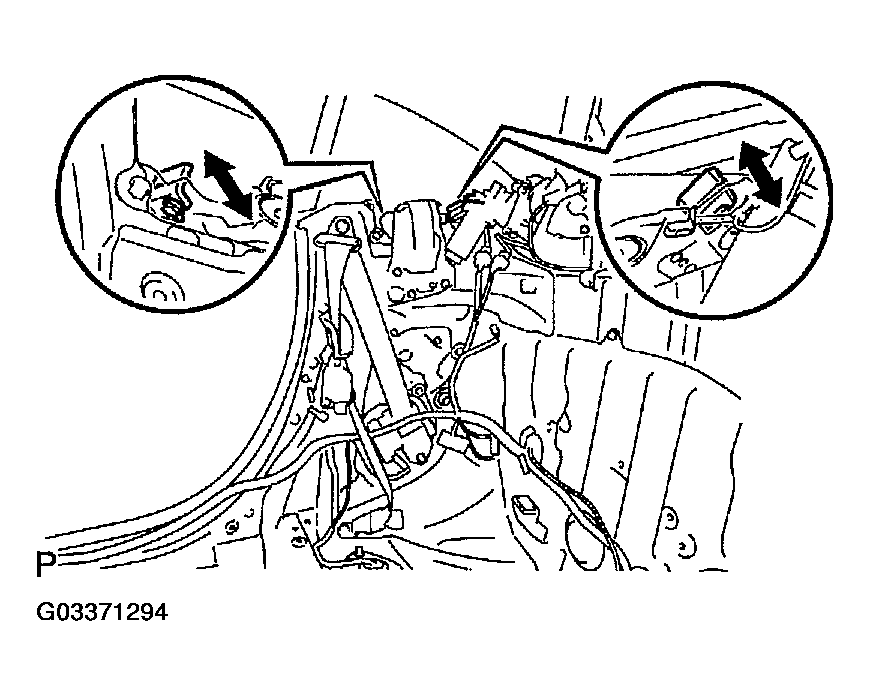

  Fig 4: Adjusting Glass Vertically And Forward/Rearward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the glass stopper.
  1. (1) After adjustment (step a to c), install the glass stopper.
  2. (2) Tighten the 2 bolts.
  Torque: 11.5 N.m (117 kgf.cm, 8.5 ft.lbf)

  HINT:

  When the window is fully closed, adjust the position so that the window touches the 2 stoppers at the same time.

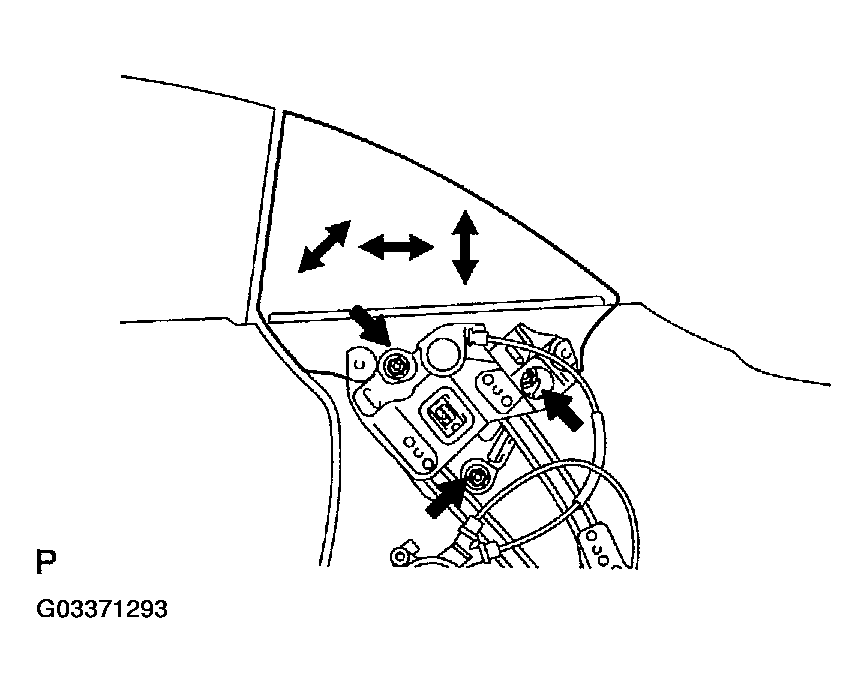

  Fig 5: Installing Glass Stopper
