Manual Close Operation

REMOVE REAR SEAT CUSHION ASSY (See page OVERHAUL )
REMOVE REAR SEAT HEADREST PLATE COVER (See page OVERHAUL )
REMOVE WIND DEFLECTOR BOARD ASSY (See page OVERHAUL )
REMOVE REAR SEAT HEADREST PLATE (See page OVERHAUL )
REMOVE REAR SEAT HEADREST ASSY (See page OVERHAUL )
REMOVE REAR SEAT BACK ASSY (See page OVERHAUL )
REMOVE DOOR SCUFF PLATE ASSY RH
REMOVE QUARTER TRIM PANEL ASSY FRONT RH
MANUALLY CLOSE QUARTER WINDOW ASSY RH
1. Remove the connector of the power window regulator motor RH.
2. Connect the battery positive terminal to terminal 1 of the connector, and the negative one to terminal 2. Then open the quarter window assy.
HINT:

On the LH side, connect the battery positive terminal to terminal 2 and the negative one to terminal 1.

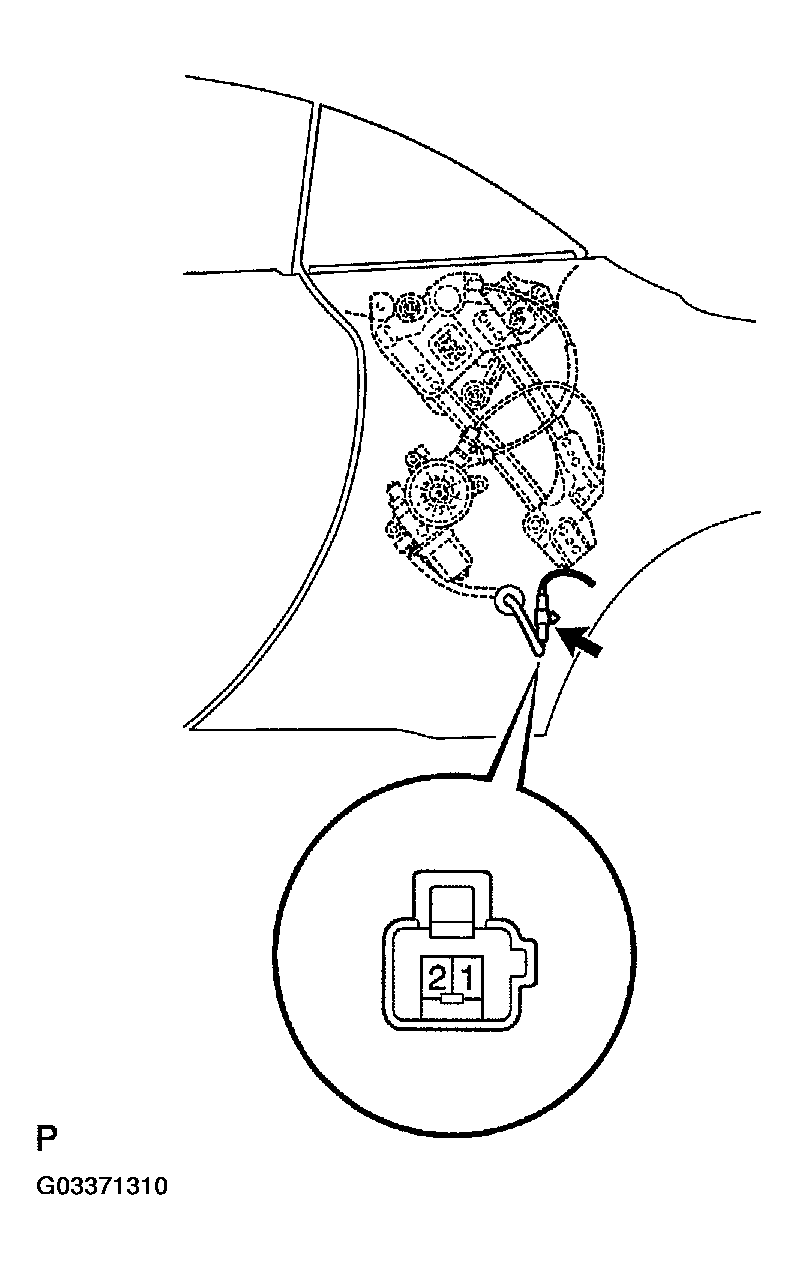

Fig 1: Identifying Power Window Regulator Motor RH Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER TRIM PANEL ASSY FRONT RH
INSTALL DOOR SCUFF PLATE ASSY RH
INSTALL REAR SEAT BACK ASSY (See page OVERHAUL )
Torque:

Bolt: 18 N.m (184 kgf.cm, 13 ft.lbf)

Nut: 7.0 N.m (71 kgf.cm, 63 in..lbf)
INSTALL REAR SEAT HEADREST ASSY
Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
INSTALL WIND DEFLECTOR BOARD ASSY
Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
