Testing Procedure

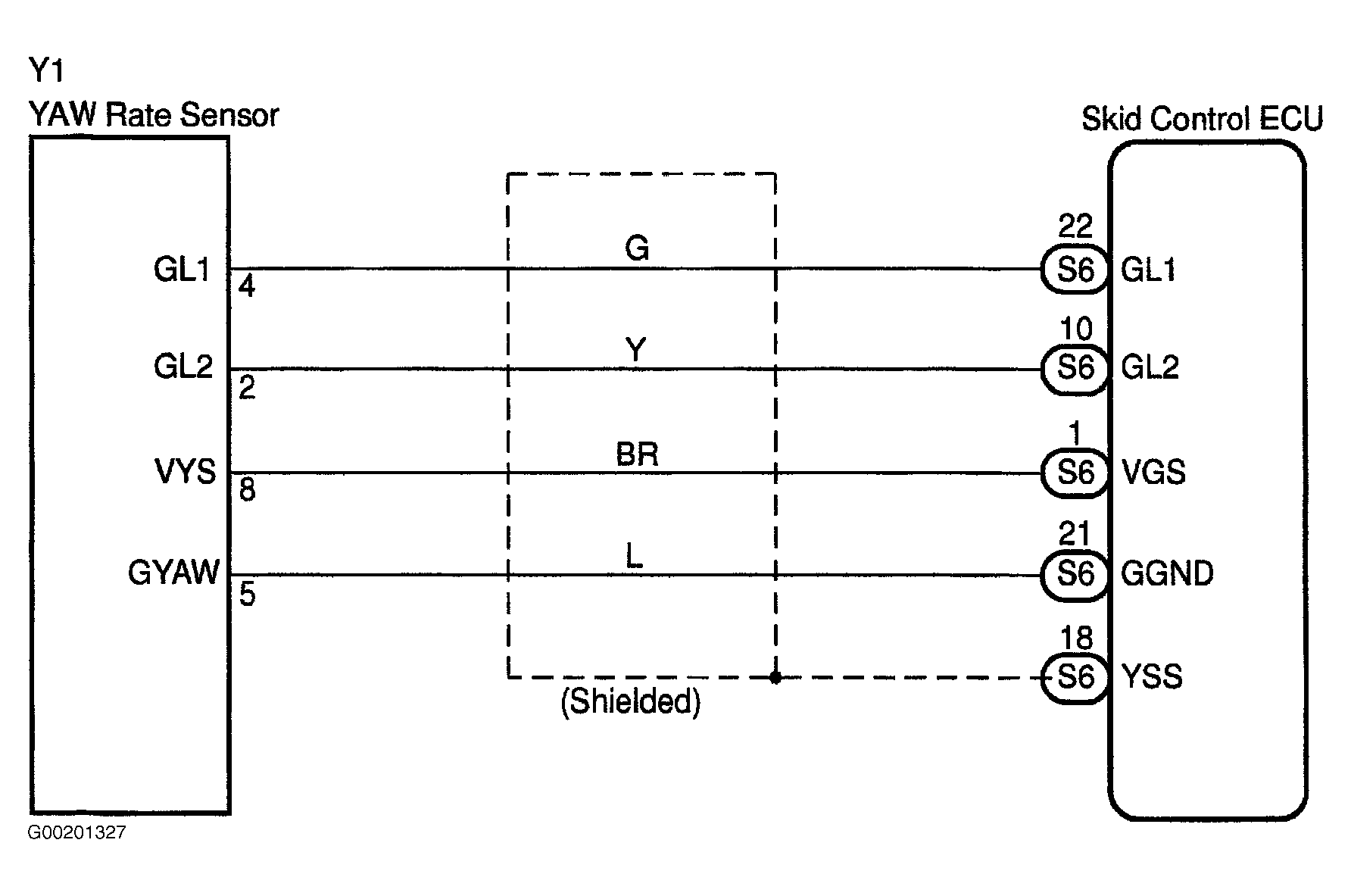

For wiring diagram see Figure. For testing procedure see Fig 1 and Fig 2 .

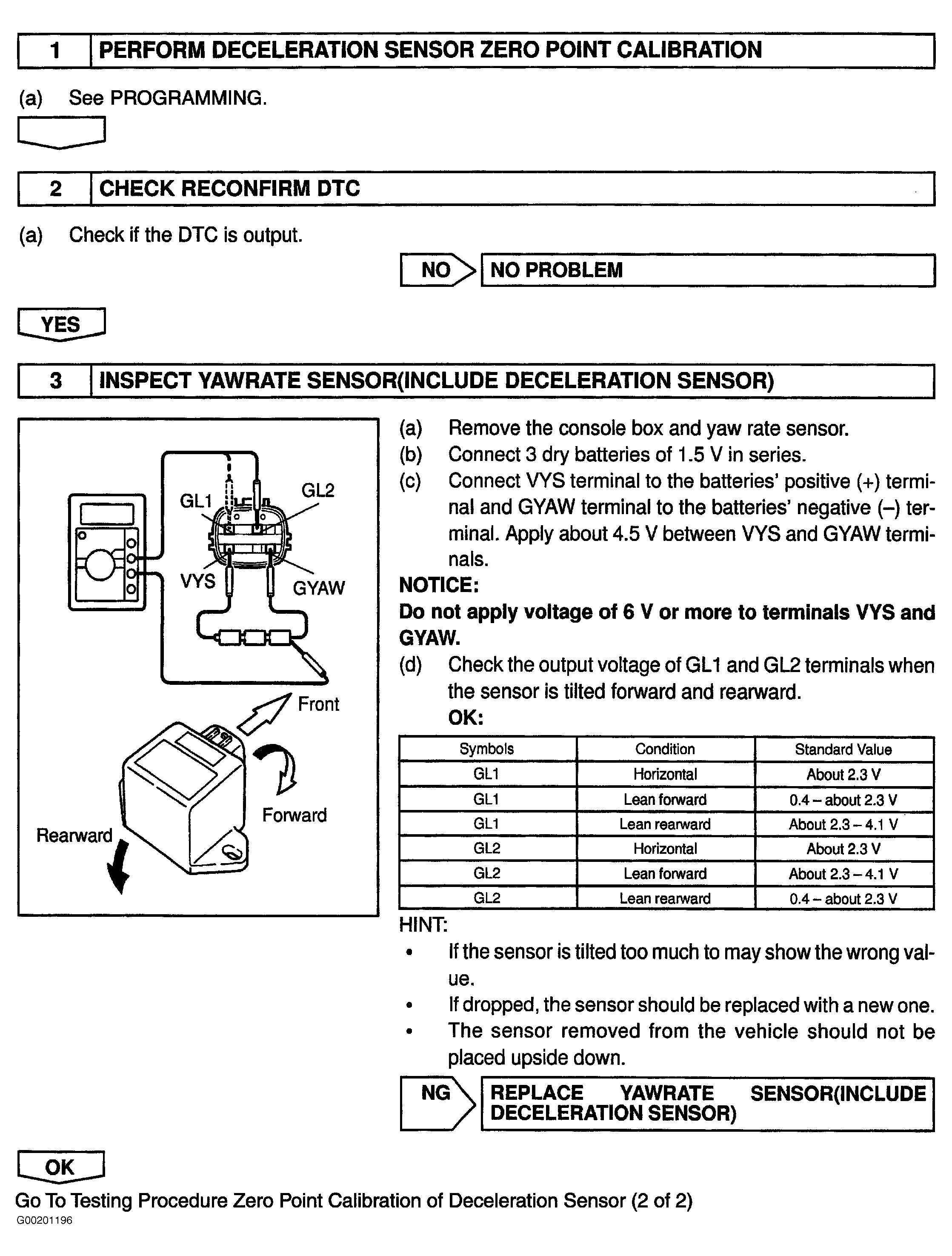

Fig 1: Testing Procedure Zero Point Calibration Of Deceleration Sensor (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

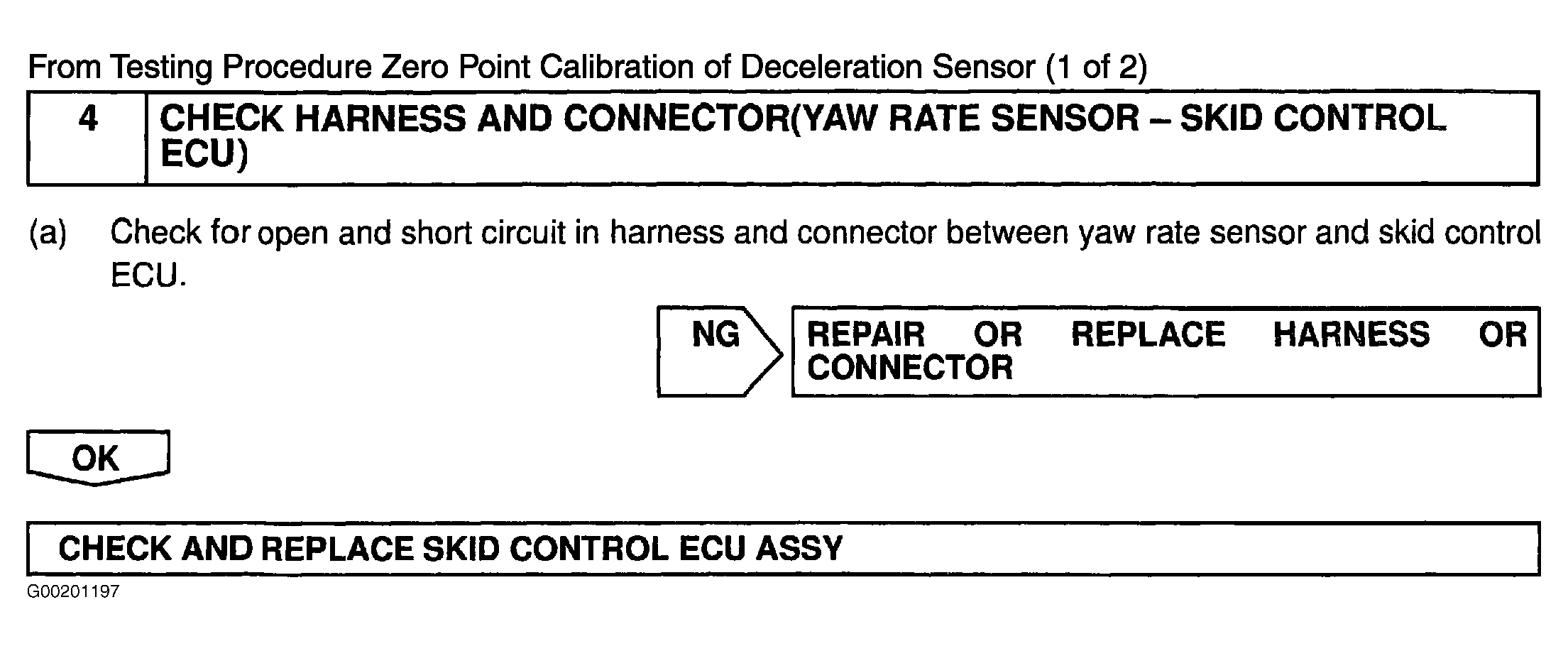

Fig 2: Testing Procedure Zero Point Calibration Of Deceleration Sensor (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
