Combination Meter ASSY: Overhaul

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY  (See REPLACEMENT )
  2. REMOVE COMBINATION METER ASSY  (See REPLACEMENT )
  3. REMOVE COMBINATION METER GLASS
    1. Disengage the 9 claws and remove the combination meter glass.

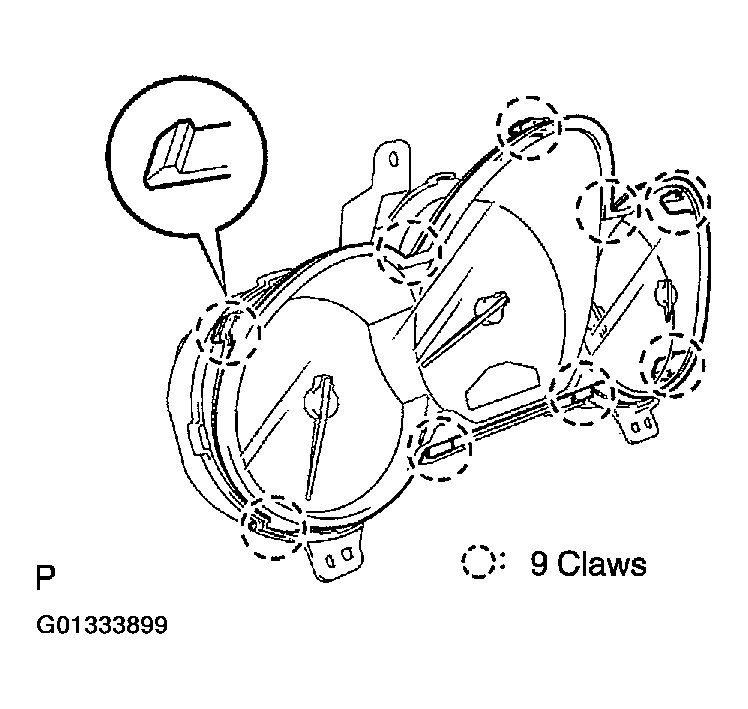

      Fig 1: Disengaging Claws And Removing Combination Meter Glass
      G01333899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
