Cylinder Block ASSY: Components

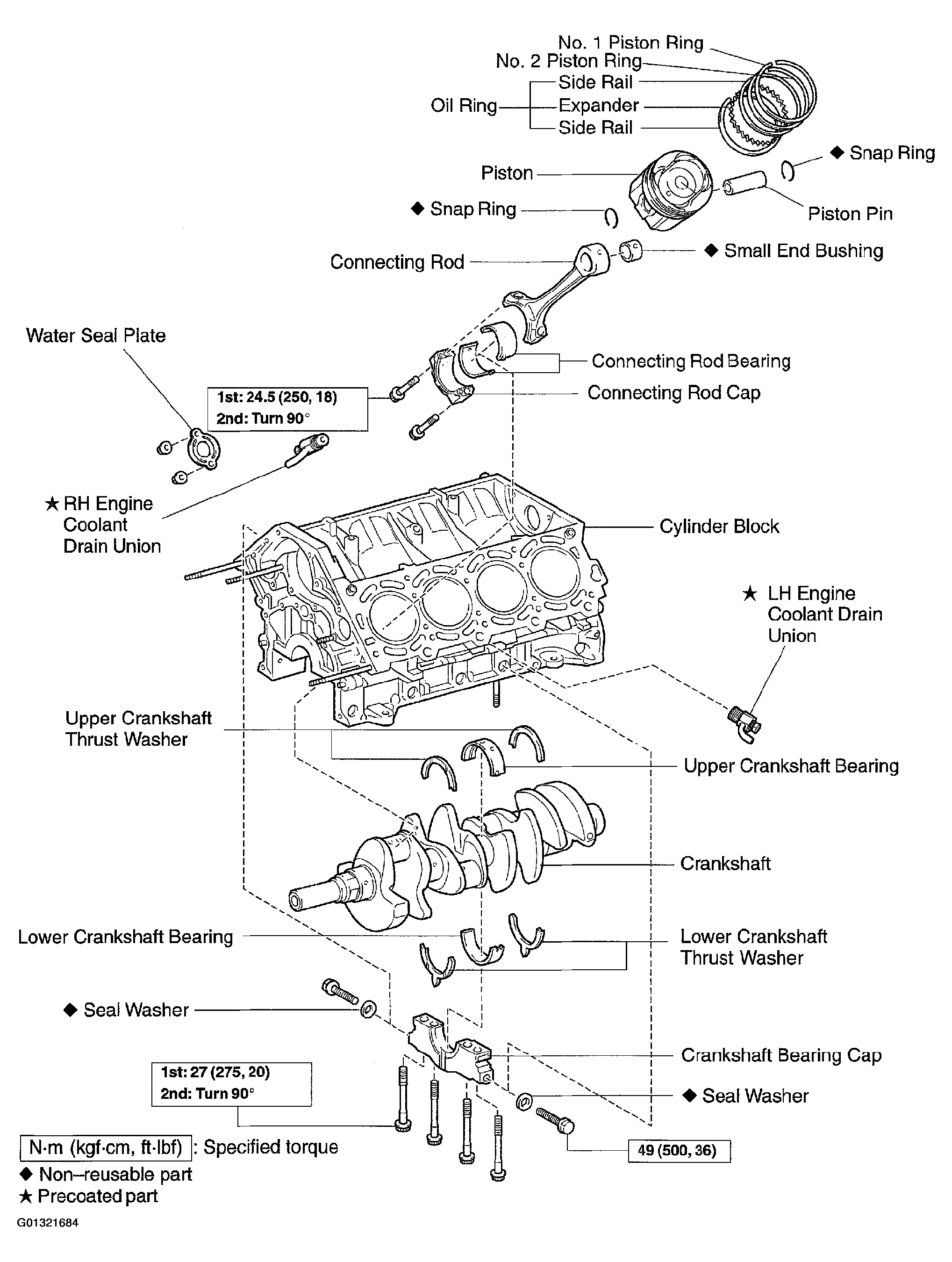

Fig 1: Exploded View Of Cylinder Block Assembly And Torque Specifications
G01321684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
