Exhaust Manifold: Components

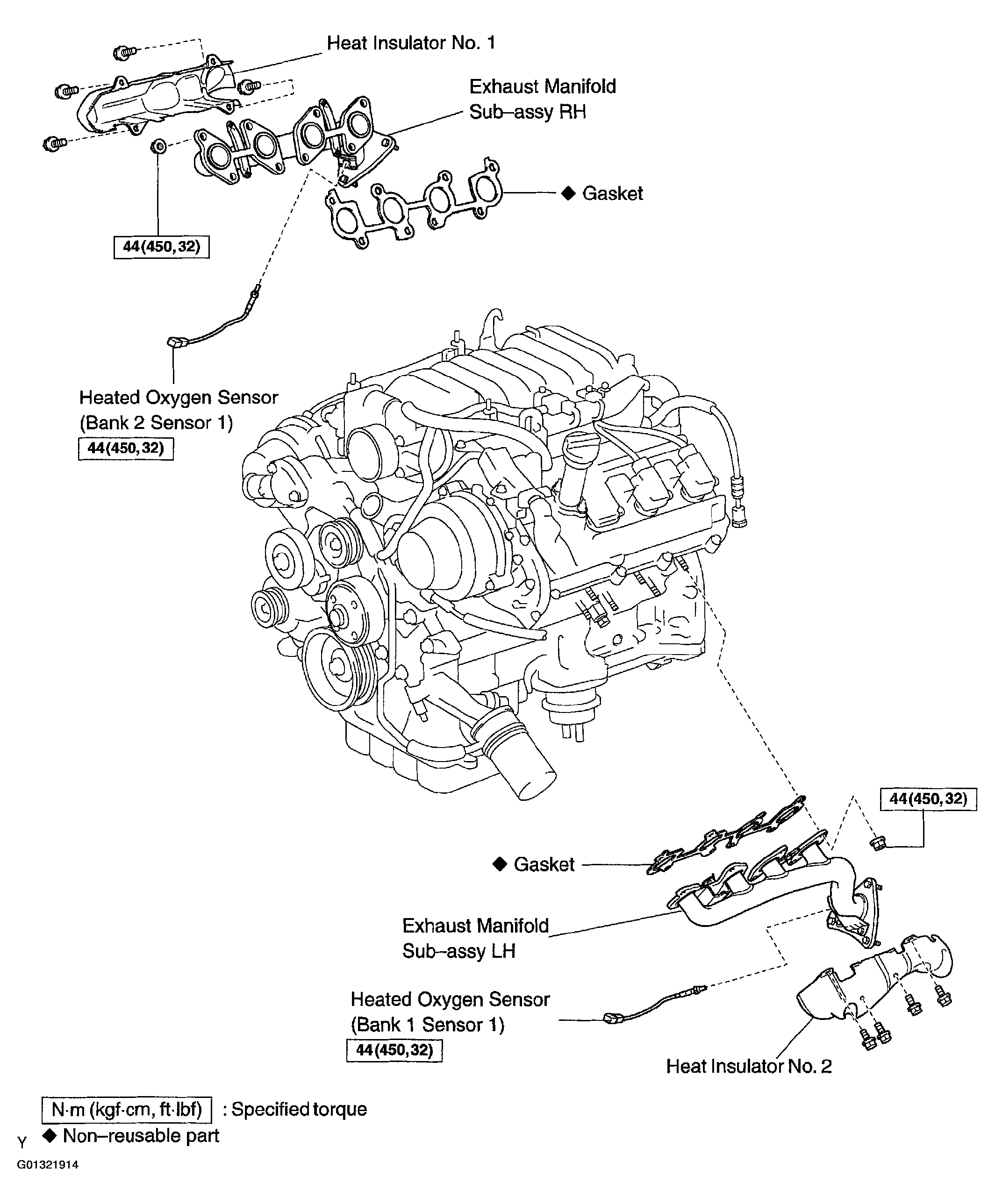

Fig 1: Identifying Exhaust Manifold

G01321914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
