Partial Engine ASSY: Overhaul

REMOVE SPARK PLUG
REMOVE OIL FILLER CAP SUB-ASSY
REMOVE CYLINDER HEAD COVER SUB-ASSY
1. Remove the 9 bolts, 9 seal washers, cylinder head cover and gasket.
REMOVE IDLER PULLEY SUB-ASSY NO. 2
1. Remove the pulley bolt, cover plate and idler pulley.
REMOVE TIMING BELT COVER SUB-ASSY NO. 2
1. Remove the 2 bolts and timing belt cover.
REMOVE V-RIBBED BELT TENSIONER ASSY
1. Remove the bolt, 2 nuts and belt tensioner.
REMOVE IDLER PULLEY ASSY
1. Remove the 2 bolts, 2 nuts and idler pulley.
2. REMOVE CRANKSHAFT DAMPER SUB-ASSY
  1. Using SST, remove the damper bolt.
    SST 09213-70010, 09330-00021

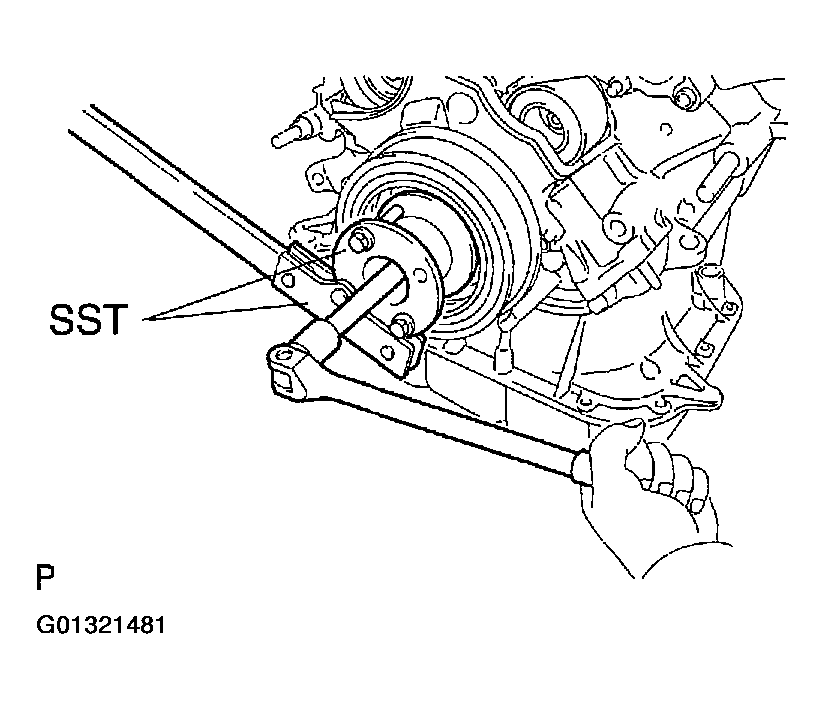

    Fig 1: Removing Damper Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

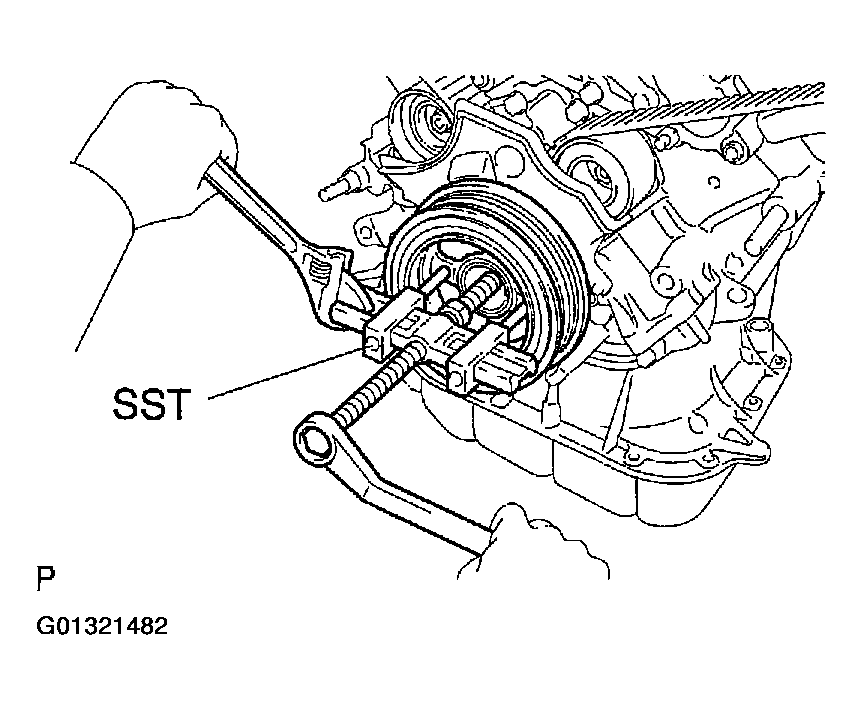

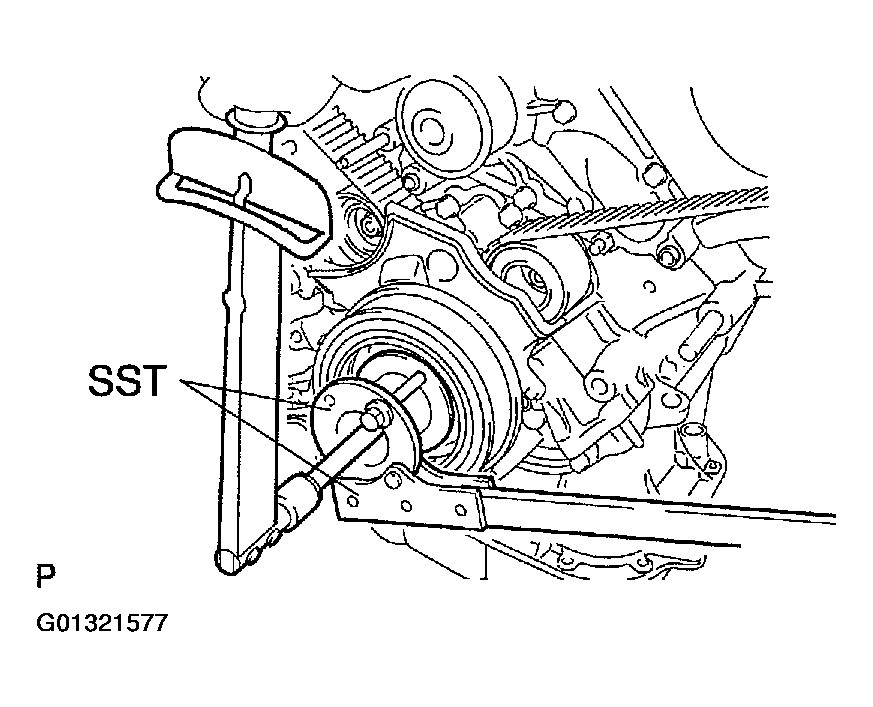

  2. Using SST, remove the crankshaft damper.
    SST 09950-50013 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05021)

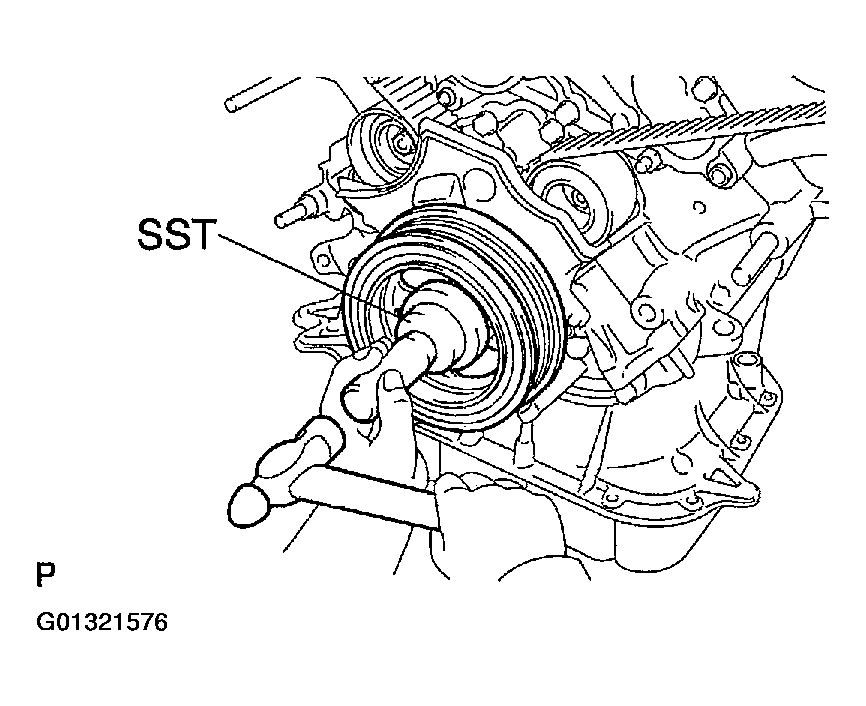

  Fig 2: Removing Crankshaft Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE TIMING BELT NO. 1 COVER
  1. Remove the 4 bolts and timing belt cover.
4. REMOVE TIMING GEAR COVER SPACER
5. REMOVE CRANKSHAFT POSITION SENSOR PLATE

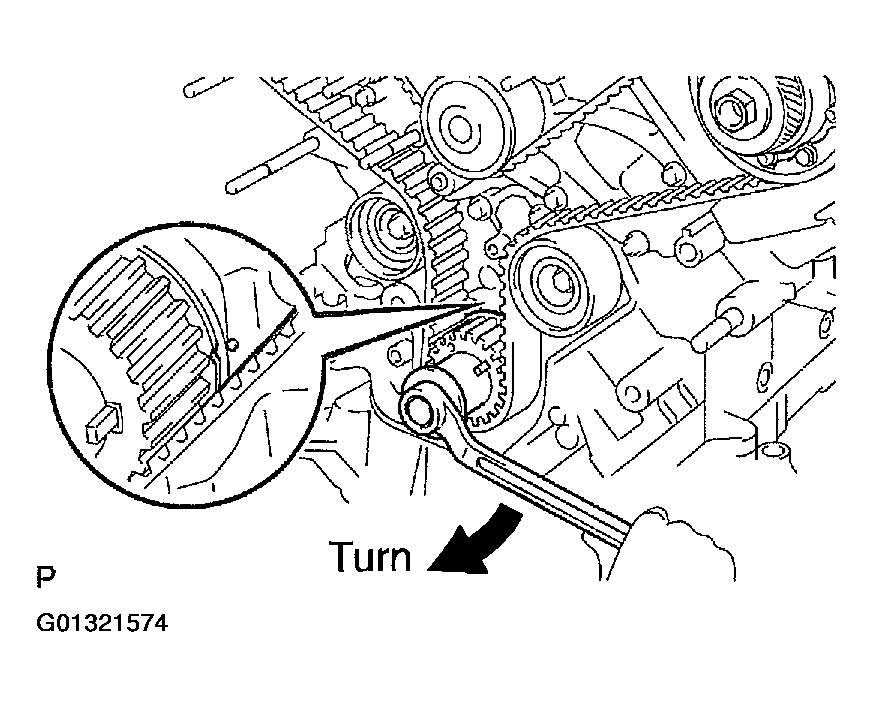

  Fig 3: Checking Installation Marks Position On Timing Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE TIMING BELT
  1. If re-using the timing belt, check the installation marks on the timing belt.
    1. Check that there are 3 installation marks on the timing belt by turning the crankshaft as shown in the illustration.
    If the installation marks have disappeared, place a new installation mark on the timing belt before removing each part.

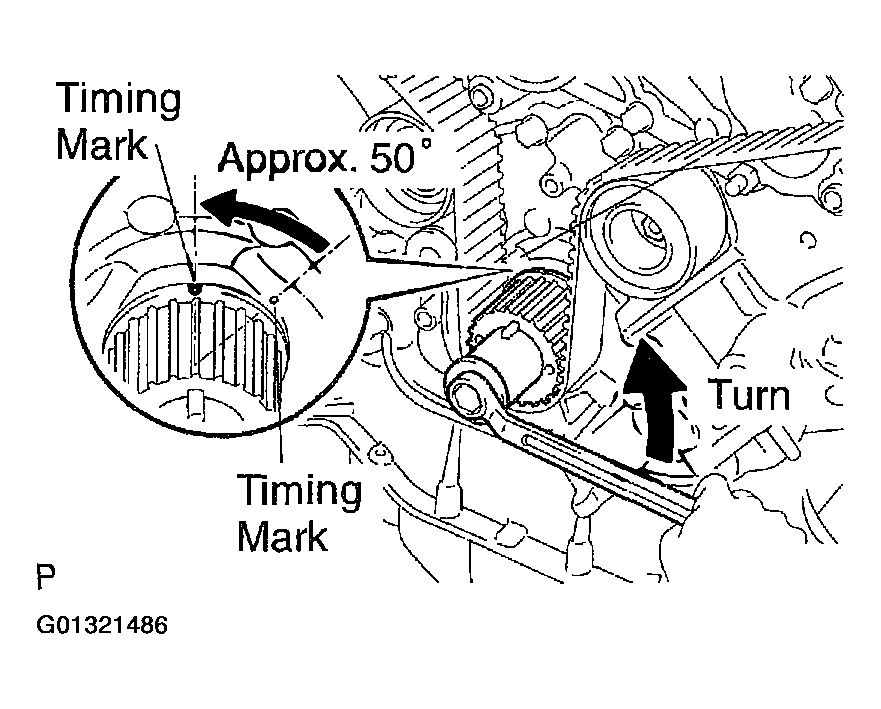

  2. Set the No. 1 cylinder to approx. 50° BTDC/compression.
    1. Using the crankshaft damper bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.

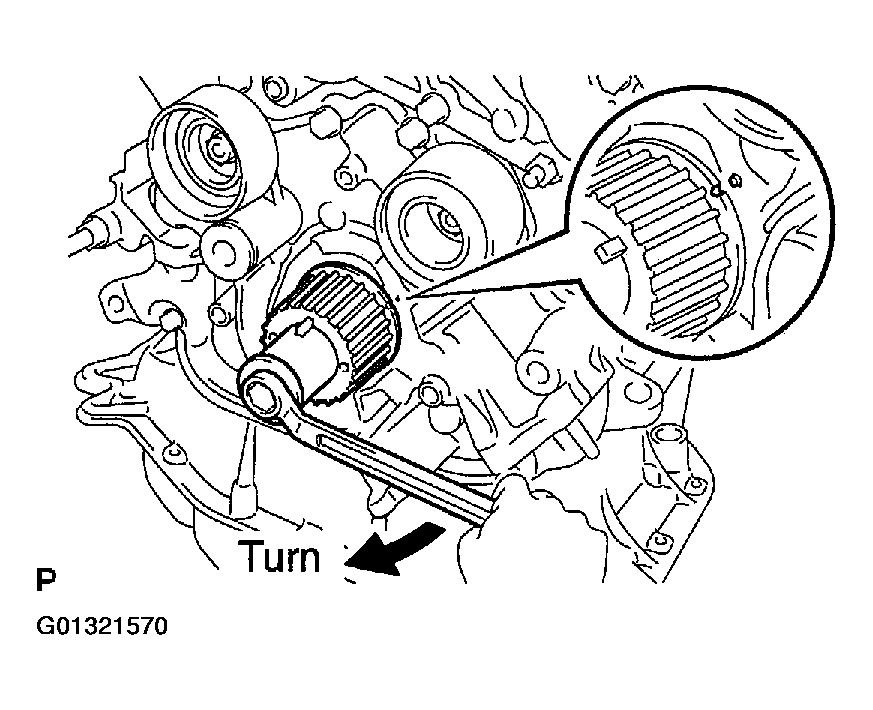

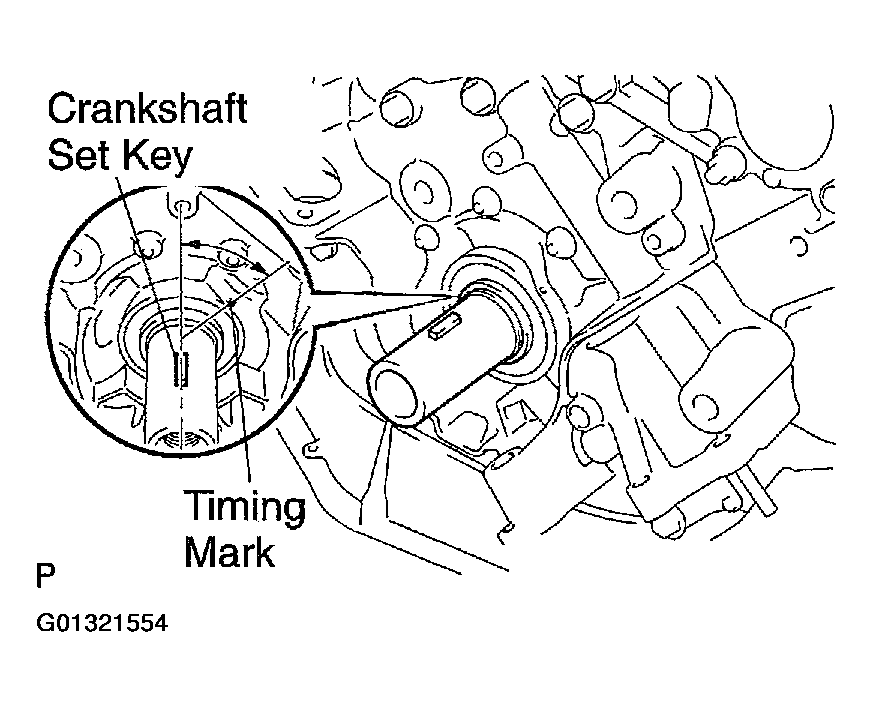

      Fig 4: Turning Crankshaft To Align Crankshaft Timing Pulley And Oil Pump Body Timing Mark
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

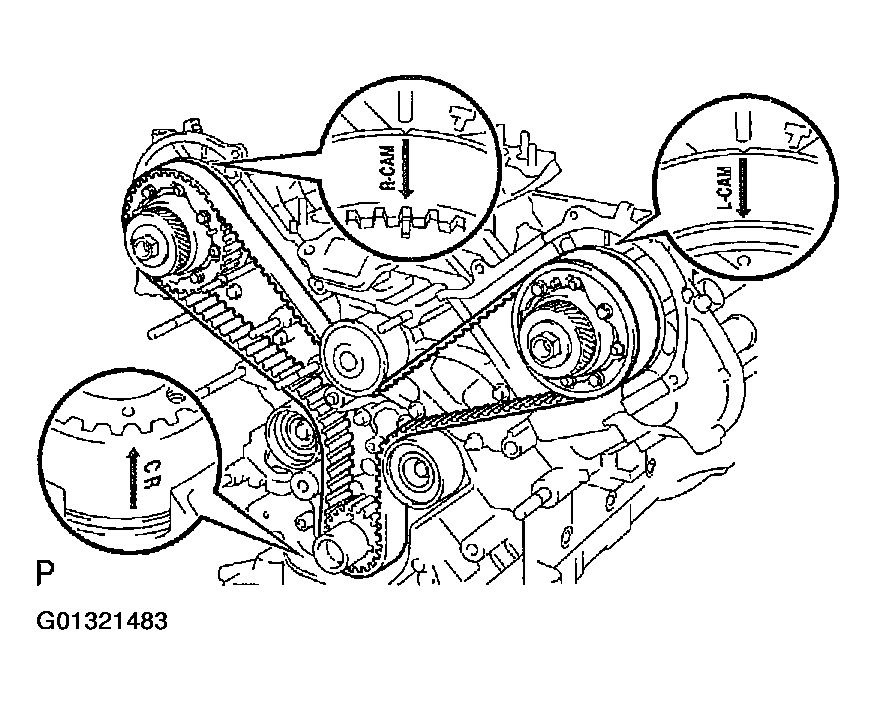

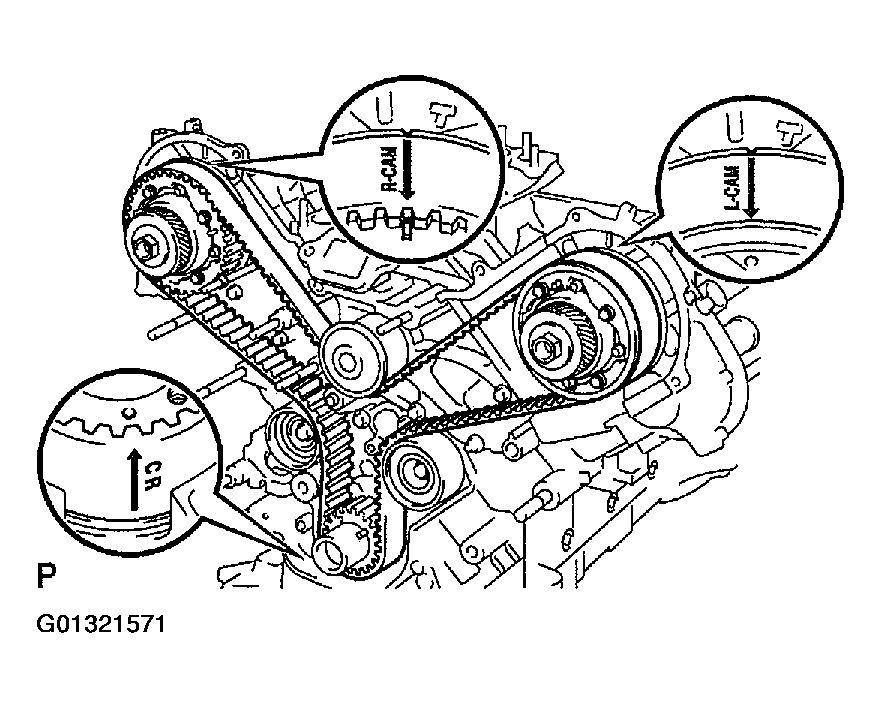

    2. Check that the timing marks of the camshaft timing pulleys and timing belt plates aligned.
      If not, turn the crankshaft 1 revolution (360°).

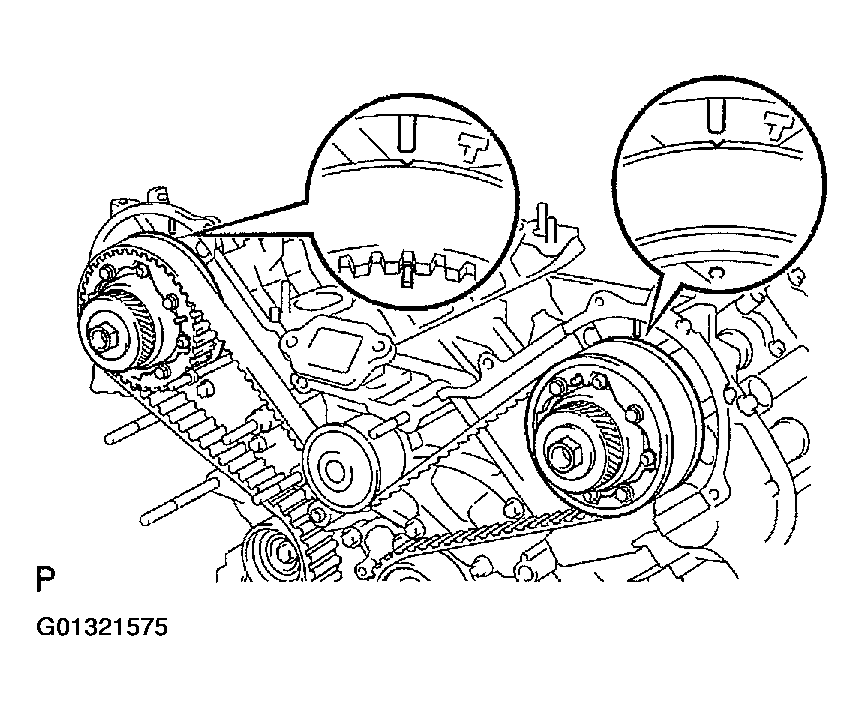

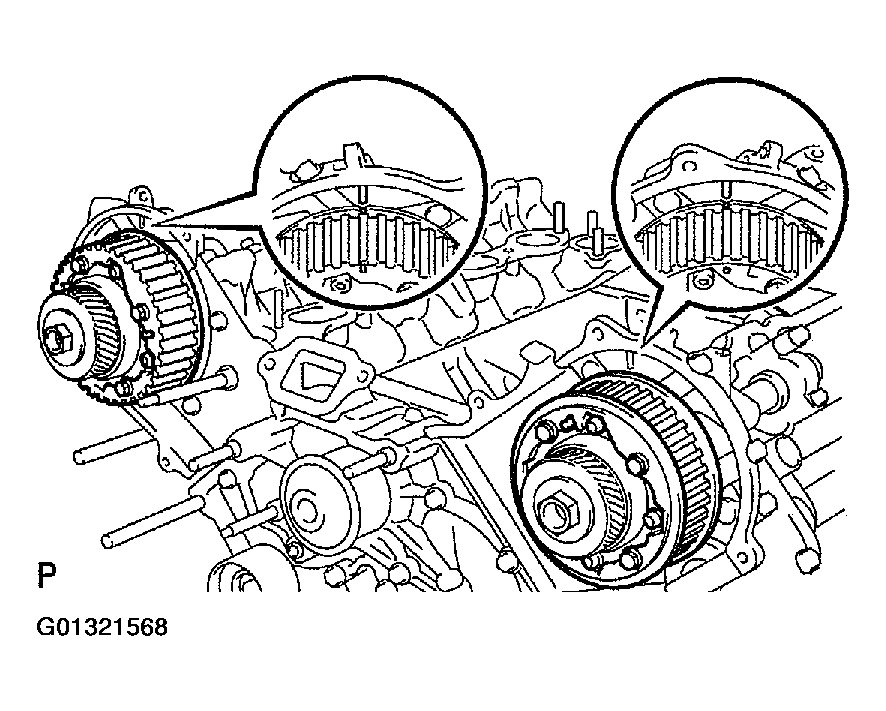

      Fig 5: Checking Aligned Camshaft Timing Pulley And Timing Belt Plate Mark
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

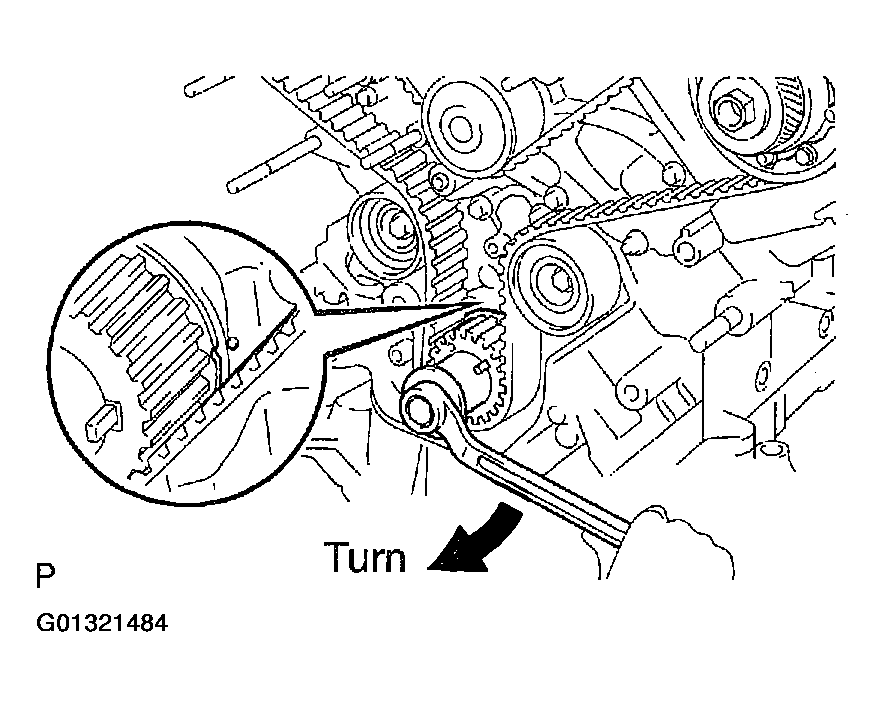

    3. Using the crankshaft damper bolt, turn the crankshaft counterclockwise by approx. 50°.
    NOTE: If the timing belt is disengaged, having the crankshaft pulley at the wrong angle can cause the piston head and valve head to come into contact with each other when you remove the camshaft timing pulley (steps 19 and 20) and camshaft (steps 21 and 22), causing damage. So always set the crankshaft pulley at the correct angle.
  3. Alternately loosen the 2 bolts, and remove them, the belt tensioner and dust boot.

    Fig 6: Turning Crankshaft Counterclockwise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

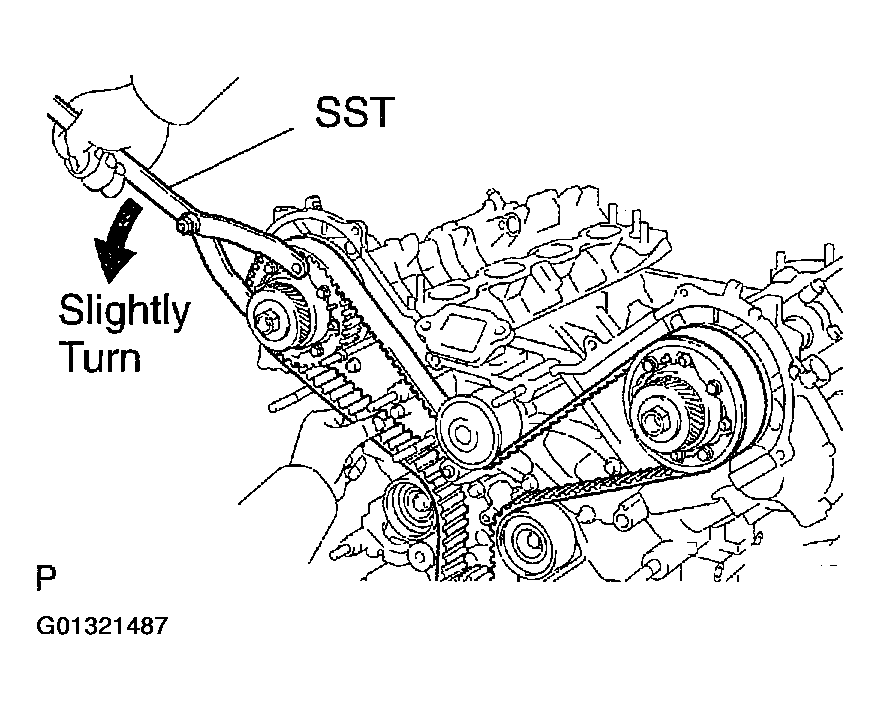

  4. Using SST, loosen the tension between the camshaft timing pulley (RH bank) and crankshaft timing pulley by slightly turning the camshaft timing pulley counterclockwise.
    SST 09960-10010 (09962-01000, 09963-00350)
  5. Disconnect the timing belt from the timing belt idler No. 1, and remove the timing belt.
  Fig 7: Loosening Tension Between Camshaft (RH Bank) And Crankshaft Timing Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSPECT TIMING BELT
  NOTE:

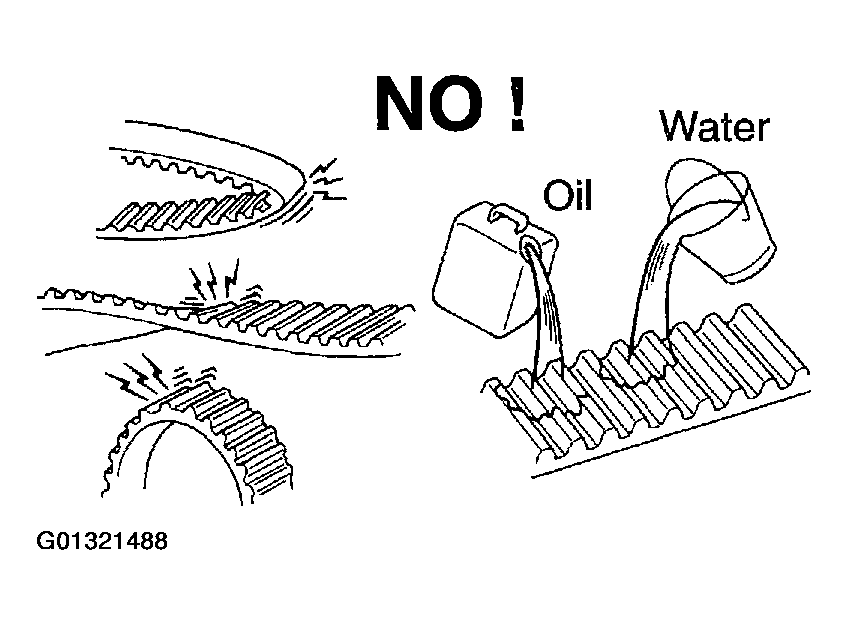

  - Do not bend, twist or turn the timing belt inside out.
  - Do not allow the timing belt to come into contact with oil, water or steam.
  - Do not utilize timing belt tension when installing or removing the mount bolt of the camshaft timing pulley.
  If there are any defects, as shown in the illustrations, check these points:

  Fig 8: Precautions For Timing Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Premature parting
    - Check for proper installation.
    - Check the timing cover gasket for damage and proper installation.
  2. If the belt teeth are cracked or damaged, check to see if either camshaft is locked.
  3. If there is noticeable wear or cracks on the belt face, check to see if there are nicks on the side of the idler pulley lock and water pump.
  4. If there is wear or damage on only one side of the belt, check the belt guide and the alignment of each pulley.
  5. If there is noticeable wear on the belt teeth, check timing cover for damage and check gasket has been installed correctly and for foreign material on the pulley teeth.
  If necessary, replace the timing belt.

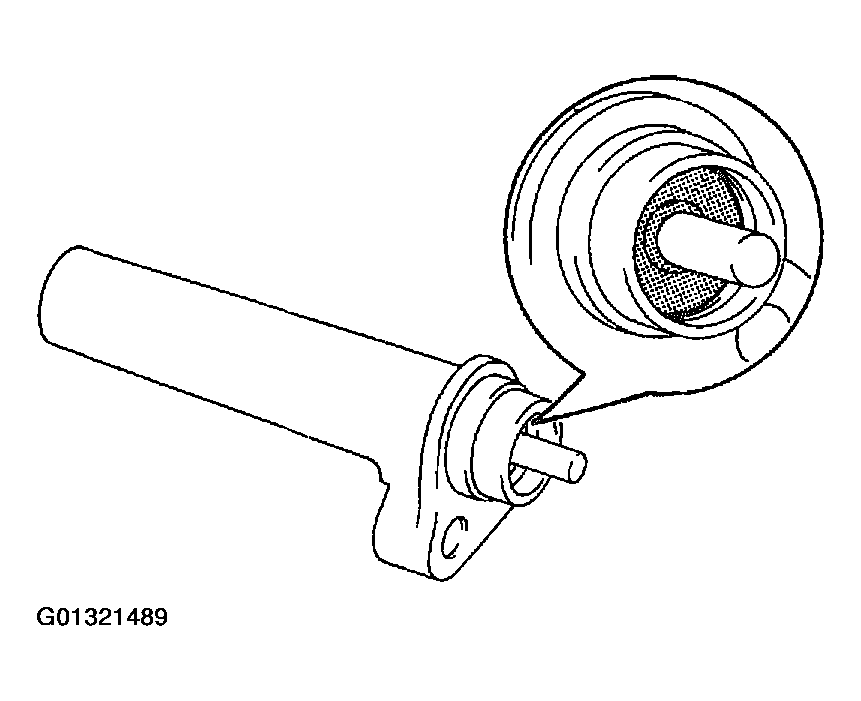

  Fig 9: Inspecting Seal Portion Of Tensioner For Oil Leakage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSPECT TIMING BELT TENSIONER
  1. Visually check the seal portion of the tensioner for oil leakage.
    HINT:

    If there is only the faintest trace of oil on the seal on the push rod side, the tensioner is all right. If leakage is found, replace the tensioner.

    Fig 10: Checking Push Rod Movement
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

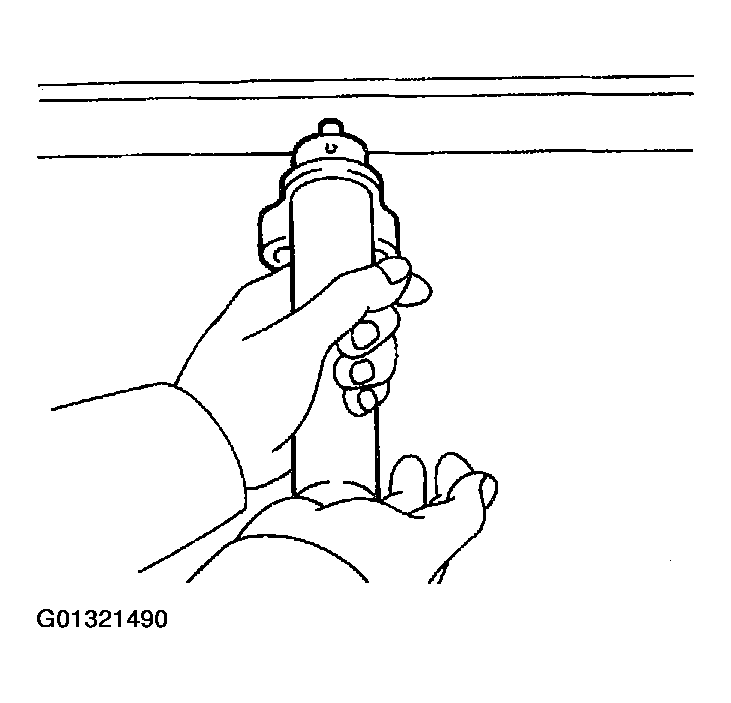

  2. Hold the tensioner with both hands and push the push rod strongly as shown to check that it doesn't move.
    If the push rod moves, replace the tensioner.

    NOTE: Never hold the tensioner push rod facing downward.

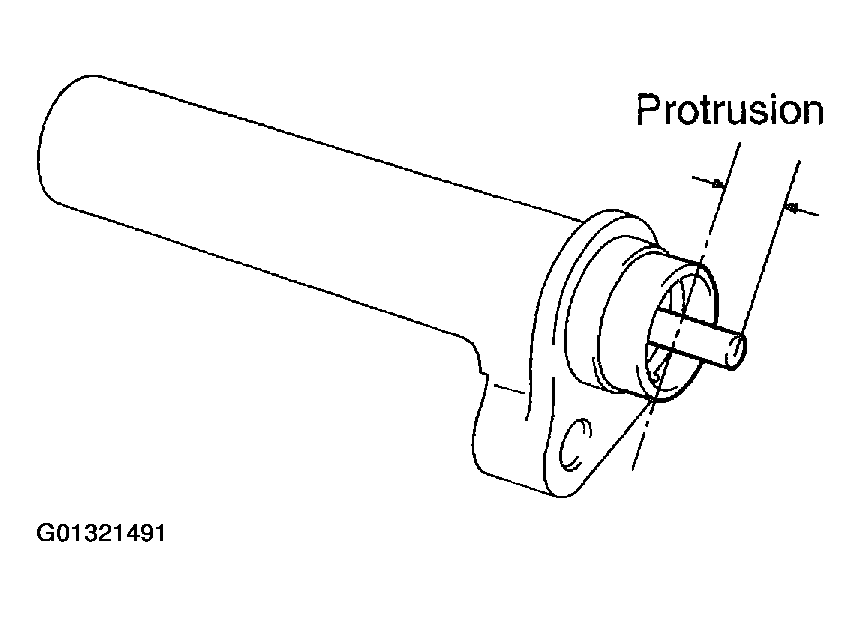

  3. Measure the protrusion of the push rod from the housing end.
    Protrusion: 9.5 - 10.5 mm (0.374 - 0.413 in.)
  If the protrusion is not as specified, replace the tensioner.

  Fig 11: Measuring Push Rod Protrusion From Housing End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE TIMING BELT IDLER SUB-ASSY NO. 1
  1. Using a 10 mm hexagon wrench, remove the bolt, idler and plate washer.
10. REMOVE TIMING BELT IDLER SUB-ASSY NO. 2
  1. Remove the bolt and idler.
  Fig 12: Checking Seal Portion Of Idler Pulley For Oil Leakage (Visually)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSPECT TIMING BELT IDLER

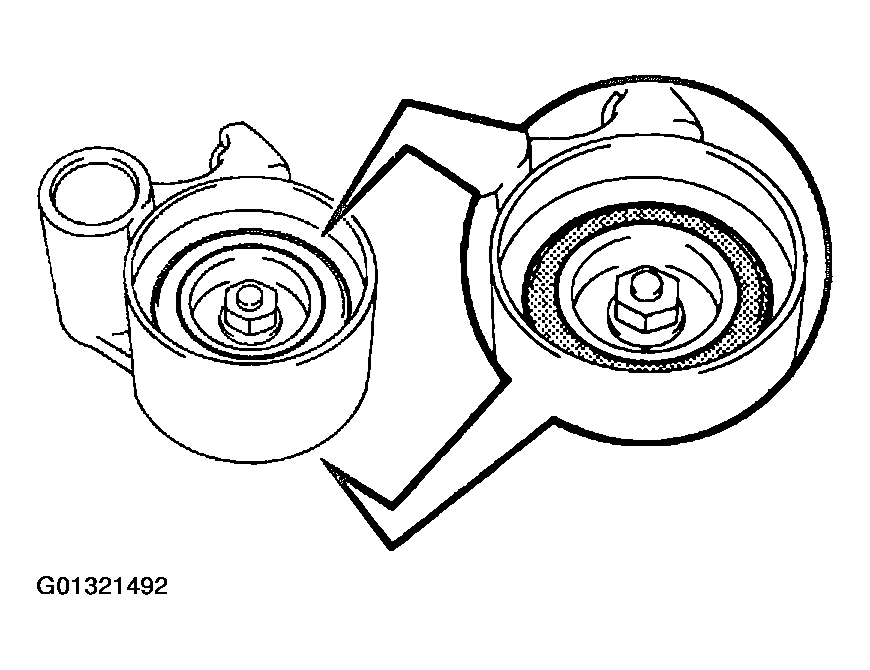

  1. Visually check the seal portion of the idler pulley for oil leakage.
    If leakage is found, replace the idler pulley.
  2. Check that the idler pulley turns smoothly.
    If necessary, replace the idler.
  Fig 13: Removing Crankshaft Timing Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE CRANKSHAFT TIMING PULLEY

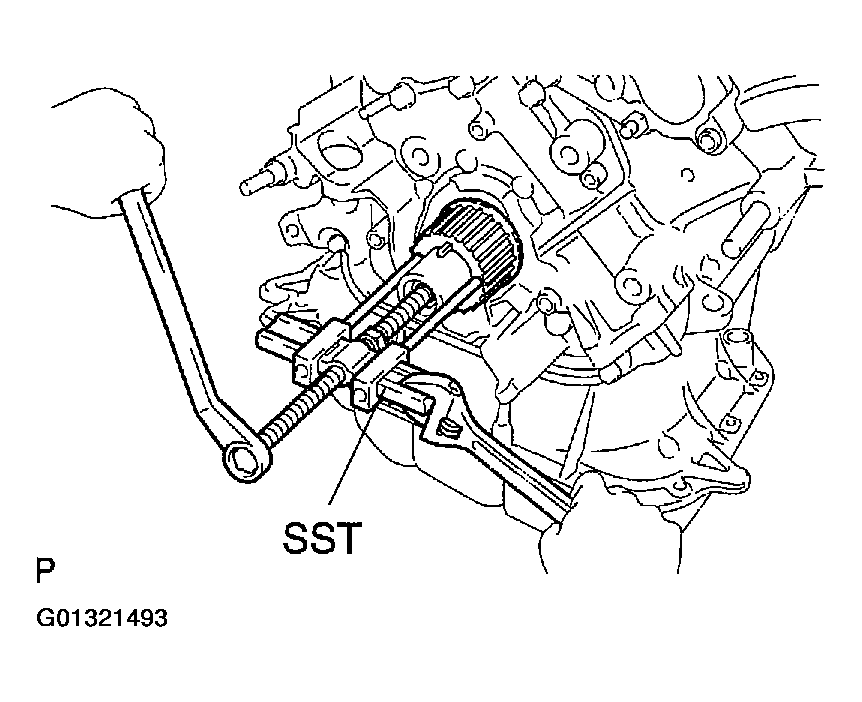

  1. Using SST, remove the timing pulley.
  NOTE: Do not turn the timing pulley.

  SST 09950-50013 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05010)

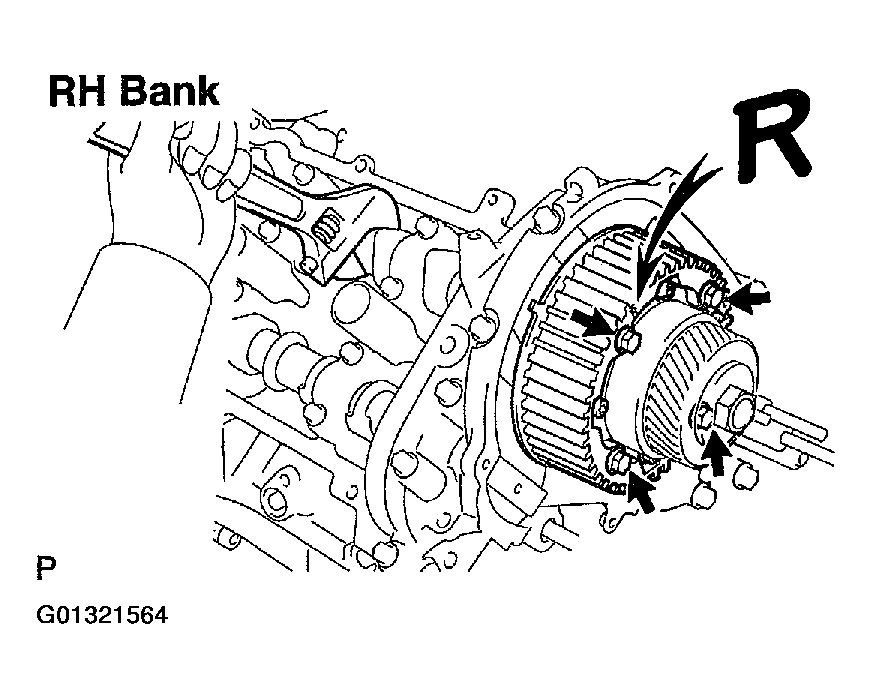

13. REMOVE CAMSHAFT TIMING PULLEY

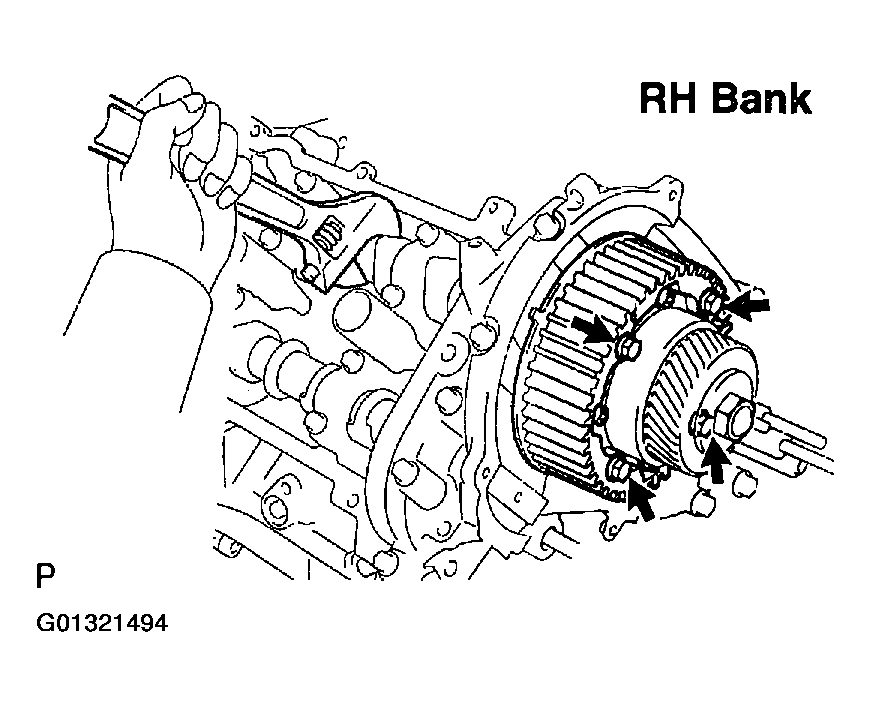

  1. Remove the 4 bolts and timing pulley.

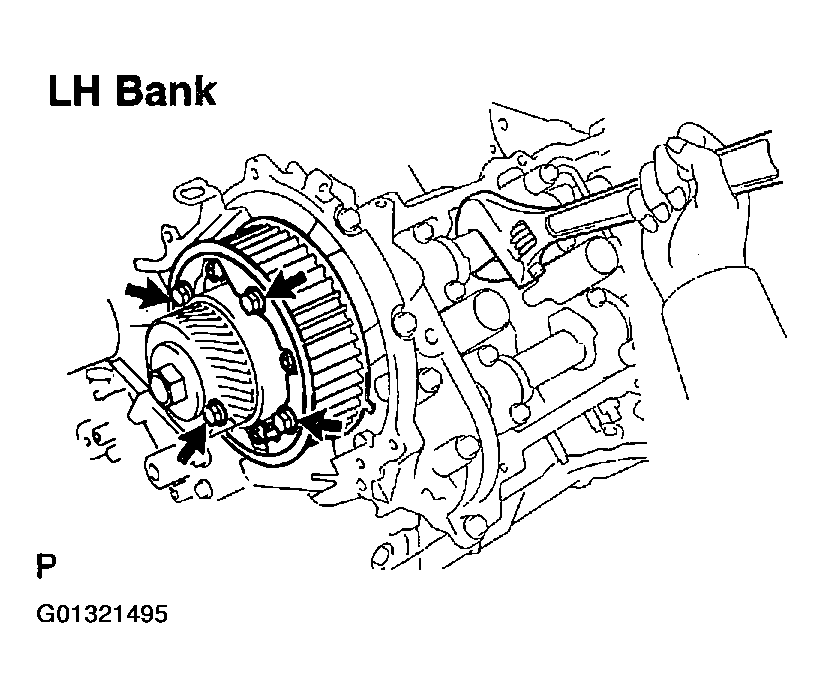

  Fig 14: Removing Camshaft Timing Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

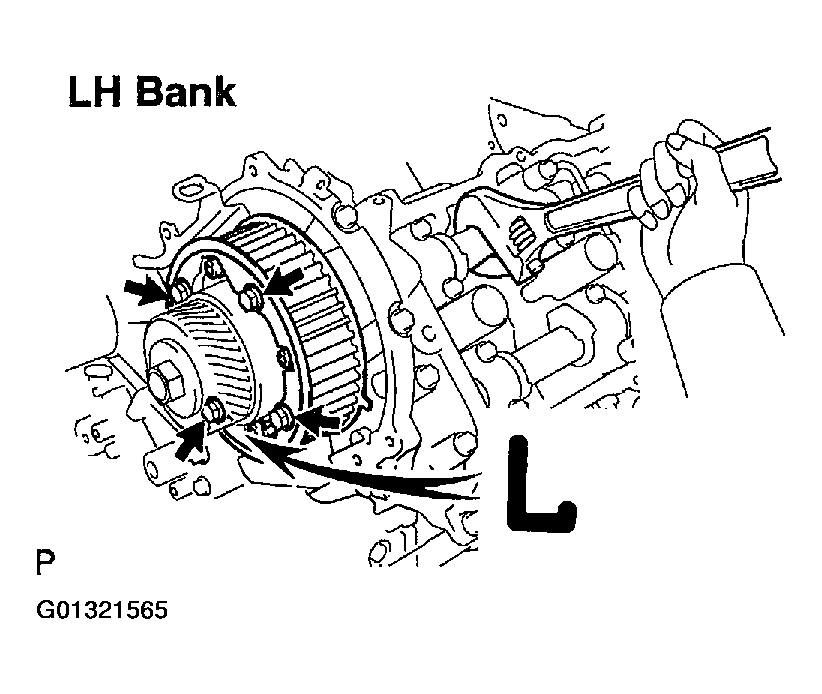

14. REMOVE CAMSHAFT TIMING PULLEY SUB-ASSY LH
  1. Remove the 4 bolts and timing pulley.
  Fig 15: Removing Camshaft Timing Pulley Sub-Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE CAMSHAFT
  NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while it is being removed. If the camshaft as not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.
  1. Remove the camshafts of the RH bank.

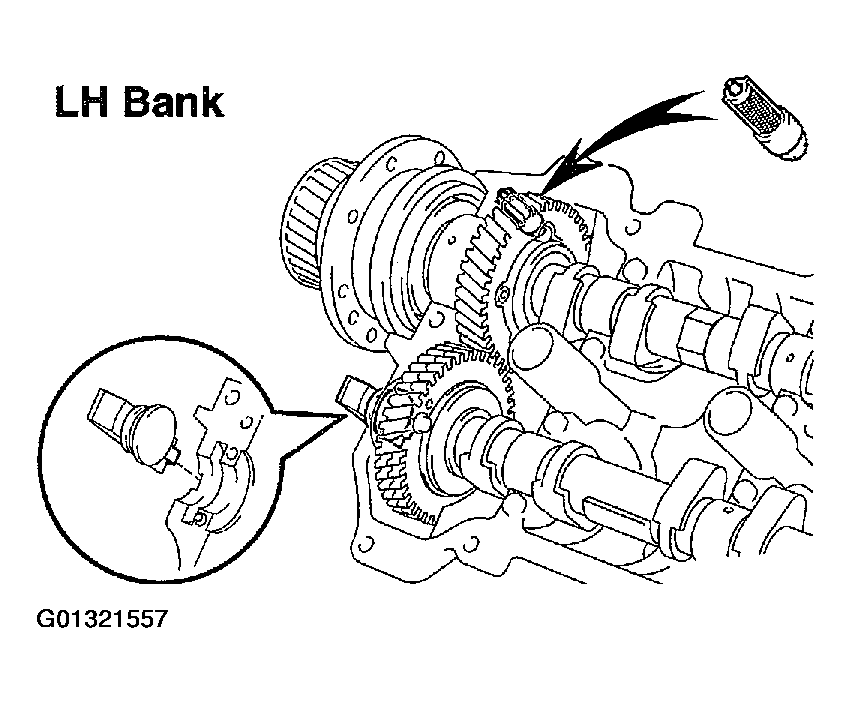

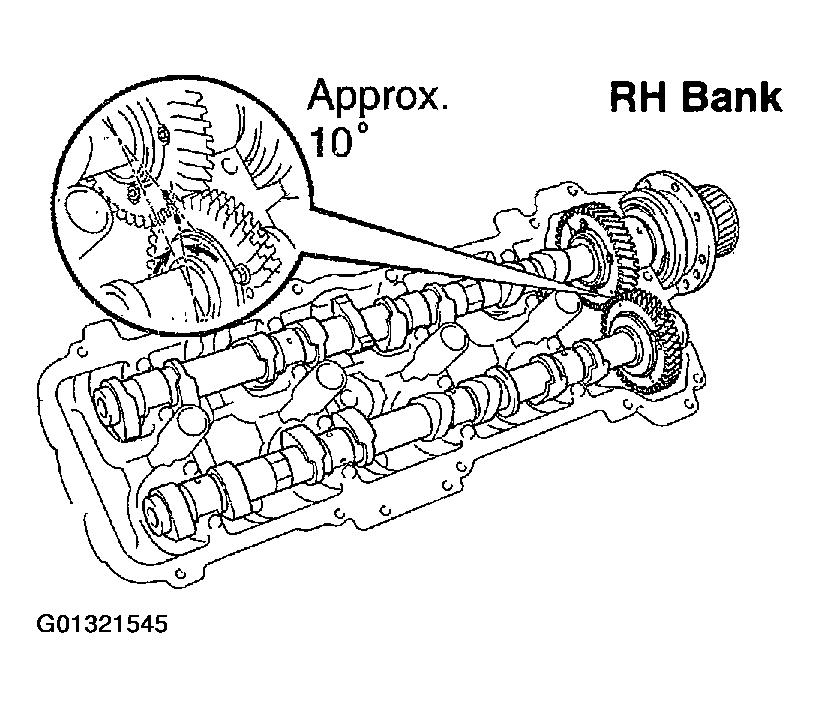

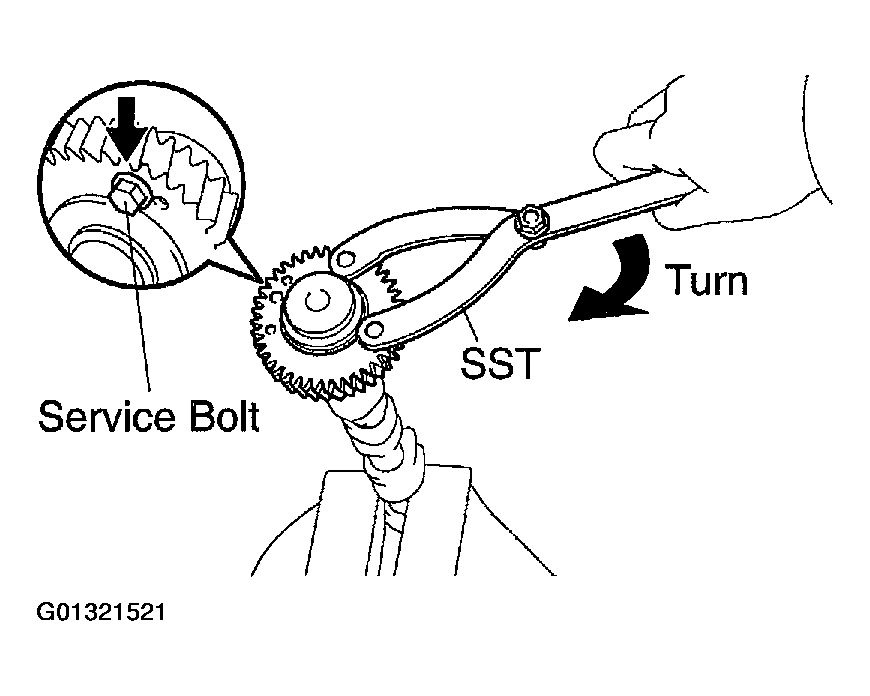

    1. Boring the service bolt hole of the sub gear upward by turning the hexagon wrench head portion of the No. 2 camshaft with a wrench.
    2. Secure the sub gear to the main gear with a service bolt.

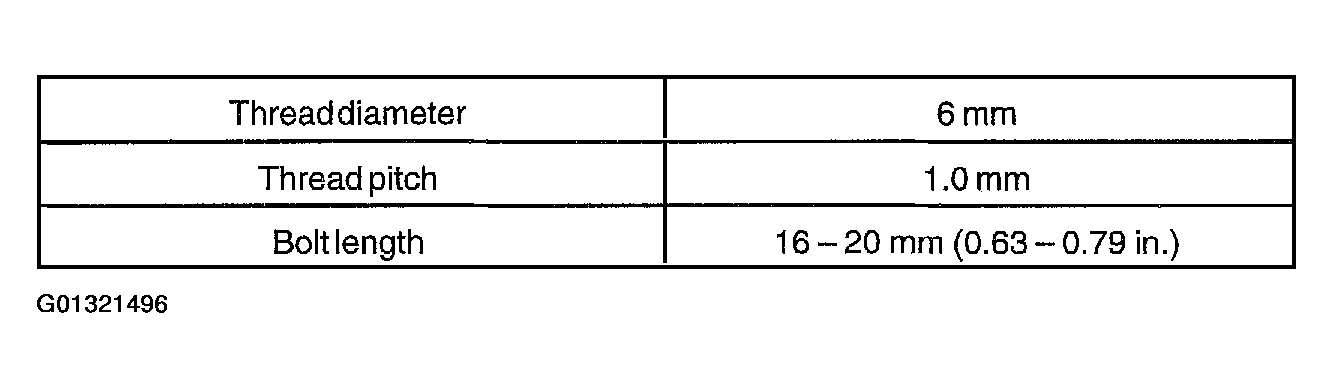

      Fig 16: Service Bolt Specifications
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

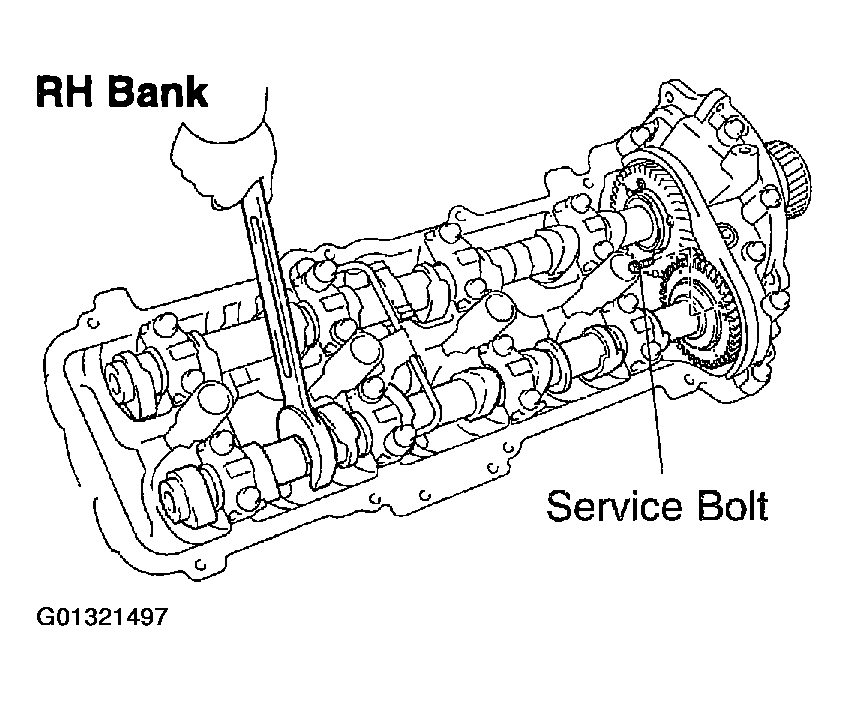

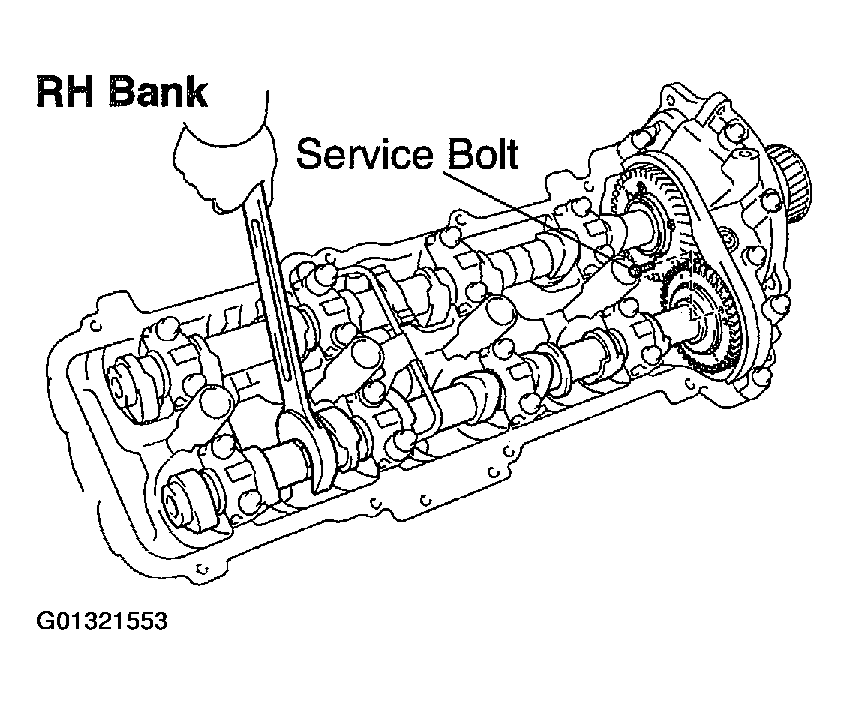

      Fig 17: Securing Sub Gear To Main Gear With Service Bolt
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

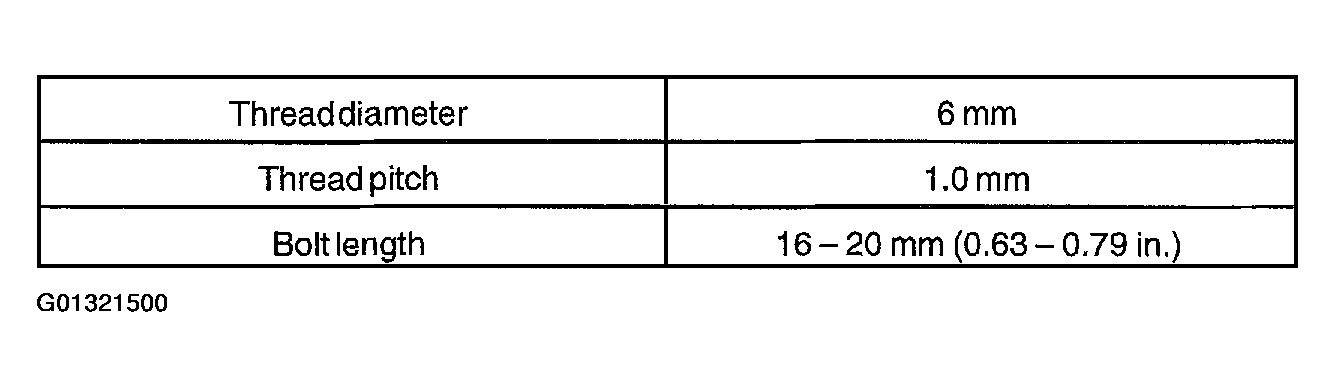

      Recommended service bolt:

      HINT:

      When removing the camshafts, make sure that the torsional spring force of the sub gear has been eliminated by the above operation.

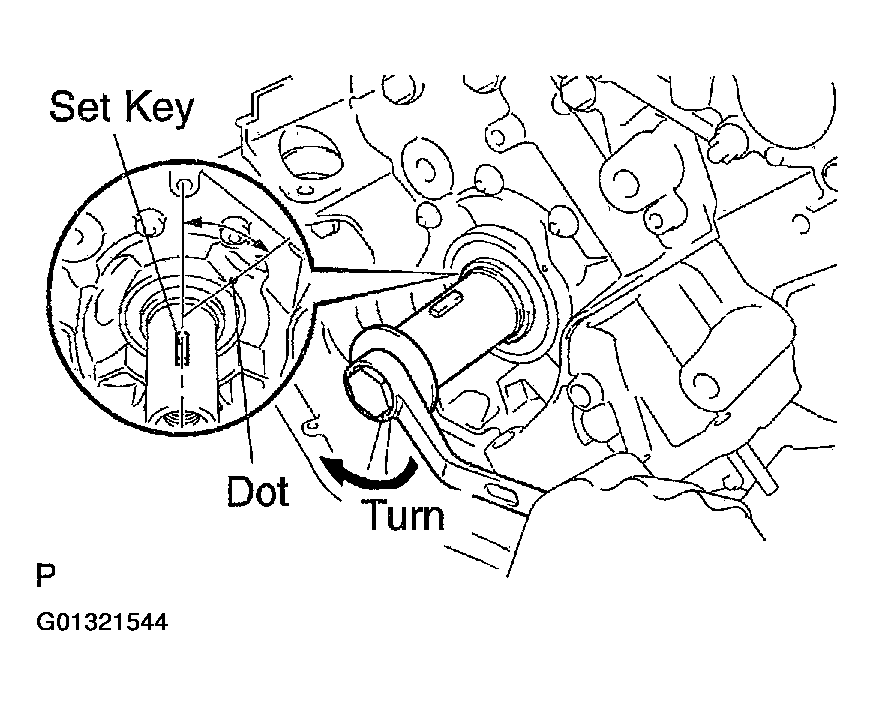

    3. Set the timing mark (1 dot mark) of the camshaft main gear at approx. 10° angle by turning the hexagon wrench head portion of the No. 2 camshaft with a wrench.

      Fig 18: Setting Timing Mark Of Camshaft Main Gear
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

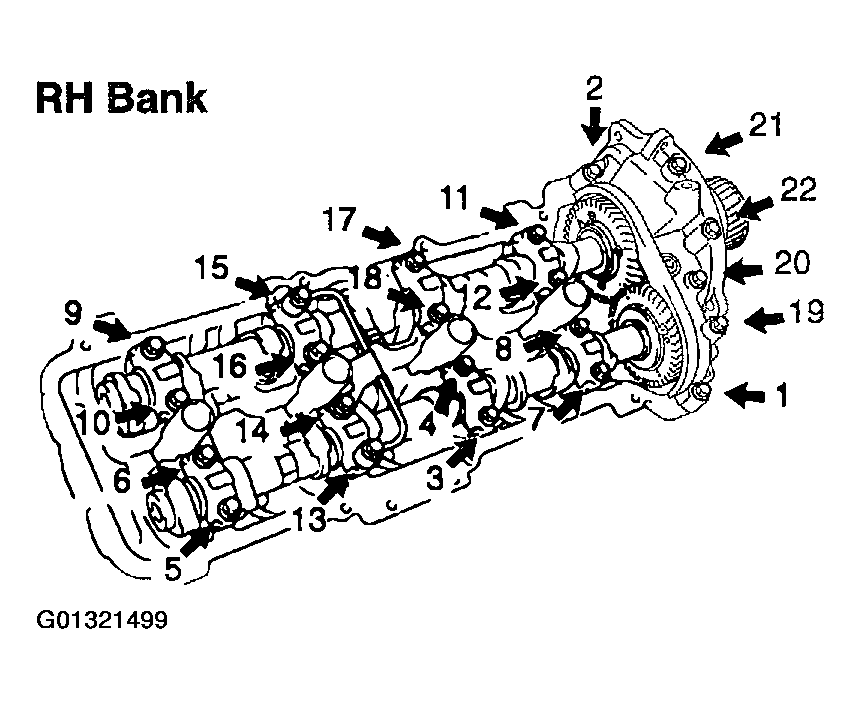

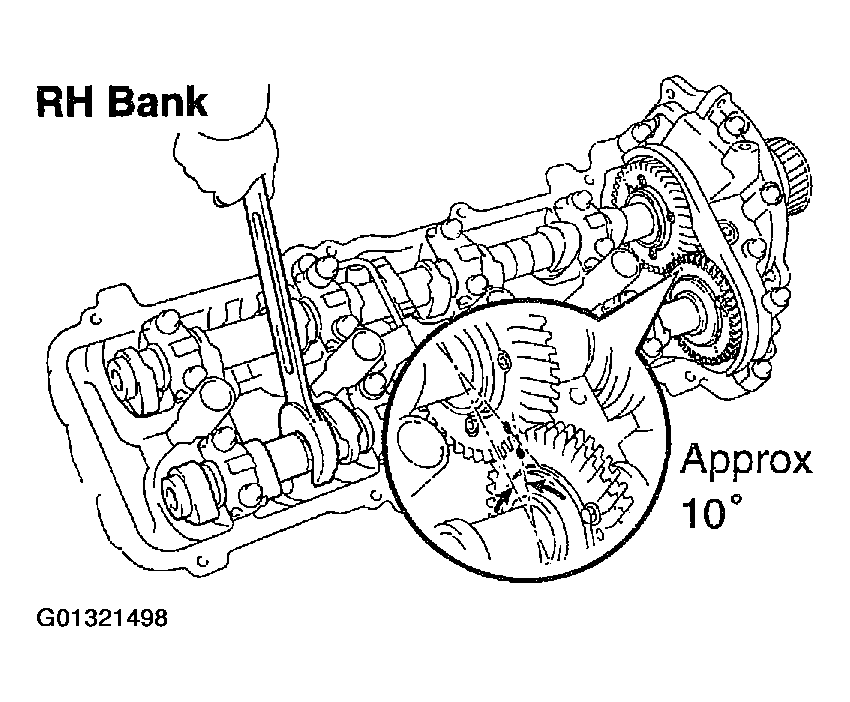

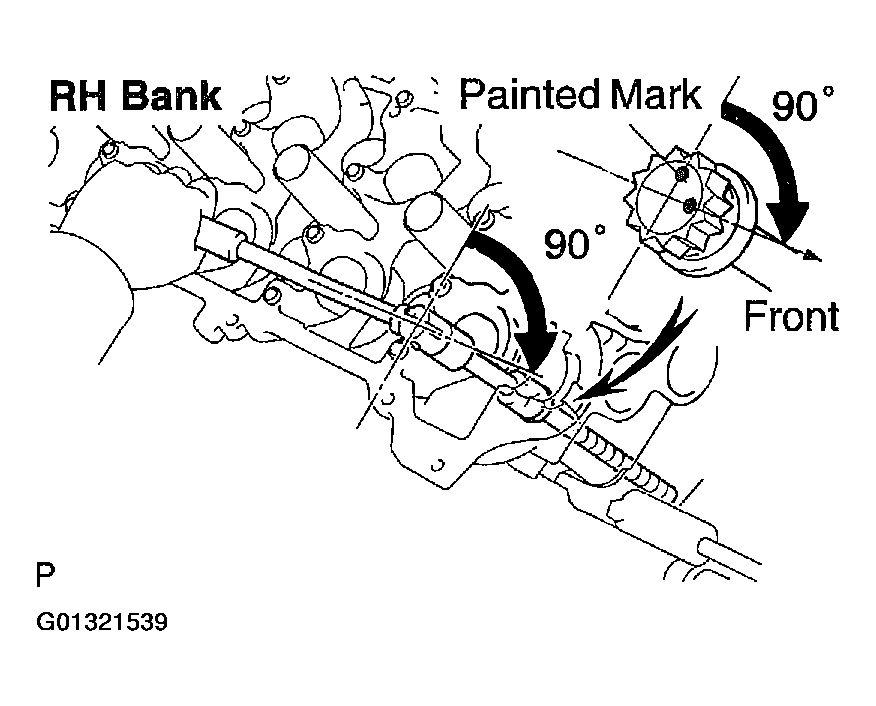

    4. Uniformly loosen the 22 bearing cap bolts in several passes, in the sequence shown.
    5. Remove the 22 bearing cap bolts, 4 seal washers, oil feed pipe, 9 bearing caps, camshaft housing plug, oil control valve filter and 2 camshafts.

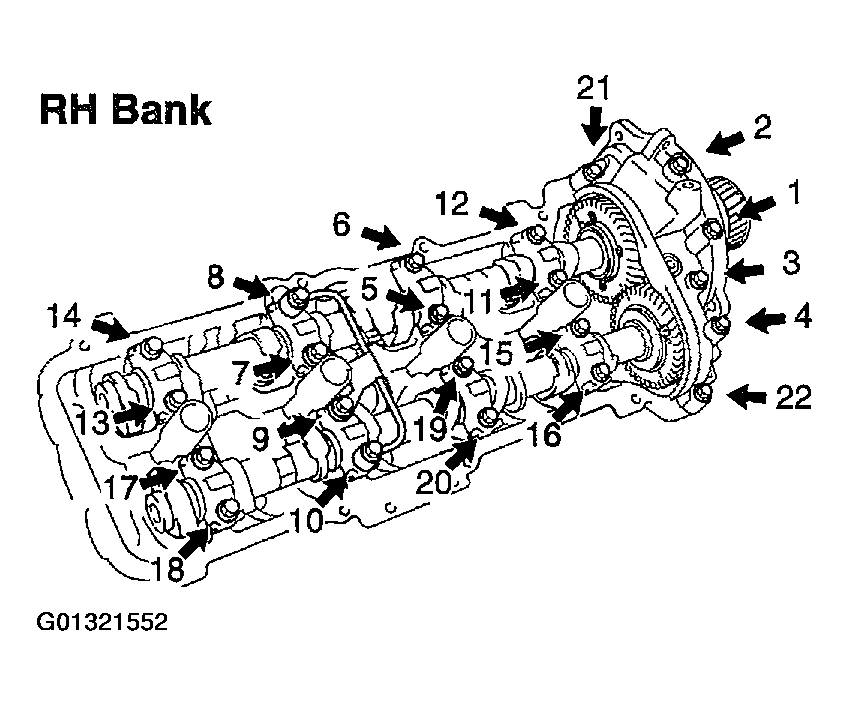

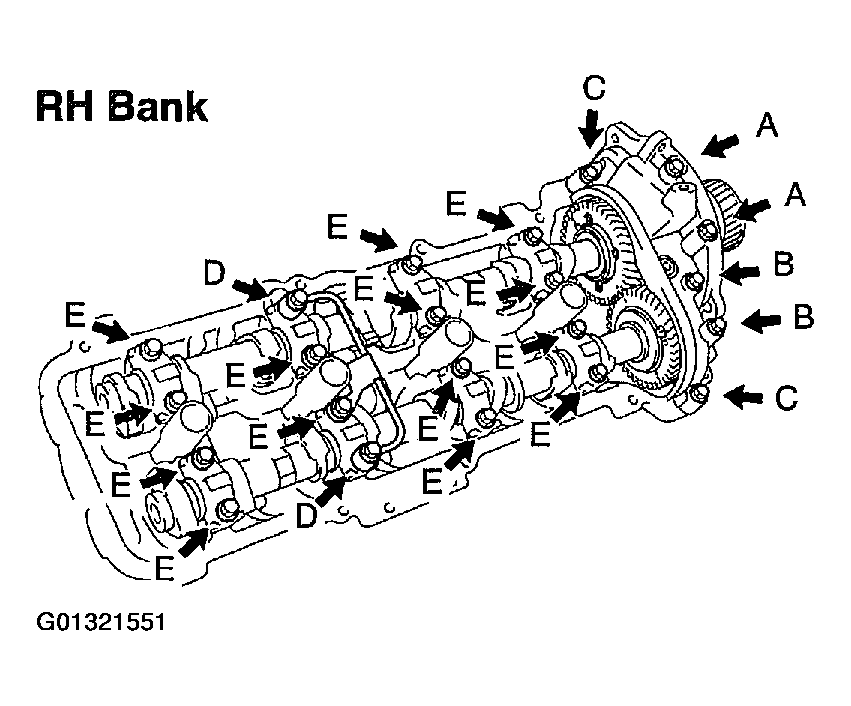

  Fig 19: Loosening Bearing Cap Bolts In Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE NO. 3 CAMSHAFT SUB-ASSY
  NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while It is being removed, if the camshaft is not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.

  Fig 20: Service Bolt Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Remove the camshafts of the LH bank.

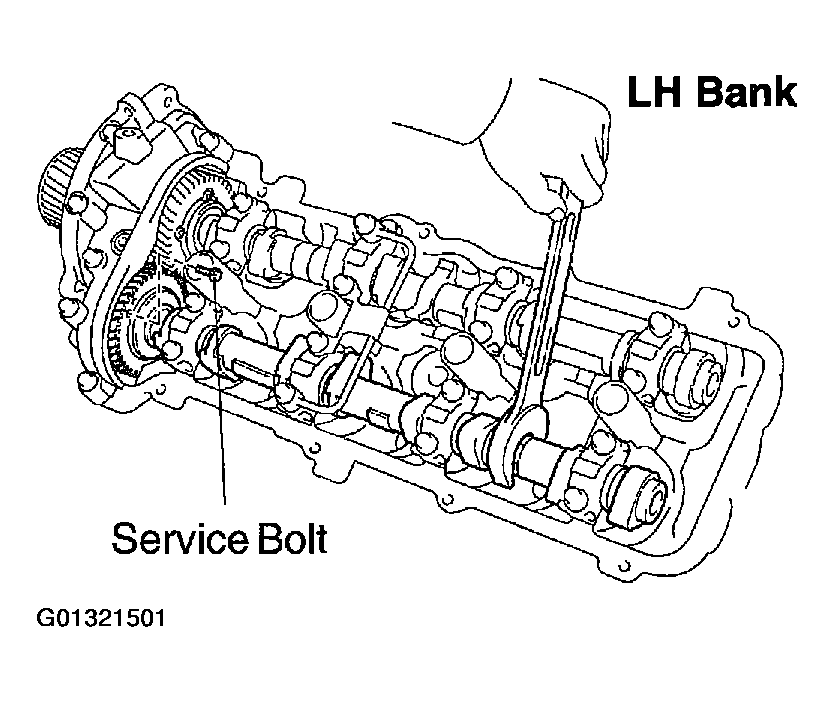

  1. Boring the service bolt hole of the sub gear upward by turning the hexagon wrench head portion of the No. 4 camshaft with a wrench.

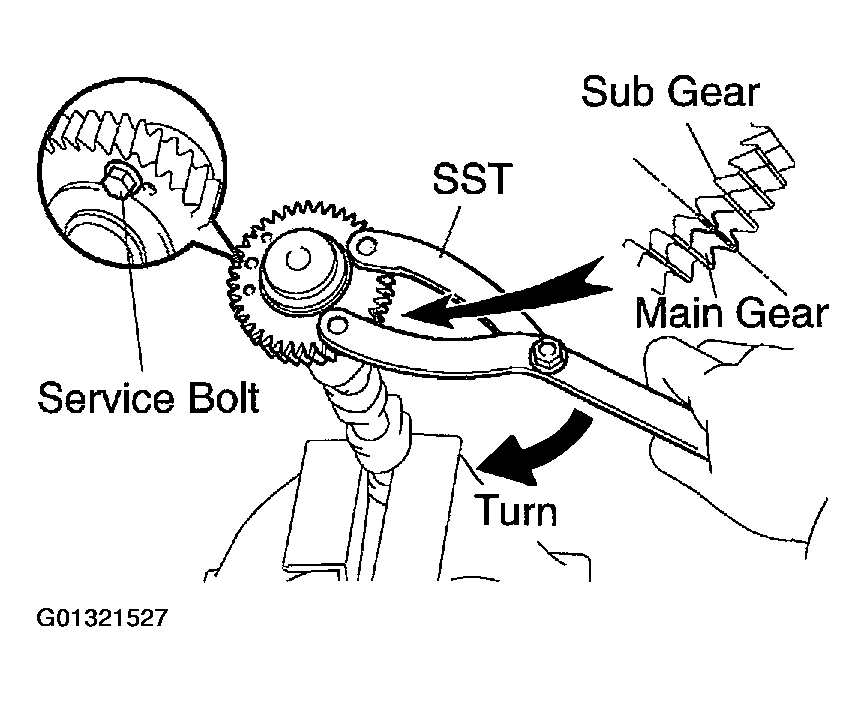

  2. Secure the sub gear to the main gear with a service bolt.
    Recommended service bolt:

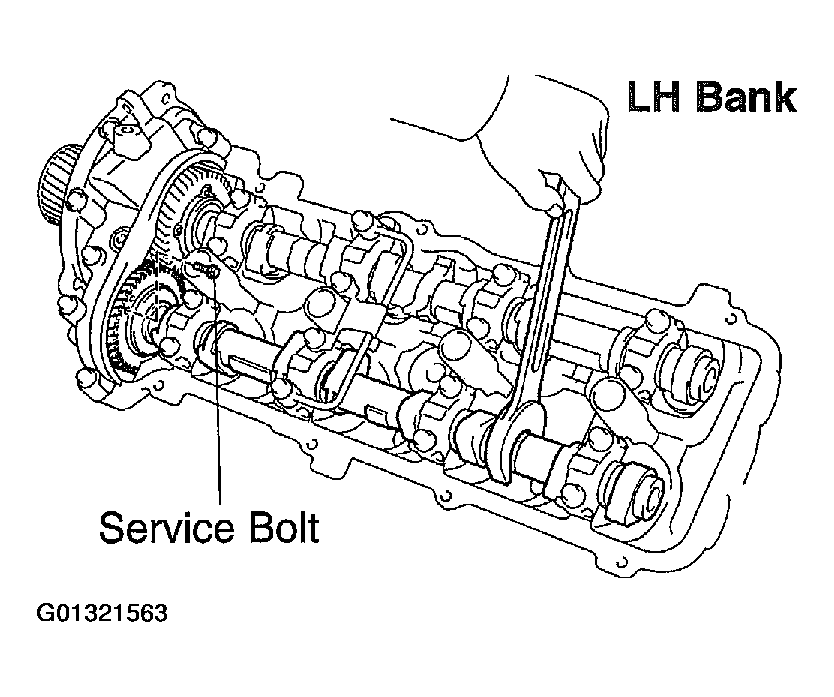

    Fig 21: Securing Sub Gear To Main Gear With Service Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    When removing the camshaft, make sure that the torsional spring force of the sub gear has been eliminated by the above operation.

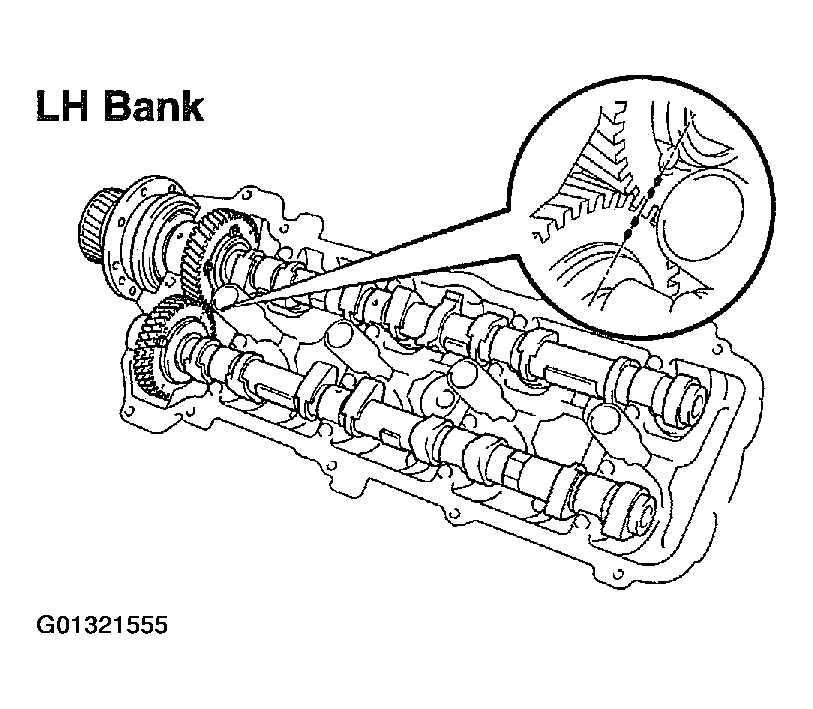

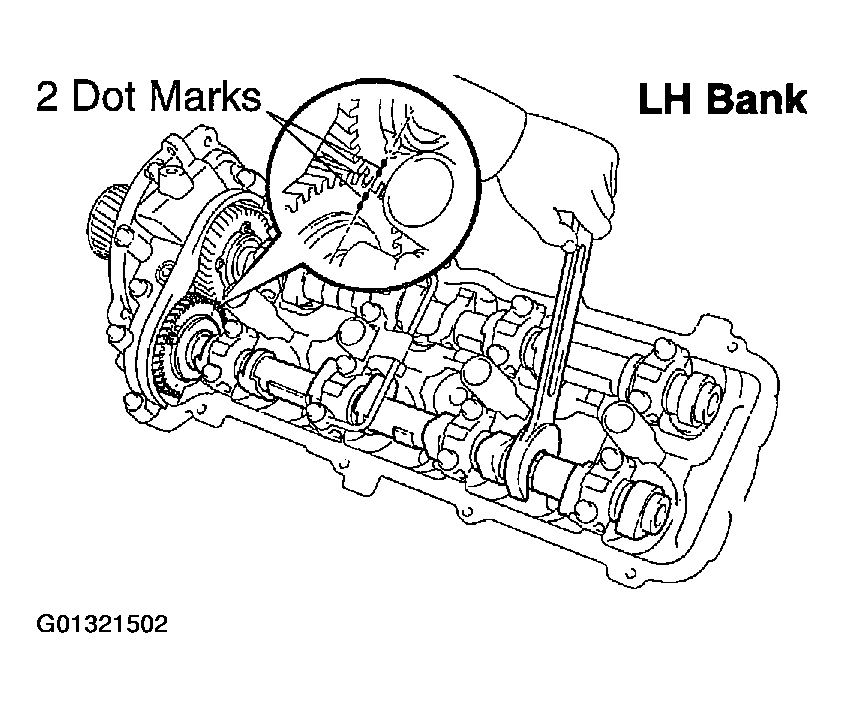

  3. Align the timing mark (2 dot marks) of the camshaft drive gear by turning the hexagon wrench head portion of the No. 4 camshaft with a wrench.

    Fig 22: Aligning Camshaft Drive Gear Timing Mark
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

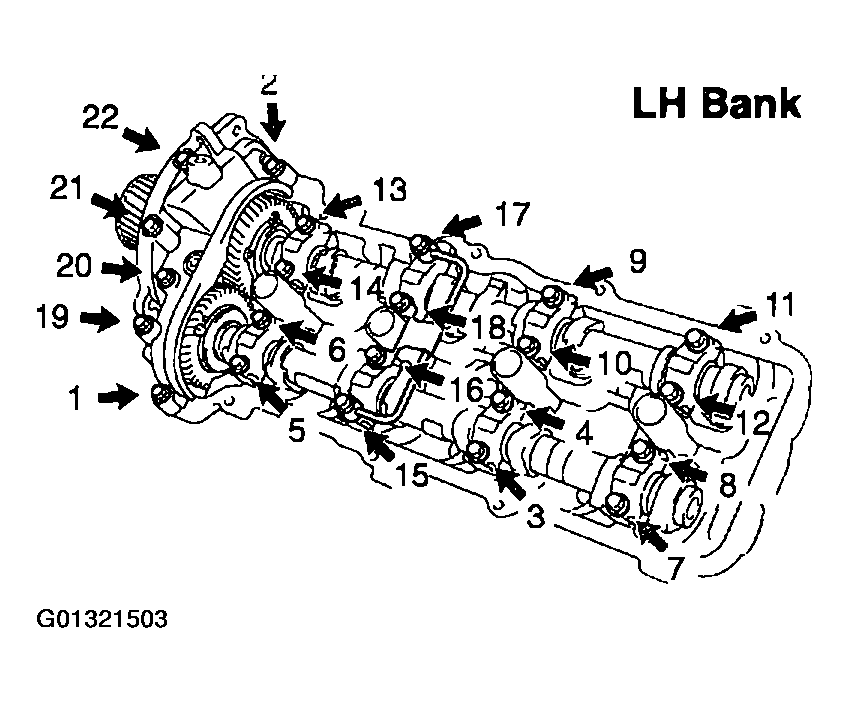

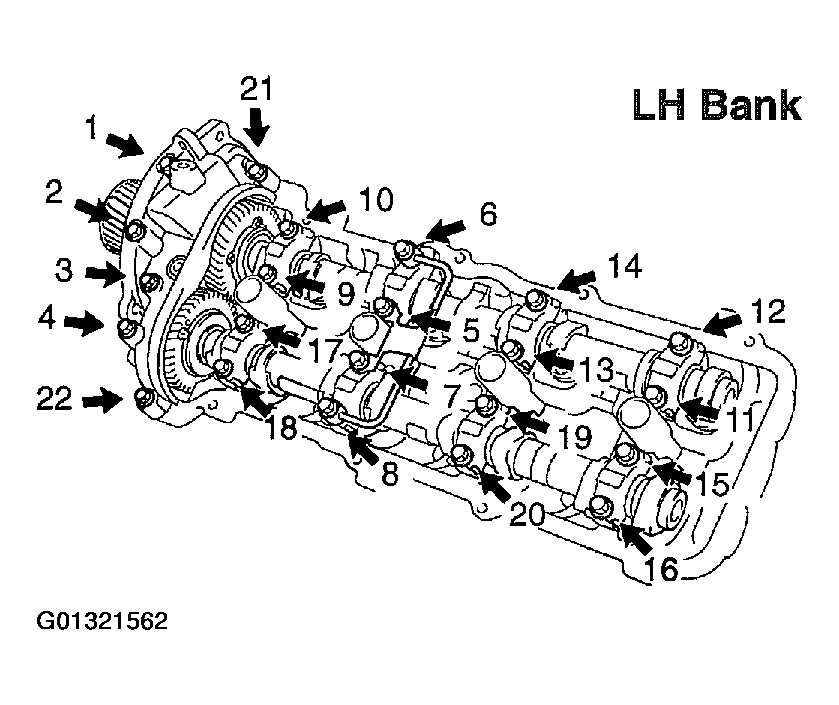

  4. Uniformly loosen the 22 bearing cap bolts in several passes, in the sequence shown.
  5. Remove the 22 bearing cap bolts, 4 seal washers, oil feed pipe, 9 bearing caps, camshaft housing plug, oil control valve filter and 2 camshafts.
Fig 23: Loosening Bearing Cap Bolts In Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEMICIRCULAR PLUG
REMOVE TIMING BELT PLATE RR RH NO. 2
1. Remove the 2 bolts and timing belt plate.
REMOVE TIMING BELT PLATE RR RH
1. Remove the bolt, stud bolt and timing belt plate.
2. REMOVE TIMING BELT PLATE RR LH NO. 2
  1. Remove the 2 bolts and timing belt plate.
3. REMOVE TIMING BELT PLATE RR LH
  1. Remove the bolt and timing belt plate.
4. REMOVE CYLINDER HEAD SUB-ASSY

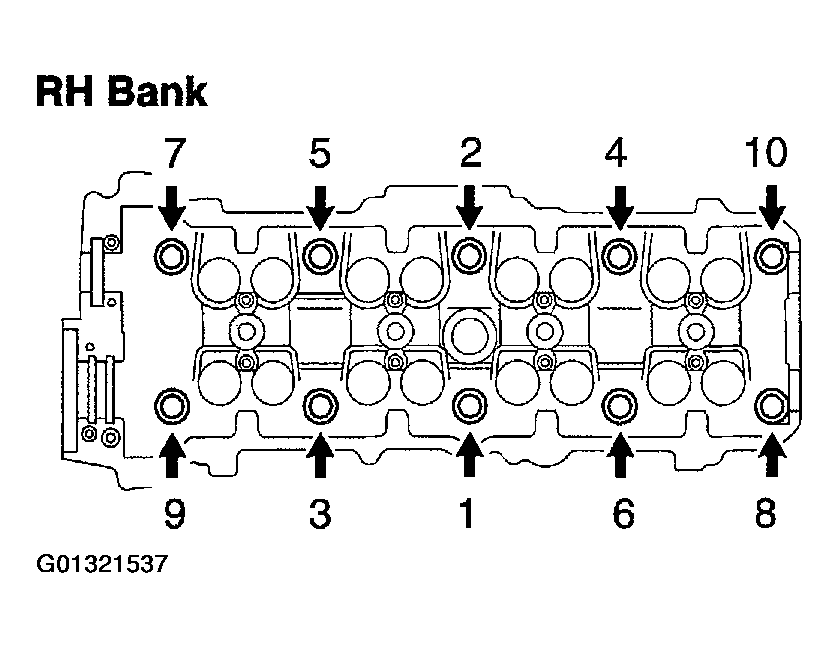

  1. Uniformly loosen the 10 cylinder head bolts on one side of each cylinder head in several passes, in the sequence shown.

    Fig 24: Loosening Cylinder Head Bolts In Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    Cylinder head warpage or cracking could result from removing bolts in incorrect order.

    Do not drop the plate washer for cylinder head bolt into portion A of the cylinder head. If dropped into portion A, the plate washer will pass through the cylinder head and cylinder block into the oil pan.

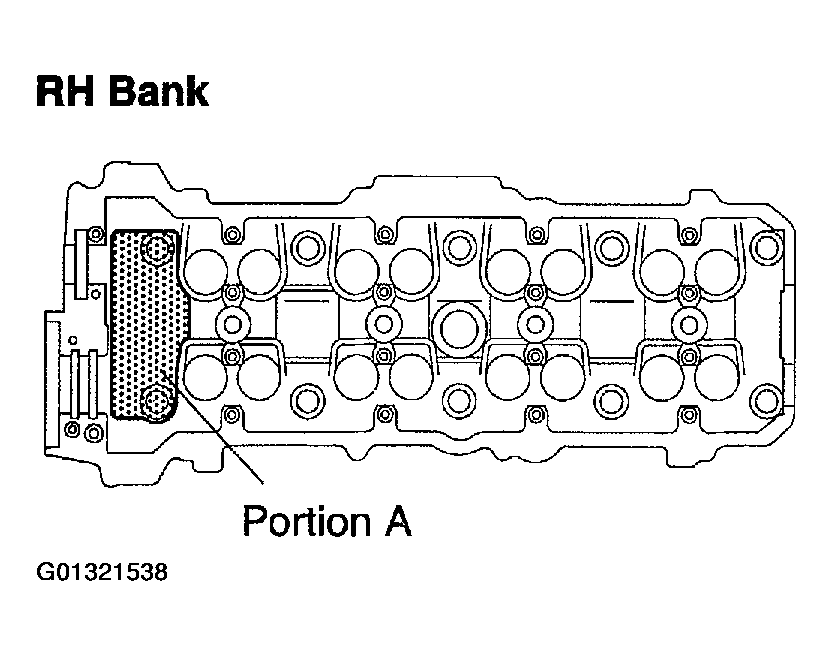

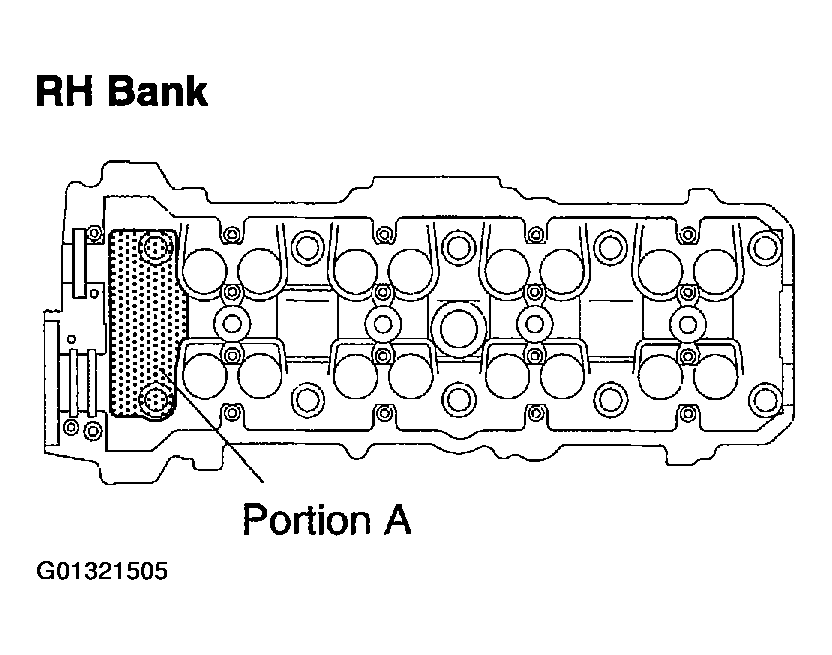

    Fig 25: Identifying Portion A Of Cylinder Head
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on wooden blocks on a bench.
    HINT:

    If the cylinder head is lift off, pry between the cylinder head and cylinder block with a screwdriver.

    NOTE: Be careful not to damage the contact surfaces of the cylinder head and cylinder block.
  Fig 26: Lifting Cylinder Head From Dowels On Cylinder Block (RH Bank)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE CYLINDER HEAD LH
  1. Uniformly loosen the 10 cylinder head bolts on one side of each cylinder head in several passes, in the sequence shown.

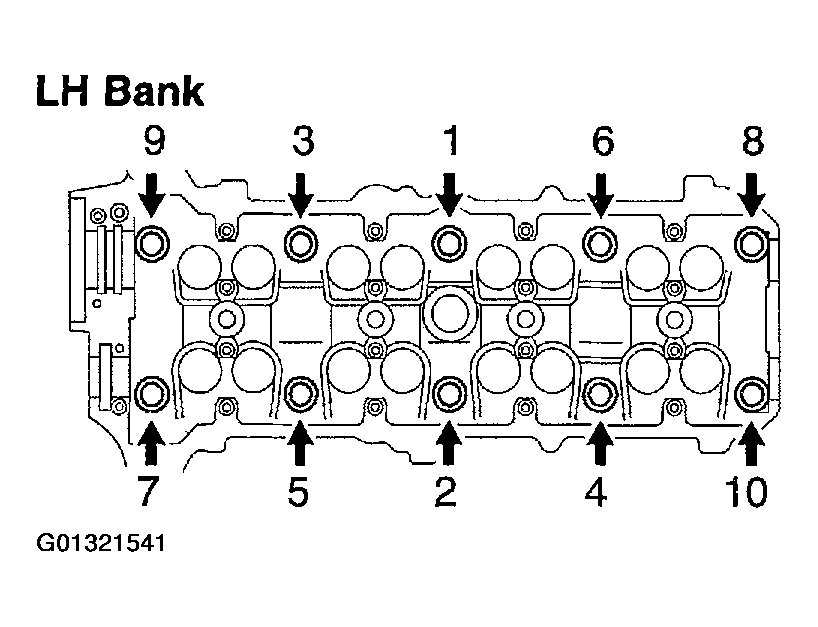

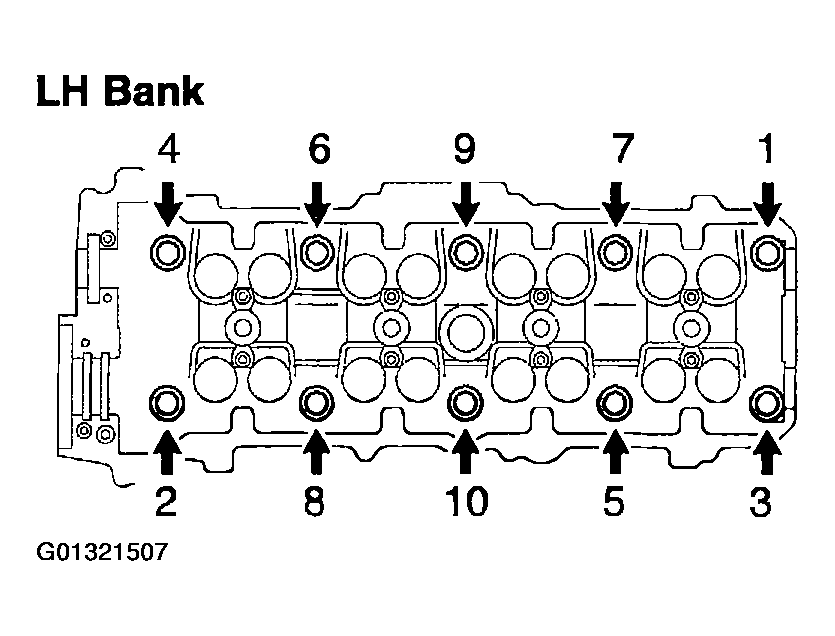

    Fig 27: Loosening Cylinder Head Bolts (LH) In Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    Cylinder head warpage or cracking could result from removing bolts in incorrect order.

    Do not drop the plate washer for cylinder head bolt into portion A of the cylinder head. If dropped into portion A, the plate washer will pass through the cylinder head and cylinder block into the oil pan.

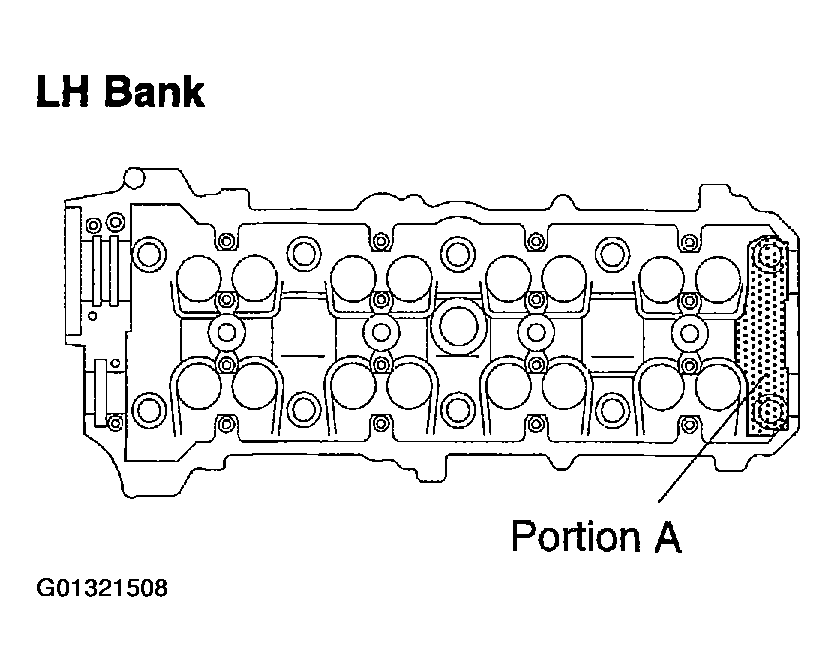

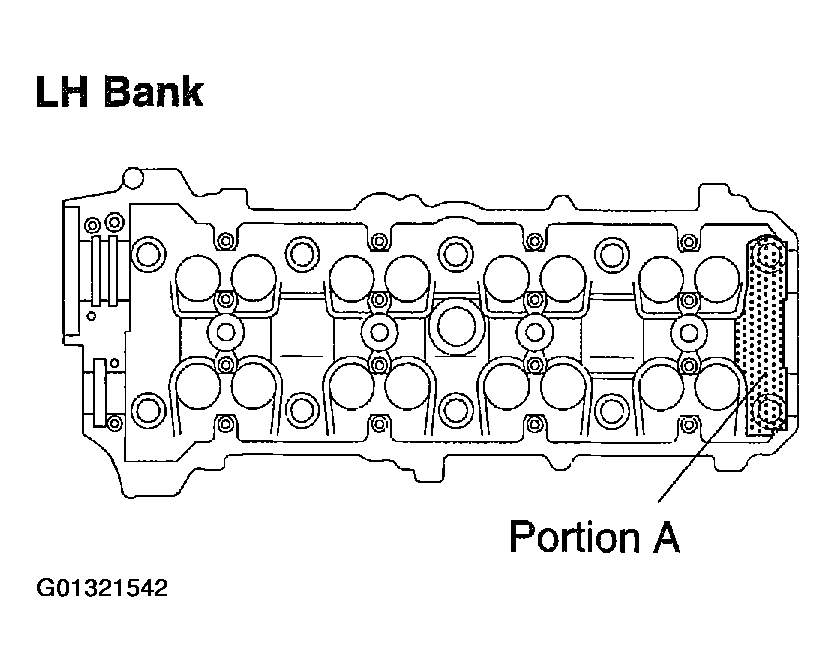

    Fig 28: Identifying Portion A Of Cylinder Head
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on wooden blocks on a bench.
    HINT:

    If the cylinder head is lift off, pry between the cylinder head and cylinder block with a screwdriver.

    NOTE: Be careful not to damage the contact surfaces of the cylinder head and cylinder block.
  Fig 29: Lifting Cylinder Head From Dowels On Cylinder Block (LH Bank)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE WATER PUMP ASSY

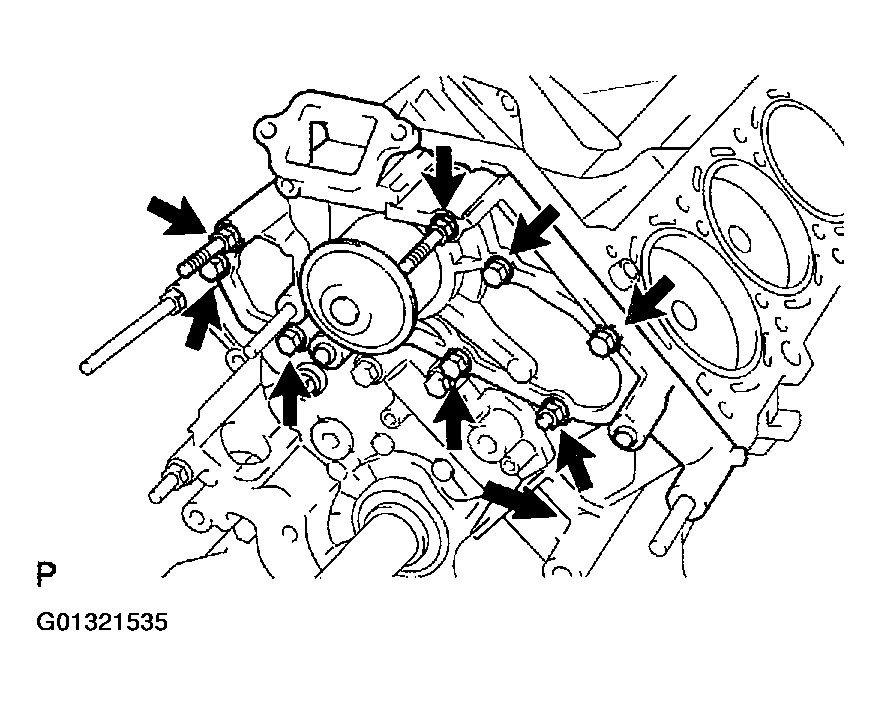

  1. Remove the 5 bolts, 2 stud bolts and nut, water pump and gasket.
7. REMOVE OIL PAN SUB-ASSY NO. 2 (See LUBRICATION SYSTEM )
8. REMOVE OIL PAN BAFFLE PLATE
  1. Remove the 3 bolts, 2 nuts and baffle plate.
9. REMOVE OIL PAN SUB-ASSY (See LUBRICATION SYSTEM )
10. REMOVE OIL STRAINER SUB-ASSY
  1. Remove the bolt, 2 nuts, oil strainer and gasket.
11. REMOVE OIL PUMP ASSY (See LUBRICATION SYSTEM )

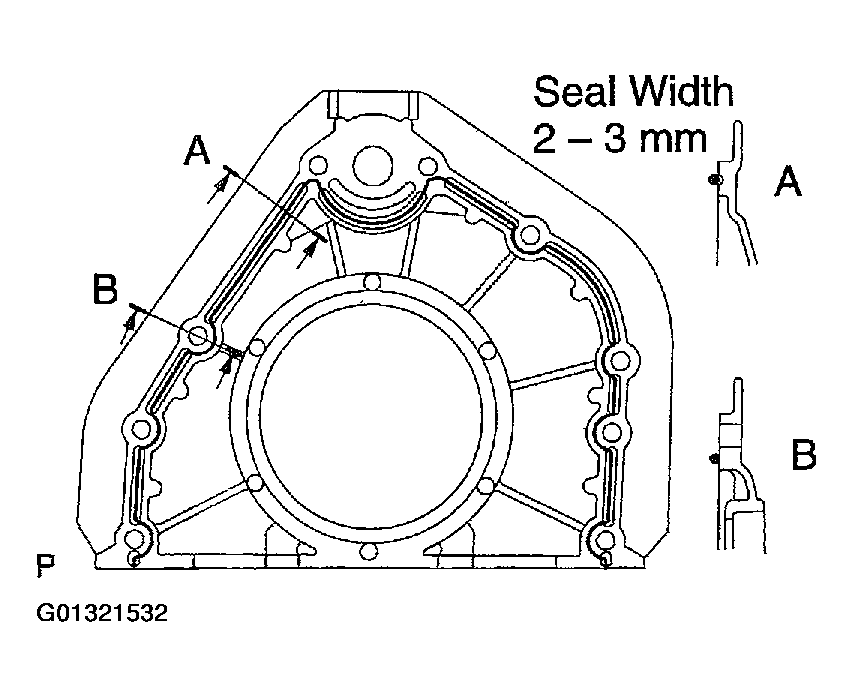

  Fig 30: Removing Engine Rear Oil Seal Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

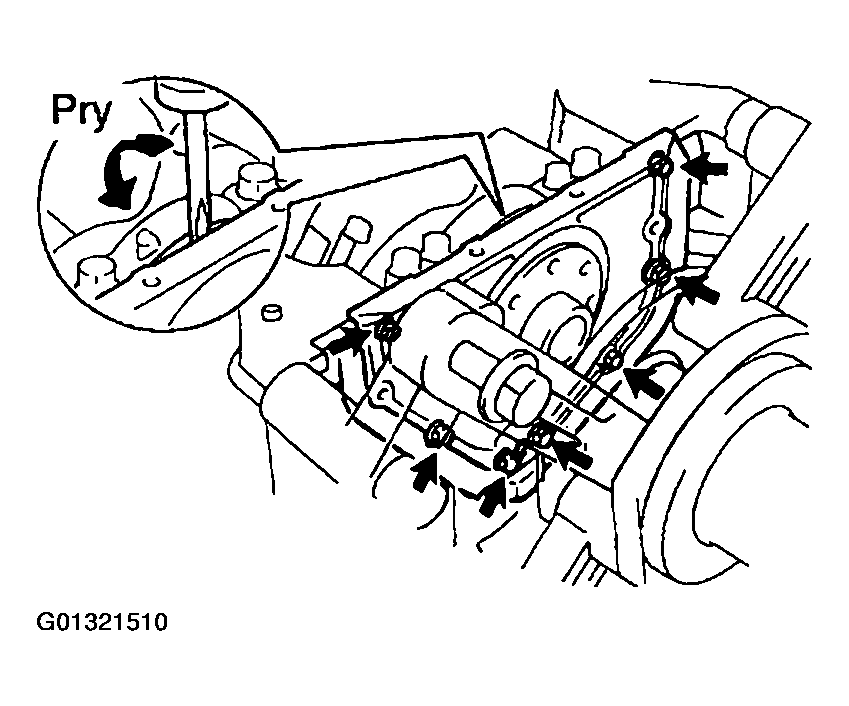

12. REMOVE ENGINE REAR OIL SEAL RETAINER

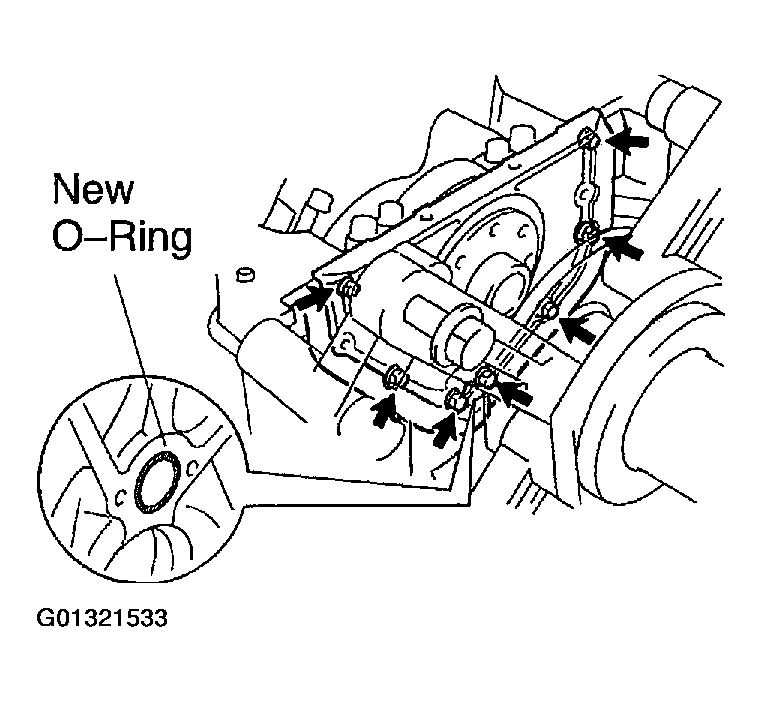

  1. Remove the 7 bolts.

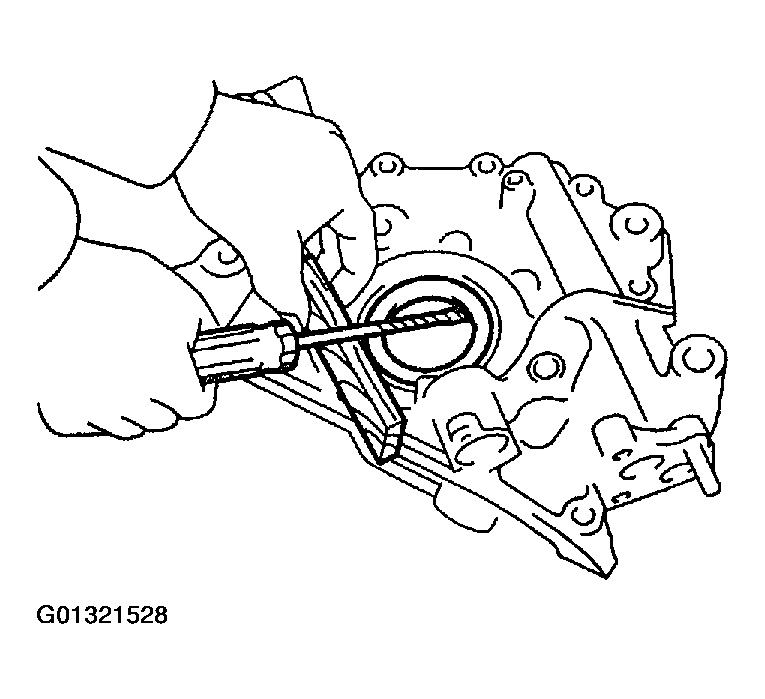

  2. Using a screwdriver, remove the oil seal retainer by prying the portions between the oil seal retainer and crankshaft bearing cap.
  3. Remove the O-ring.
  Fig 31: Removing Spark Plug Tube Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE SPARK PLUG TUBE GASKET

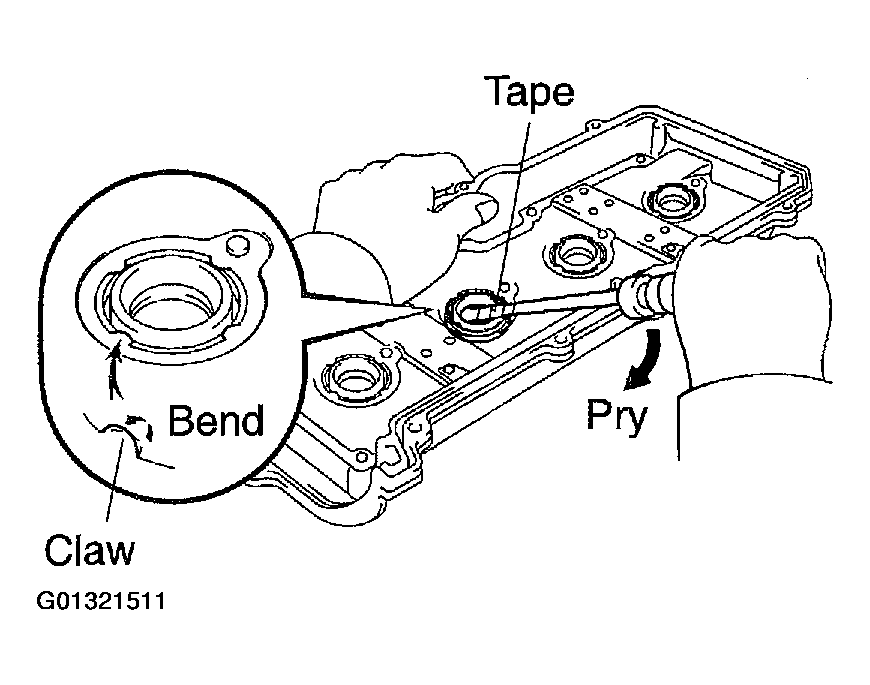

  1. Bend the 4 ventilation case claws installed on the cylinder head cover to an angle of 90° or more.
  2. Using a screwdriver, pry out the gasket.
    NOTE: Be careful not to damage the cylinder head cover. Tape the screwdriver tip.

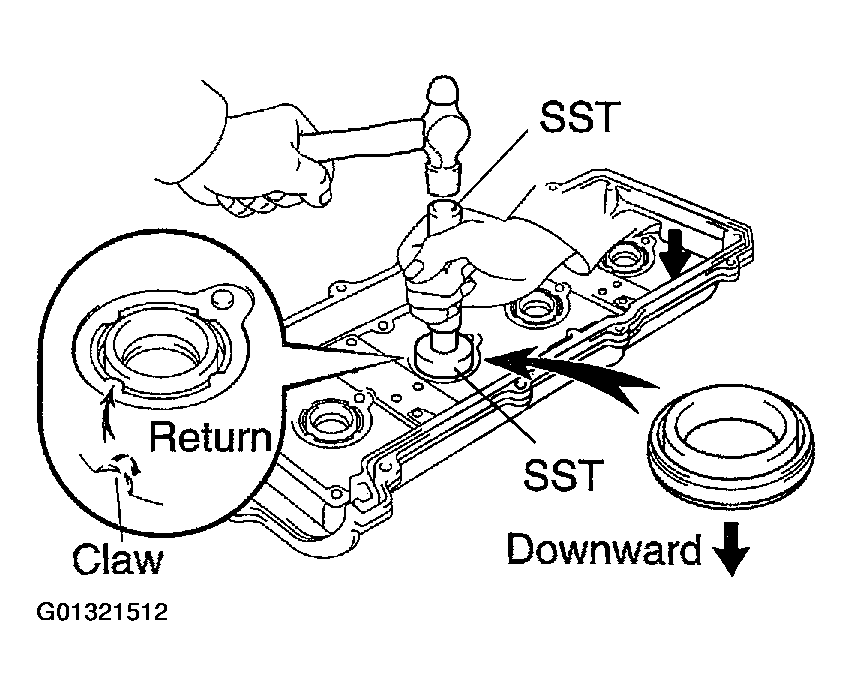

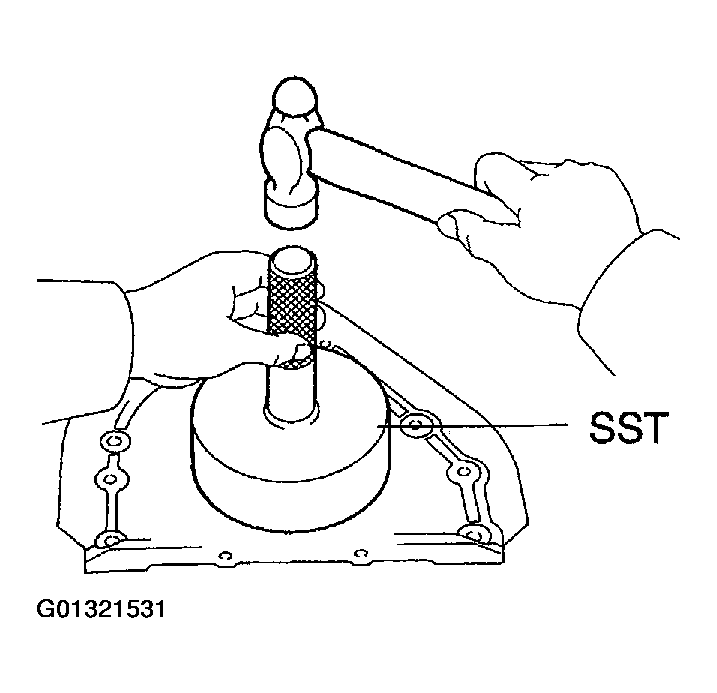

  Fig 32: Installing Spark Plug Tube Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL SPARK PLUG TUBE GASKET

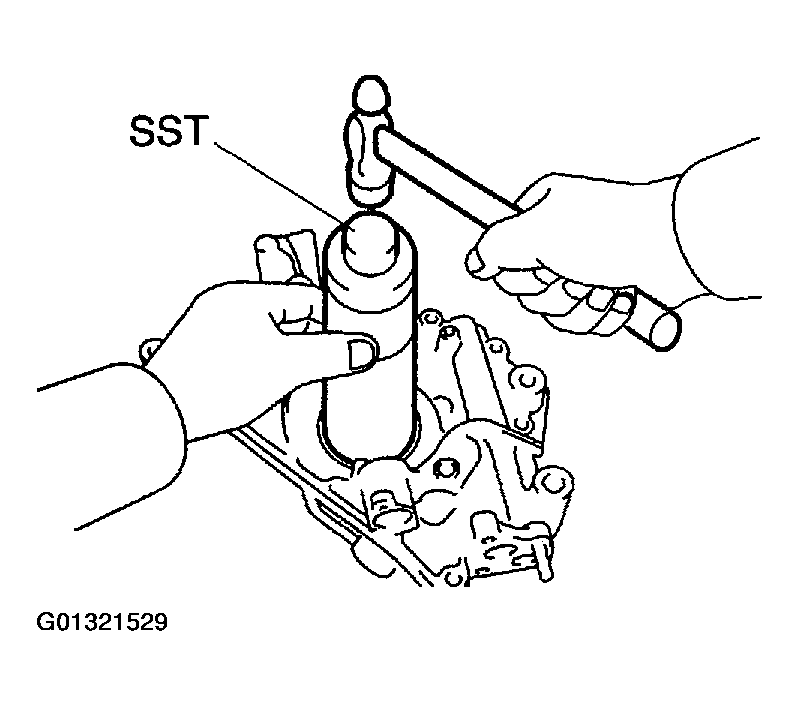

  1. Using SST and a hammer, tap in a new gasket until its surface is flush with the upper edge of the cylinder head cover.
    SST 09950-60010 (09551-00240, 09951-00440, 09952-06010), 09950-70010 (09951-07100)

    NOTE: Be careful of the installation direction.
  2. Apply a light coat of MP grease to the gasket lip.
  3. Return the 4 ventilation case claws to its original position.
15. REMOVE CAMSHAFT TIMING TUBE ASSY

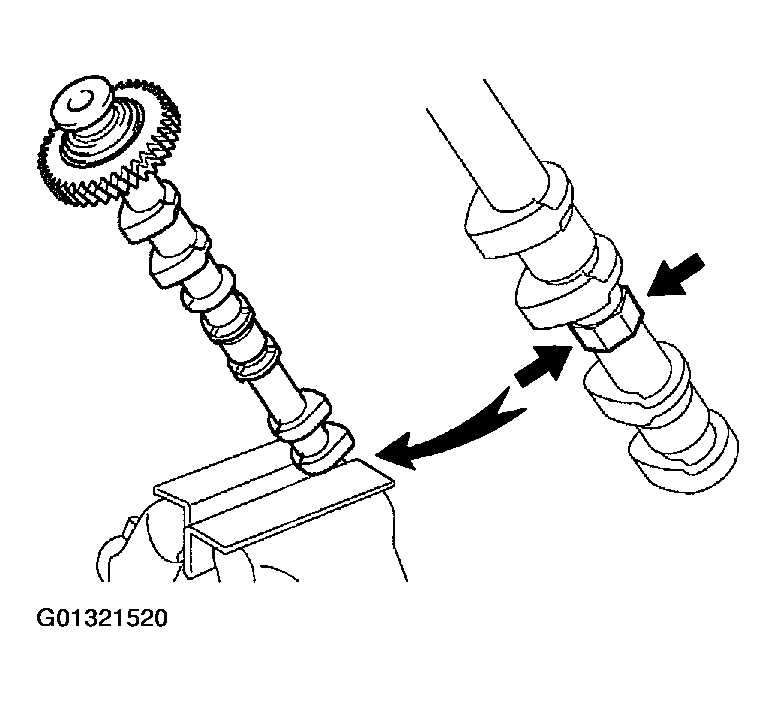

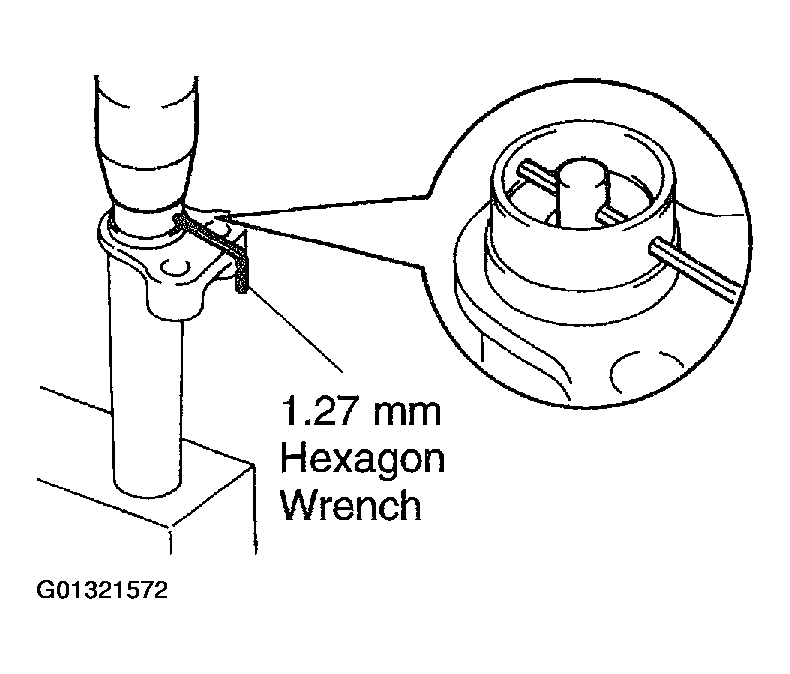

  1. Mount the hexagon wrench head portion of the camshaft in a vise.

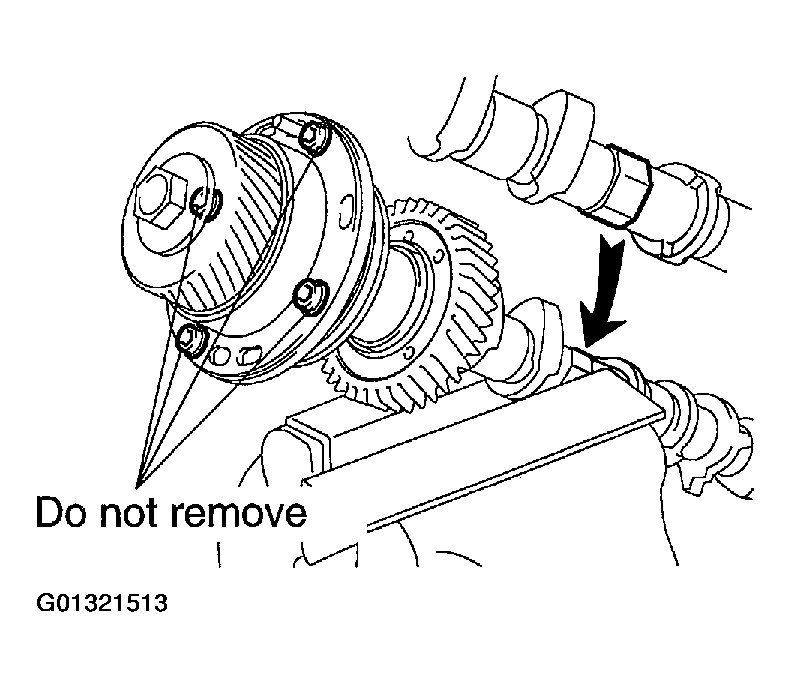

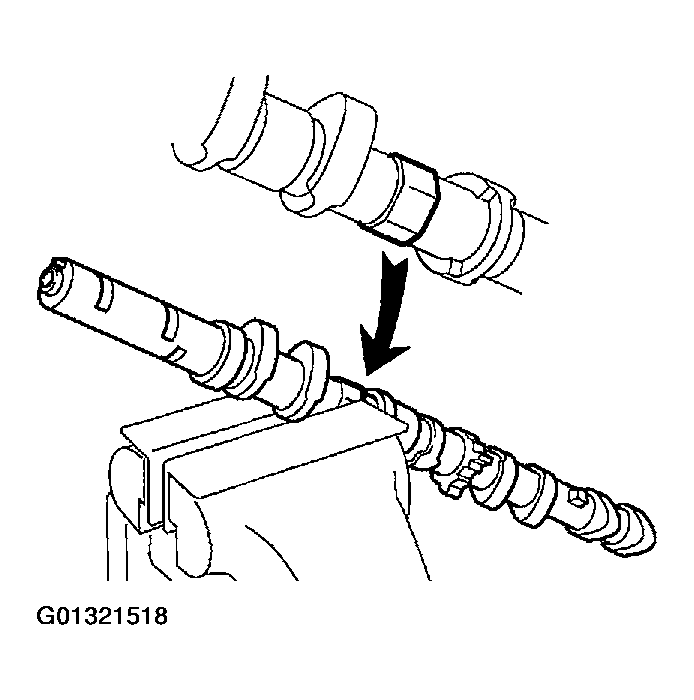

    Fig 33: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    Be careful not to damage the camshaft.

    The 4 bolts shown in the illustration determine the backlash of the gear in the timing tube, so do not remove them. If any of the 4 bolts are removed, install a new timing tube assy.
  2. Remove the screw plug and seal washer.

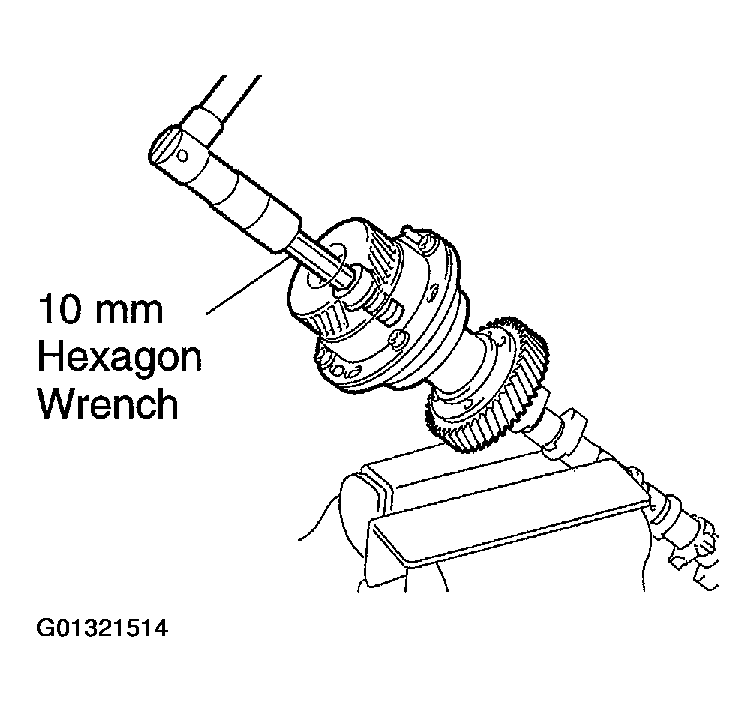

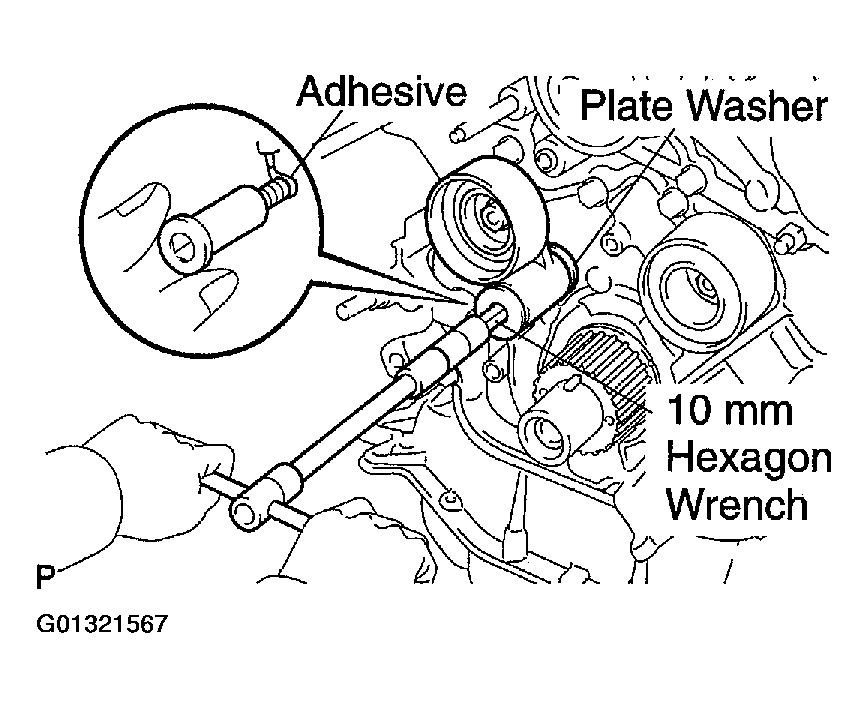

  3. Using a 10 mm hexagon wrench, and remove the bolt.

    Fig 34: Removing Camshaft Timing Tube Assembly Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Pull out the timing tube and drive gear assembly from the camshaft.

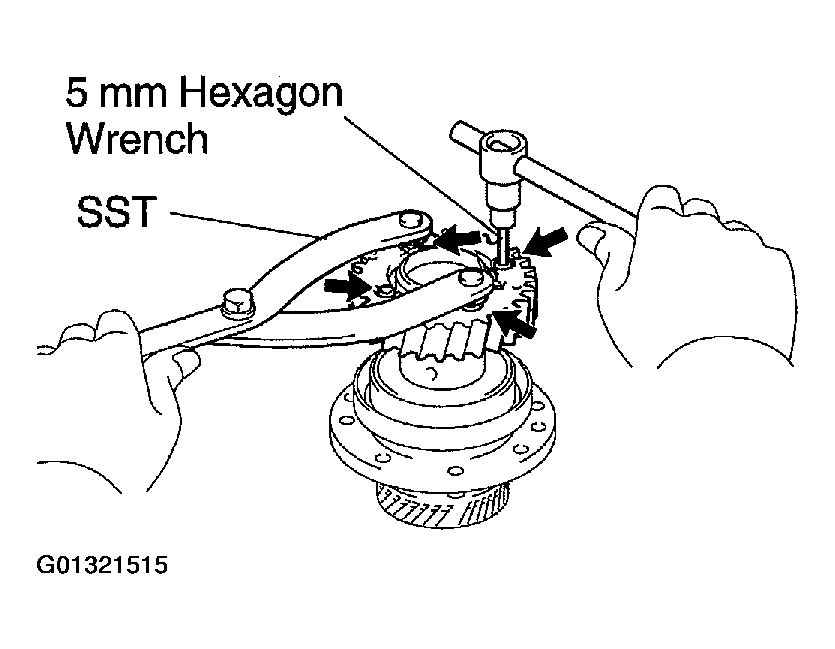

  5. Using SST and a 5 mm hexagon wrench, and remove the 4 bolts, drive gear and oil seal.
    SST 09960-10010 (09962-01000, 09963-00500)
  NOTE: Be careful not to damage the timing tube.

  Fig 35: Removing Drive Gear And Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL CAMSHAFT SETTING OIL SEAL
  1. Place a new oil seal to the timing tube.
    NOTE: Be careful of the installation direction.

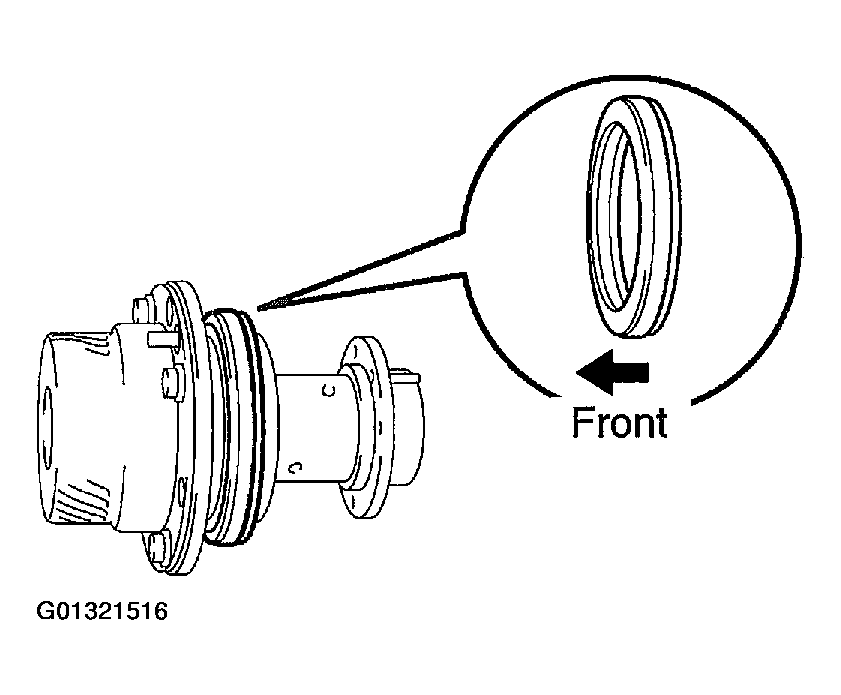

  Fig 36: Installing Camshaft Setting Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL CAMSHAFT TIMING TUBE ASSY
  1. Align the timing tube knock pin with the knock pin groove of the drive gear, and temporarily install the drive gear with the 4 bolts.
  2. Using SST and a 5 mm hexagon wrench, uniformly tighten the 4 bolts in several passes.
    SST 09960-10010 (09962-01000, 09963-00500)

    Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)

    NOTE: Be careful not to damage the timing tube.

    Fig 37: Tightening Drive Gear Mounting Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Mount the hexagon wrench head portion of the camshaft in a vise.
    NOTE: Be careful not to damage the camshaft.

    Fig 38: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Align the camshaft knock pin with the knock pin groove of the timing tube, and push the timing tube by hand until you feel it touch the bottom.
  5. Using a 10 mm hexagon wrench, install the bolt.
    Torque: 78 N.m (790 kgf.cm, 58 ft.lbf)
  6. Install the seal washer and screw plug.
    Torque: 15 N.m (150 kgf.cm, 11 ft.lbf)
  Fig 39: Installing Camshaft Timing Tube Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE CAMSHAFT SUB GEAR
  1. Mount the hexagon wrench head portion of the camshaft in a vise.
    NOTE: Be careful not to damage the camshaft.

    Fig 40: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using SST, turn the sub gear clockwise, and remove the service bolt.
    SST 09960-10010 (09962-01000, 09963-00500)

    Fig 41: Removing Service Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Using snap ring pliers, remove the snap ring.
  4. Remove the wave washer, sub gear and gear bolt washer.
    HINT:

    Arrange the driven sub gears and gear bolt washers (RH and LH sides).
  Fig 42: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSPECT CAMSHAFT TIMING GEAR BOLT WASHER
  1. Using vernier calipers, measure the free distance between the washer ends.
    Free distance: 18.2 - 18.8 mm (0.712 - 0.740 in.)
  If the free distance is not as specified, replace the washer.

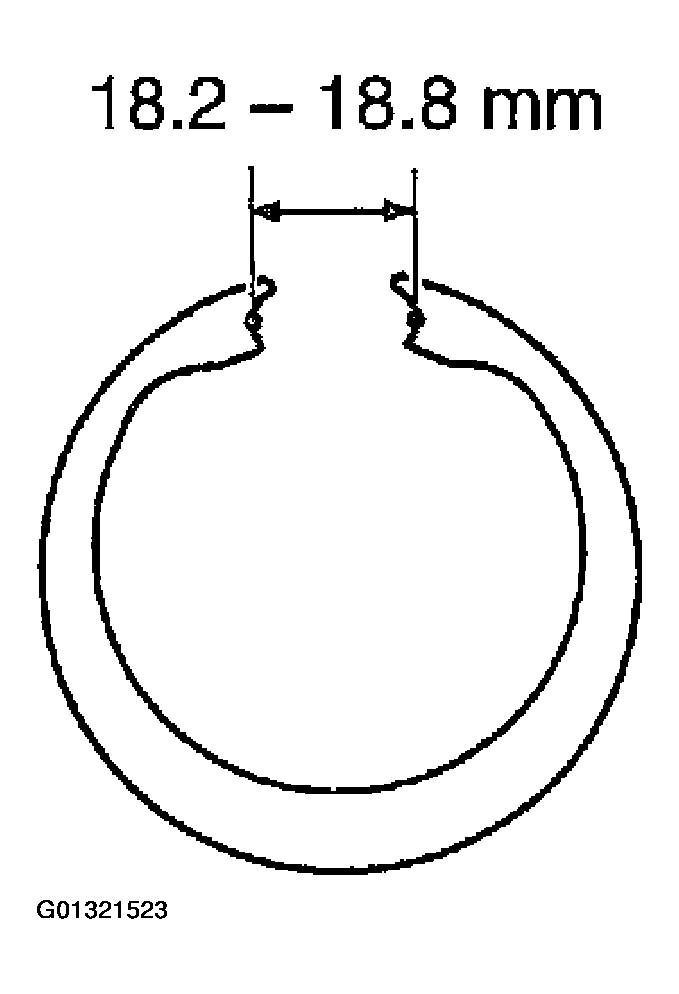

  Fig 43: Inspecting Camshaft Timing Gear Bolt Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL CAMSHAFT SUB GEAR
  1. Install the gear bolt washer (1), sub gear (2) and wave washer (3).
    HINT:

    Attach the pins on the gears to the gear bolt washer ends.

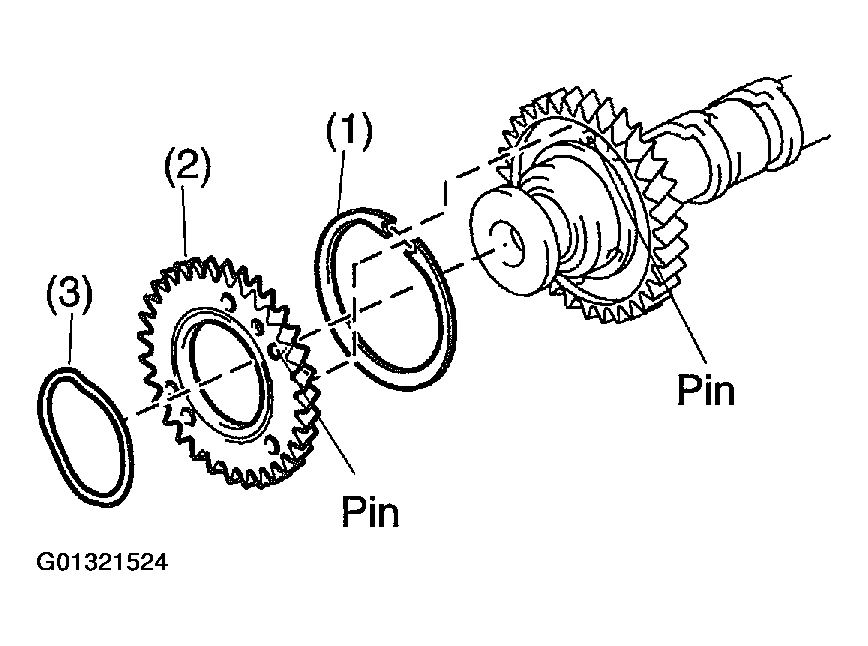

    Fig 44: Installing Gear Bolt Washer, Sub Gear And Wave Washer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

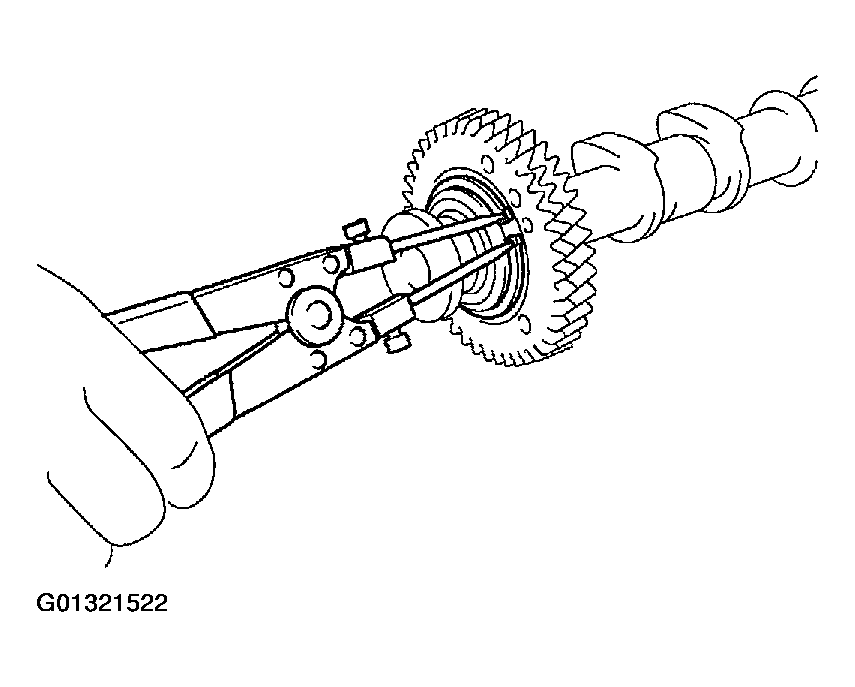

  2. Using snap ring pliers, install the snap ring.

    Fig 45: Installing Snap Ring
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Mount the hexagon wrench head portion of the camshaft in a vise.
    NOTE: Be careful not to damage the camshaft.

    Fig 46: Mounting Hexagon Wrench Head Portion Of Camshaft In Vise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Using SST, align the holes of the driven main gear and sub gear by turning the sub gear clockwise, and temporarily install a service bolt.
    SST 09960-10010 (09962-01000, 09963-00500)
  5. Align the gear teeth of the driven main gear and sub gear, and tighten the service bolt.
  Fig 47: Aligning Driven Main Gear And Sub Gear Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. REMOVE OIL PUMP SEAL
  1. Using a screwdriver, pry out the oil seal.
  NOTE: Be careful not to damage the oil pump body. Tape the screwdriver tip.

  Fig 48: Removing Oil Pump Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. INSTALL OIL PUMP SEAL
  1. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.
    SST 09316-60011 (09316-00011)
  2. Apply MP grease to the oil seal lip.
  Fig 49: Installing Oil Pump Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE ENGINE REAR OIL SEAL
  1. Using a screwdriver and hammer, tap out the oil seal.
  Fig 50: Removing Engine Rear Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL ENGINE REAR OIL SEAL
  1. Using SST and a hammer, tap in a new oil seal until its surface is flush with the rear oil seal retainer edge.
    SST 09223-56010
  2. Apply MP grease to the oil seal lip.
25. INSTALL ENGINE REAR OIL SEAL RETAINER
  1. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the oil seal retainer and cylinder block.
    1. Using a razor blade and gasket scraper, remove all the oil packing (FIPG) material from the gasket surfaces and sealing grooves.
    2. Thoroughly clean all components to remove all the loose material.
    3. Using a non-residue solvent, clean both sealing surfaces.
    Fig 51: Installing Engine Rear Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Apply seal packing to the oil seal retainer as shown in the illustration.
    Seal packing: Part No. 08826-00080 or equivalent
    1. Install a nozzle that has been cut to a 3 - 4 mm (0.12 -0.16 in.) opening.
    2. Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.
    3. Immediately remove nozzle from the tube and reinstall cap.
    Fig 52: Applying Seal Packing To Oil Seal Retainer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install a new O-ring to the cylinder block.
  4. Install the oil seal retainer with the 7 bolts.
    Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)
  Fig 53: Installing New O-Ring To Cylinder Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL OIL PUMP ASSY (See LUBRICATION SYSTEM )
27. INSTALL OIL STRAINER SUB-ASSY (See LUBRICATION SYSTEM )
28. INSTALL OIL PAN STUD BOLT

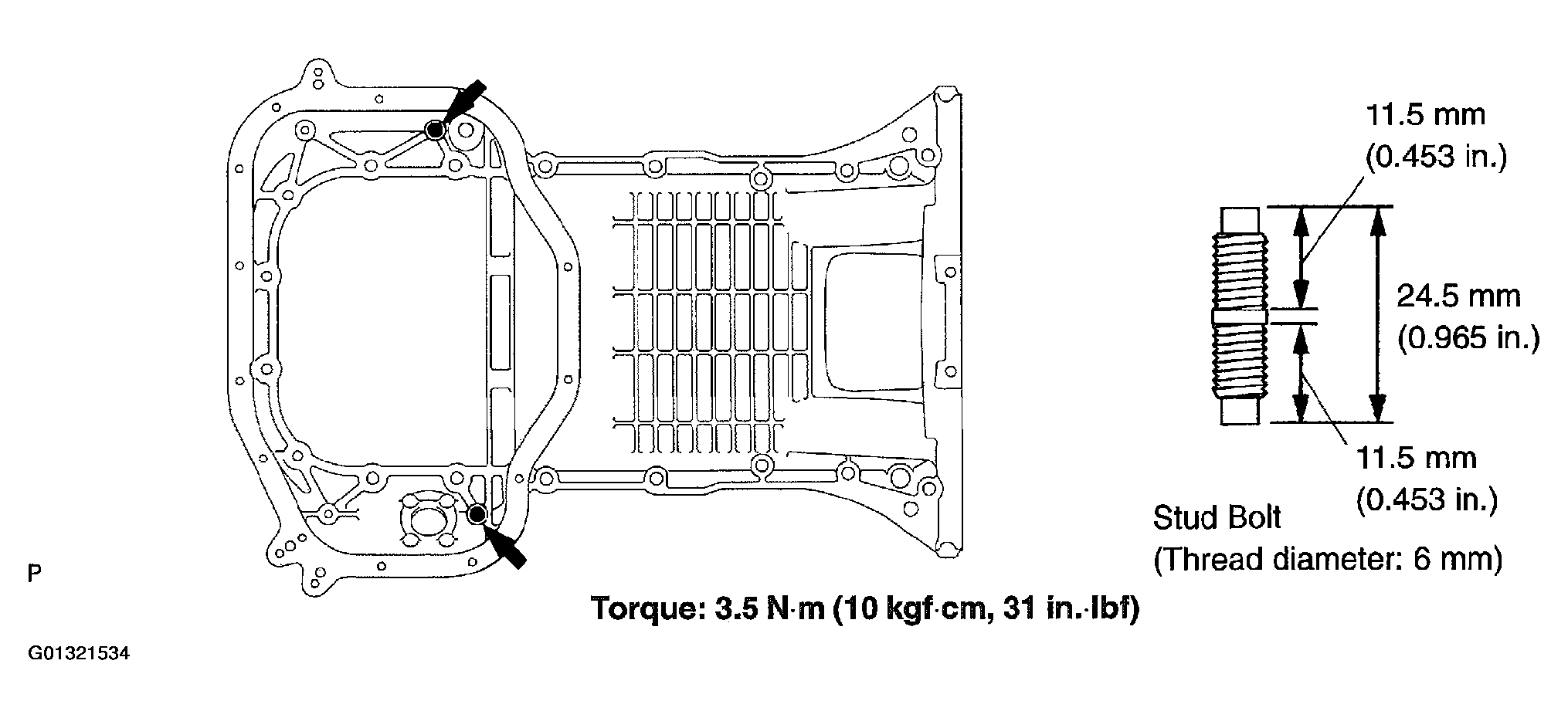

  Fig 54: Identifying Stud Bolt Installation Point And Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29. INSTALL OIL PAN SUB-ASSY (See LUBRICATION SYSTEM )
30. INSTALL OIL PAN BAFFLE PLATE (See LUBRICATION SYSTEM )
31. INSTALL OIL PAN SUB-ASSY NO. 2 (See LUBRICATION SYSTEM )
32. INSTALL WATER PUMP ASSY (See WATER PUMP
  1. Install a new gasket and water pump with the 5 bolts, 2 stud bolts and nut. Uniformly tighten the bolts, stud bolts and nut in several passes.
    Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    HINT:

    Use bolts 30 mm (1.18 in.) in length.
  Fig 55: Installing Water Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
33. INSTALL CYLINDER HEAD SUB-ASSY

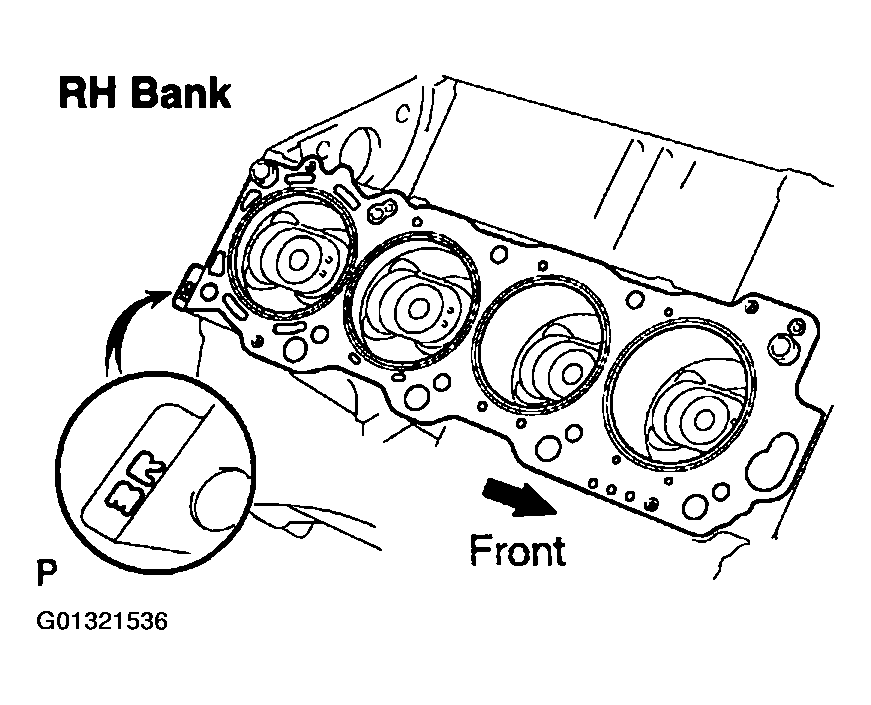

  1. Place a new cylinder head gasket on the cylinder block.
    HINT:

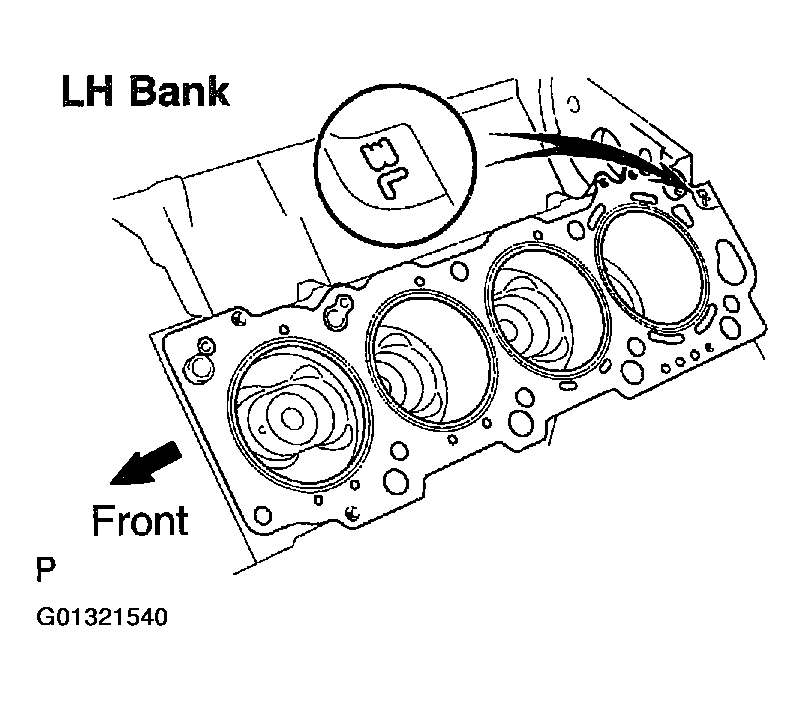

    On the rear side of the cylinder head gasket are marks to distinguish the RH and LH banks, a "3R" mark for the RH bank

    NOTE: Be careful of the installation direction.
  2. Place the cylinder head on the cylinder head gasket.

    Fig 56: Placing New Cylinder Head Gasket On Cylinder Block
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install the cylinder head bolts.
    HINT:
    - The cylinder head bolts are tightened in 2 progressive steps (steps (3) and (5)).
    - If any cylinder head bolt is broken or deformed, replace it.
    1. Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
    2. Install the plate washer to the cylinder head bolt.
    3. Install and uniformly tighten the 10 cylinder head bolts on one side of the cylinder head in several passes in the sequence shown.

      Fig 57: Installing Cylinder Head Bolts
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 59 N.m (600 kgf.cm, 44 ft.lbf)

      If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder head bolt.

      NOTE: Do not drop the plate washer for cylinder head bolt into portion A of the cylinder head. If dropped into portion A, the plate washer will pass through the cylinder head and cylinder block into the oil pan.

      Fig 58: Identifying Portion A Of Cylinder Head
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Mark the front of the cylinder head bolt head with paint.
    5. Retighten the cylinder head bolts by 90° in the numerical order shown.
    6. Check that the painted mark is now at a 90° angle to front.
  Fig 59: Identifying Cylinder Head Bolt Painted Mark Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
34. INSTALL CYLINDER HEAD LH
  1. Place a new cylinder head gasket on the cylinder block.
    HINT:

    On the rear side of the cylinder head gasket are marks to distinguish the RH and LH banks, a "3L" mark for the LH bank

    NOTE: Be careful of the installation direction.
  2. Place the cylinder head on the cylinder head gasket.

    Fig 60: Placing New Cylinder Head Gasket On Cylinder Block (LH)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install the cylinder head bolts.
    HINT:
    - The cylinder head bolts are tightened in 2 progressive steps (steps (3) and (5)).
    - If any cylinder head bolt is broken or deformed, replace it.
    1. Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
    2. Install the plate washer to the cylinder head bolt.
    3. Install and uniformly tighten the 10 cylinder head bolts on one side of the cylinder head in several passes in the sequence shown

      Fig 61: Installing Cylinder Head Bolts (Cylinder Head LH)
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 59 N.m (600 kgf.cm, 44 ft.lbf)

      If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder head bolt.

      NOTE: Do not drop the plate washer for cylinder head bolt Into portion A of the cylinder head. If dropped into portion A, the plate washer will pass through the cylinder head and cylinder block into the oil pan.

      Fig 62: Identifying Portion A Of Cylinder Head
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Mark the front of the cylinder head bolt head with paint.
    5. Retighten the cylinder head bolts by 90° in the numerical order shown.
    6. Check that the painted mark is now at a 90° angle to front.
  Fig 63: Identifying Cylinder Head Bolt Painted Mark Position (Cylinder Head LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
35. INSTALL CAMSHAFT
  NOTE: Since the thrust clearance of the camshaft as small, the camshaft must be kept level while it as being installed. If the camshaft as not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.
  1. Set the crankshaft position.
    1. Using the crankshaft damper bolt, turn the crankshaft, and set the set key of the crankshaft at the position of 90° counterclockwise from the timing mark (dot) of the oil pump body.
    Fig 64: Setting Key Of Crankshaft
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Having the crankshaft at the wrong angle can cause the piston head and valve head to come into contact with each other when you install the camshaft, causing damage. So always set the crankshaft at the correct angle.
  2. Install the camshafts of the RH bank.
    1. Apply MP grease to the thrust portion of the camshafts.
    2. Align the timing marks (1 dot mark) of the camshaft drive and driven main gears, and place the 2 camshafts.
    3. Set the timing mark (1 dot mark) of the camshaft drive and driven main gears at approx. 10° angle.

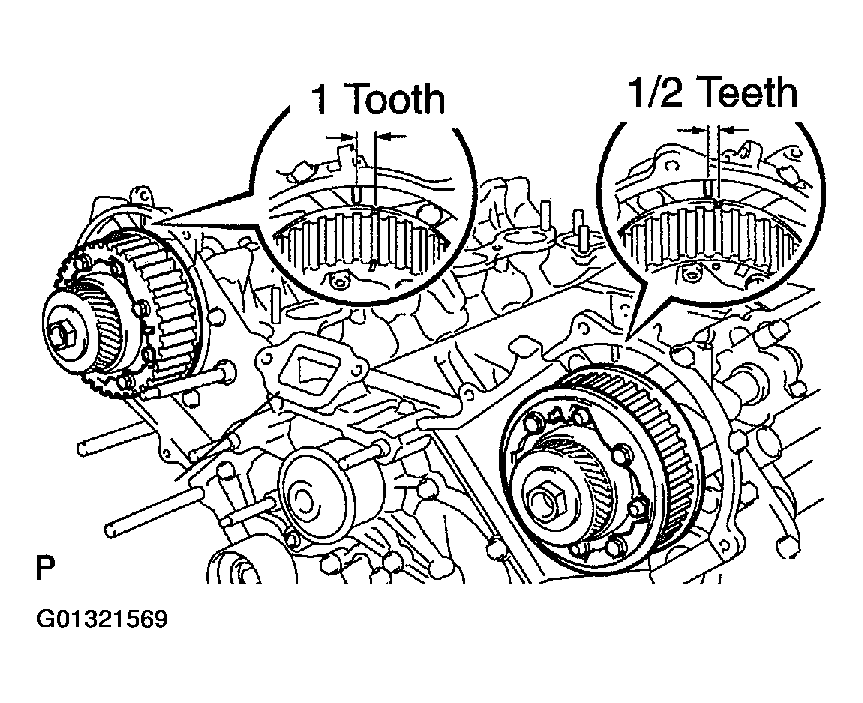

      Fig 65: Setting Timing Mark Of Camshaft Drive And Driven Main Gear
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

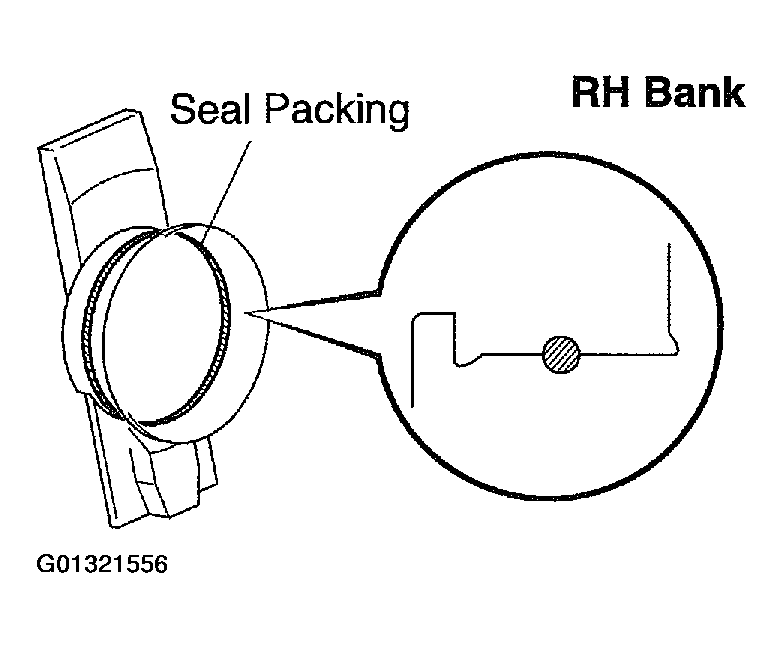

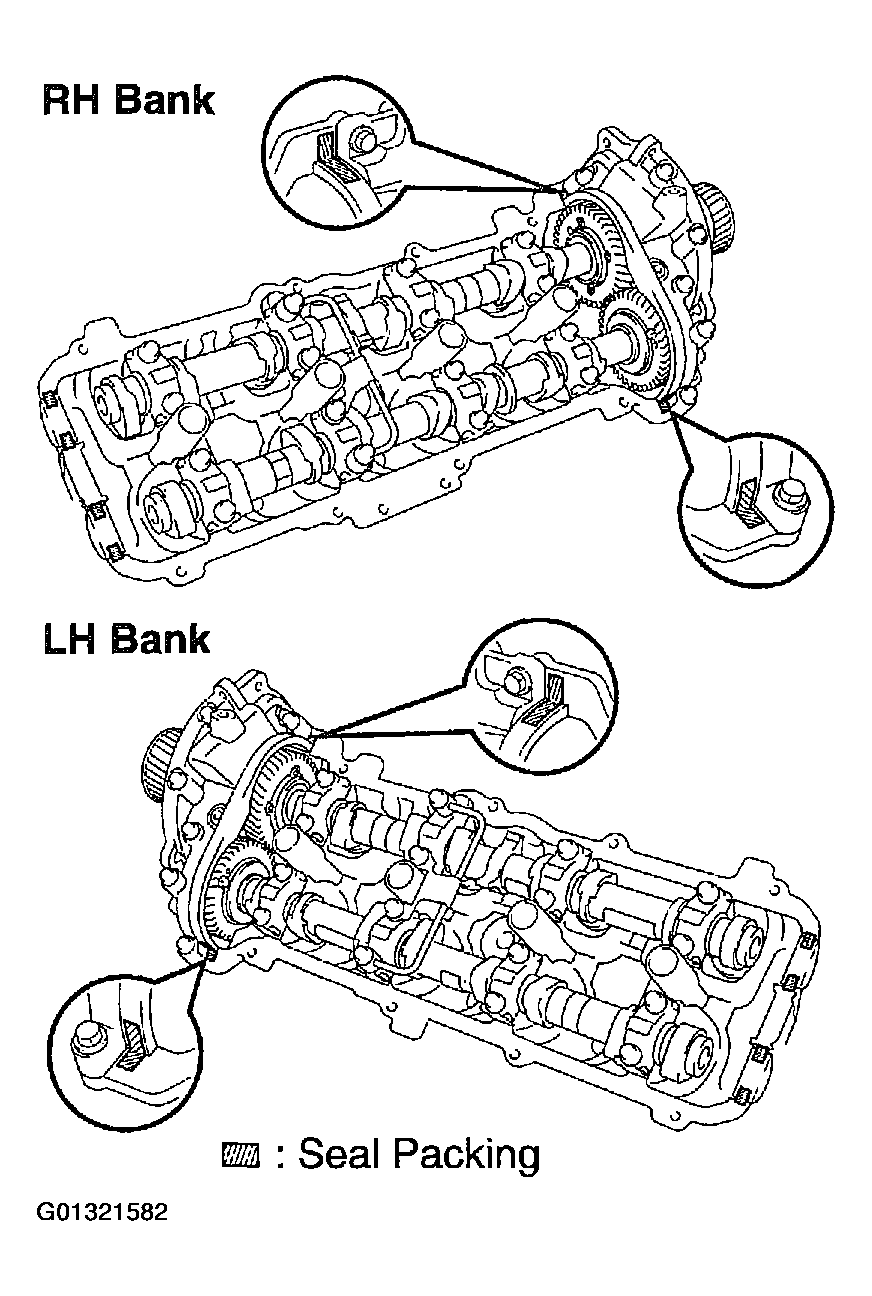

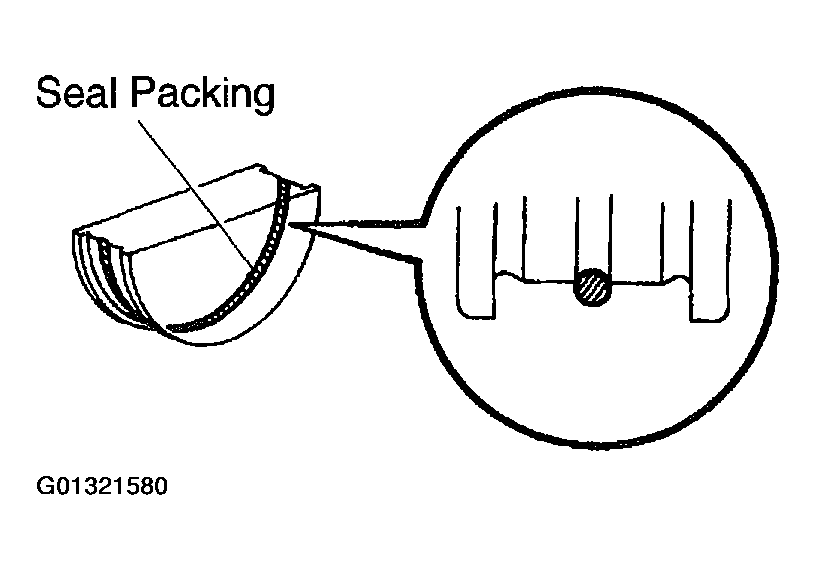

    4. Apply seal packing to the camshaft housing plug.
      - Remove the old packing (FIPG) material.
      - Apply seal packing to the housing plug.
      Seal packing: Part No. 03328-00030 or equivalent

      Fig 66: Applying Seal Packing To Camshaft Housing Plug
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

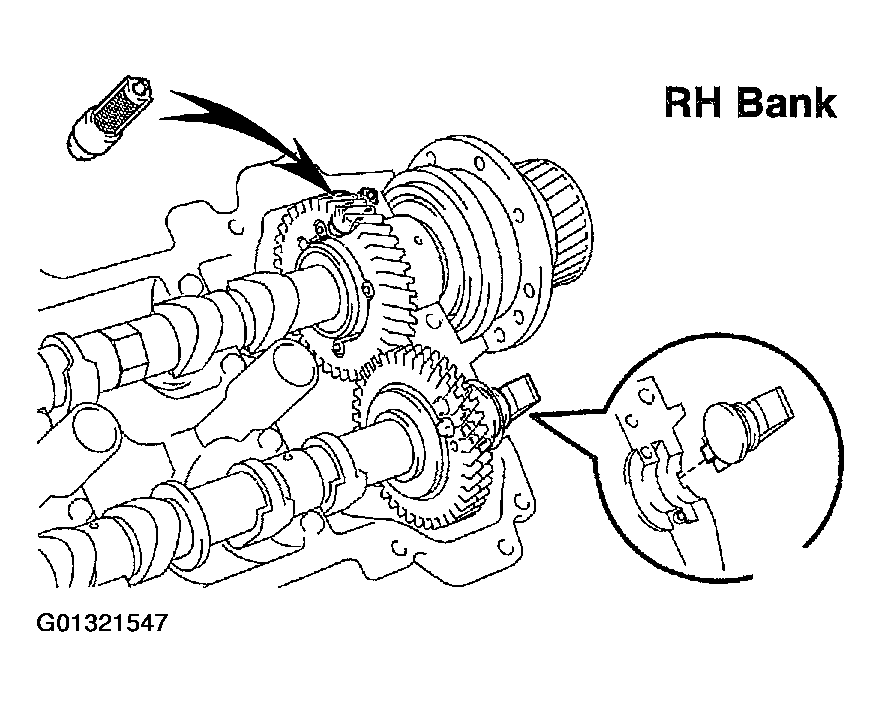

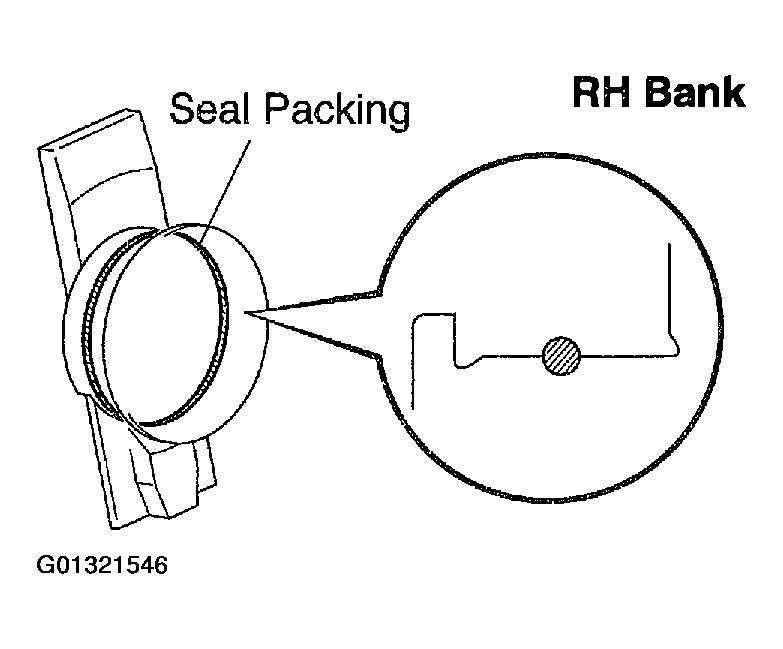

    5. Install the camshaft housing plug to the cylinder head as shown in the illustration.
    6. Install the oil control valve filter to the cylinder head.
      NOTE: Be careful of the installation direction.

      Fig 67: Installing Camshaft Housing Plug To Cylinder Head
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

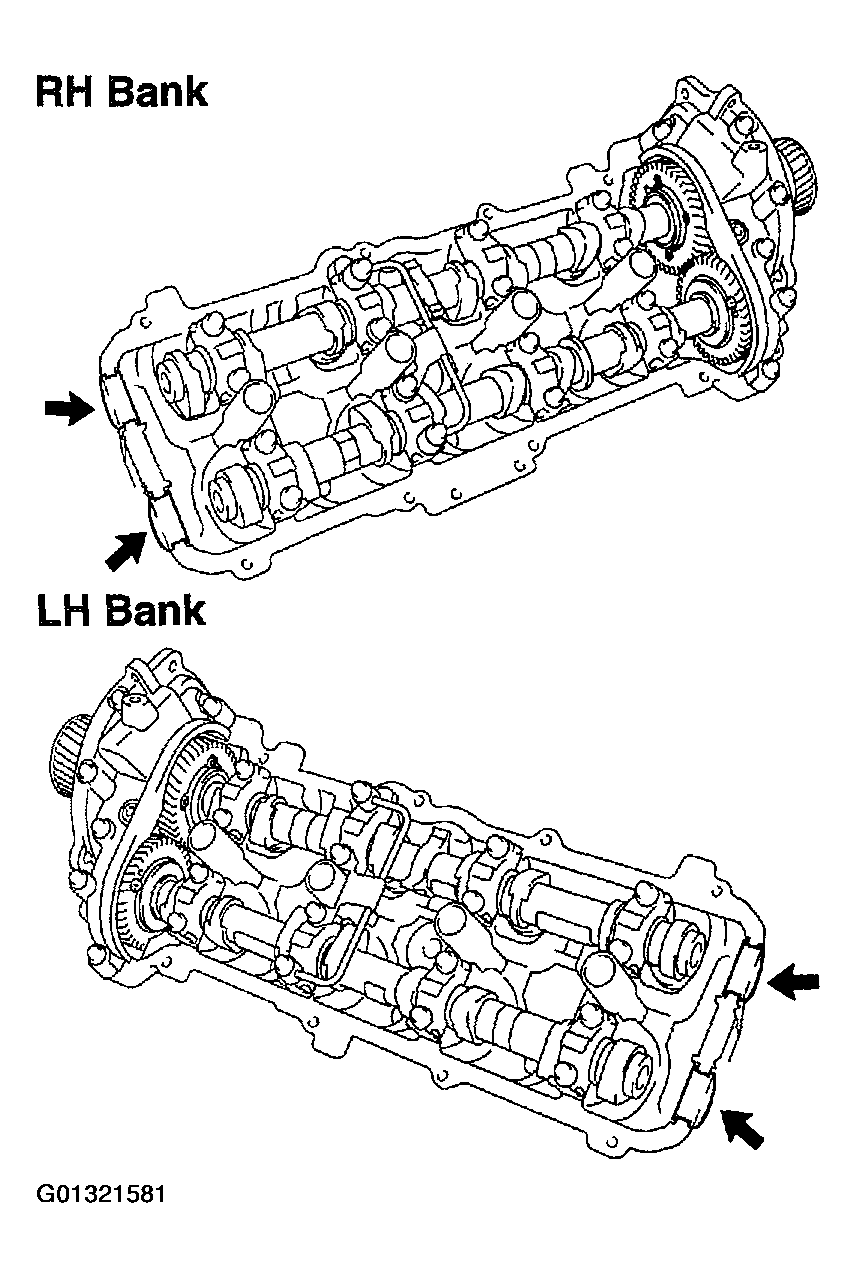

    7. Apply seal packing to the front bearing cap.
      - Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the bearing cap and cylinder head.
        Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and groove. Thoroughly clean all components to remove all the loose material.

        Using a non-residue solvent, clean both sealing surfaces.

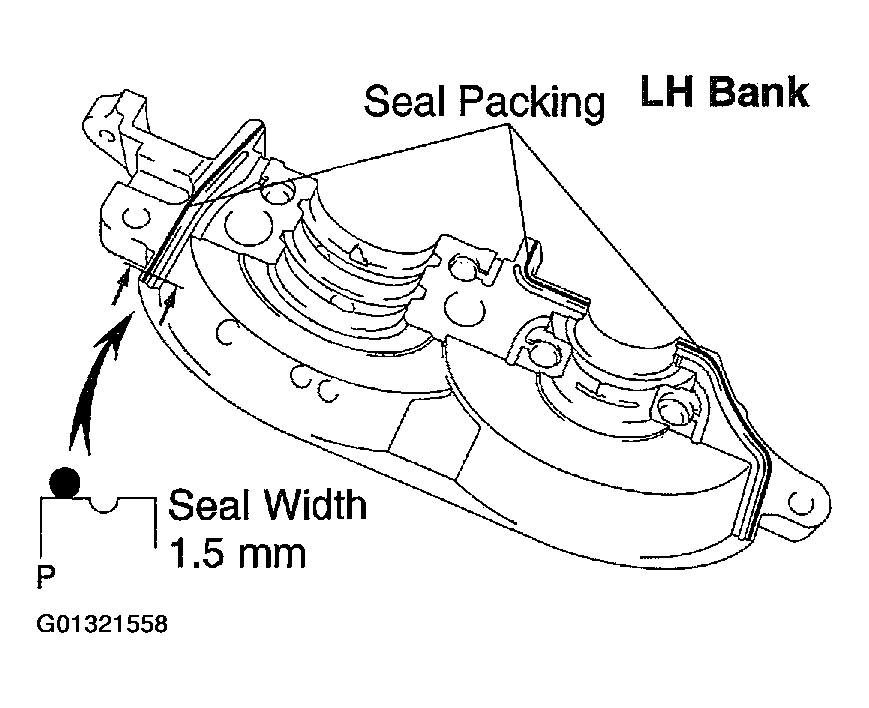

      - Apply seal packing to the bearing cap as shown in the illustration.
        Install a nozzle that has been cut to a 1.5 - 2.0 mm (0.059 - 0.79 in.) opening.

        Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.

        Immediately remove nozzle from the tube and reinstall cap.

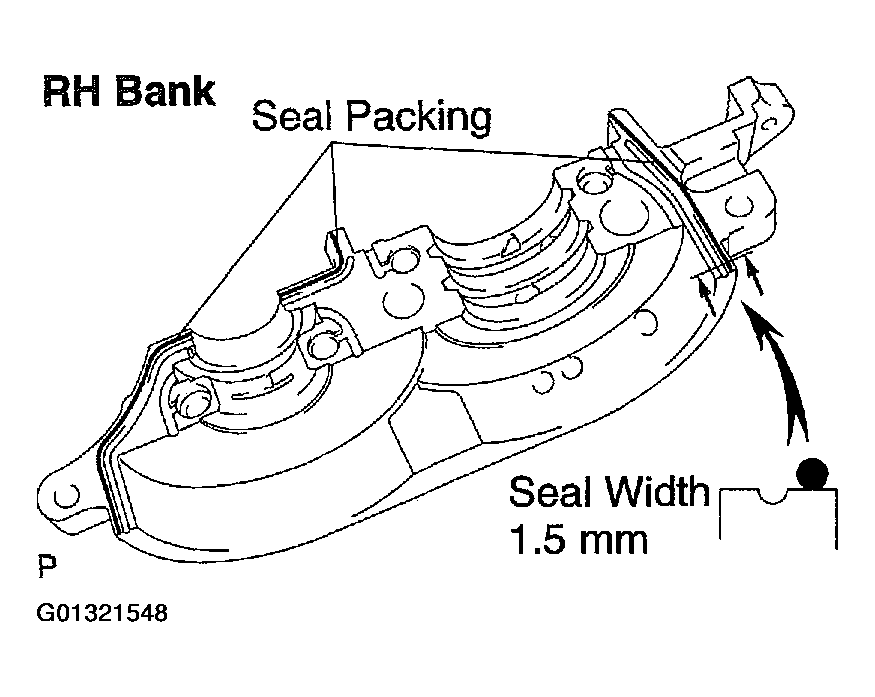

      Fig 68: Applying Seal Packing To Bearing Cap
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing: Part No. 08826-00080 or equivalent

      NOTE: Do not apply seal packing to the front bearing cap grooves.
    8. Install the front bearing cap.
      HINT:

      Installing the front bearing cap will determine the thrust portion of the camshaft.

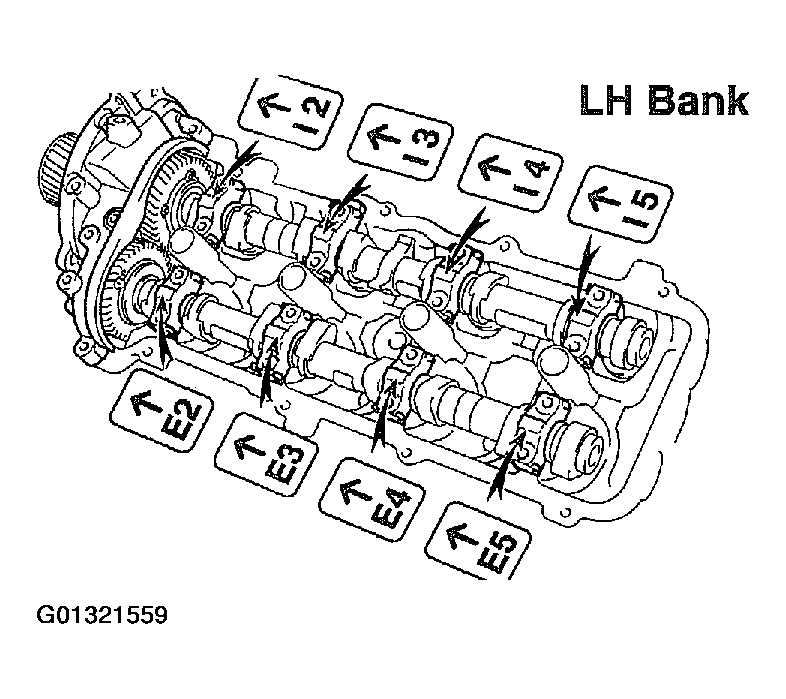

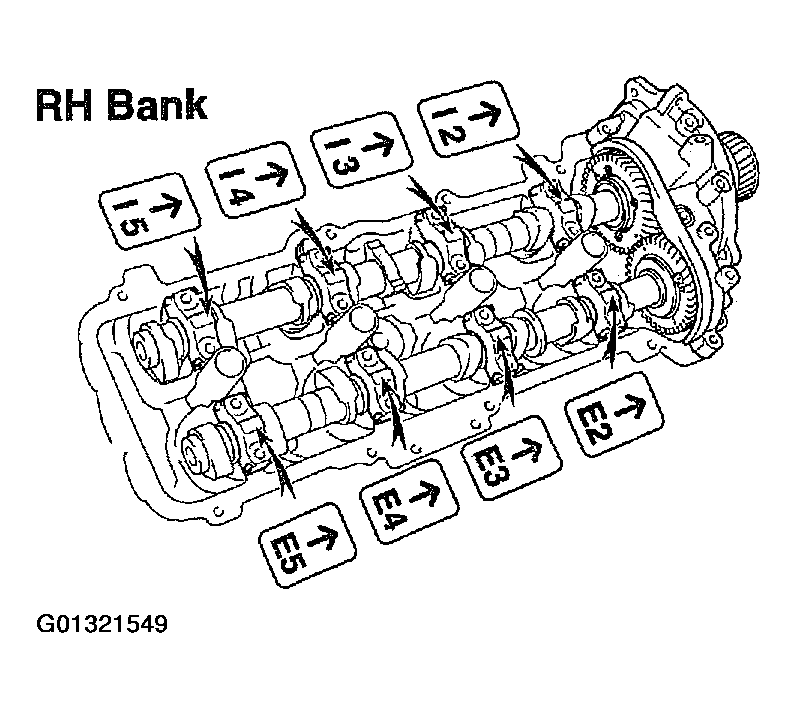

    9. Install the other bearing caps in the sequence shown with the arrow mark facing forward.

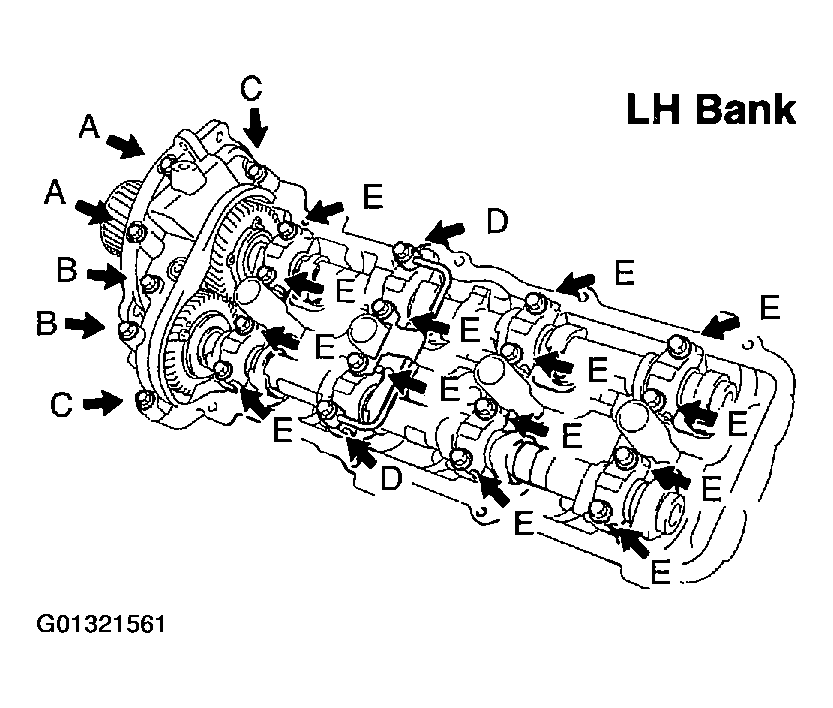

      Fig 69: Installing Bearing Caps In Sequence
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

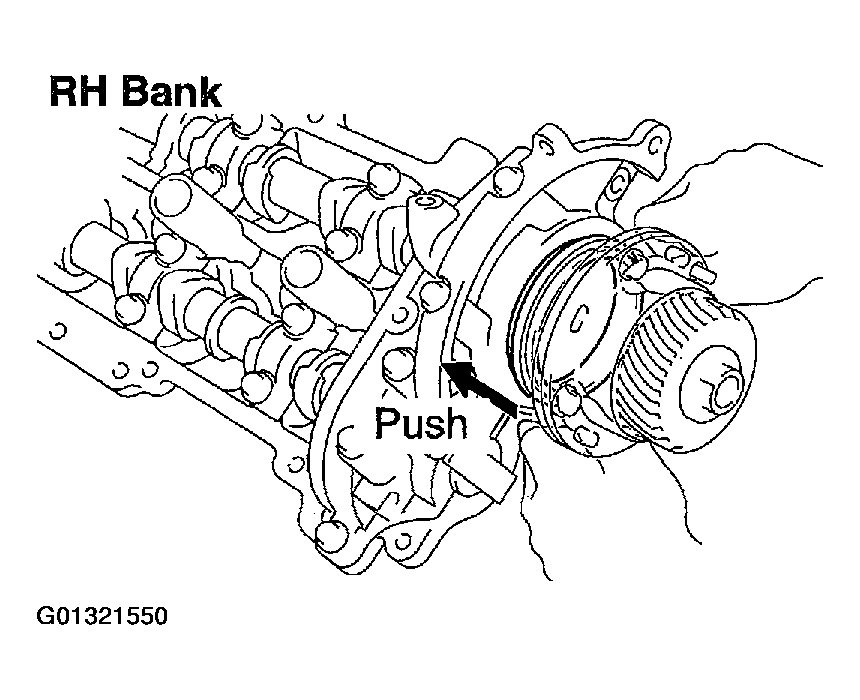

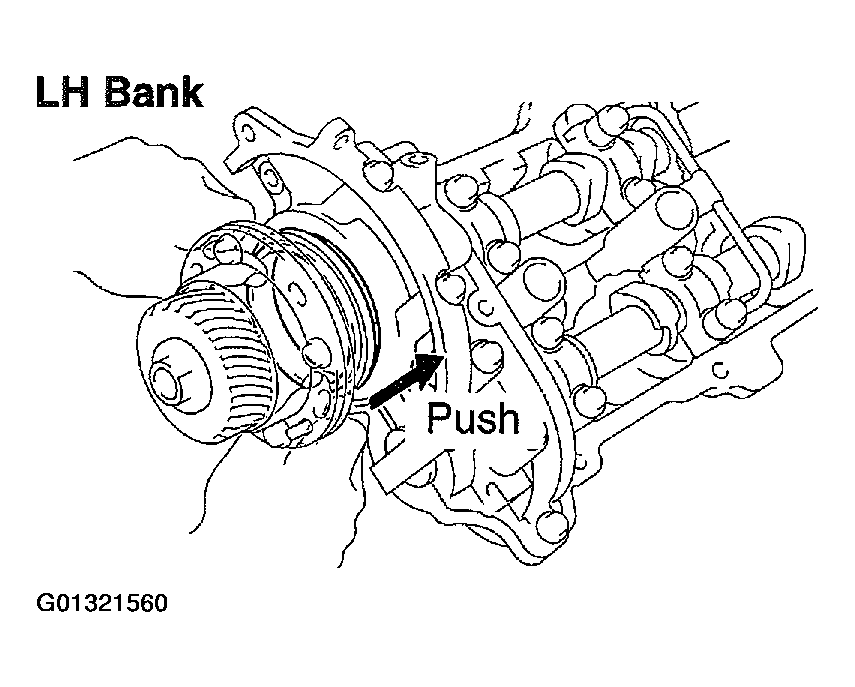

    10. Push in the camshaft setting oil seal.

      Fig 70: Inserting Camshaft Setting Oil Seal
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Fig 71: Identifying Bearing Cap Bolt For Seal Washer Installation And Engine Oil Coating
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Install a new seal washer to the bearing cap bolt (A and B).
    12. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts (D and E).
      NOTE: Do not apply engine oil under the heads of the bearing cap bolt (A), (B) and (C).

      HINT:

      Each bolt length is indicated in the illustration.

      Bolt length:

      94 mm (3.70 in.) for A with seal washer

      72 mm (2.83 in.) for B with seal washer

      25 mm (0.98 in.) for C

      52 mm (2.05 in.) for D

      38 mm (1.50 in.) for E
    13. Install the oil feed pipe and the 22 bearing cap bolts as shown in the illustration.
    14. Uniformly tighten the 22 bearing cap bolts in several passes, in the sequence shown.
      Torque:

      7.5 N.m (80 kgf.cm, 66 in..lbf) for bolt C

      16 N.m (160 kgf.cm, 12 ft.lbf) for others

      Fig 72: Tightening Bearing Cap Bolts In Sequence
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Fig 73: Removing Service Bolt
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    15. Remove the service bolt.
36. INSTALL NO. 3 CAMSHAFT SUB-ASSY
  NOTE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while it is being installed. If the camshaft is not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.
  1. Check the set key of the crankshaft is at the position of 90° counterclockwise from the timing mark (dot) of the oil pump body.
    NOTE: Having the crankshaft at the wrong angle can cause the piston head and valve head to come into contact with each other when you install the camshaft, causing damage. So always set the crankshaft at the correct angle.

    Fig 74: Setting Crankshaft Key
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the camshafts of the LH bank.
  1. Apply MP grease to the thrust portion of the camshafts.
  2. Align the timing marks (2 dot marks) of the camshaft drive and driven main gears, and place the 2 camshafts.

    Fig 75: Aligning Camshaft Drive And Driven Main Gears Timing Mark
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply seal packing to the camshaft housing plug.
    - Remove the old packing (FIPG) material.
    - Apply seal packing to the housing plug.
    Seal packing: Part No. 08826-00080 or equivalent

    Fig 76: Applying Seal Packing To Camshaft Housing Plug
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Install the camshaft housing plug to the cylinder head as shown in the illustration.
  5. Install the oil control valve filter to the cylinder head.

    Fig 77: Installing Camshaft Housing Plug To Cylinder Head
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Be careful of the installation direction.
  6. Apply seal packing to the front bearing cap.
    - Remove any old packing (FIPG) material and be care not to drop any oil on the contact surfaces of the bearing cap and cylinder head. Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and groove.
      Thoroughly clean all components to remove all the loose material.

      Fig 78: Applying Seal Packing To Front Bearing Cap
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a non-residue solvent, clean both sealing surfaces.
    - Apply seal packing to the bearing cap as shown in the illustration.
      Install a nozzle that has been cut to a 1.5 - 2.0 mm (0.059 - 0.79 in.) opening.

      Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.

      Immediately remove nozzle from the tube and reinstall cap.
    Seal packing: Part No. 08826-00080 or equivalent

    NOTE: Do not apply seal packing to the front bearing cap grooves.
  7. Install the front bearing cap.
    HINT:

    Installing the front bearing cap will determine the thrust portion of the camshaft.

    Fig 79: Installing Bearing Cap In Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Install the other bearing cap in the sequence shown with the arrow mark facing forward.
  9. Push in the camshaft setting oil seal.

    Fig 80: Inserting Camshaft Setting Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Install a new seal washer to the bearing cap bolt (A and B).
  11. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts (D and E).

    Fig 81: Identifying Bearing Cap Bolt For Seal Washer Installation And Engine Oil Coating
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Do not apply engine oil under the heads of the bearing cap bolt (A), (B) and (C).

    HINT:

    Each bolt length is indicated in the illustration.

    Bolt length:

    94 mm (3.70 in.) for A with seal washer

    72 mm (2.83 in.) for B with seal washer

    25 mm (0.98 in.) for C

    52 mm (2.05 in.) for D

    38 mm (1.50 in.) for E
  12. Install the oil feed pipe and the 22 bearing cap bolts as shown in the illustration.
  13. Uniformly tighten the 22 bearing cap bolts in several passes, in the sequence shown.
    Torque:

    7.5 N.m (80 kgf.cm, 66 in..lbf) for bolt C

    16 N.m (160 kgf.cm, 12 ft.lbf) for others

    Fig 82: Tightening Bearing Cap Bolts In Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. Remove the service bolt.
Fig 83: Removing Service Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT PLATE RR RH
1. Install the timing belt plate with the bolt and stud bolt.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
INSTALL TIMING BELT PLATE RR RH NO. 2
1. Install the timing belt plate with the 2 bolts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
INSTALL TIMING BELT PLATE RR LH
1. Install the timing belt plate with the bolt.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
INSTALL TIMING BELT PLATE RR LH NO. 2
1. Install the timing belt plate with the 2 bolts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
Fig 84: Installing Camshaft Timing Pulley
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CAMSHAFT TIMING PULLEY
1. Align the camshaft timing tube knock pin with the knock pin groove of the timing pulley.
2. Attach the timing pulley to the camshaft timing tube, facing the "R" mark forward.
3. Hold the hexagon wrench head portion of the camshaft, install the 4 pulley bolts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
INSTALL CAMSHAFT TIMING PULLEY SUB-ASSY LH
1. Align the camshaft timing tube knock pin with the knock pin groove of the timing pulley.
2. Attach the timing pulley to the camshaft timing tube, facing the "L" mark forward.
3. Hold the hexagon wrench head portion of the camshaft, install the 4 pulley bolts.
  Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
Fig 85: Installing Camshaft Timing Pulley Sub-Assembly LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT TIMING PULLEY
1. Align the timing pulley set key with the key groove of the pulley.
2. Using SST and a hammer, tap in the timing pulley, facing the flange side inward. SST 09223-46011
Fig 86: Installing Crankshaft Timing Pulley
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT IDLER SUB-ASSY NO. 2
1. Install the idler with the bolt.
  Torque: 34.5 N.m (350 kgf.cm, 25 ft.lbf)
2. Check that the idler moves smoothly.
INSTALL TIMING BELT IDLER SUB-ASSY NO. 1
1. Apply adhesive 2 or 3 threads of the pivot bolt.
  Adhesive:

  Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
2. Using a 10 mm hexagon wrench, install the plate washer and idler with the pivot bolt.
  Torque: 34.5 N.m (350 kgf.cm, 25 ft.lbf)
3. Check that the idler bracket moves smoothly.
Fig 87: Installing Plate Washer And Idler With Pivot Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT
NOTE: The engine should be cold.
1. Set the No. 1 cylinder to TDC/compression.
  1. Turn the hexagon wrench head portion of the camshaft to align the timing marks of the camshaft timing pulleys and timing belt plates aligned.

    Fig 88: Turning Camshaft To Align Camshaft Timing Pulleys And Timing Belt Timing Mark
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Setting positions of the camshaft timing pulleys by turning them slightly clockwise makes it easy to install the timing belt:

    Camshaft timing pulley of LH bank: 1/2 teeth

    Camshaft timing pulley of RH bank: 1 tooth

    Fig 89: Setting Camshaft Timing Pulley Position
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using the crankshaft damper bolt, turn the crankshaft to align the timing marks of the crankshaft timing pulley and oil pump body.
  Fig 90: Turning Crankshaft To Align Crankshaft Timing Pulley And Oil Pump Body Timing Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the timing belt.
  1. Remove any oil or water on the each pulley, and keep them clean.

    Fig 91: Installing Timing Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Only wipe the pulleys; do not use any cleansing agent.
  2. Face the front mark (arrow) on the timing belt forward.
  3. Connect the timing belt to the crankshaft timing pulley.
    - Align the installation mark on the timing belt with the timing mark of the crankshaft timing pulley.
  4. Connect the timing belt to the idler No. 2.
  5. Connect the timing belt to the camshaft timing pulley LH.
    - Align the installation mark on the timing belt with the timing mark of the camshaft timing pulley.
  6. Connect the timing belt to the water pump pulley.
  7. Connect the timing belt to the camshaft timing pulley (RH bank)
    - Align the installation mark on the timing belt with the timing mark of the camshaft timing pulley.
  8. Connect the timing belt to the idler No. 1.
3. Set the belt tensioner.
  1. Using a press, slowly press in the push rod using 981 - 9,807 N (100 - 1,000 kgf, 220 - 2,205 lbf) of pressure.
  2. Align the holes of the push rod and housing, pass a 1.27 mm hexagon wrench through the holes to keep the setting position of the push rod.
  3. Release the press.
  4. Install the dust boot to the belt tensioner.
  Fig 92: Inserting Push Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the belt tensioner.
  1. Temporarily install the belt tensioner with the 2 bolts.
  2. Alternately tighten the 2 bolts.
    Torque: 26 N.m (270 kgf.cm, 19 ft.lbf)
  3. Using pliers, remove the 1.27 mm hexagon wrench from the belt tensioner.

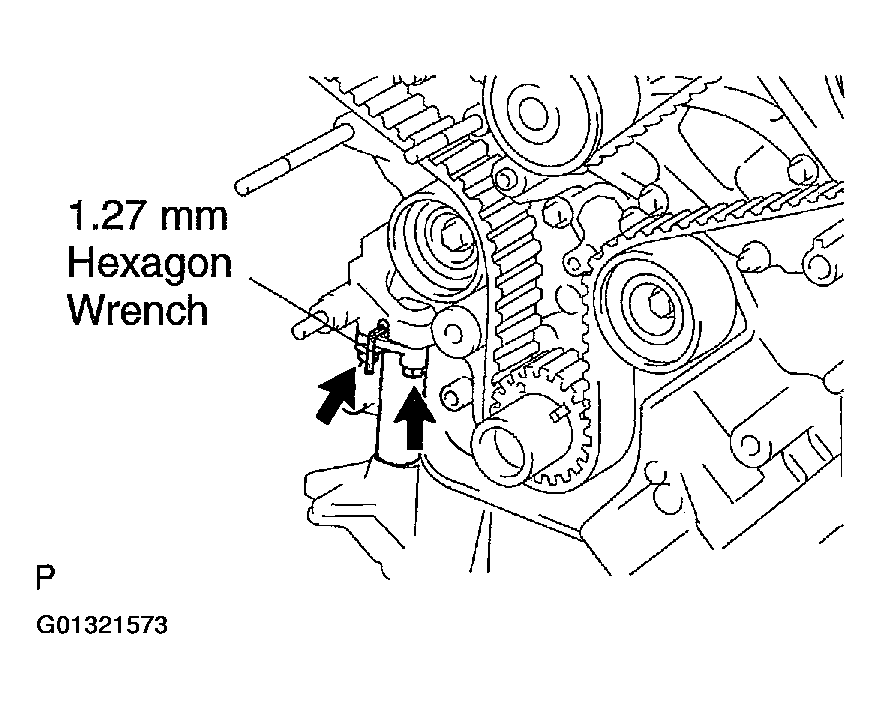

  Fig 93: Installing Belt Tensioner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the valve timing.
  1. Using the crankshaft damper bolt, slowly turn the crankshaft pulley 2 revolutions from TDC to TDC.
    NOTE: Always turn the crankshaft pulley clockwise.

    Fig 94: Turning Crankshaft Pulley From TDC To TDC
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check that each pulley aligns with the timing marks as shown in the illustration.
  If the timing marks do not align, remove the timing belt and reinstall it.
Fig 95: Inspecting Proper Alignment Of Timing Marks Of Each Pulley
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR PLATE NO. 1
1. Install the sensor plate, facing the cup side outward.
INSTALL TIMING GEAR COVER SPACER
1. Install the gasket to the cover spacer.
2. Install the cover spacer.
INSTALL TIMING BELT NO. 1 COVER
1. Install the timing belt cover with the 4 bolts.
INSTALL CRANKSHAFT DAMPER SUB-ASSY
1. Using SST and a hammer, tap in the crankshaft damper.

  Fig 96: Inserting Crankshaft Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09223-46011
2. Using SST, install the damper bolt.
  SST 09213-70010, 09330-00021

  Torque: 245 N.m (2,500 kgf.cm, 181 ft.lbf)
3. Align the pulley set key with the key groove of the crankshaft damper.
Fig 97: Installing Damper Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST VALVE CLEARANCE (See VALVE CLEARANCE )
INSTALL IDLER PULLEY ASSY
1. Install the idler pulley with the 2 bolts and 2 nuts.
  Torque:

  16 N.m (160 kgf.cm, 12 ft.lbf) for 12 mm head

  32 N.m (330 kgf.cm, 24 ft.lbf) for 14 mm head

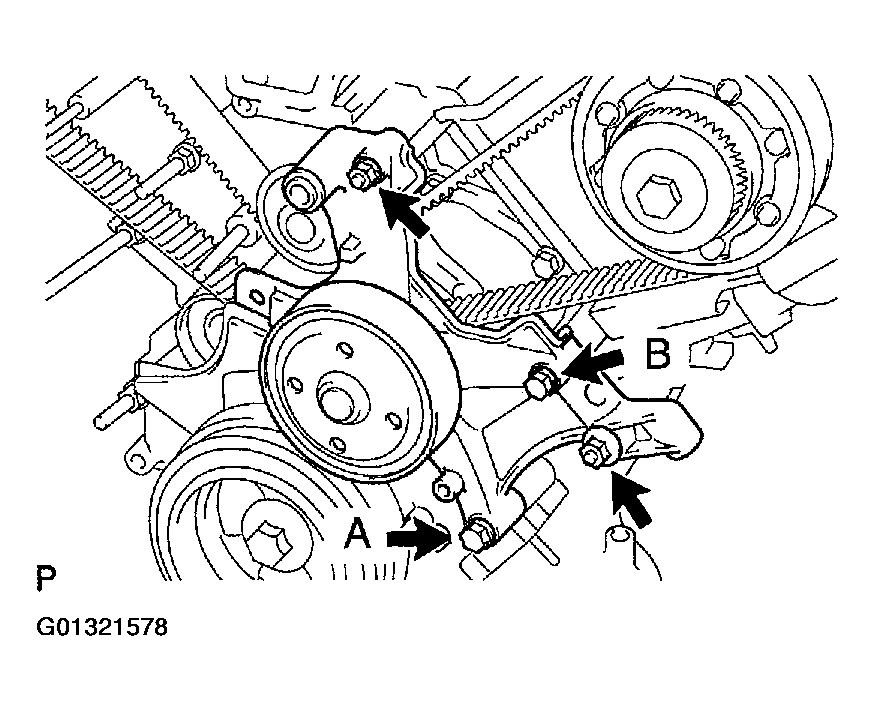

  Fig 98: Installing Idler Pulley Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Each bolt length is indicated in the illustration.

  Bolt Length:

  106 mm (4.17 in.) for 12 mm head (A)

  114 mm (4.49 in.) for 14 mm head (B)
INSTALL V-RIBBED BELT TENSIONER ASSY
1. Install the belt tensioner with the bolt and 2 nut.
  Torque: 15.5 N.m (160 kgf.cm, 11 ft.lbf)

  HINT:

  Use a bolt 106 mm (4.18 in.) in length.

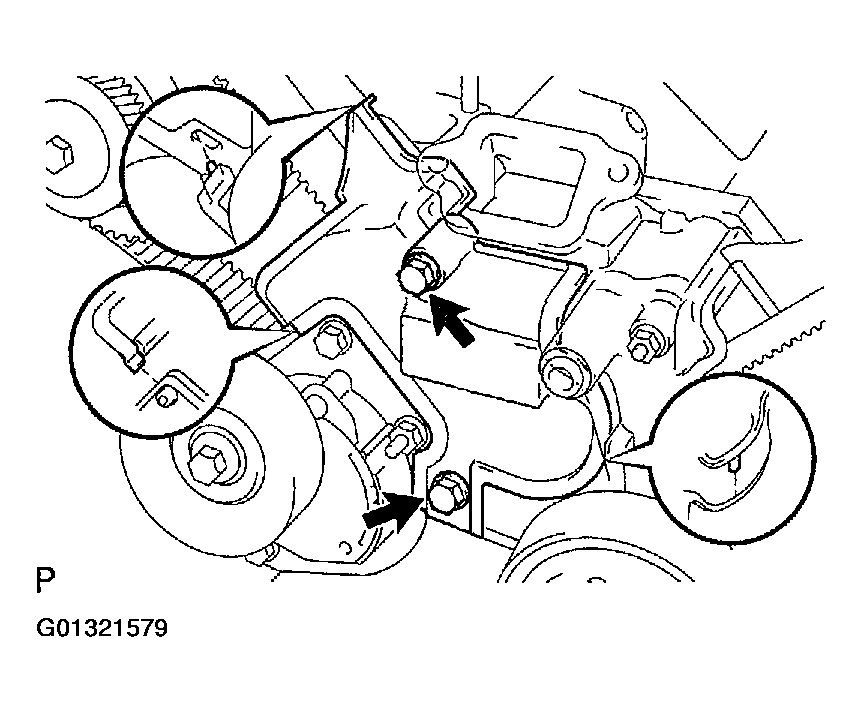

Fig 99: Installing Timing Belt Cover Sub-Assembly No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING BELT COVER SUB-ASSY NO. 2
1. Fit the timing belt cover, matching the claws and pin with each part.
2. Install the timing belt cover with the 2 bolts.
  Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

  HINT:

  Use bolts 106 mm (4.17 in.) in length.
INSTALL IDLER PULLEY SUB-ASSY N0.2
1. Install the idler pulley and cover plate with the bolt.
  Torque: 39 N.m (398 kgf.cm, 29 ft.lbf)
INSTALL SEMICIRCULAR PLUG
1. Remove any old packing (FIPG) material.
2. Apply seal packing to the semicircular plug grooves.
  Seal packing: Part No. 08826-00080 or equivalent

  Fig 100: Applying Seal Packing To Semicircular Plug Grooves
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 semicircular plugs to the cylinder heads a shown in the illustration.
Fig 101: Installing 4 Semicircular Plugs To Cylinder Head
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CYLINDER HEAD COVER SUB-ASSY
1. Remove any old packing (FIPG) material.
2. Apply seal packing to the cylinder heads as shown in the illustration.
  Seal packing: Part No. 08826-00080 or equivalent
3. Install the gasket to the cylinder head cover.
4. Install the seal washer to the bolt.
5. Install the cylinder head cover with the 9 bolts. Uniformly tighten the bolts in several passes.
  Torque: 6.0 N.m (60 kgf.cm, 53 in..lbf)
Fig 102: Installing Cylinder Head Cover Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL FILLER CAP SUB-ASSY
INSTALL SPARK PLUG
