Testing TP Sensor

Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1-Fig 2 .

Using ohmmeter, check resistance between terminals VC and E2 on TP sensor. See Fig 1-Fig 2 . Replace TP sensor if resistance is not within specification. See THROTTLE POSITION SENSOR RESISTANCE (ES300, GS300, IS300, GS430 & LS430 table.

THROTTLE POSITION SENSOR RESISTANCE (ES300, GS300, IS300, GS430 & LS430

Application

Terminals

Ohms @ 68°F (20°C)

ES300, GS300 & IS300

VC & E2

⁽¹⁾ 1200-3200

GS430 & LS430

VC & E2/ETA

⁽¹⁾ 1250-2350

⁽¹⁾	Resistance at 68°F (20°C).

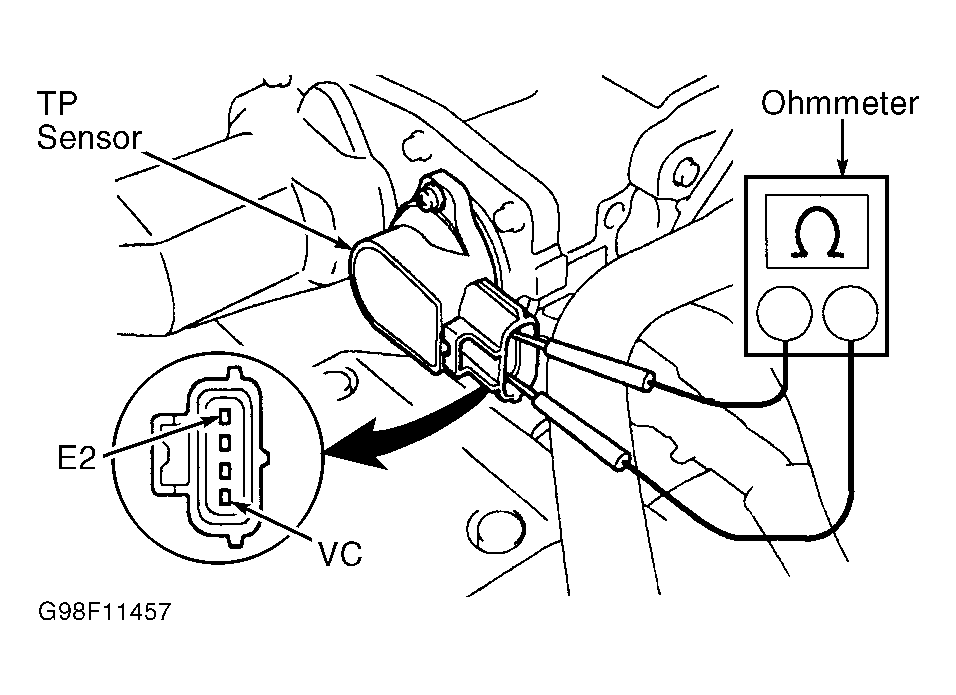

Fig 1: Identifying Throttle Position (TP) Sensor Terminals (ES300, GS300 & IS300)

Fig 2: Testing Throttle Position (TP) Sensor (GS430 & LS430)
