Section 121 (Radiator): Radiator: Components

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

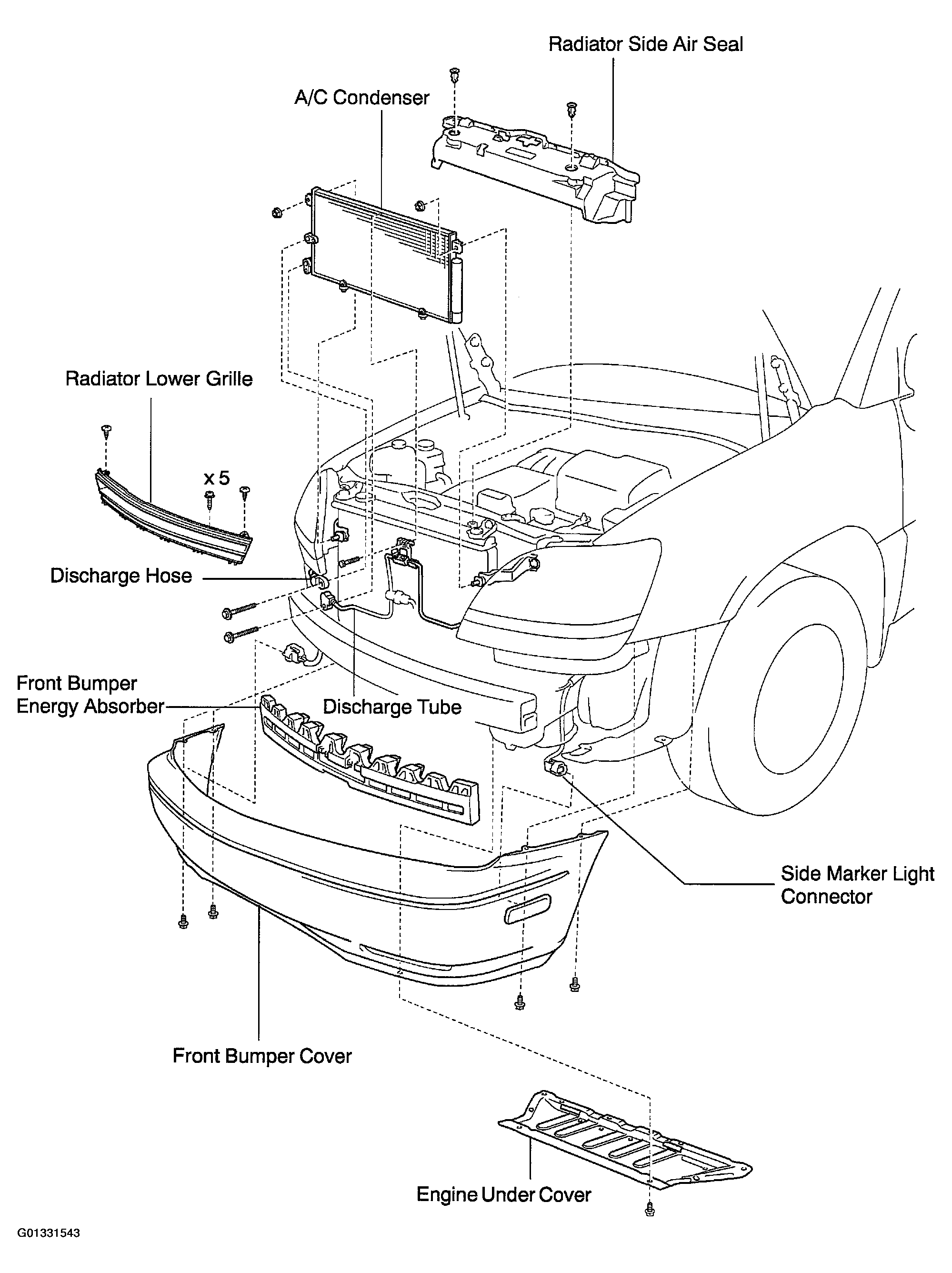

Fig 1: Removing/Installing Radiator And Related Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

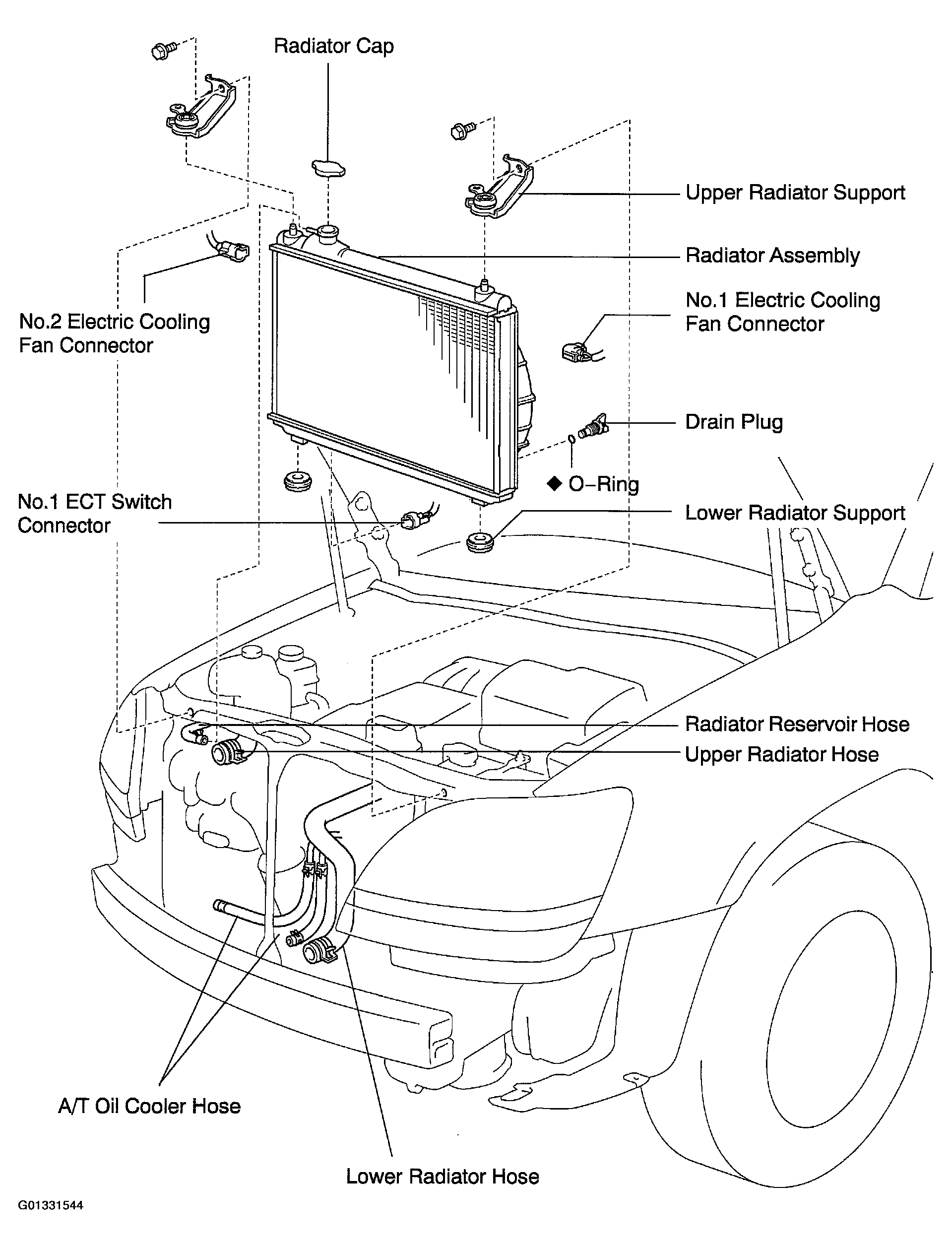

Fig 2: Removing/Installing Radiator And Related Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

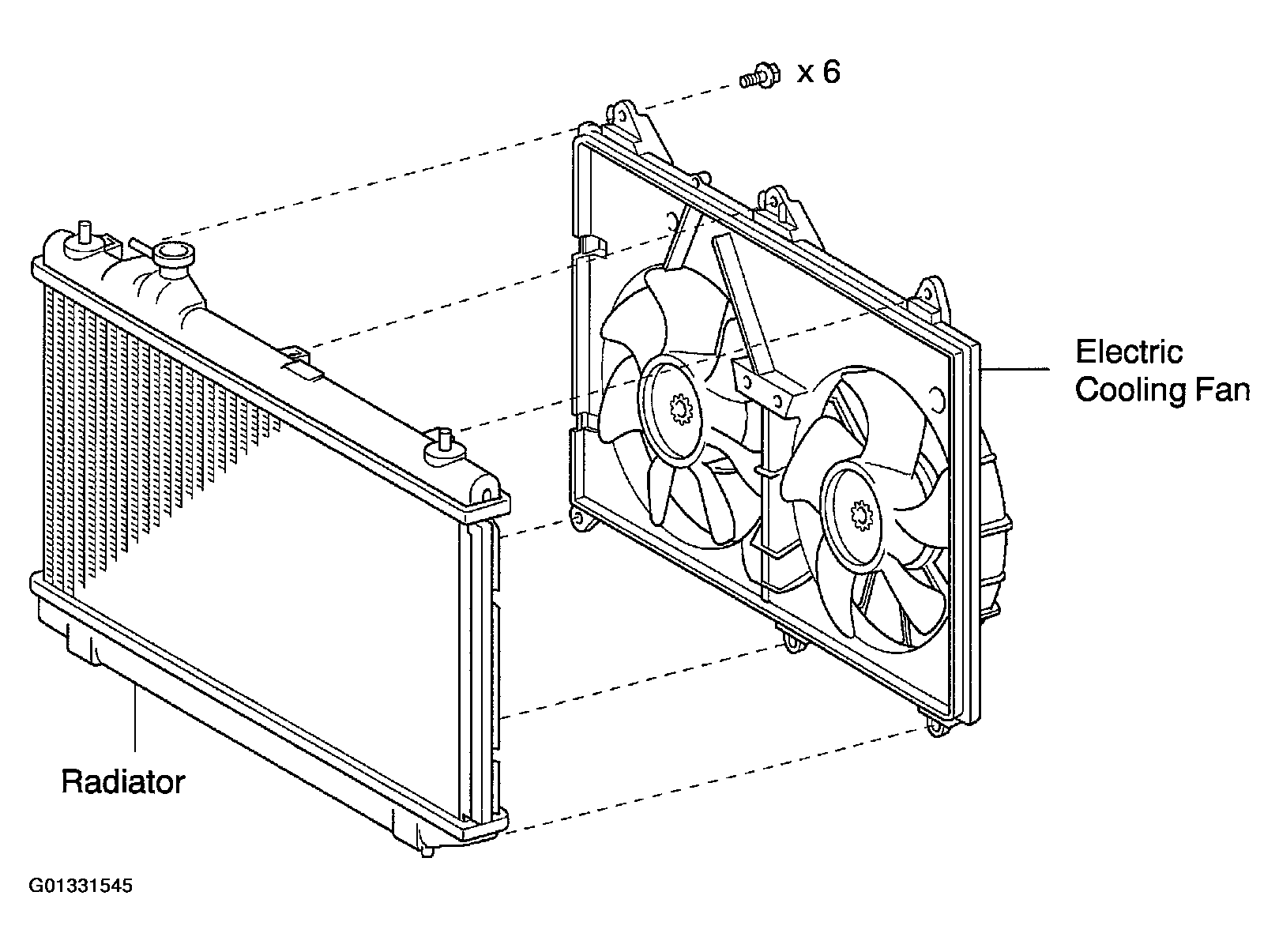

Fig 3: Removing/Installing Electric Cooling Fans

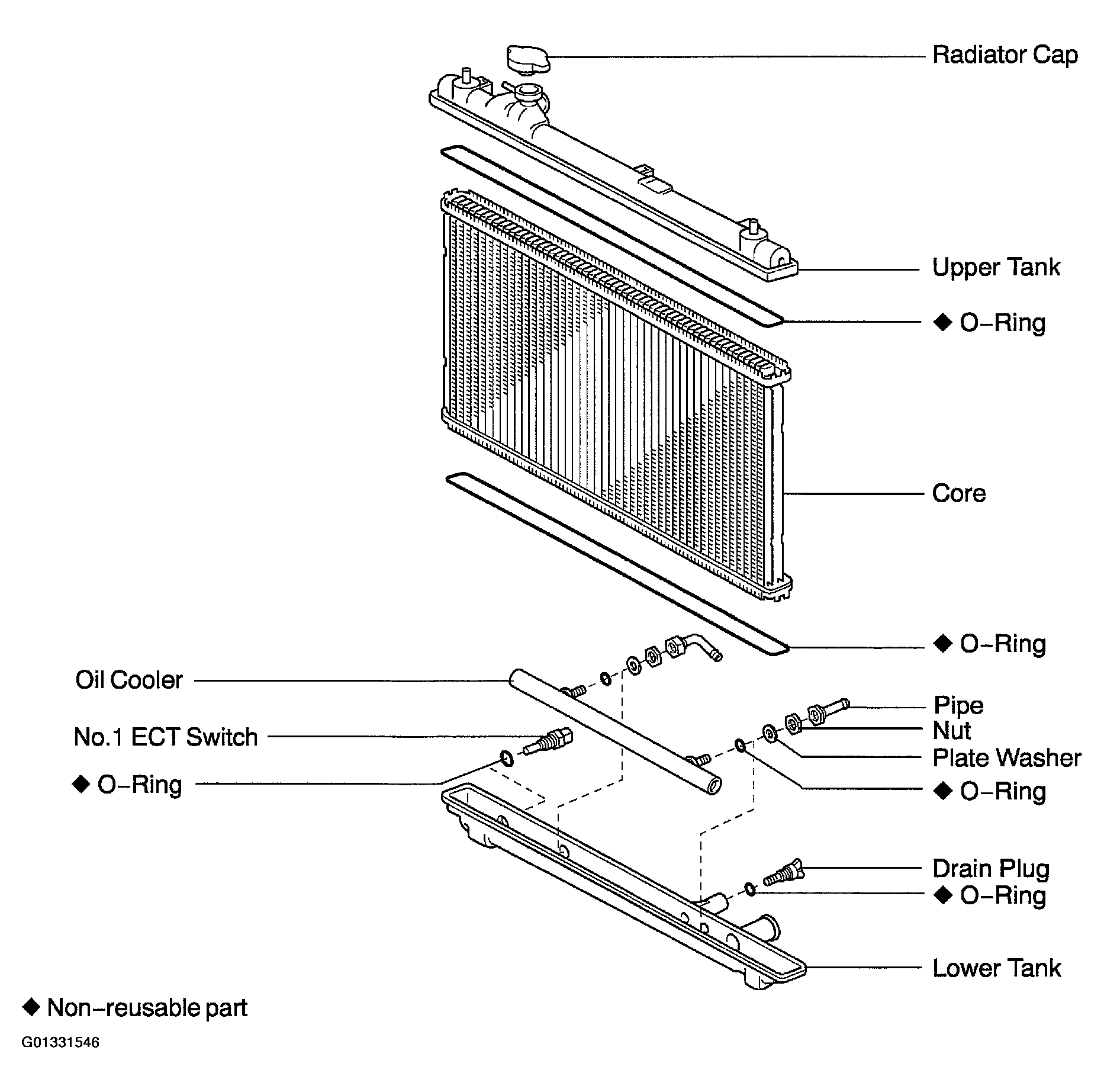

Fig 4: Exploded View Of Radiator
