Refrigerant Line: Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

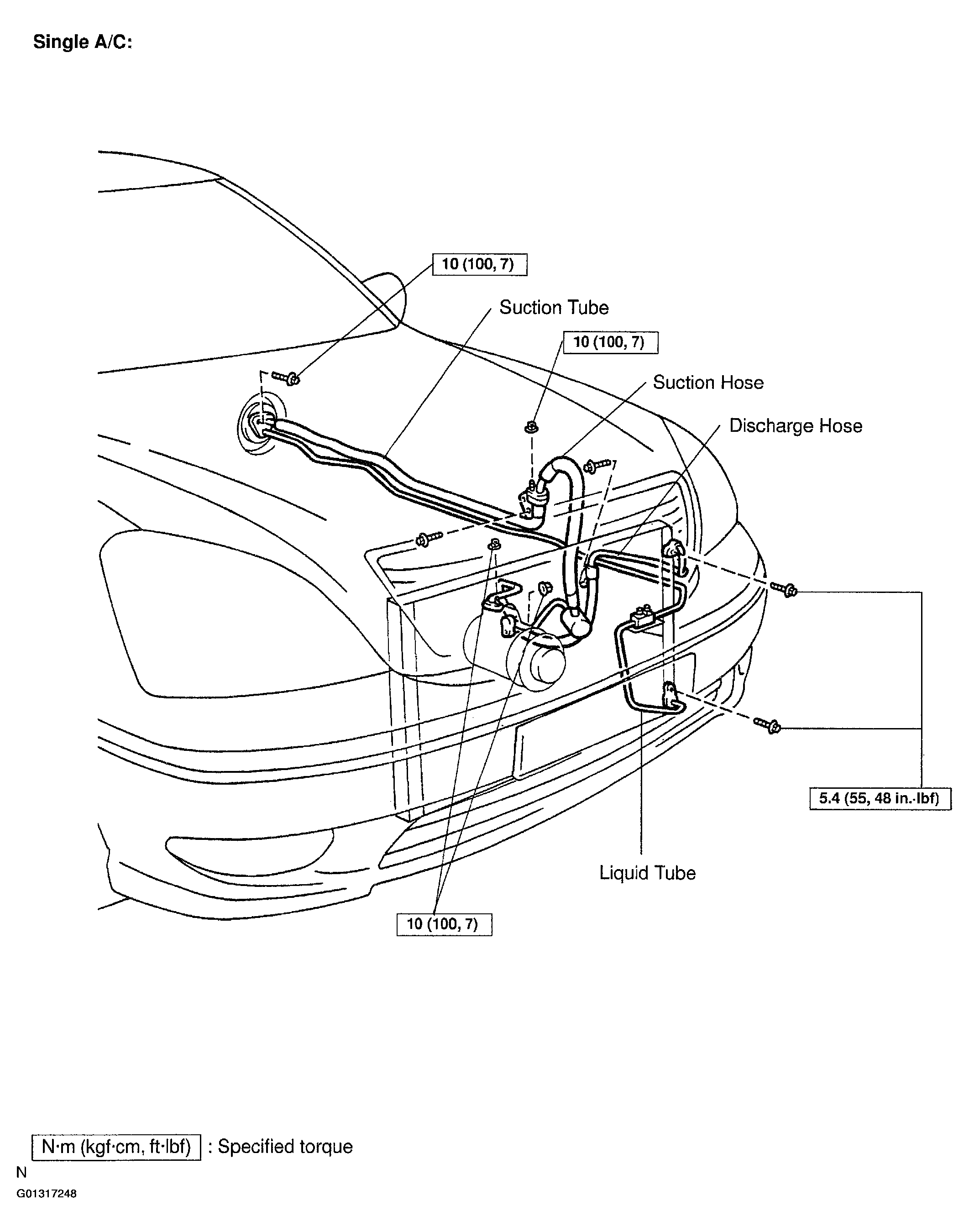

Fig 1: Locating Refrigerant Line Components (Single A/C)
G01317248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

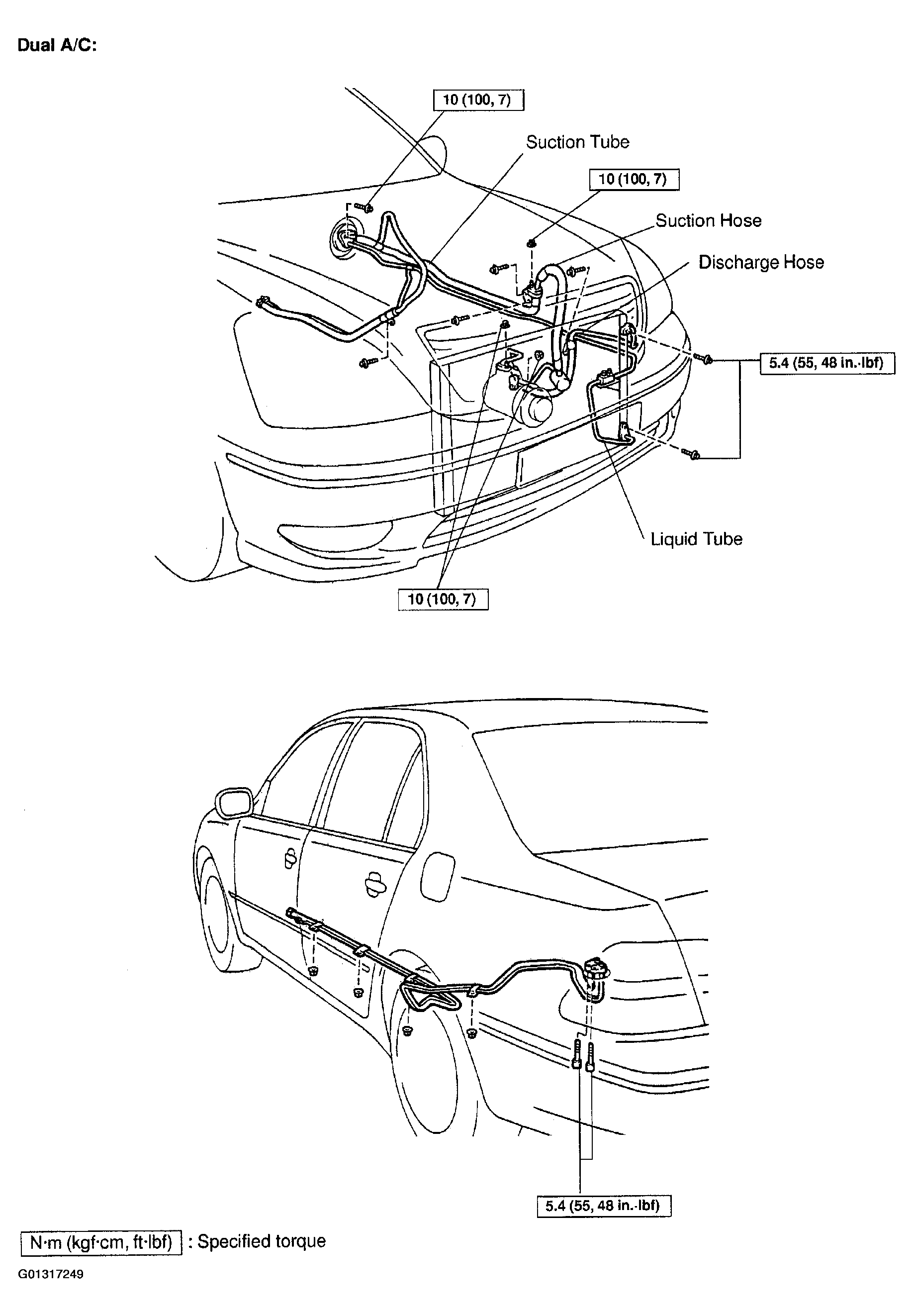

Fig 2: Locating Refrigerant Line Components (Dual A/C)
G01317249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
