Automatic Transmission ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

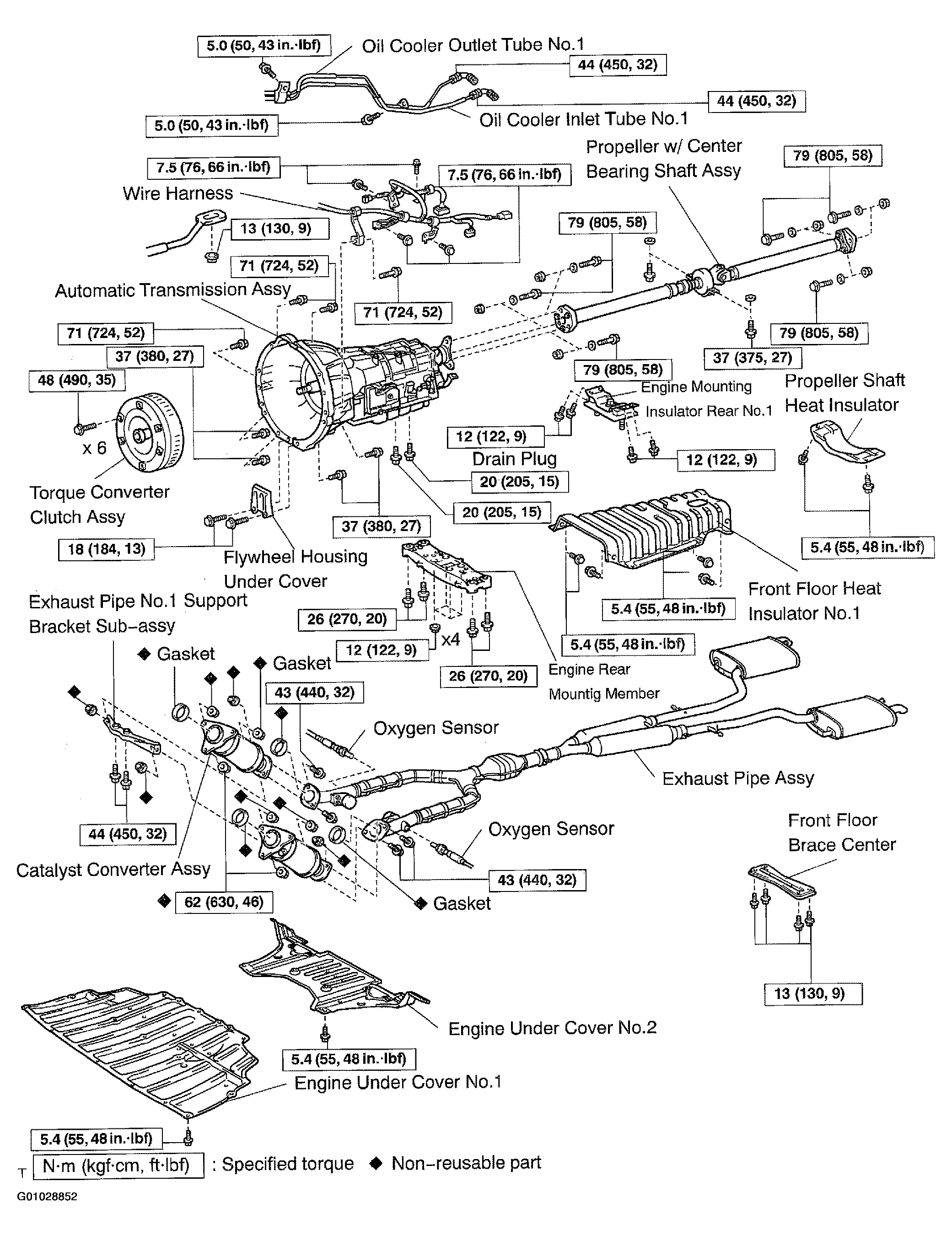

Fig 1: Identifying Automatic Transmission Assy Components
G01028852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
