Refrigerant Line: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

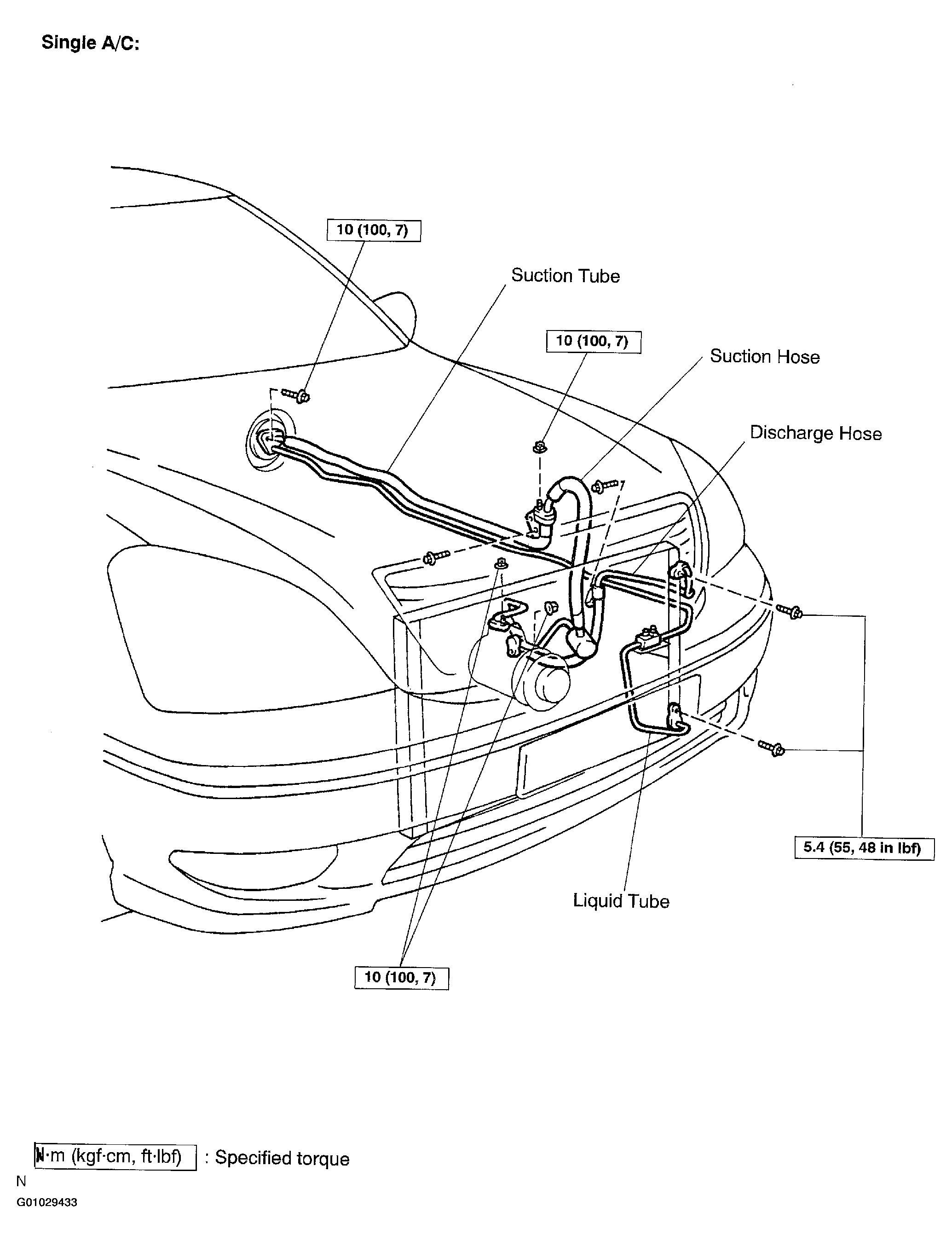

Fig 1: Identifying Components Refrigerant Line - Single A\C
G01029433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

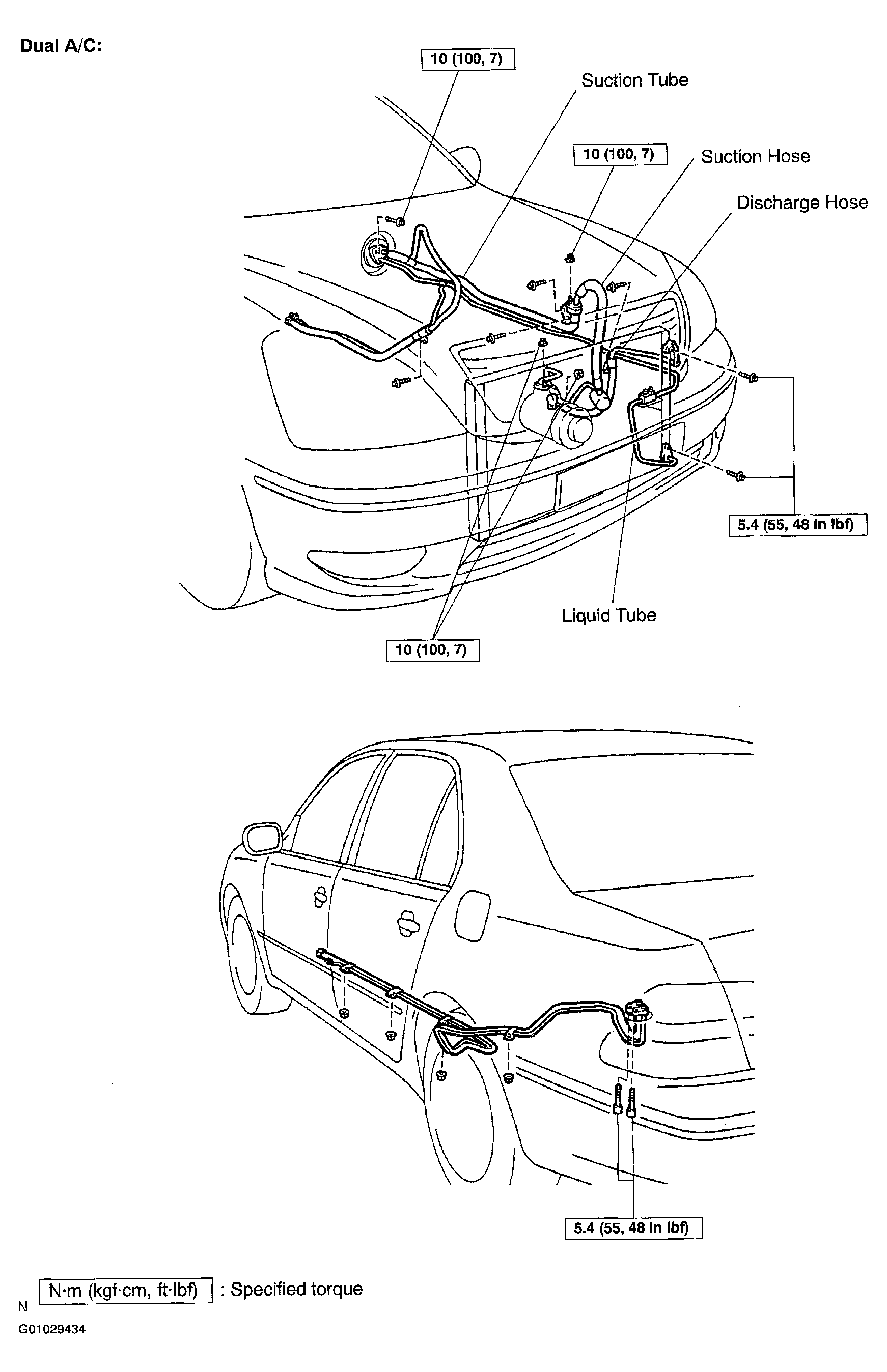

Fig 2: Identifying Components Refrigerant Line - Dual A\C
G01029434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
