INSPECT REFRIGERANT VOLUME
1. Check the sight glass on the liquid tube.
  Test conditions:
- Engine is running at 1,500 RPM
- Single A/C:
  Blower speed control switch at "HI" position
- Dual A/C:
  Front blower switch at "HI" position

  Rear blower switch at "HI" position
- A/C switch ON
- Single A/C:
  Temperature control switch at "MAX. COOL" position
- Dual A/C:
  Rear temperature control switch at "MAX.COOL" position

  Front driver side temperature control switch at "MAX.COOL" position

  Front passenger side temperature control switch at "MAX.COOL" position
- Fully open the doors

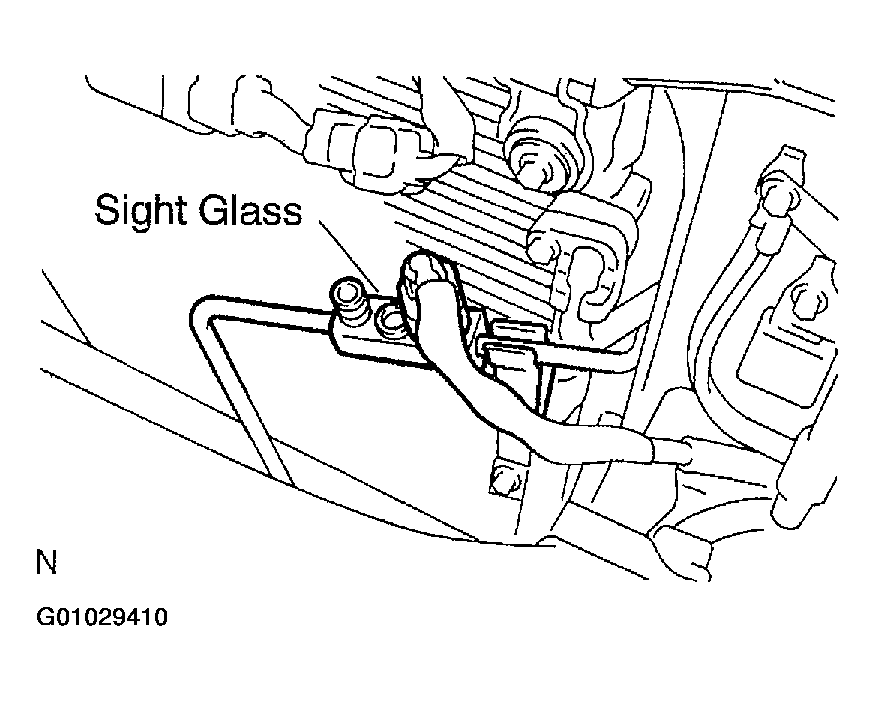

  Fig 1: Locating Sight Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

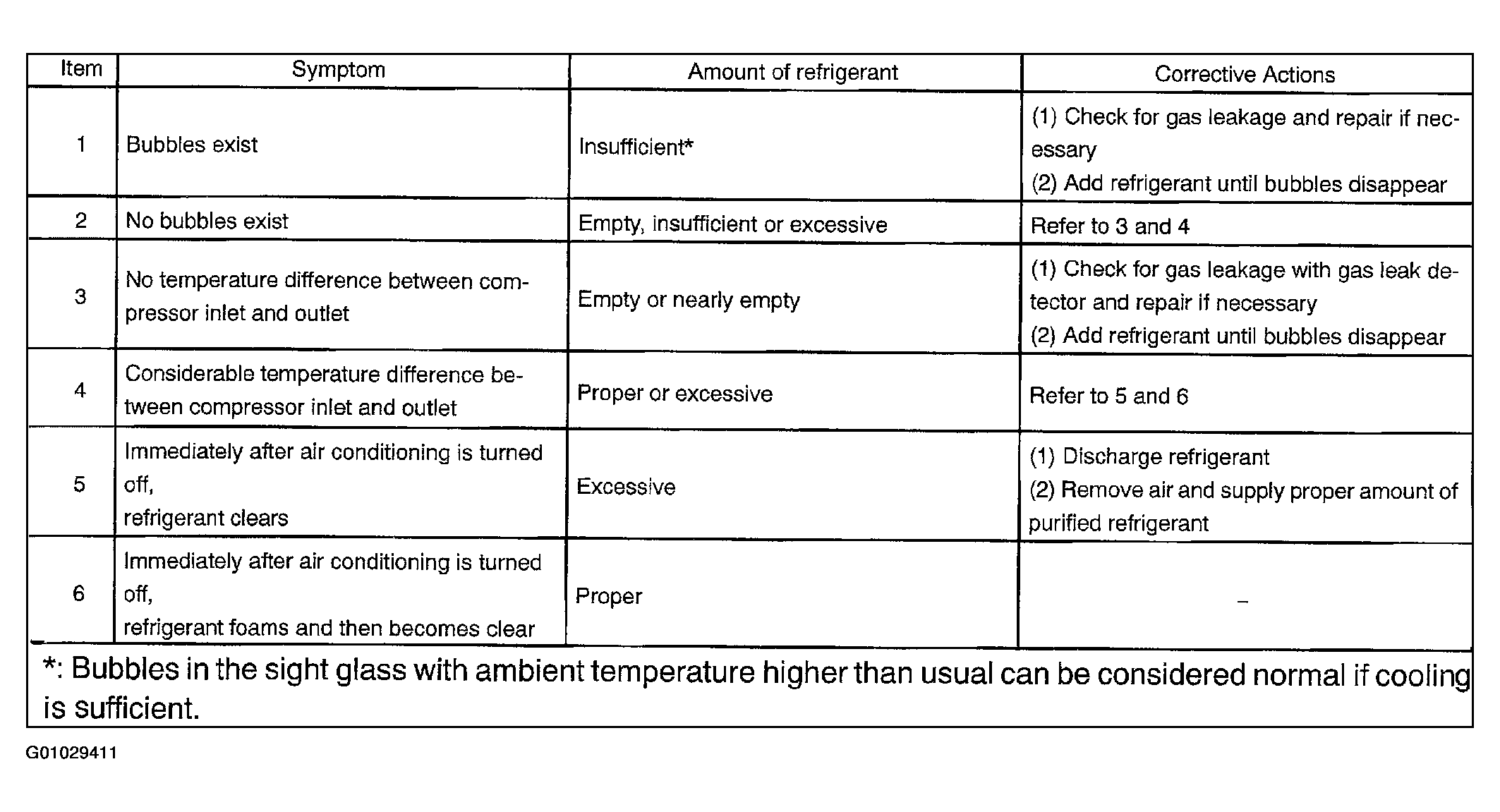

  Fig 2: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
1. This is a method in which trouble is located by using manifold gauge set. Read the manifold gauge pressure when these conditions are established.
  Test conditions:
- Temperature at the air inlet with the switch set at RECIRC is 30 to 35°C (86 to 95°F)
- Engine is running at 2,000 RPM
- Blower speed control switch is at "HI"
- Temperature control dial is at "COOL"
HINT:

It should be noted that the gauge indications may vary slightly due to ambient temperature conditions.
1. Normally functioning refrigeration system
  Gauge reading:

  Low pressure side:

  0.15 to 0.25 MPa (1.5 to 2.5 kgf/cm ² )

  High pressure side:

  1.37 to 1.57 MPa (14 to 16 kgf/cm ² )

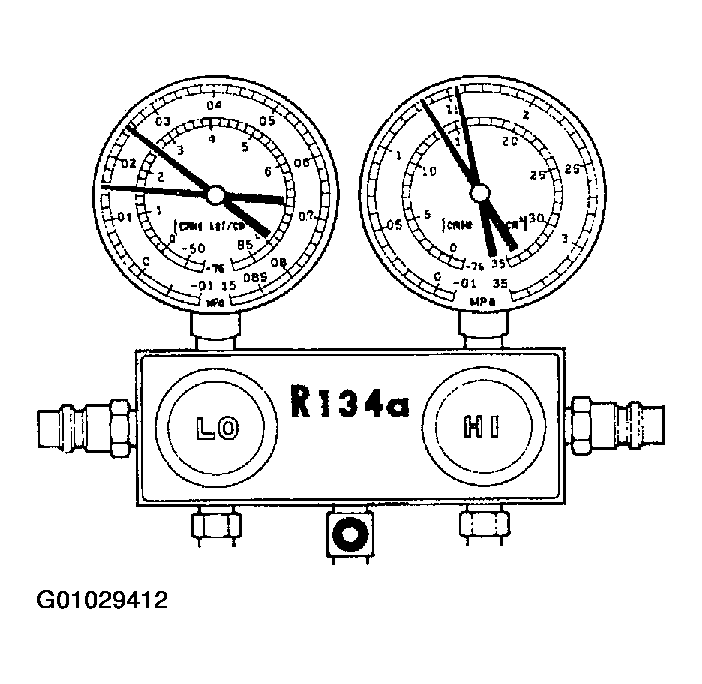

  Fig 3: Identifying Manifold Gauge Set
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

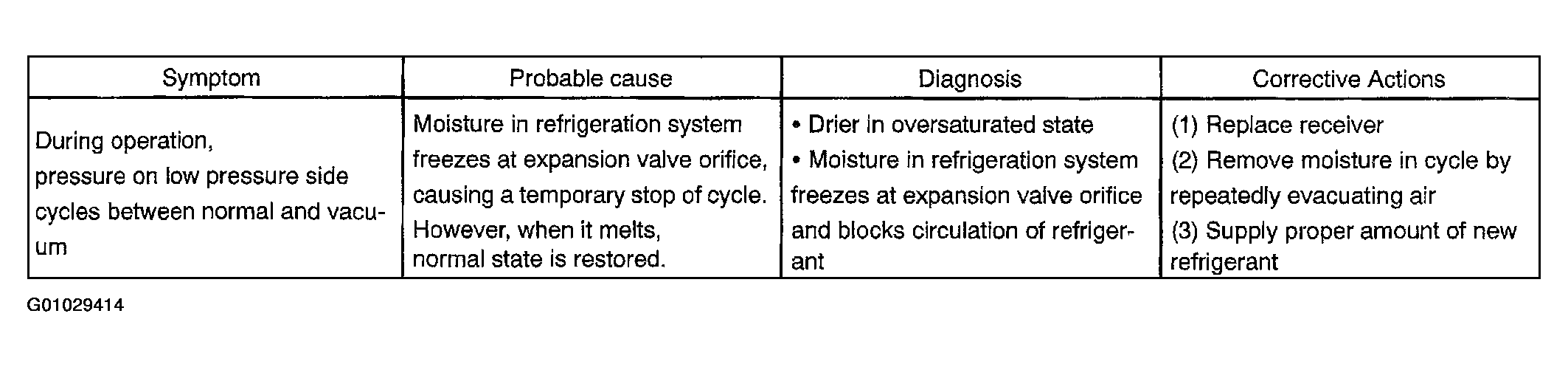

2. Moisture present in refrigeration system

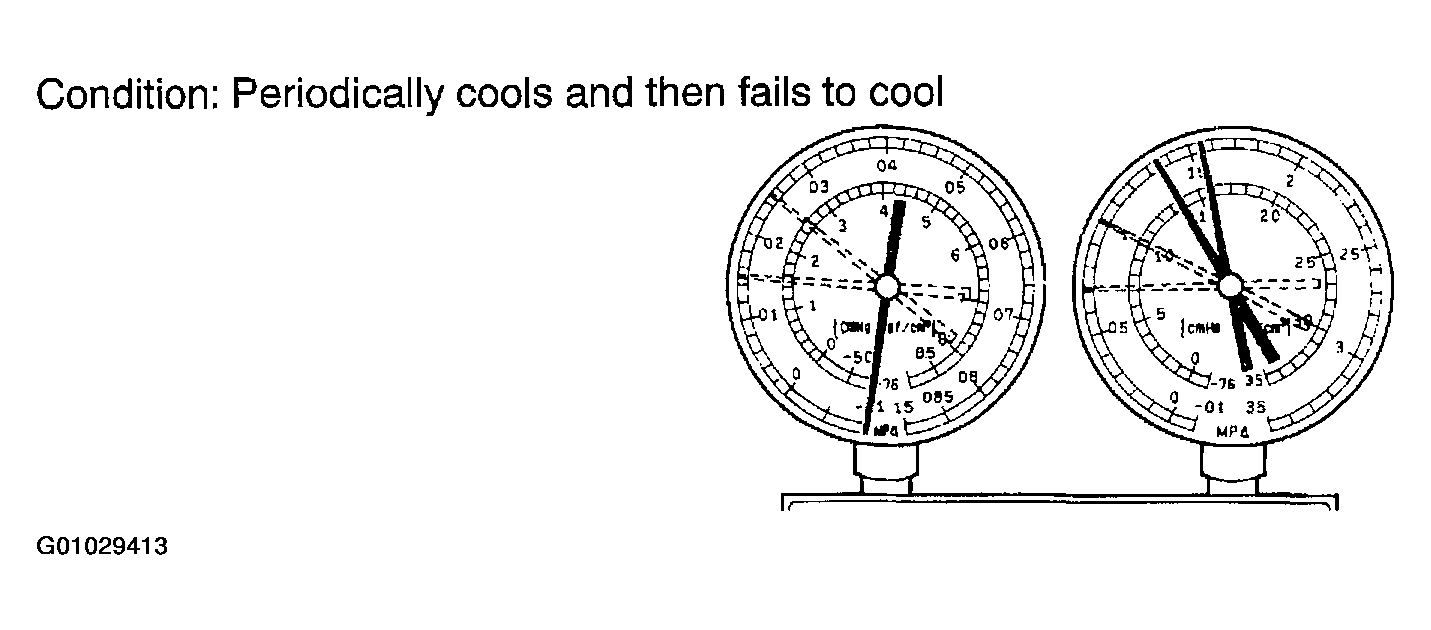

  Fig 4: Identifying Manifold Gauge Set - Moisture Present In Refrigeration System
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 5: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

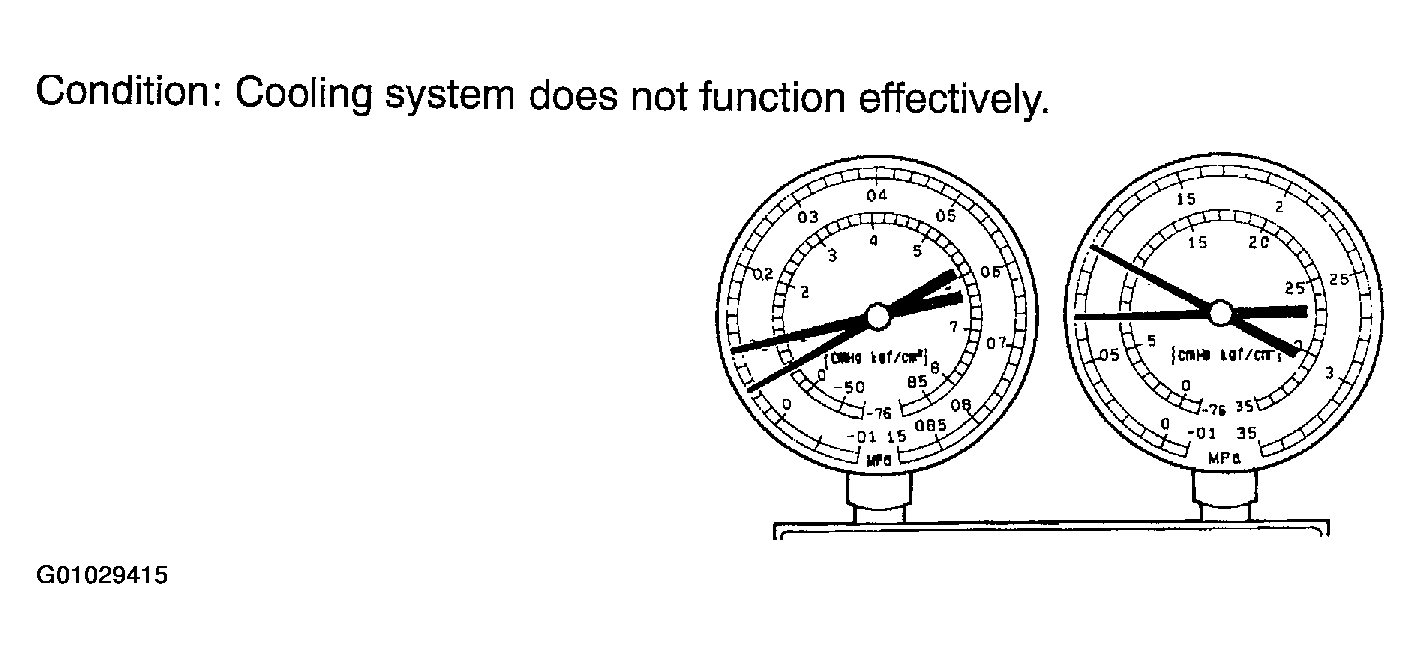

3. Insufficient cooling

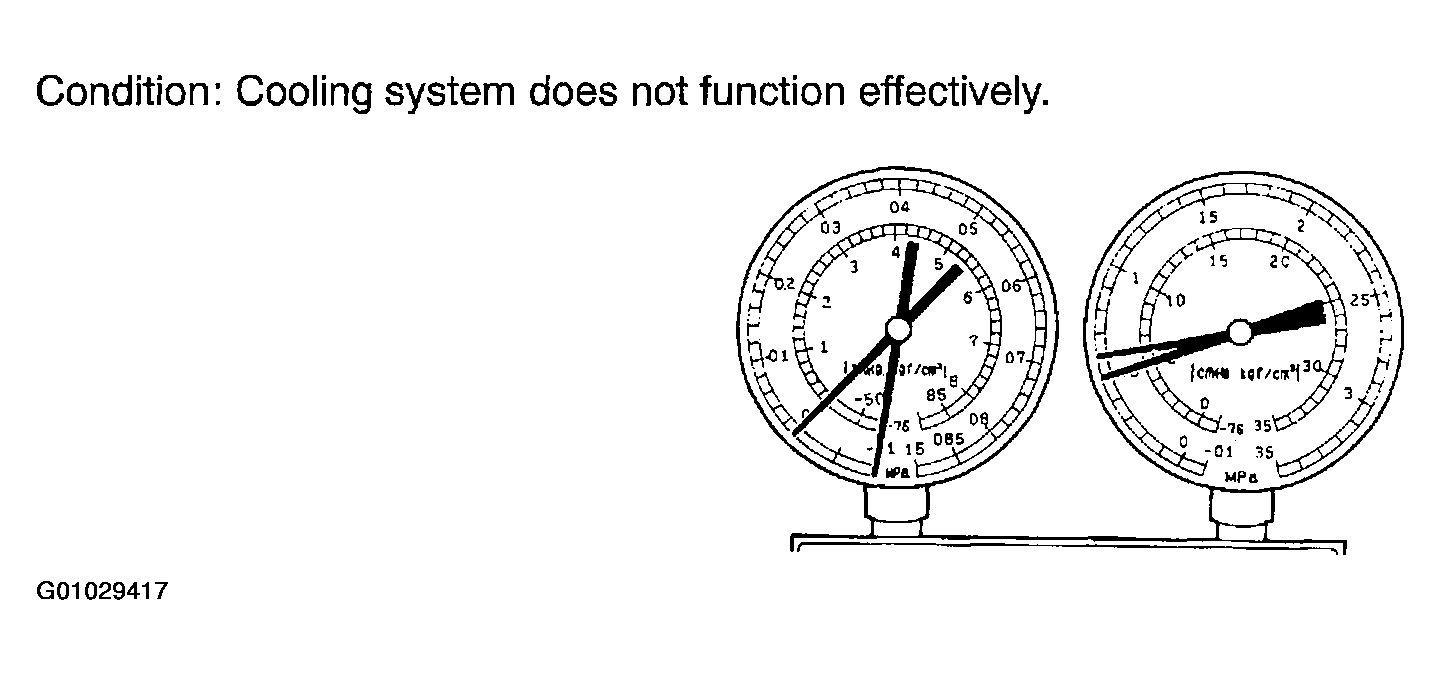

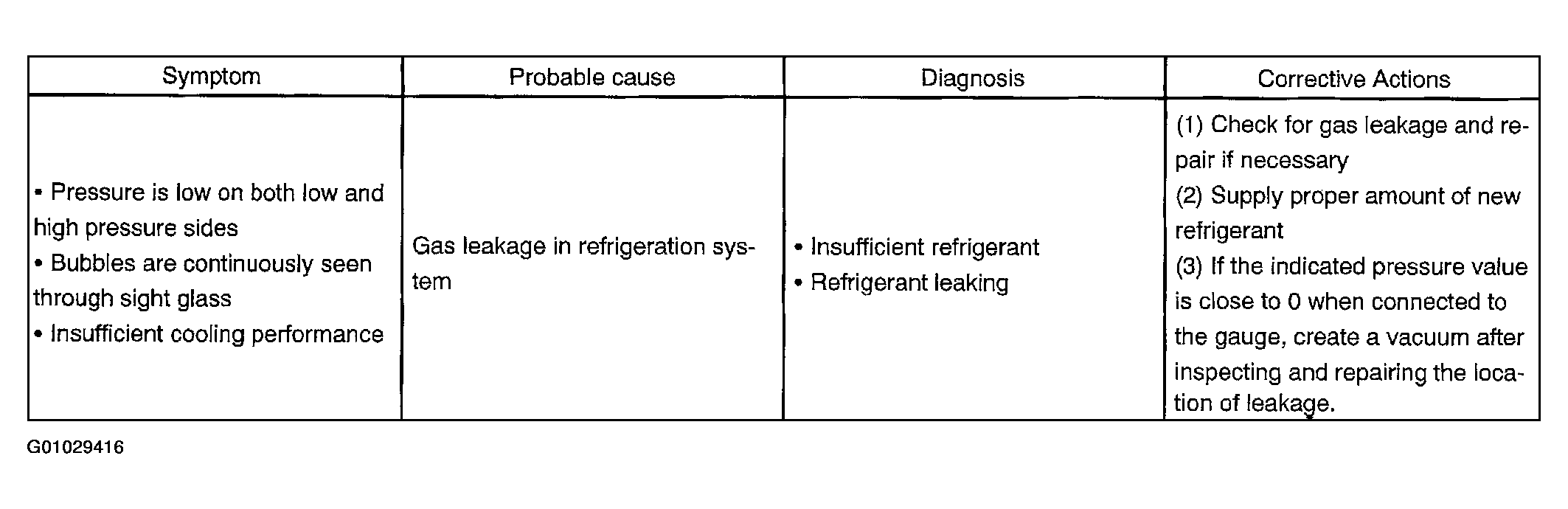

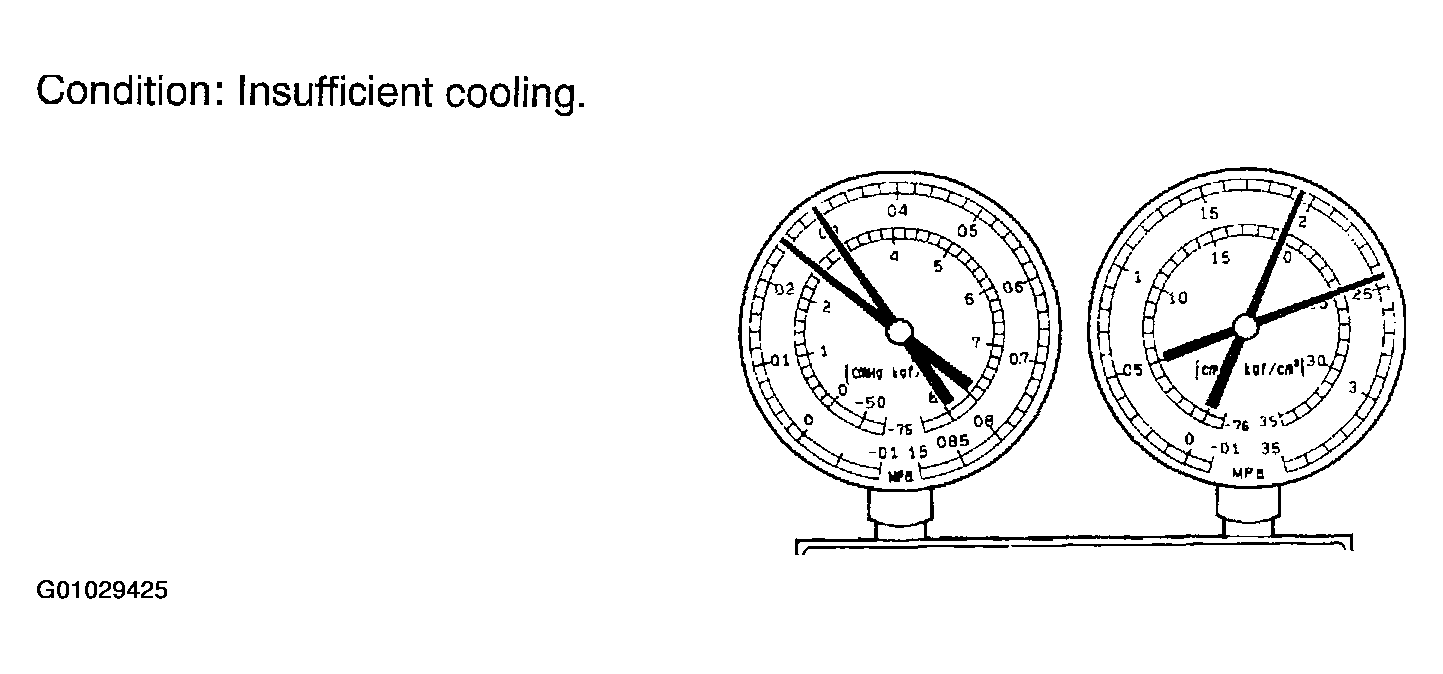

  Fig 6: Identifying Manifold Gauge Set - Insufficient Cooling
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 7: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

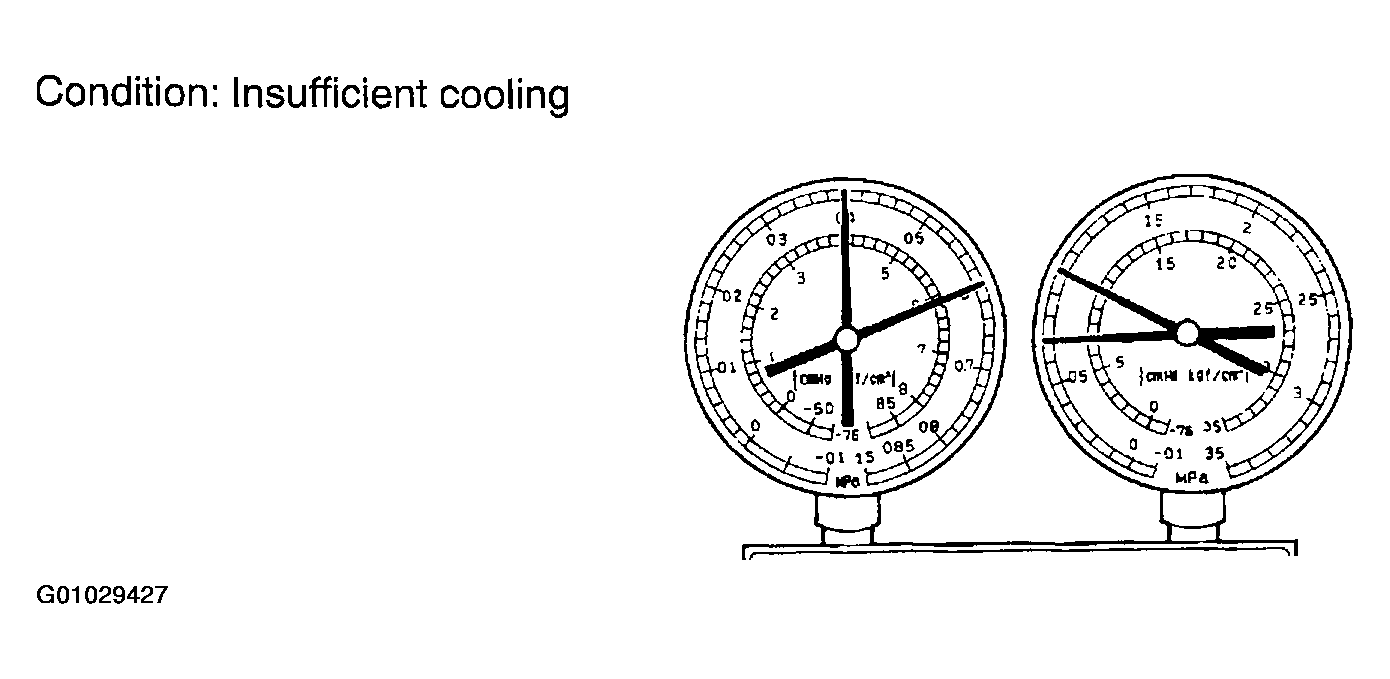

4. Poor circulation of refrigerant

  Fig 8: Identifying Manifold Gauge Set - Poor Circulation Of Refrigerant
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 9: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

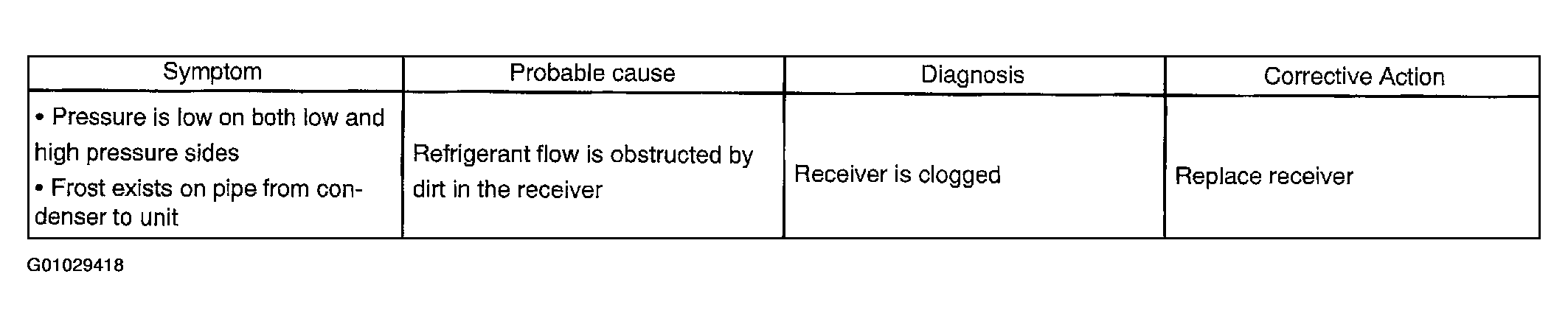

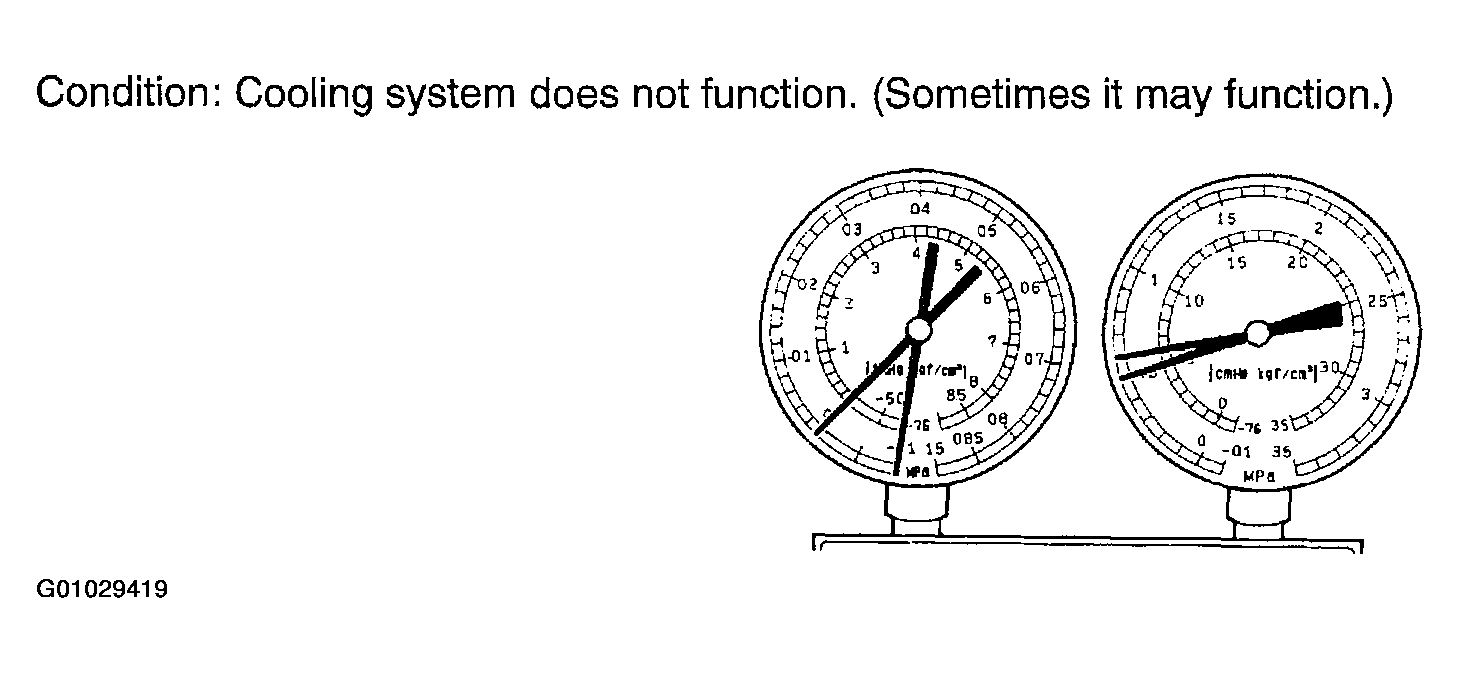

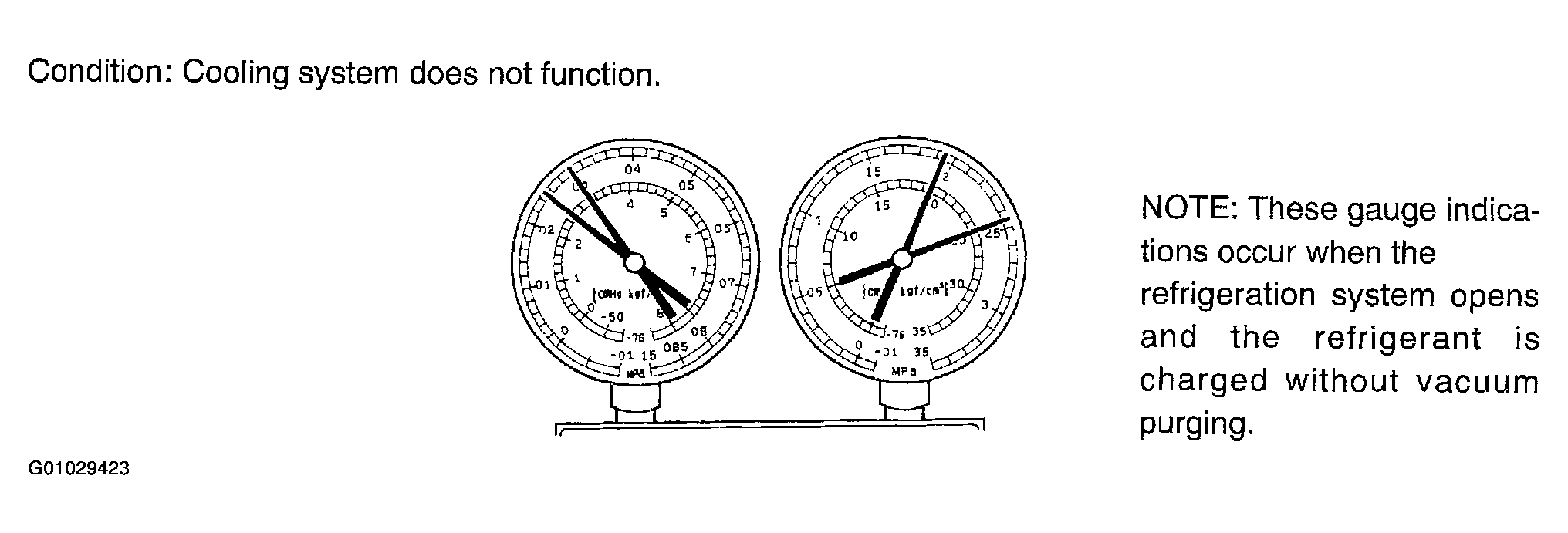

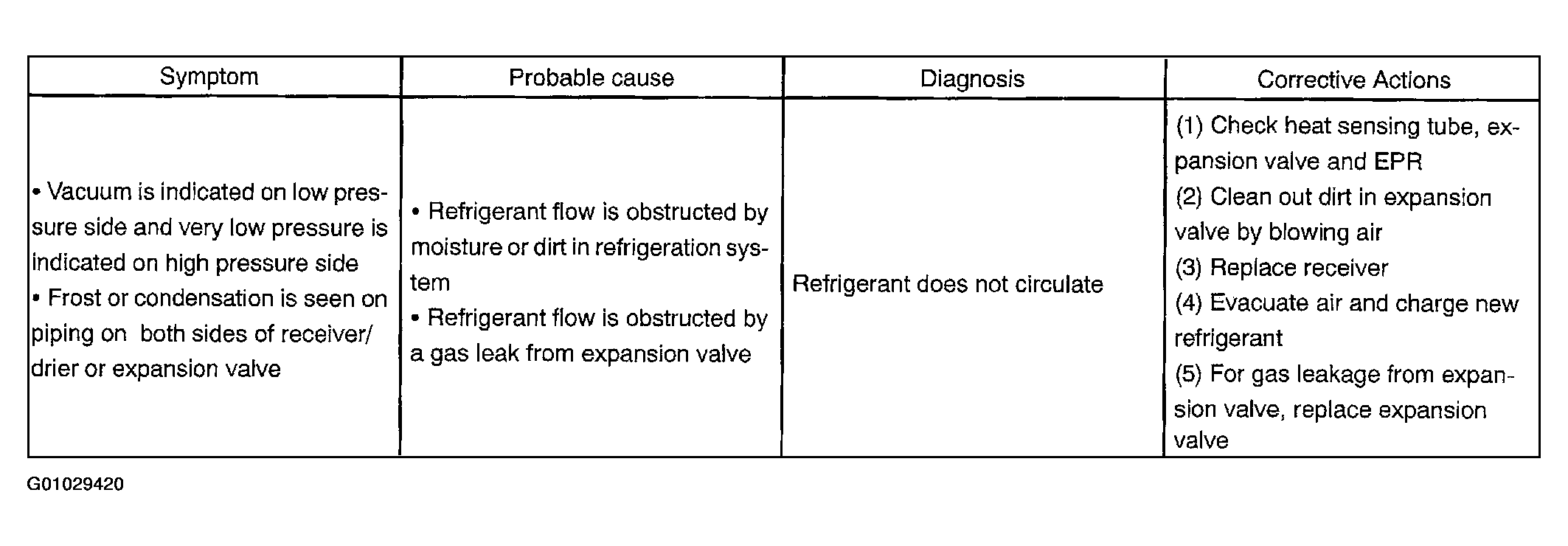

5. Refrigerant does not circulate

  Fig 10: Identifying Manifold Gauge Set - Refrigerant Does Not Circulate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 11: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Refrigerant is overcharged or cooling effectiveness of condenser is insufficient

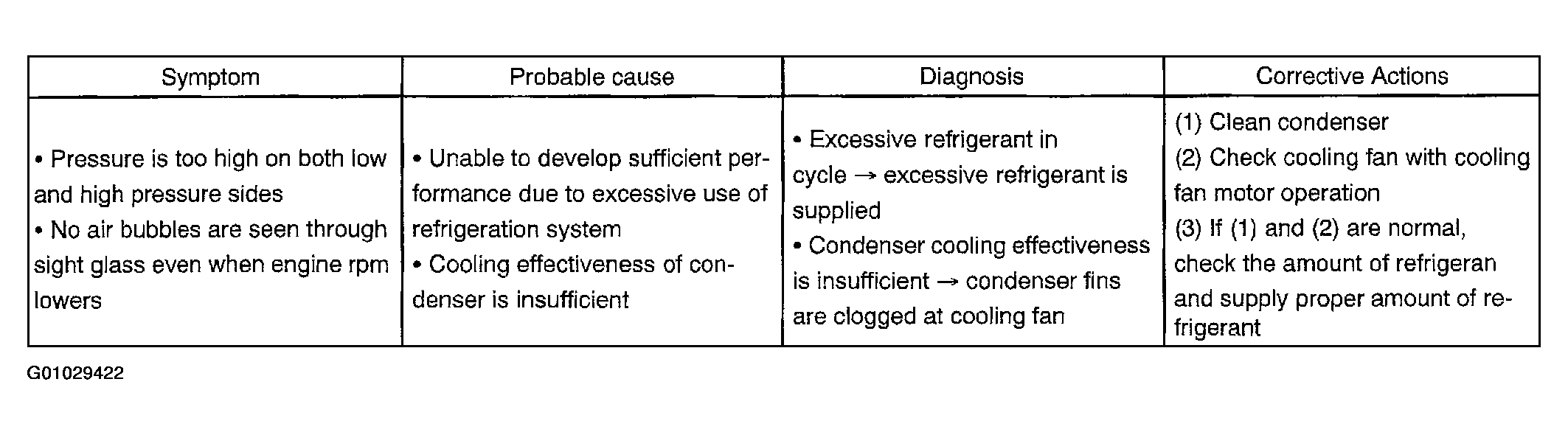

  Fig 12: Identifying Manifold Gauge Set - Refrigerant Is Overcharged Or Cooling Effectiveness Of Condenser Is Insufficient
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 13: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Air present in refrigeration system

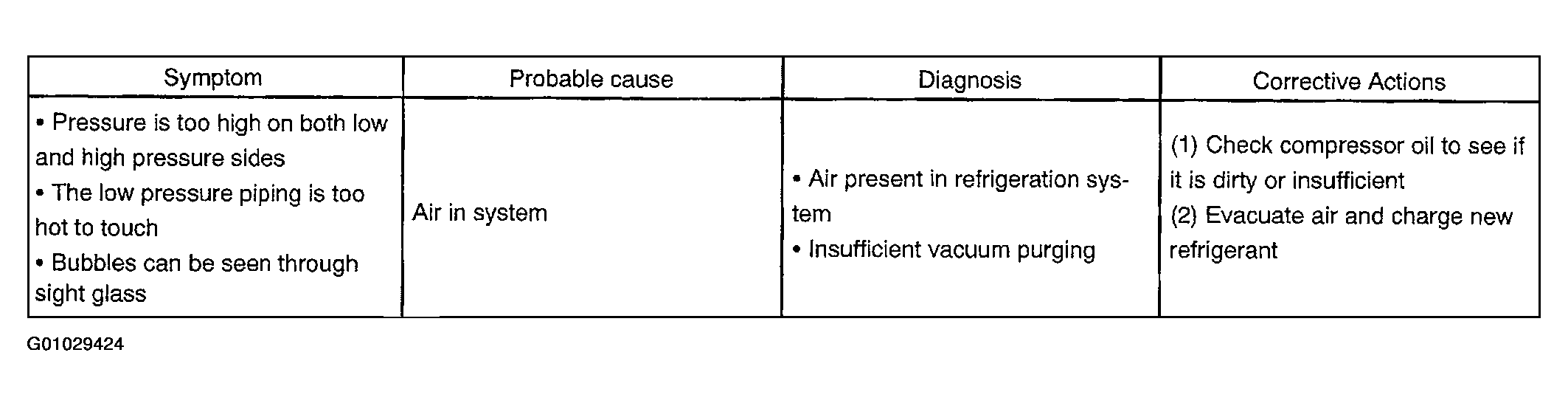

  Fig 14: Identifying Manifold Gauge Set - Air Present In Refrigeration System
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 15: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

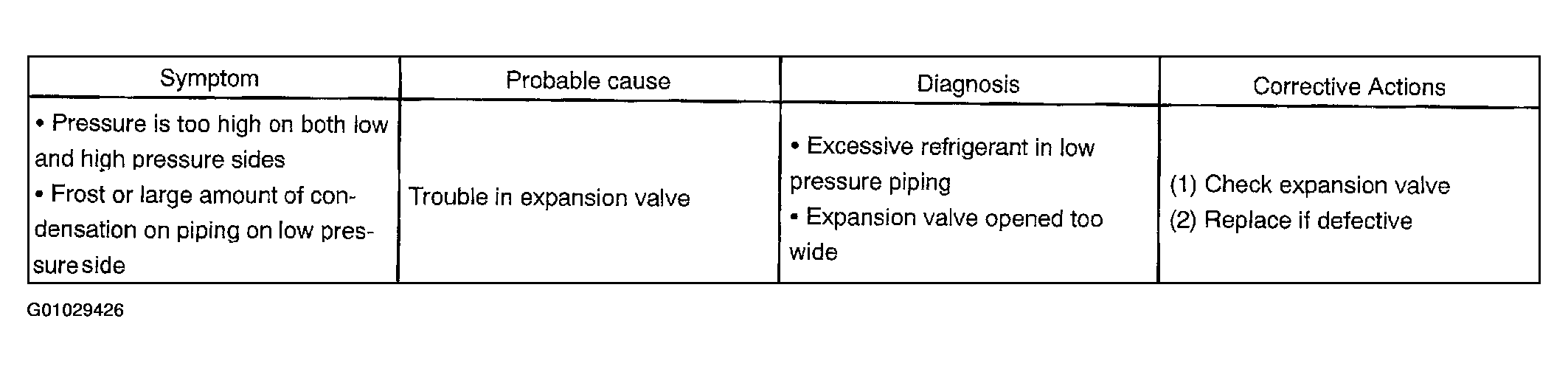

8. Expansion valve malfunction

  Fig 16: Identifying Manifold Gauge Set - Expansion Valve Malfunction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 17: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

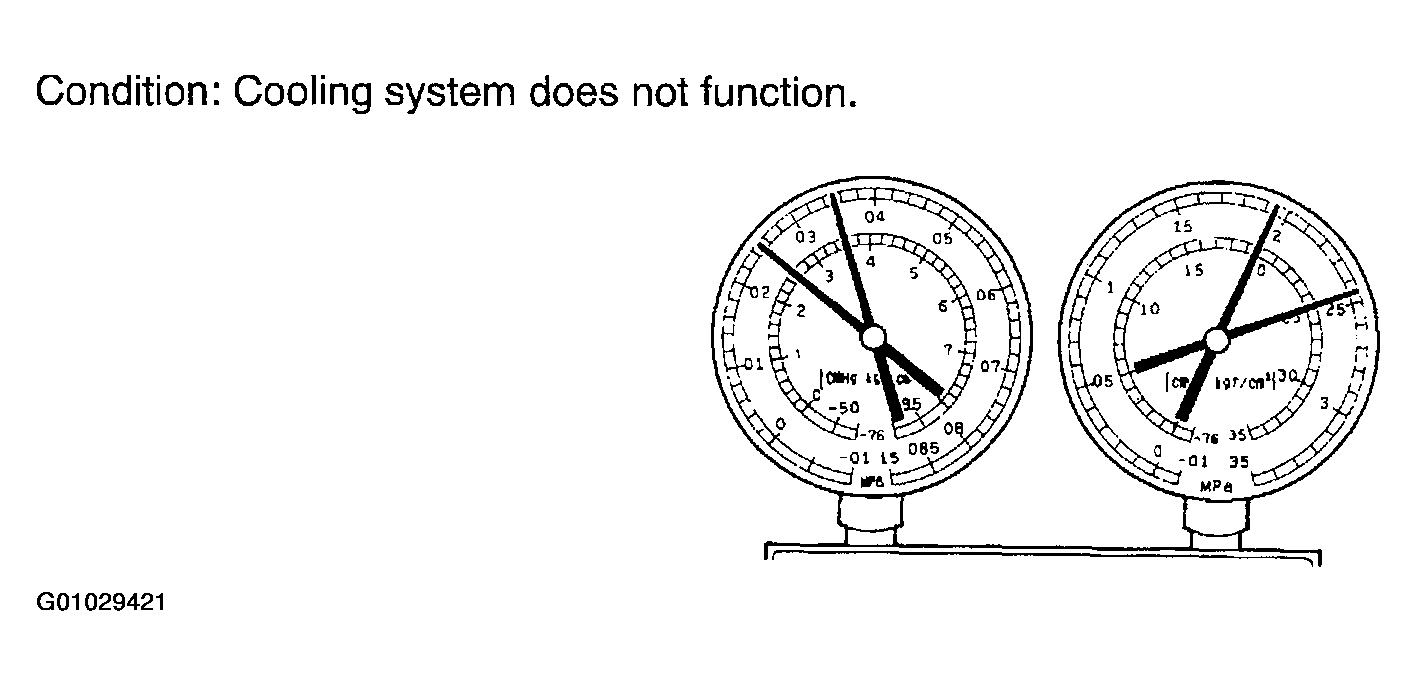

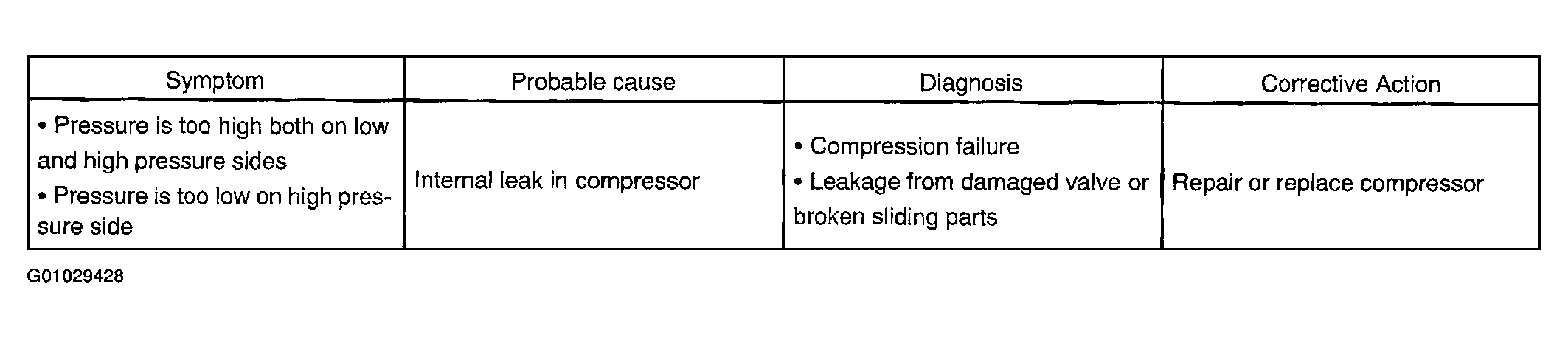

9. Defective compression compressor

  Fig 18: Identifying Manifold Gauge Set - Defective Compression Compressor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 19: Diagnostic Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
