Cruise Control Main Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEPARATE BATTERY NEGATIVE TERMINAL
  2. REMOVE SWITCH & VOLUME CASE
  3. REMOVE STEERING WHEEL COVER LOWER NO.2
  4. REMOVE HORN BUTTON ASSY (SEE  HORN SYSTEM  )
  5. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )
  6. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
    1. Remove the 2 screws and steering wheel damper.

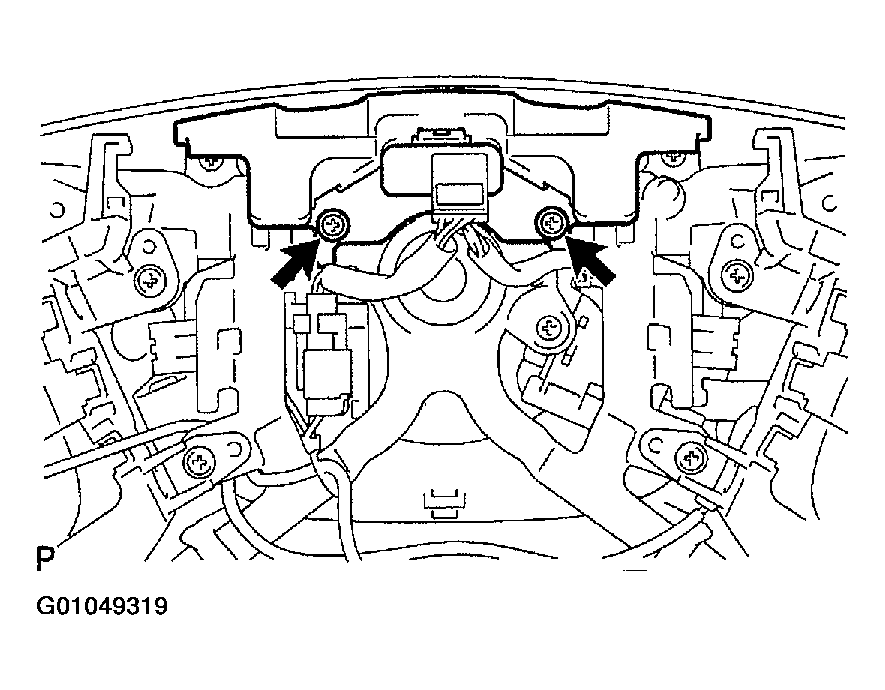

      Fig 1: Locating Screws Steering Wheel Damper
      G01049319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.
    3. Remove screw (A) and disengage the claw.
    4. Remove 2 screws (B) and the steering wheel LWR cover.
    5. Remove the 2 screws and cruise control main switch assy.

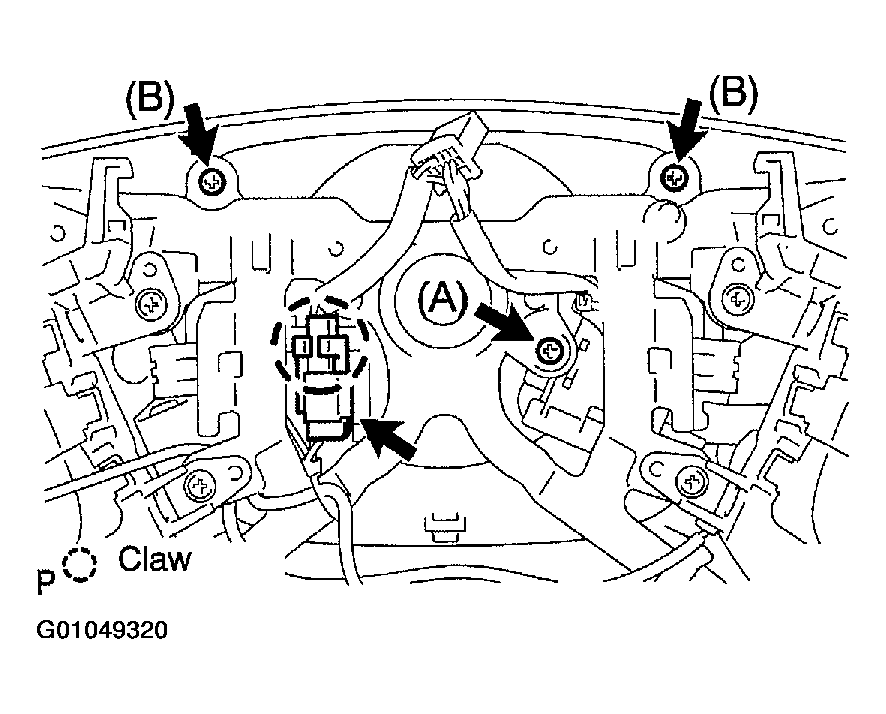

      Fig 2: Locating Screws
      G01049320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT STEERING WHEEL CENTER POINT
  8. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
  9. INSTALL HORN BUTTON ASSY (SEE  HORN SYSTEM  )
  10. CONNECT BATTERY NEGATIVE TERMINAL
  11. INSPECT HORN BUTTON ASSY
  12. INSPECT SRS WARNING LIGHT

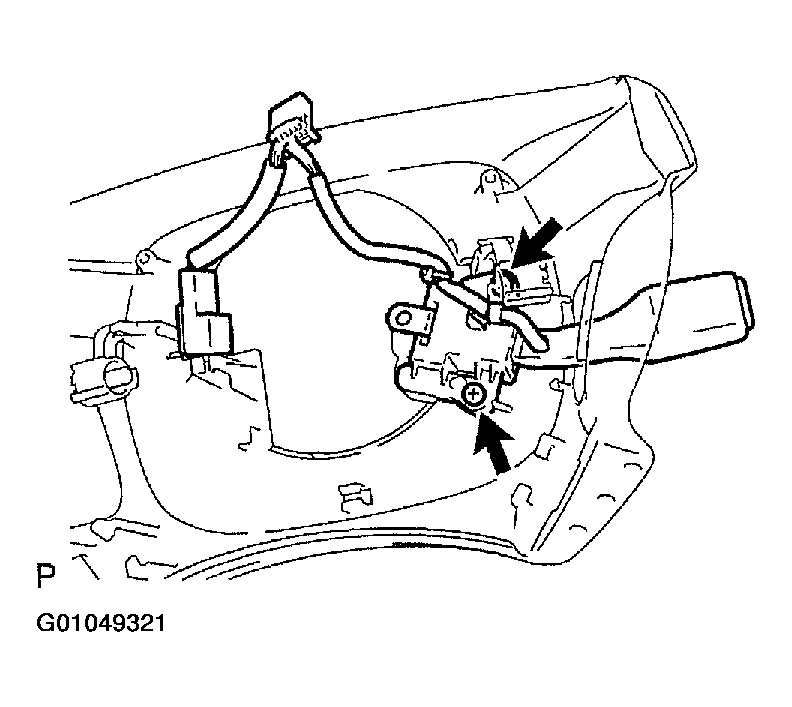

    Fig 3: Locating Screws Cruise Control Main Switch Assy
    G01049321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
