Section 394 (Overhead Junction Block): Location
WARNING:
This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

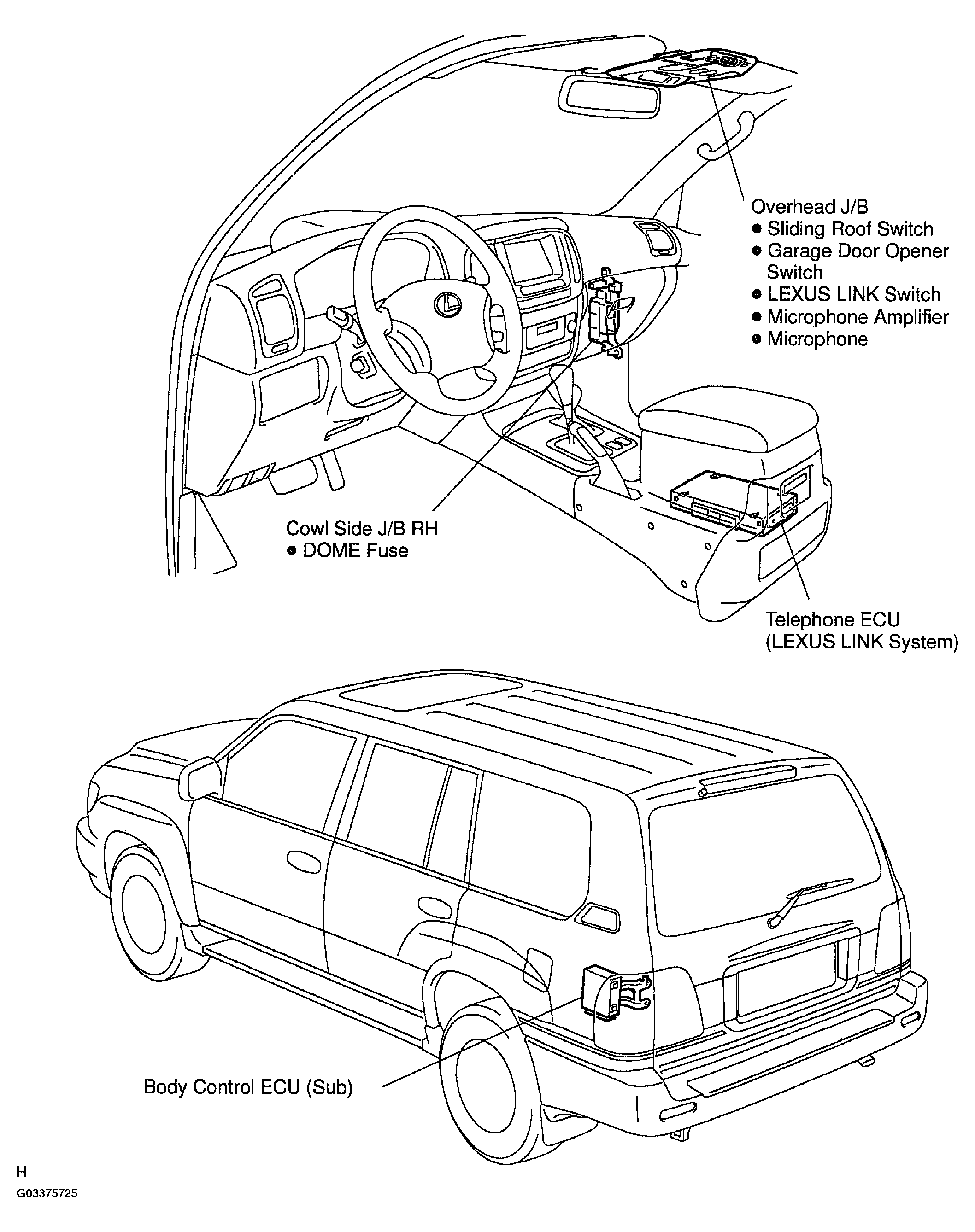

Fig 1: Identifying Overhead Junction Block Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
