Transponder Key Amplifier

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For inspection, go to Fig 1.

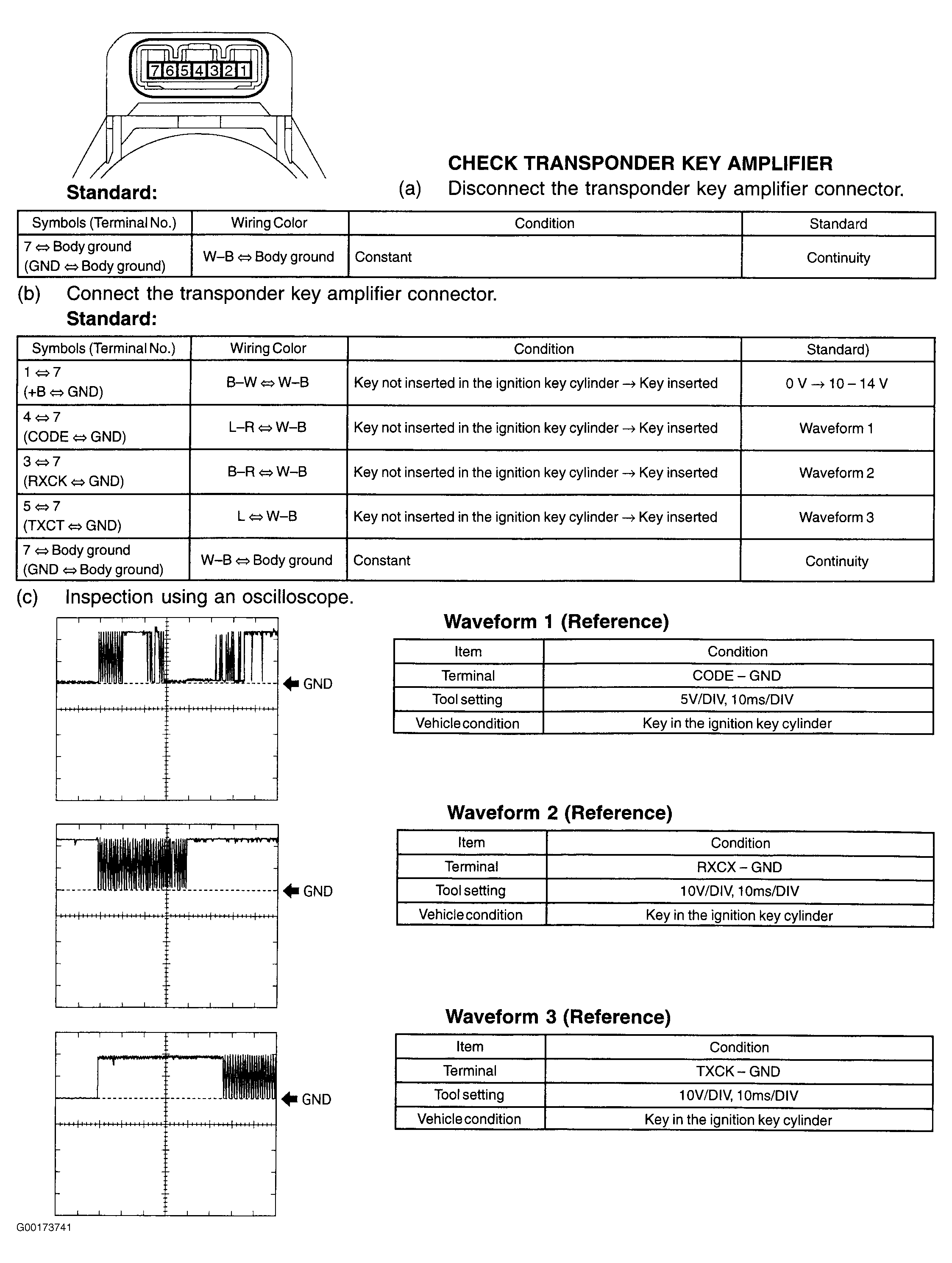

Fig 1: Inspecting Transponder Key Amplifier
G00173741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
