Section 478 (Wheel And Tire System): Inspection

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE

Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure:

COLD TIRE INFLATION PRESSURE SPECIFICATIONS

Tire size	Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
P225/55R17 95H	220 (2.2, 31)	220 (2.2, 31)
245/45R18 96W	230 (2.3, 33)	230 (2.3, 33)

Using a dial indicator, check the tire runout.
Tire runout: 1.4 mm (0.055 in.) or less

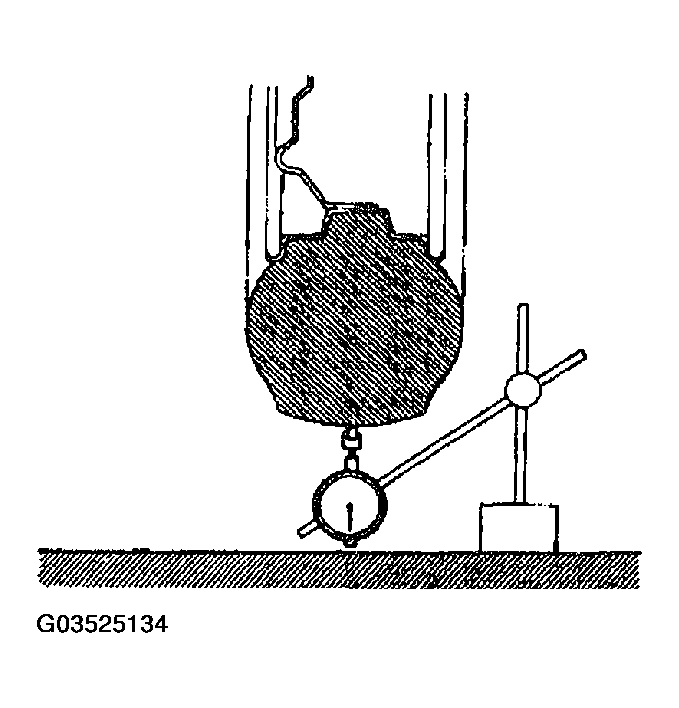

Fig 1: Measuring Tire Run Out
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ROTATE TIRE
HINT:
- Rotate tires as shown in the illustration.
- Rotate as shown in (A) if the spare tire is included in the rotation.

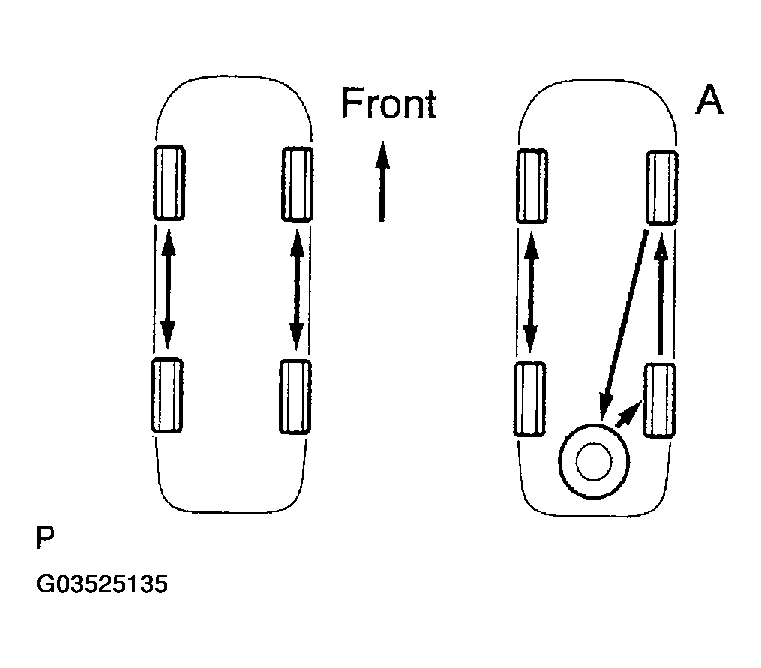

  Fig 2: Tire Rotation Procedure Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL BALANCE
1. Check and adjust the Off-the-car balance.
2. If necessary, check and adjust the On-the-car balance.
  Imbalance after adjustment: 5.0 g (0.011 lb) or less

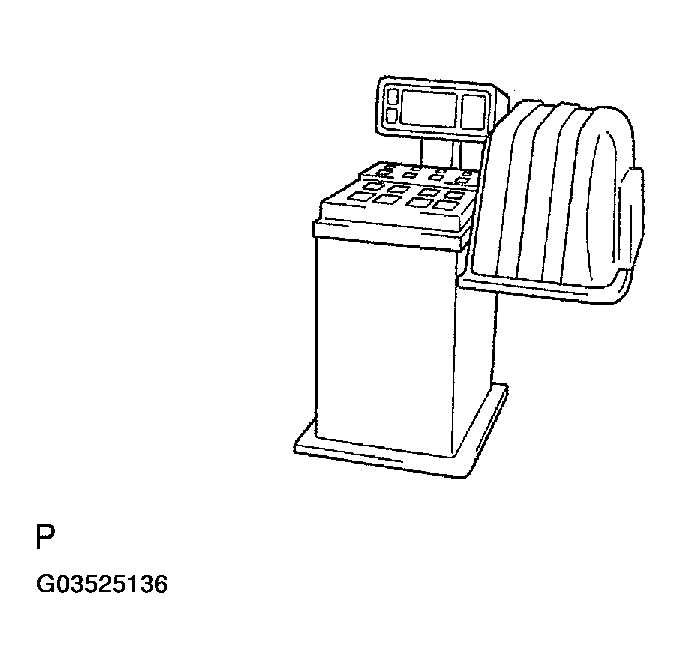

  Fig 3: View Of Wheel Balancing Machine
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BEARING BACKLASH (SEE PAGE ON-VEHICLE INSPECTION )
INSPECT AXLE HUB LOOSENESS (SEE PAGE ON-VEHICLE INSPECTION )
