Navigation Ecu: Replacement

HINT:

• SEE: COMPONENTS
• SEE: LOCATION
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
2. REMOVE DECK TRIM SIDE BOARD RH (SEE  REPLACEMENT  )
3. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
4. SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (SEE  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (SEE  REPLACEMENT  )
6. REMOVE NAVIGATION ECU W/BRACKET
   1. Disconnect the connector.
   2. Remove the 2 nuts and navigation ECU with bracket.

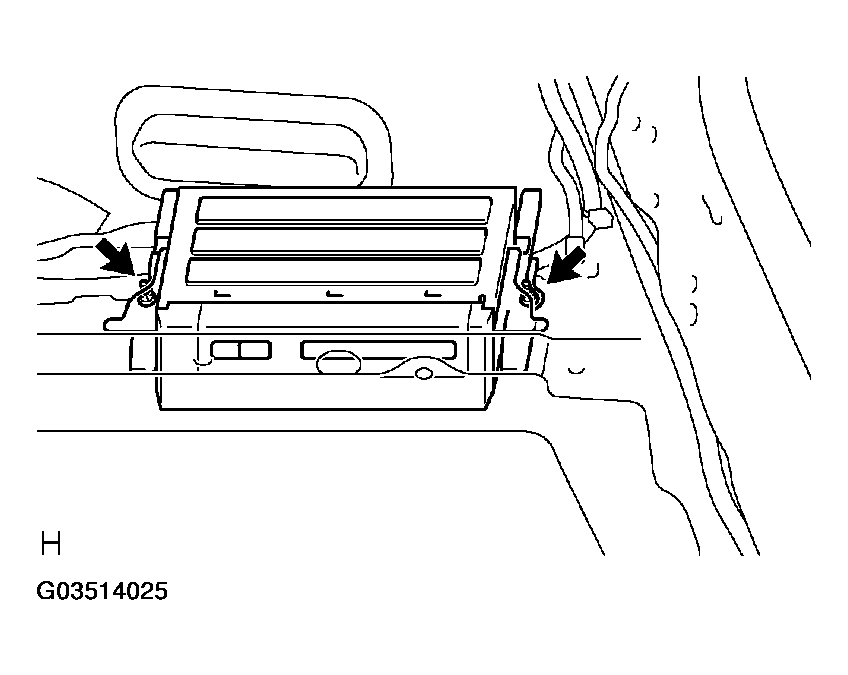

      Fig 1: Removing Nuts And Navigation ECU With Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE NAVIGATION ECU W/BRACKET
   1. Remove the 2 screws.

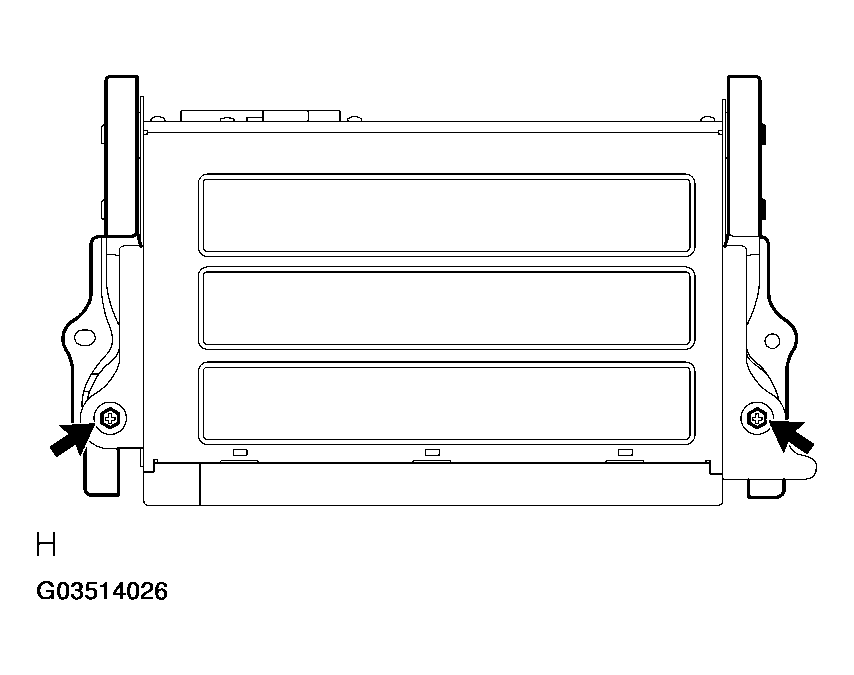

      Fig 2: Removing Screws Of Navigation ECU W/Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the navigation ECU with bracket along the guide as shown in the illustration.

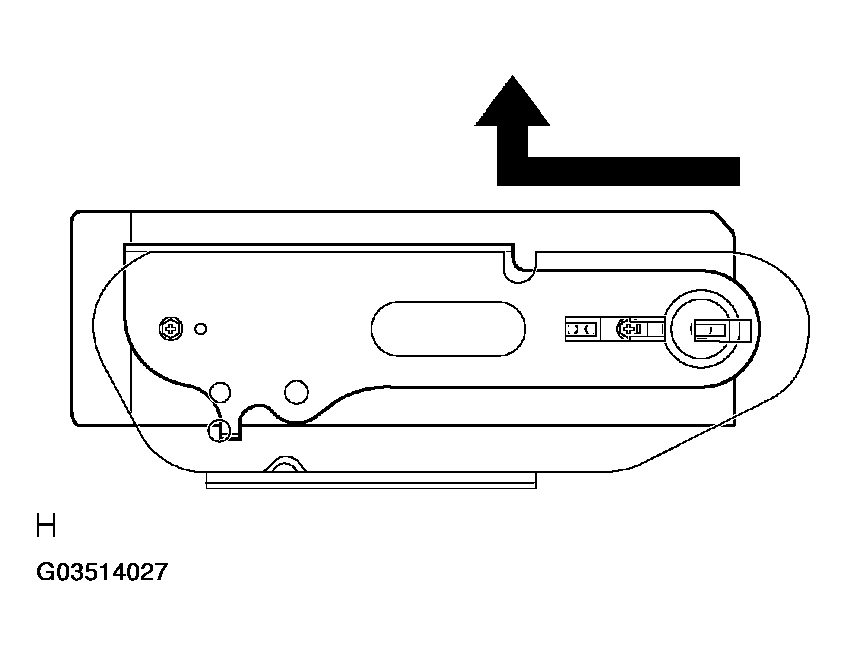

      Fig 3: Removing Navigation ECU With Bracket Along Guide

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 4 screws and 2 brackets.

      HINT:

      After the replacement, perform the screen noise automatic adjustment when screen noise occurs (SEE POWER SOURCE CIRCUIT (STEREO COMPONENT AMPLIFIER ASSY) ).

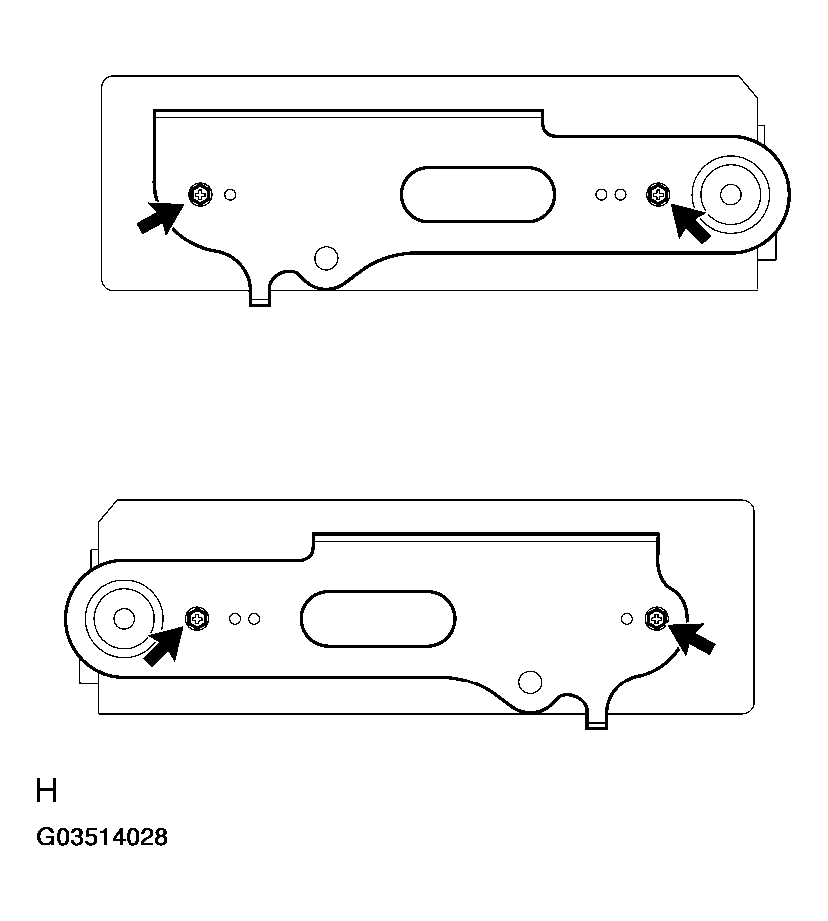

      Fig 4: Removing Screws And Brackets

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
