Television Camera Ecu: Replacement

HINT:

• SEE: COMPONENTS
• SEE: LOCATION
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
2. REMOVE DECK TRIM SIDE BOARD RH (SEE  REPLACEMENT  )
3. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
4. SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (SEE  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (SEE  REPLACEMENT  )

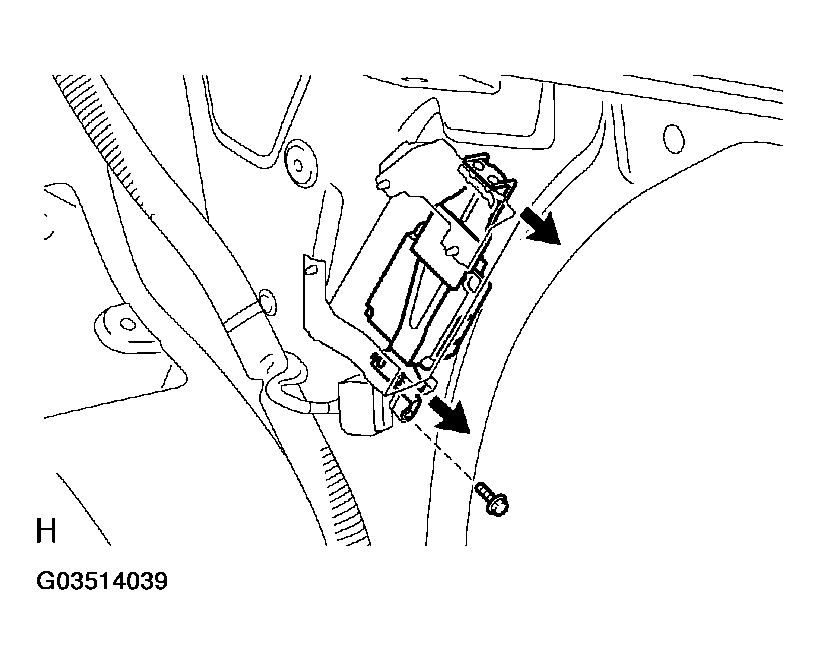

   Fig 1: Disconnecting Connector And Removing Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE TELEVISION CAMERA ECU
   1. Disconnect the connector and remove the bolt.
   2. Pull out the television camera ECU along the stereo component amplifier assy guide toward the rear of the vehicle to remove it.

      If the television camera ECU is not easily removed due to a lack of space between the television camera ECU and the vehicle, remove the television camera ECU together with the stereo component amplifier assy (SEE STEREO COMPONENT AMPLIFIER ASSY ).

7. INSTALL TELEVISION CAMERA ECU
   1. Install the television camera ECU by aligning it with the stereo component amplifier assy guide, and tighten the bolt.
   2. Connect the connector.

      HINT:

      After the replacement, perform the screen noise automatic adjustment when screen noise occurs (SEE POWER SOURCE CIRCUIT (STEREO COMPONENT AMPLIFIER ASSY) ).
