GPS Antenna: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order.
• A bolt without a torque specification is shown in the standard bolt chart (see SUSPENSION CONTROL SYSTEM ).

1. Fixed type: REMOVE REAR SEAT CUSHION ASSY (see  OVERHAUL  )
2. Fixed type: REMOVE REAR SEATBACK ASSY (see  OVERHAUL  )
3. Power adjuster type: REMOVE REAR SEAT CUSHION ASSY LH (see  OVERHAUL  )
4. Power adjuster type: REMOVE REAR SEAT CUSHION ASSY RH (see  OVERHAUL  )
5. Power adjuster type: REMOVE REAR SEATBACK ASSY LH (see  OVERHAUL  )
6. Power adjuster type: REMOVE REAR SEATBACK ASSY RH (see  OVERHAUL  )
7. REMOVE PACKAGE TRAY TRIM PANEL ASSY NO.2 (see  OVERHAUL  )
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH (see  OVERHAUL  )
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (see  OVERHAUL  )
10. REMOVE GPS ANTENNA
    1. Using a screwdriver, disengage the 5 clamps.

       HINT:

       Tape the screwdriver tip before use.

    2. Disconnect the connector and remove the GPS antenna.

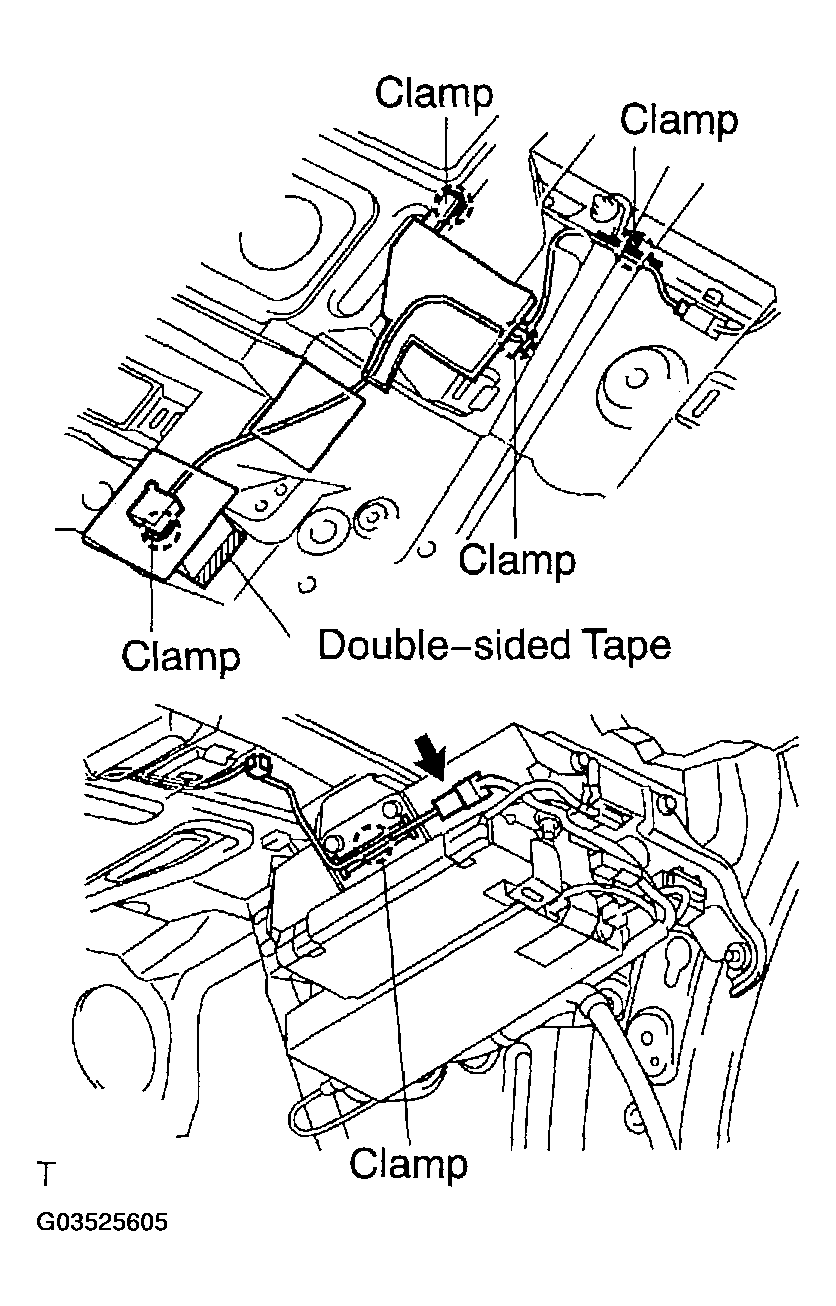

       Fig 1: Disconnecting Connector And GPS Antenna
