Section 514 (Mayday System): Replacement

HINT:

• The installation procedures are the removal procedures in reverse order.
• A bolt without a torque specification is shown in the standard bolt chart (see SUSPENSION CONTROL SYSTEM ).

1. Fixed type: REMOVE REAR SEAT CUSHION ASSY (see  OVERHAUL  )
2. Fixed type: REMOVE REAR SEATBACK ASSY (see  OVERHAUL  )
3. Power adjuster type: REMOVE REAR SEAT CUSHION ASSY LH (see  OVERHAUL  )
4. Power adjuster type: REMOVE REAR SEAT CUSHION ASSY RH (see  OVERHAUL  )
5. Power adjuster type: REMOVE REAR SEATBACK ASSY LH (see  OVERHAUL  )
6. Power adjuster type: REMOVE REAR SEATBACK ASSY RH (see  OVERHAUL  )
7. REMOVE REAR DOOR SCUFF PLATE LH (see  OVERHAUL  )
8. REMOVE REAR DOOR SCUFF PLATE RH (see  OVERHAUL  )
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (see  OVERHAUL  )
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (see  OVERHAUL  )
11. REMOVE REAR SEAT SIDE COVER LH (see  OVERHAUL  )
12. REMOVE REAR SEAT SIDE COVER RH (see  OVERHAUL  )
13. REMOVE PACKAGE TRAY TRIM PANEL ASSY (see  OVERHAUL  )
14. REMOVE PACKAGE TRAY TRIM PANEL ASSY NO.2 (see  OVERHAUL  )
15. REMOVE ROOM PARTITION NET ASSY (see  OVERHAUL  )
16. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (see  OVERHAUL  )
17. REMOVE ROPE HOOK ASSY (see  OVERHAUL  )
18. REMOVE REAR FLOOR FINISH PLATE (see  OVERHAUL  )
19. REMOVE TOOL CASE (see  OVERHAUL  )
20. REMOVE SIDE TRIM TOOL BAG COVER (see  OVERHAUL  )
21. REMOVE COVER, LUGGAGE COMPARTMENT TRIM, FR (see  OVERHAUL  )
22. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH (see  OVERHAUL  )
23. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (see  OVERHAUL  )

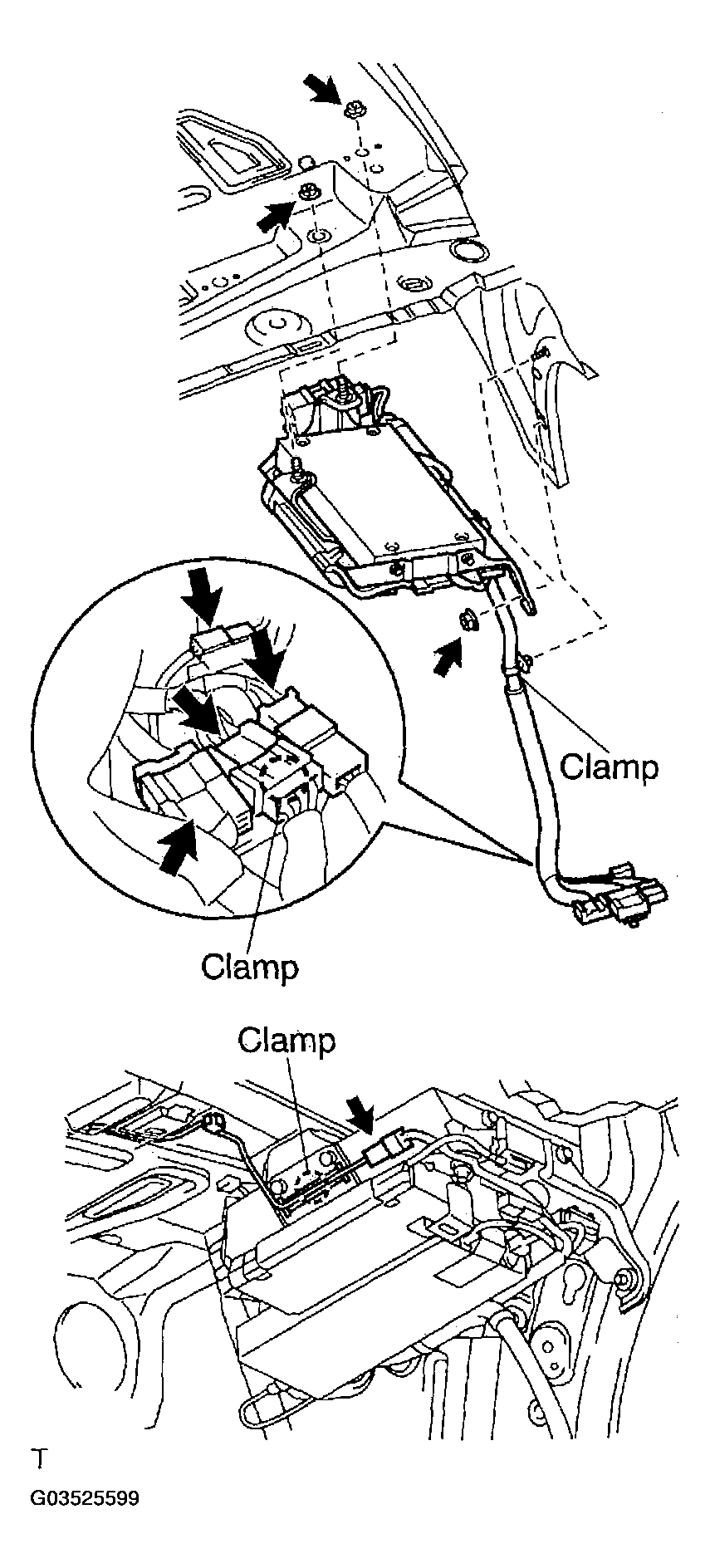

24. REMOVE MAYDAY ASSY
    1. Remove the 3 nuts.
    2. Disconnect the 4 connectors and 3 clamps.
    3. Remove the Mayday assy.
       Fig 1: Disconnecting Connectors And Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

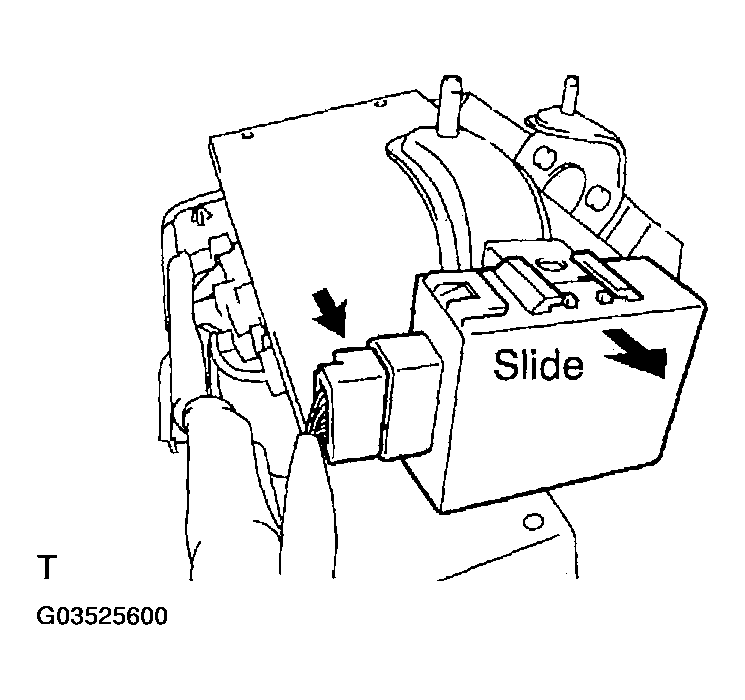

25. REMOVE BUS BUFFER ECU
    1. Disconnect the connector.
    2. Remove the ECU as shown in the illustration.
       Fig 2: Removing ECU

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

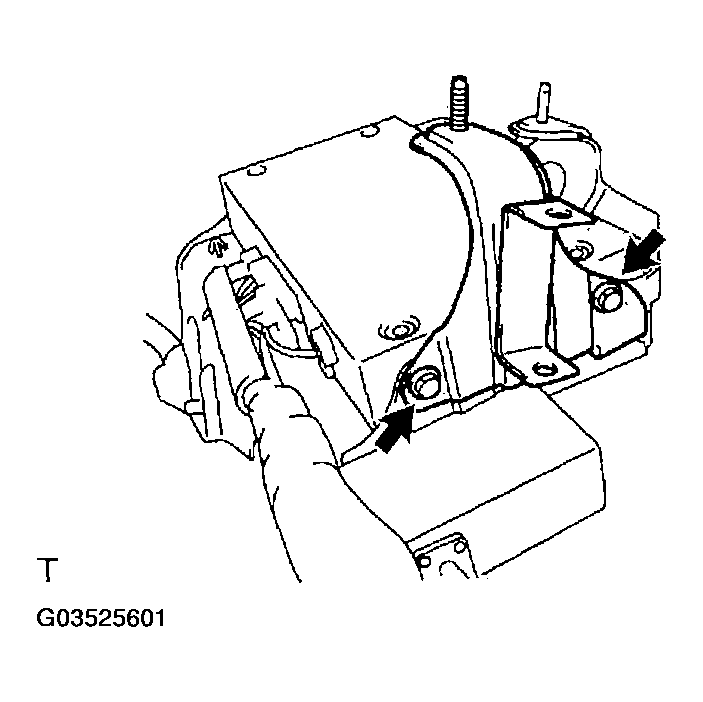

26. REMOVE MAYDAY ECU ASSY
    1. Remove the 2 bolts and mobile Phone bracket No. 1.
       Fig 3: Removing Mobile Phone Bracket No.1

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

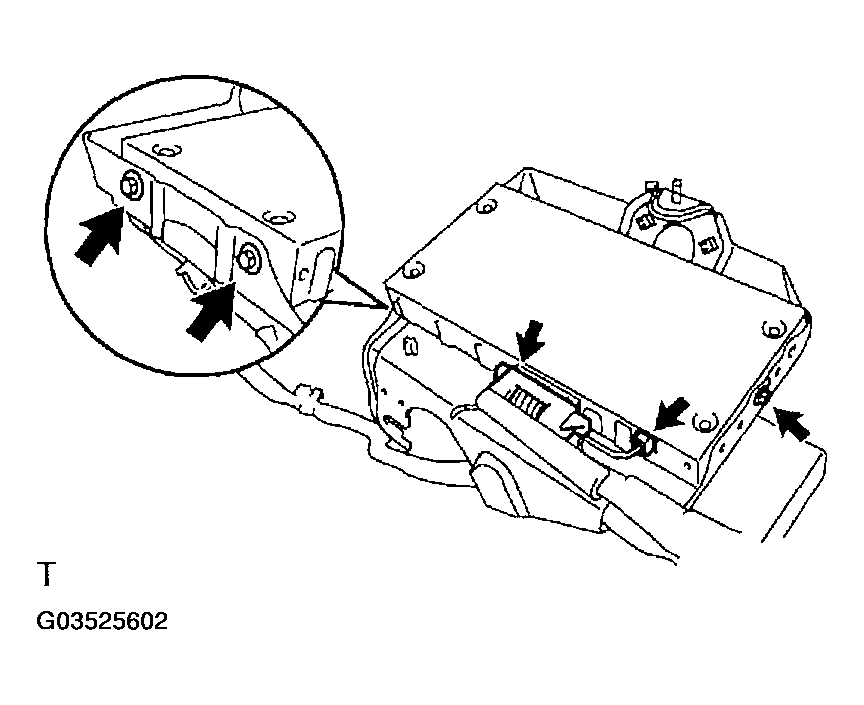

    2. Disconnect the 2 connectors.
    3. Remove the 3 bolts and ECU.
       Fig 4: Removing ECU

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

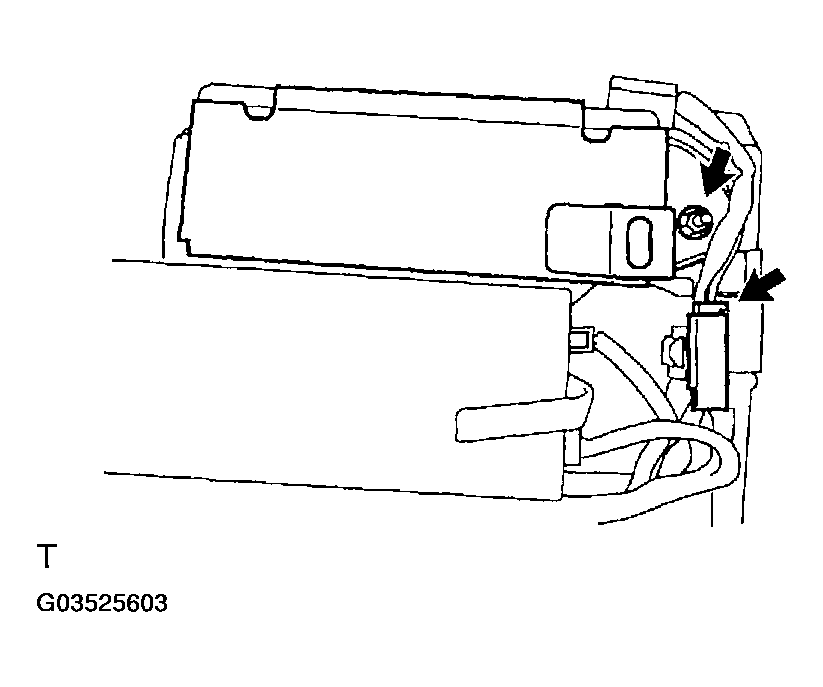

27. REMOVE PORTABLE PHONE-L BATTERY
    1. Remove the nut and mobile phone bracket No. 2.
    2. Disconnect the connector and remove the portable-phone-L battery.
       Fig 5: Removing Mobile Phone Bracket No. 2

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

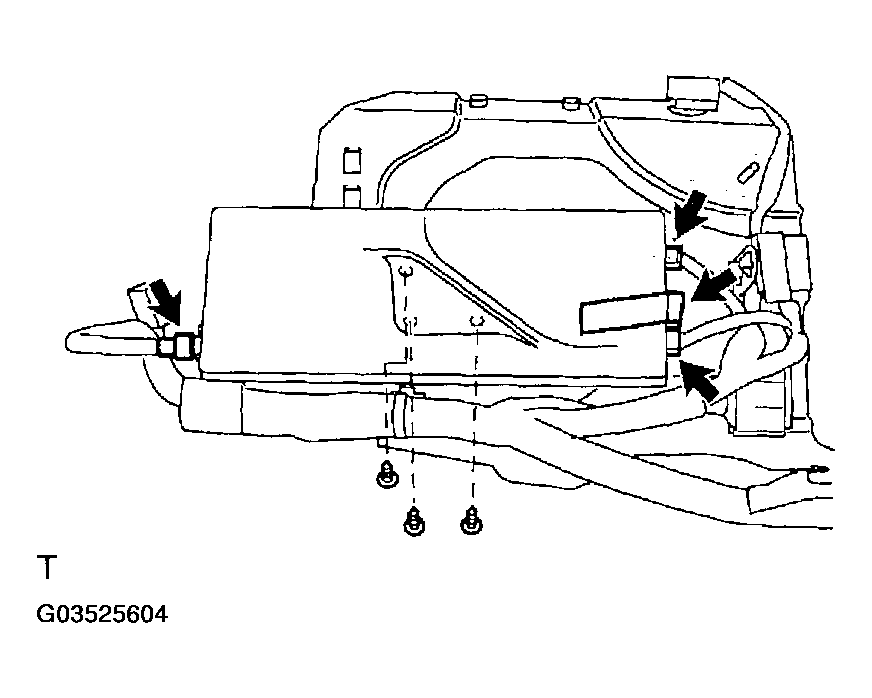

28. REMOVE TELEPHONE TRANSCEIVER ASSY
    1. Disconnect the connectors.
    2. Remove the 3 screws and telephone transceiver.
       Fig 6: Removing Telephone Transceiver

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
