Section 544 (Instrument Panel): Installation

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REINFORCEMENT
  2. w/ Night View:

    INSTALL NIGHT VIEW BATTERY ECU

    Install the night view battery ECU with the 2 screws.

  3. INSTALL NO. 1 BRACE
  4. INSTALL FLOOR BRACE
  5. INSTALL GLOVE COMPARTMENT DOOR DAMPER
  6. INSTALL NO. 4 HEATER TO REGISTER DUCT
  7. INSTALL NO. 3 HEATER TO REGISTER DUCT
  8. INSTALL ECM (See  COMPONENTS  )
  9. INSTALL INSTRUMENT PANEL

    HINT:

    • Install the airbag connector between the No. 5 heater to register duct and the center bracket temporarily, then install the instrument panel.
    • Remove the airbag connector before installing the lower No. 2 panel.

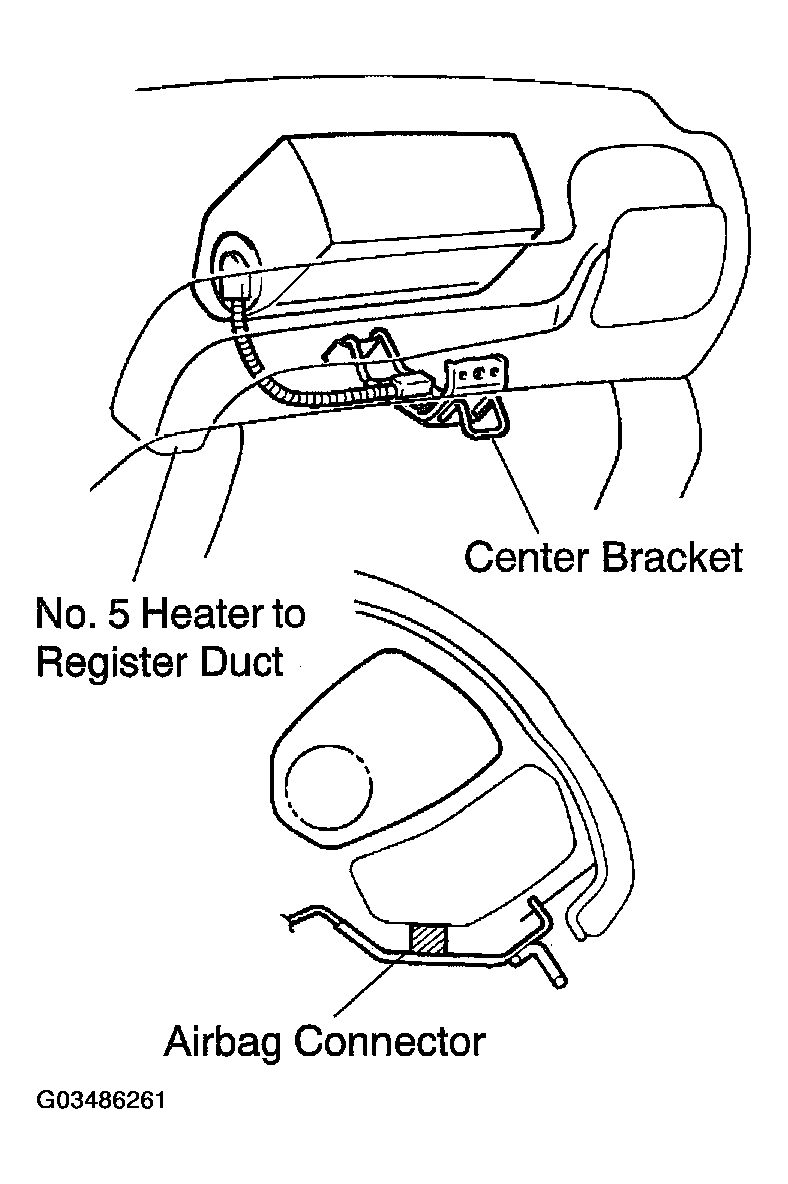

      • Fig 1: Installing Airbag Connector Between Heater To Register Duct & Center Bracket
      G03486261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the 6 bolts, the 2 nuts and the instrument panel, then connect the connectors.
    2. Install the 2 bolts to the front passenger airbag assembly.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    3. Connect the junction connectors.

    HINT:

    The connectors can be connected by tightening the bolts.

  10. INSTALL TRANSCEIVER FINISH PLATE NO. 2 ASSEMBLY
  11. w/Night View:

    INSTALL NIGHT VIEW DISPLAY

    Install the night view display with the 4 screws.

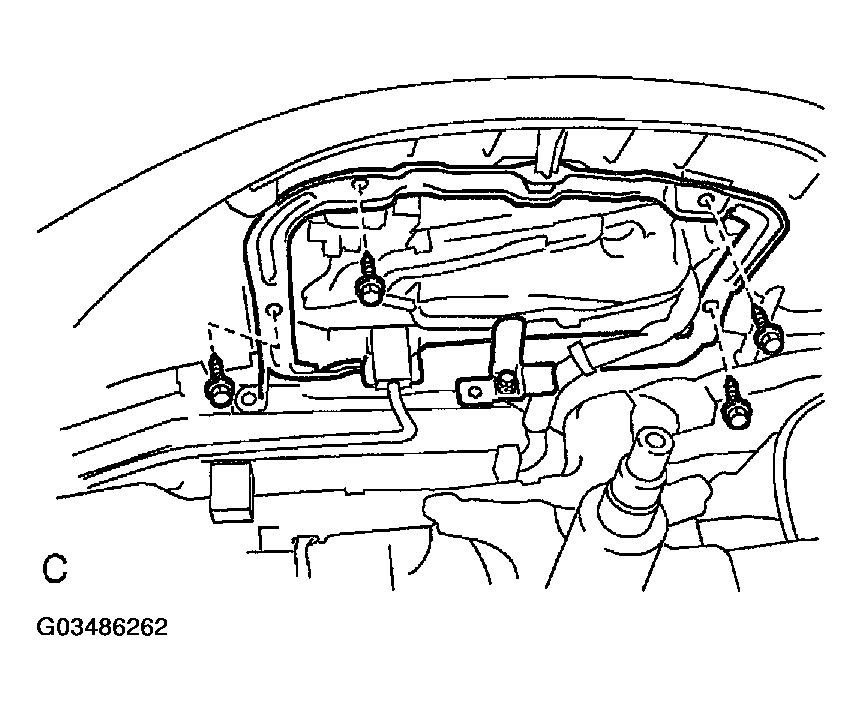

    Fig 2: Installing Night View Display
    G03486262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. w/Night View:

    INSTALL NIGHT VIEW ECU

    1. Connect the connectors to the night view ECU.
    2. Install the night view ECU with the 3 bolts.

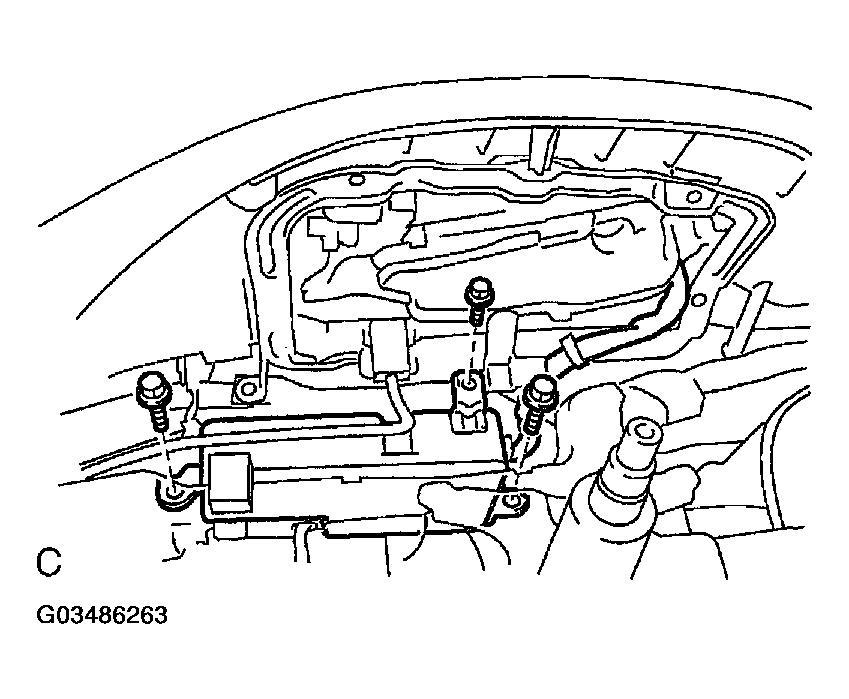

      Fig 3: Installing Night View ECU
      G03486263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT CONSOLE BOX AND CONSOLE BOX MOUNTING BRACKET NO. 4

    Install the front console box and the console box mounting bracket No. 4 with the 4 bolts.

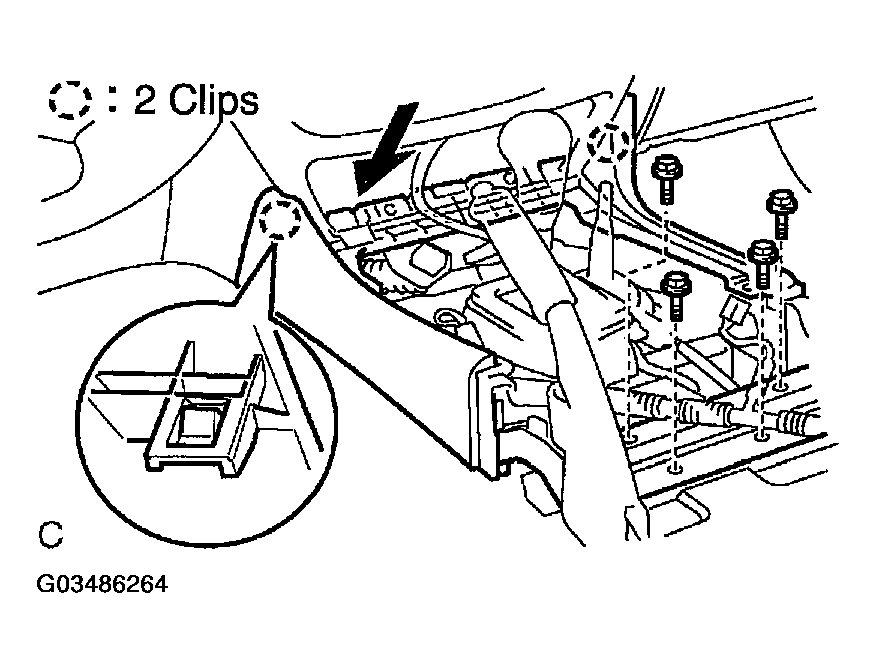

    14. Fig 4: Installing Front Console Box & Console Box Mounting Bracket
    G03486264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT ASH RECEPTACLE RETAINER
    1. Install the front ash receptacle retainer with the 2 screws.
    2. Install the front ash receptacle box.
  15. INSTALL CENTER LOWER CLUSTER FINISH PANEL

    Connect the connectors, then install the center lower cluster finish panel.

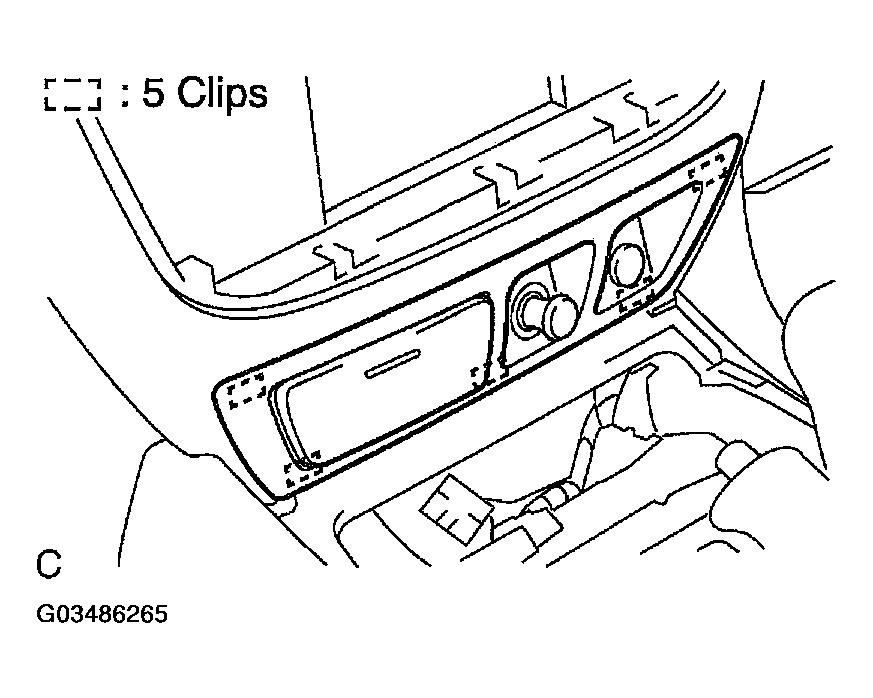

    Fig 5: Installing Center Lower Cluster Finish Panel
    G03486265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. w/o Disc Player Changer, LEXUS Link System:

    INSTALL REAR CONSOLE BOX

    Install the rear console box with the 4 bolts and the 4 screws.

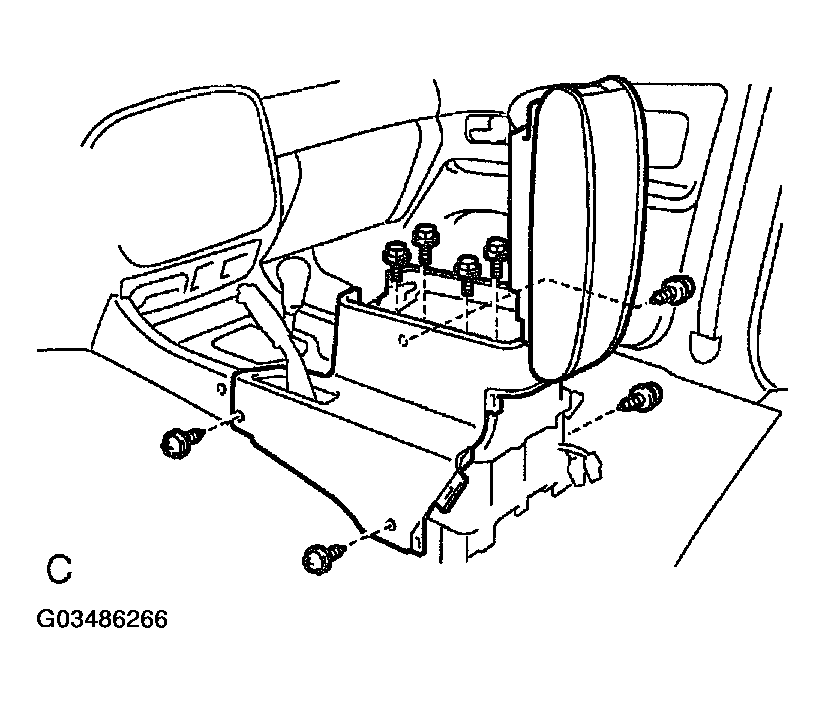

    Fig 6: Installing Rear Console Box W/O Disc Player Changer, Lexus Link System
    G03486266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. w/Disc Player Changer:

    INSTALL REAR CONSOLE BOX

    Install the rear console box with the 2 bolts and the 6 screws.

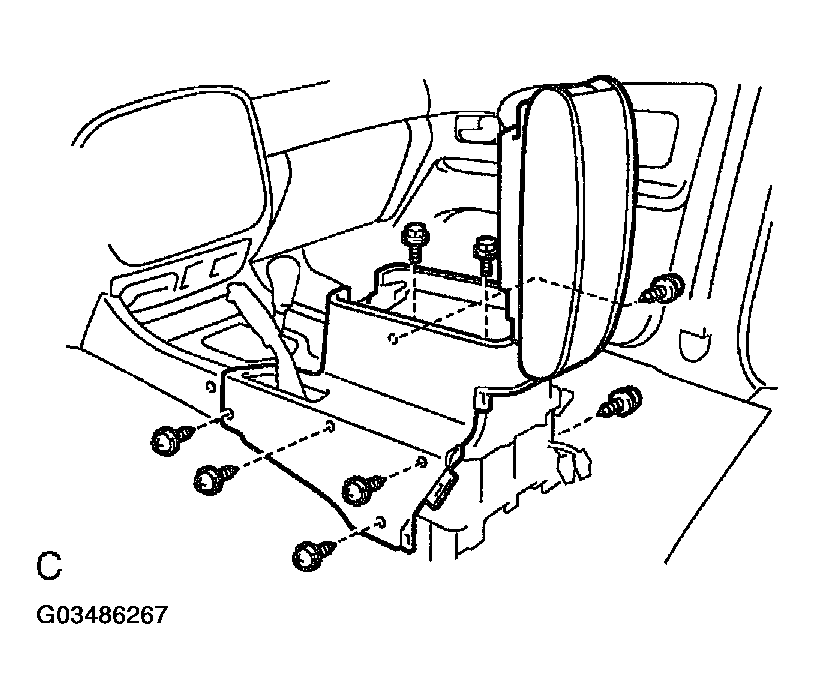

    Fig 7: Installing Rear Console Box W/ Disc Player Changer
    G03486267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. w/ LEXUS Link System:

    INSTALL REAR CONSOLE BOX

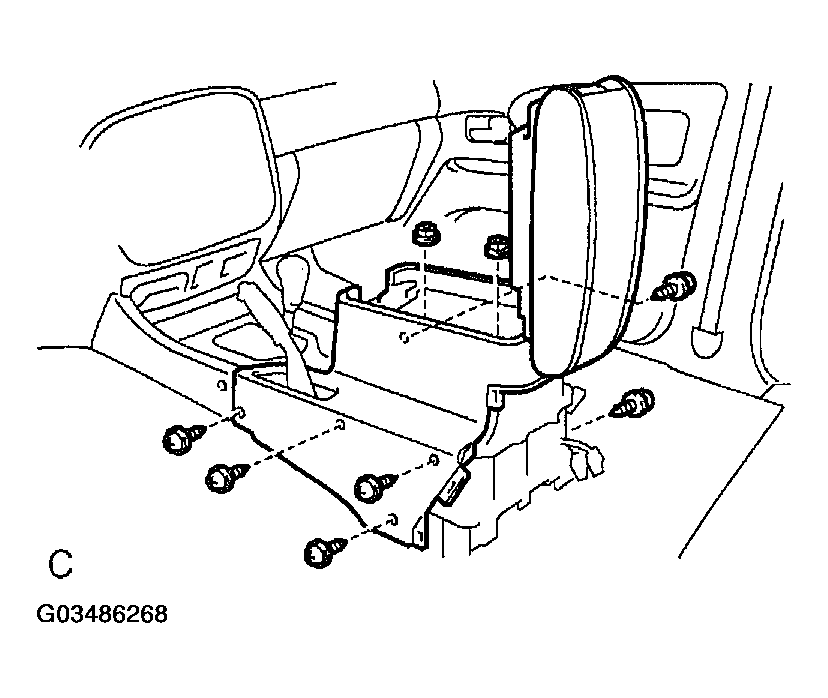

    Fig 8: Installing Rear Console Box W/ LEXUS Link System
    G03486268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Install the rear console box with the 2 nuts, the 6 screws.

  19. INSTALL REAR RADIO CONTROL PANEL

    Install the rear radio control panel with the 3 screws, and connect the connector.

  20. INSTALL CONSOLE REAR END PANEL
    1. Install the console rear end panel with the 2 screws.
    2. Install the console cup holder box.

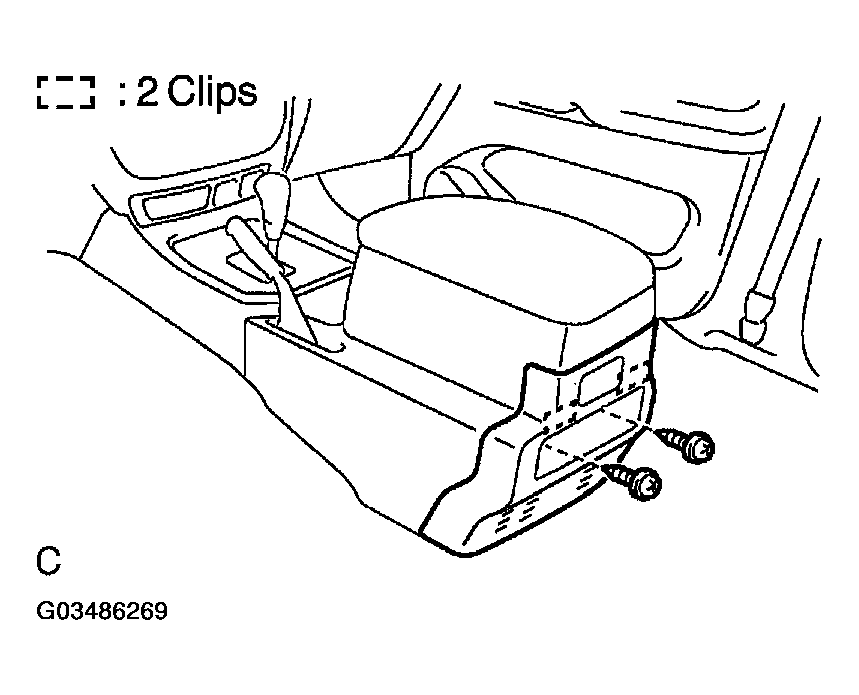

      3. Fig 9: Installing Console Rear End Panel
      G03486269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL UPPER CONSOLE PANEL

    Install the upper console panel, then install the transfer shift lever knob.

  22. INSTALL RADIO WITH A/C CONTROL ASSEMBLY

    Install the radio with A/C control with the 4 bolts.

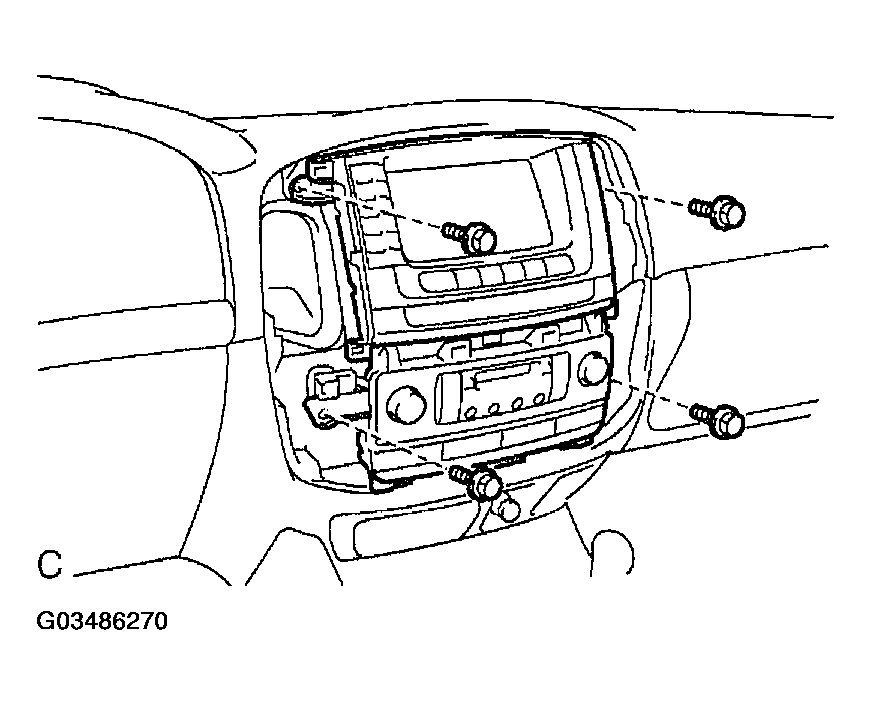

    Fig 10: Installing Radio With A/C Control Assembly
    G03486270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL INSTRUMENT CLUSTER FINISH PANEL

    Connect the connectors, then install the instrument cluster finish panel.

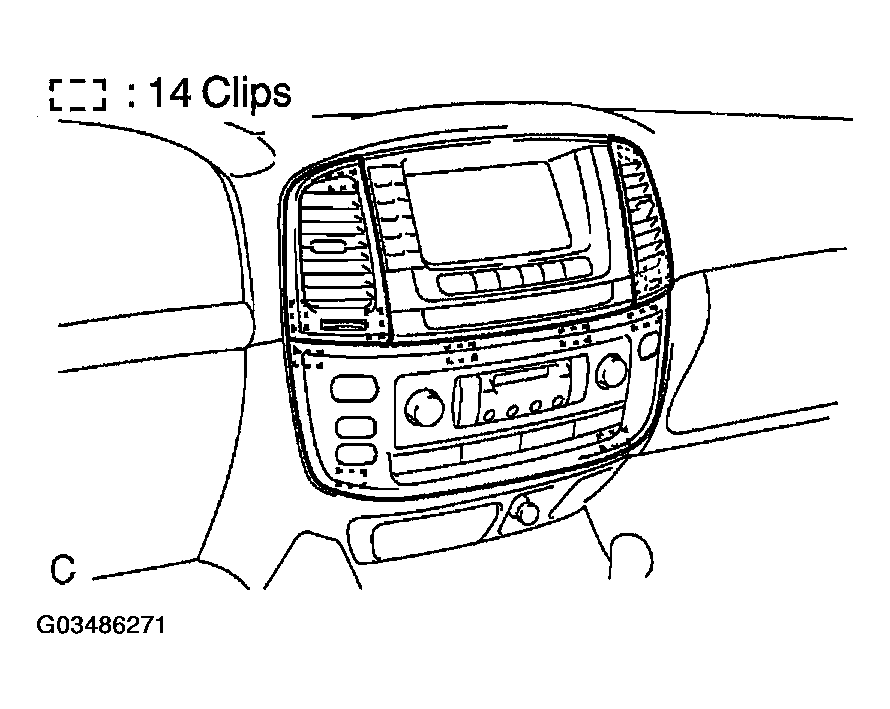

    Fig 11: Installing Instrument Cluster Finish Panel
    G03486271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL CENTER RESISTER

    Install the center resister.

  25. INSTALL LOWER NO. 2 PANEL

    Install the lower No. 2 panel with the 3 screws.

  26. CONNECT AIRBAG CONNECTOR (See  AIR BAG RESTRAINT SYSTEMS  )
  27. INSTALL GLOVE COMPARTMENT DOOR
    1. Connect the glove compartment door damper clip, then install the glove compartment door.
    2. Install the 2 screws.

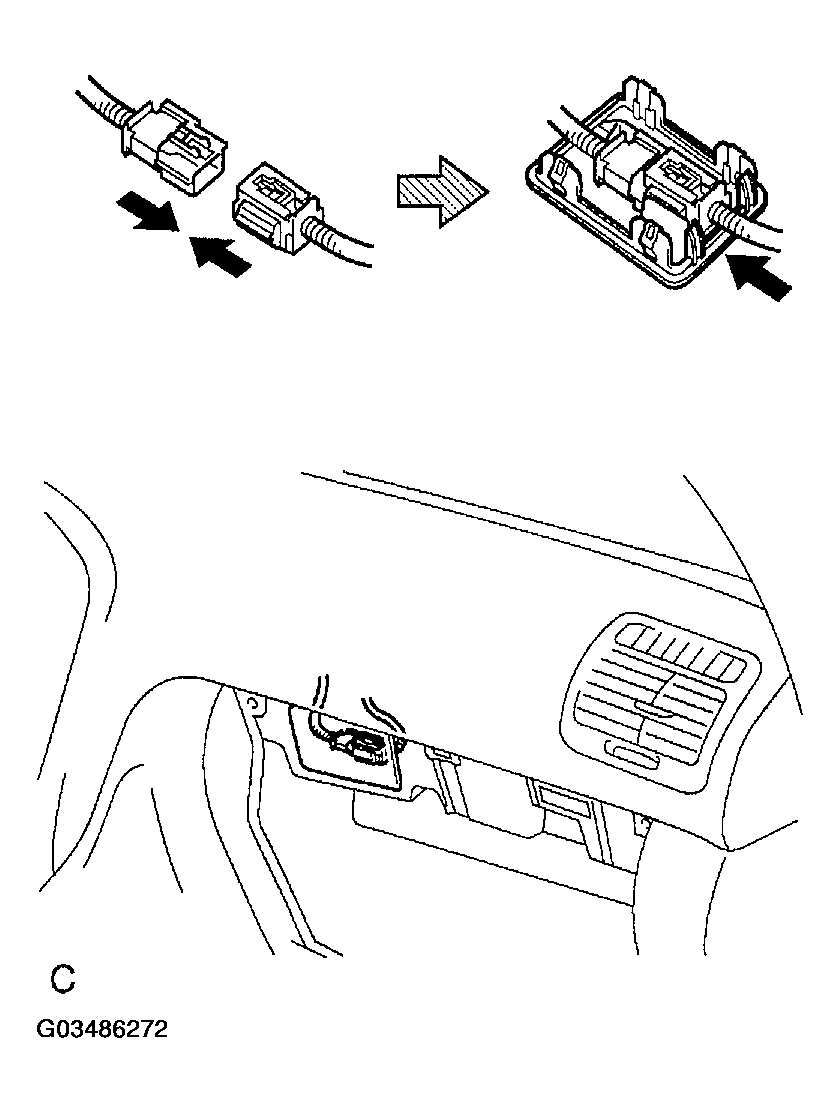

      Fig 12: Connecting Airbag Connector
      G03486272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL COMBINATION METER
    1. Check that the set-in connectors are connected in the installation holes on the instrument panel securely.
    2. Place the combination meter on the instrument panel.
    3. Install the combination meter by tightening the screws, A, B and C in the order.

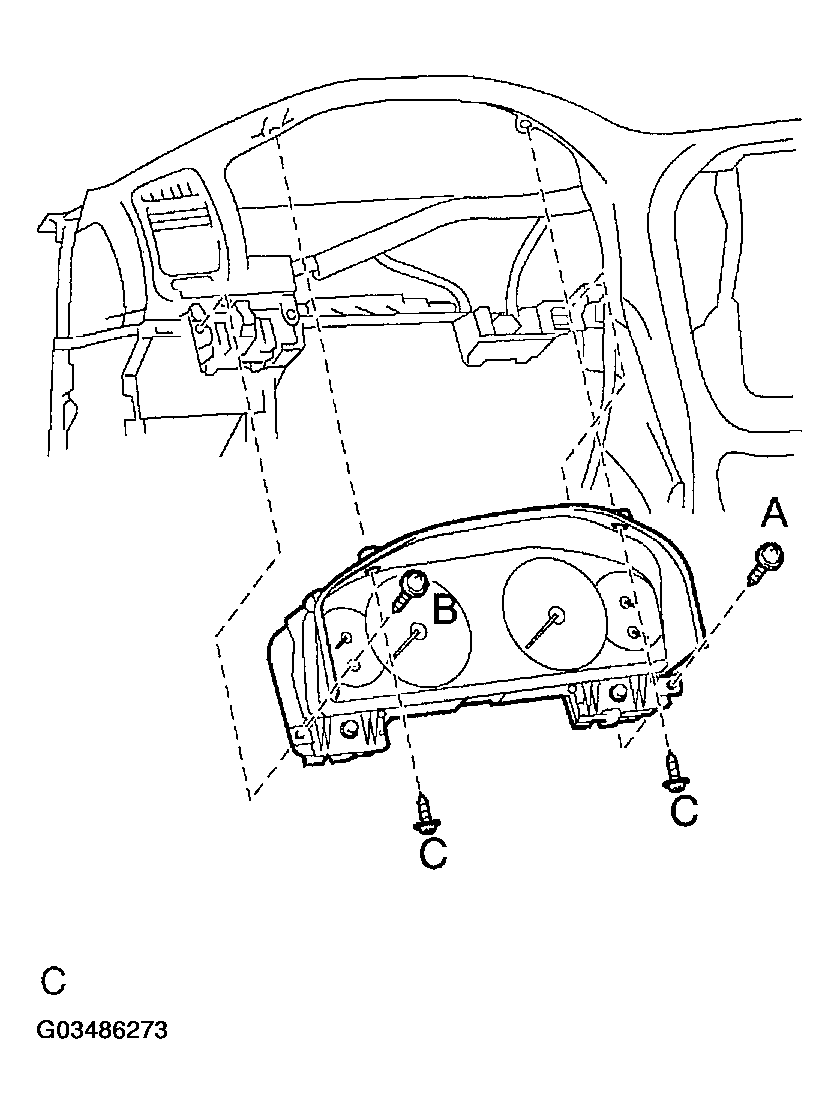

      Fig 13: Installing Combination Meter
      G03486273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the connection bolts.

    HINT:

    • When the connection is completed, the bolts should turn vainly, causing turning noise.
    • Check that the connection check pins protrude from the lower side of the connection bolts.

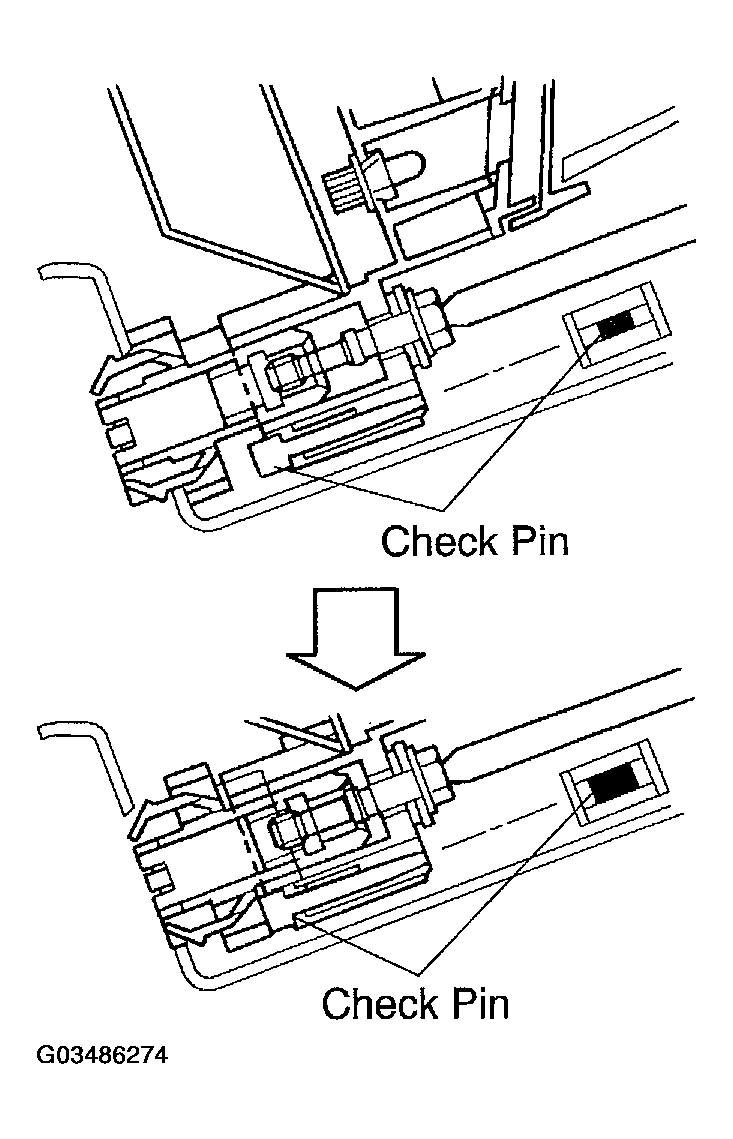

      • Fig 14: Checking That Connection Check Pins Protrude From Lower Side Of Connection Bolts
      G03486274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Follow the procedures in the order of (c) and (d). Otherwise, the set-in connectors on the wire harness side and on the meter side might not be connected properly.
  29. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the screw.
    2. Install the transceiver finish plate No. 1 assembly with the screw, and connect the connector.

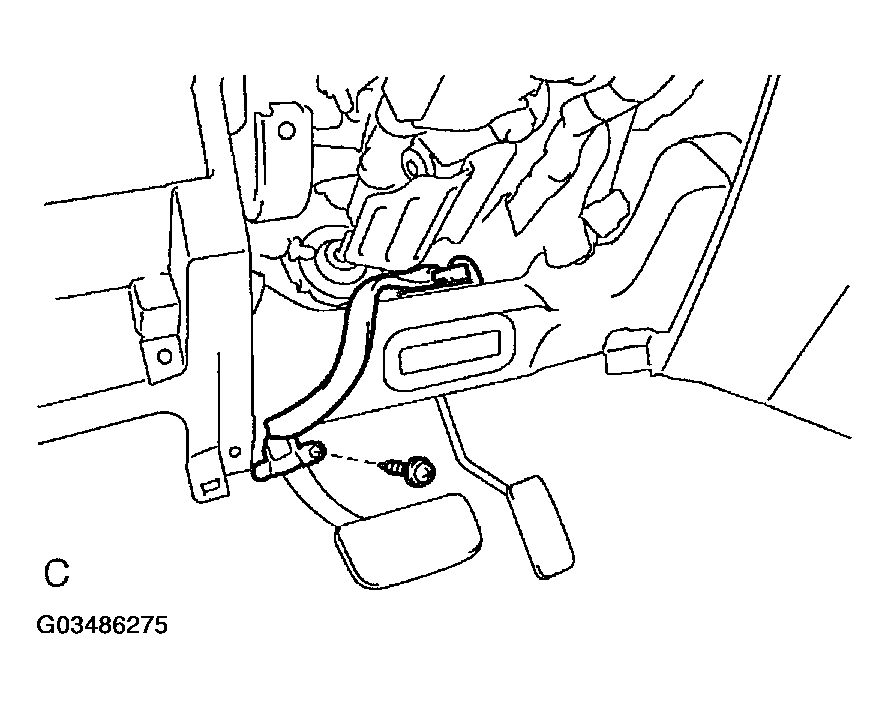

      Fig 15: Installing No. 2 Heater To Register Duct
      G03486275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL COMBINATION SWITCH
    1. Install the combination switch with the 4 screws.
    2. Install the clump, then connect the connectors.

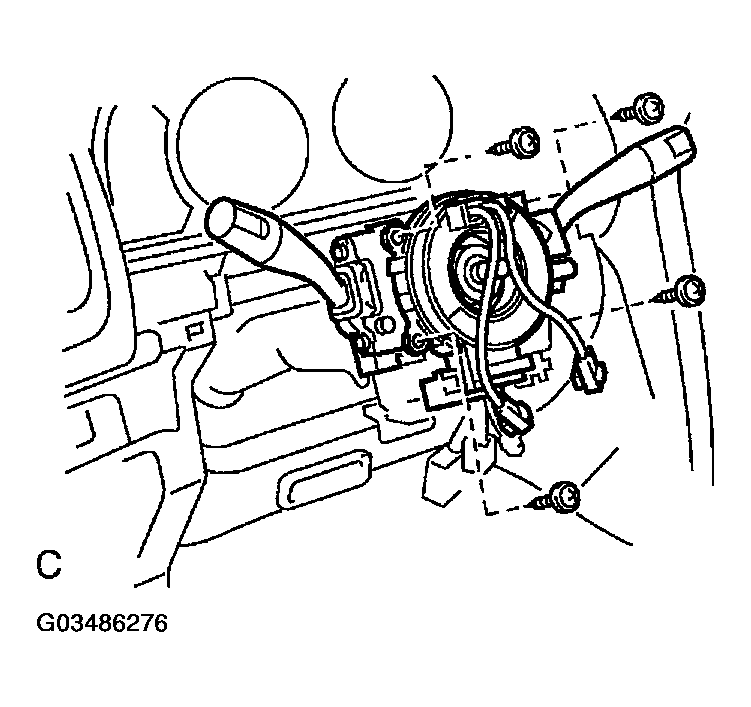

      3. Fig 16: Installing Combination Switch
      G03486276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL COLUMN COVERS

    Install the column covers with the 3 screws.

  32. INSTALL LH LOWER PANEL
  33. INSTALL LOWER NO. 1 PANEL

    Connect the connector, then install the lower No. 1 panel with the screw.

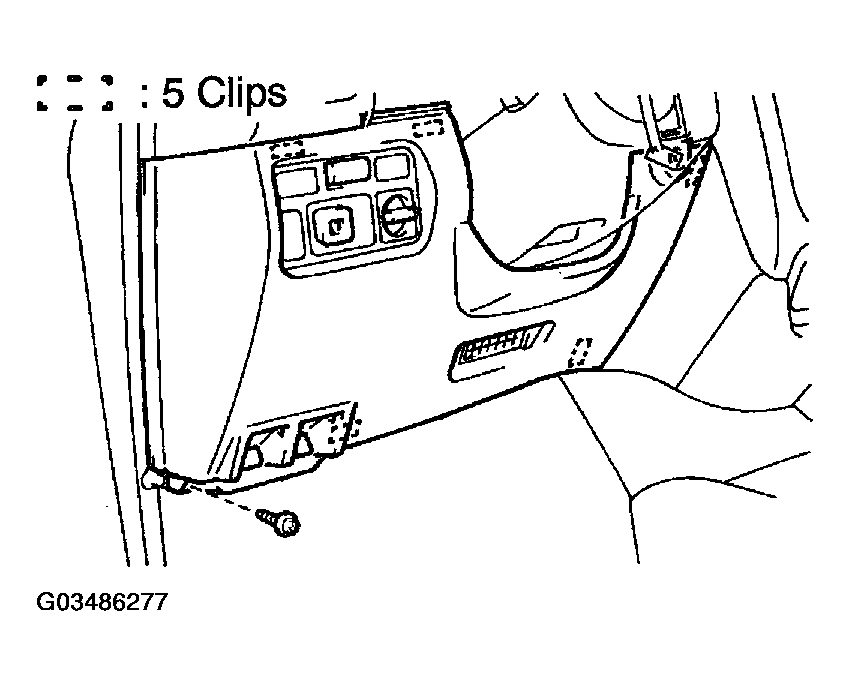

    Fig 17: Installing Lower No. 1 Panel
    G03486277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL HOOD LOCK AND FUEL LID CONTROL CABLE LEVER
    1. Install the fuel lid control cable lever with the 2 screws.
    2. Install the hood lock control cable with the 2 screws.
  35. INSTALL CLUSTER FINISH PANEL

    Connect the connector and the cluster finish panel.

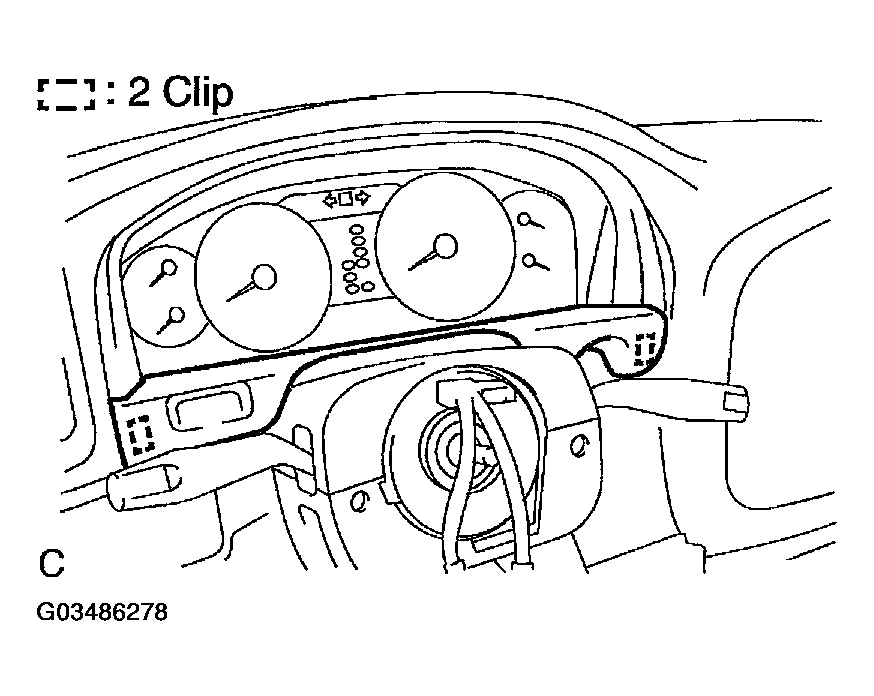

    Fig 18: Installing Cluster Finish Panel
    G03486278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL STEERING WHEEL (See  INSTALLATION  )
  37. INSTALL STEERING WHEEL PAD (See  INSTALLATION  )
  38. INSTALL FRONT PILLAR GARNISH
    1. Install the front pillar garnish.
    2. Use the same manner described above to the other side.
    3. Install the assist grip with the 2 screws, then install the 2 assist grip plugs.
    4. Use the same manner described above to the other side.

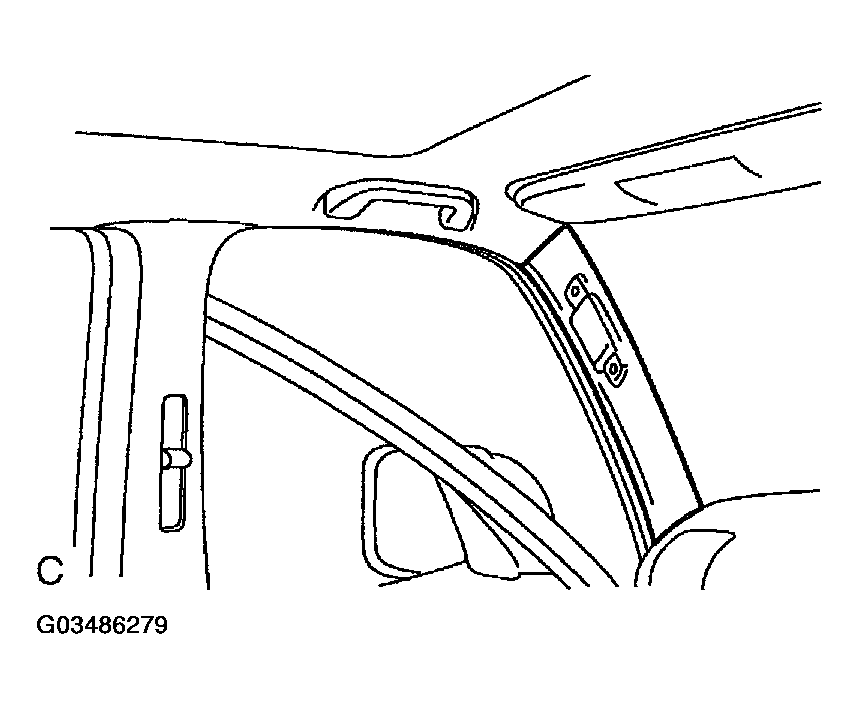

      5. Fig 19: Installing Front Pillar Garnish
      G03486279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FRONT DOOR OPENING TRIMS
  40. INSTALL COWL SIDE TRIMS
  41. INSTALL FRONT DOOR SCUFF PLATES
