Multi-Display (CRT Display) Display: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE AIR CONDITIONER CONTROL ASSY (See REPLACEMENT )
REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (W/ LEXUS NAVIGATION SYSTEM) (See REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO. 2 (W/ LEXUS NAVIGATION SYSTEM) (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/ LEXUS NAVIGATION SYSTEM)
1. Remove the 2 bolts and 2 screws.
2. Disconnect the connector, then remove the multi-display (CRT DISPLAY ) display and instrument cluster finish panel sub-assy center and clip.

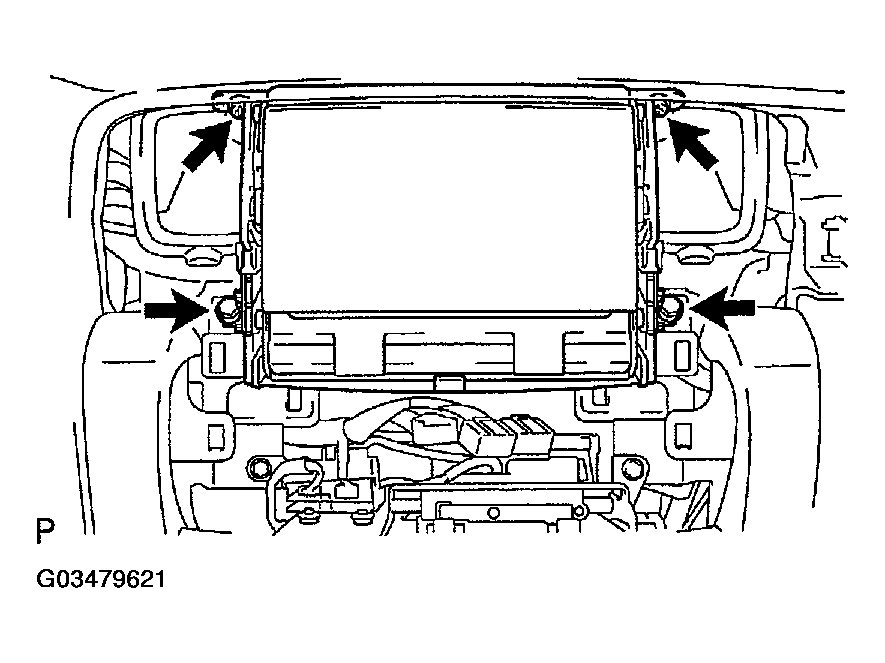

Fig 1: Removing Instrument Cluster Finish Panel Sub-Assy (W/Lexus Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
1. Remove the 4 screws and instrument panel finish UPR panel.
2. Remove the 6 screws and instrument panel finish panel No. 1 retainer.

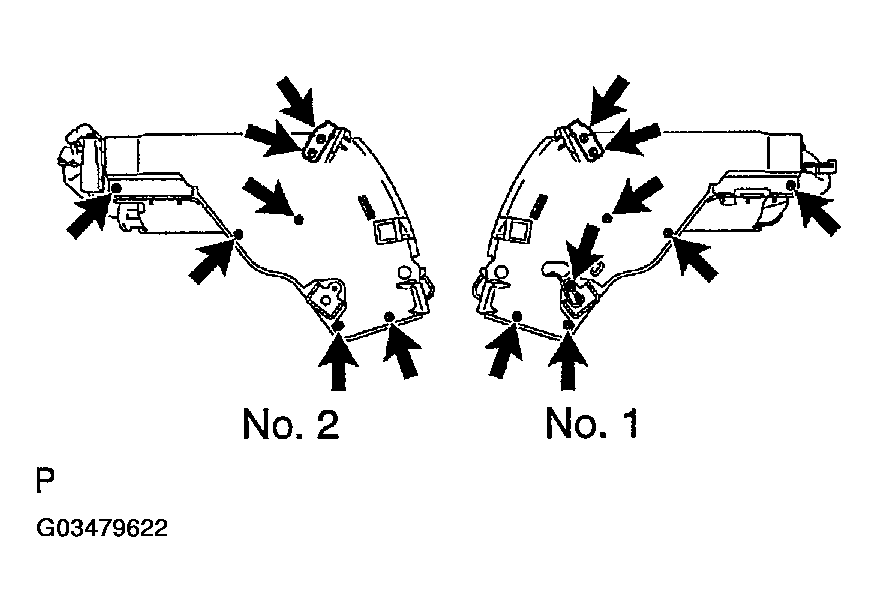

  Fig 2: Removing Instrument Panel Finish Panel Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 screws and instrument panel finish panel No. 2 retainer.
4. Remove the instrument cluster finish CTR LWR panel.
5. Remove the 2 screws.

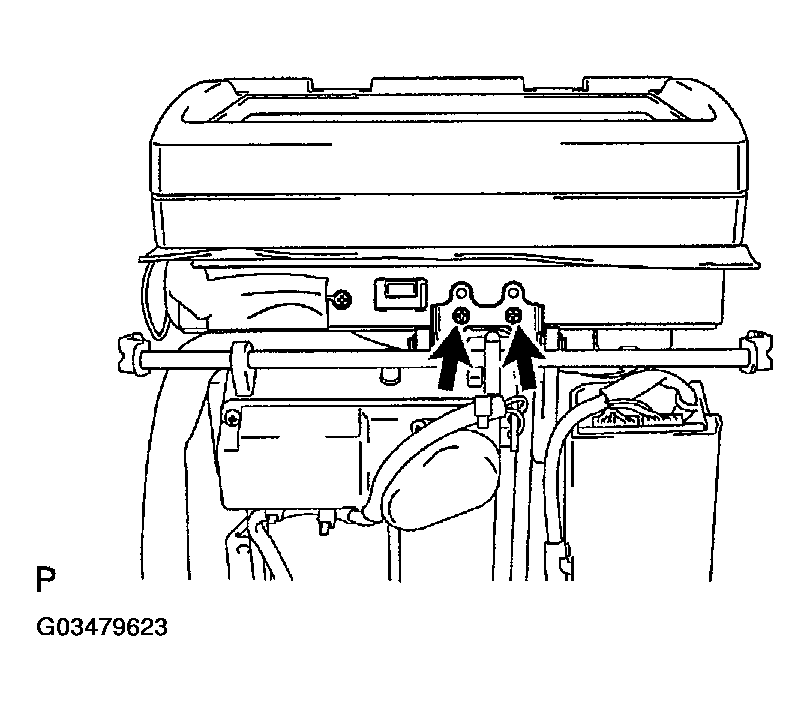

  Fig 3: Removing Multi-Display (CRT DISPLAY) Display Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 screws and wiring harness clamp.
7. Disconnect the 4 connectors, then remove the clamp.
8. Remove the multi-display (CRT DISPLAY) display.

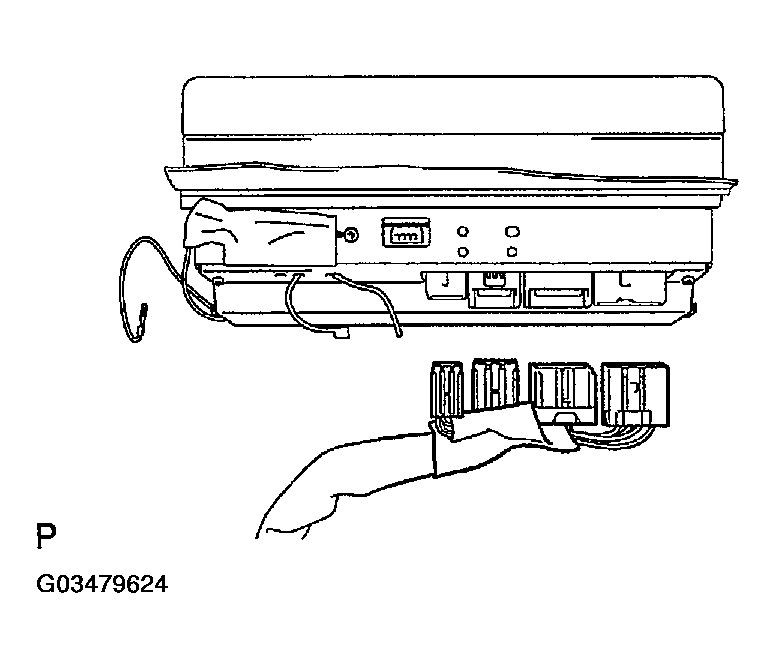

Fig 4: Removing Multi-Display (CRT DISPLAY) Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
