Navigation Ecu: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE REAR FLOOR FINISH PLATE (See  OVERHAUL  )
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  OVERHAUL  )
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  OVERHAUL  )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  OVERHAUL  )
5. REMOVE SPARE WHEEL COVER ASSY (See  OVERHAUL  )
6. REMOVE TOOL BOX COVER (See  OVERHAUL  )
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  OVERHAUL  )
8. REMOVE TONNEAU COVER ASSY (See  OVERHAUL  )
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  OVERHAUL  )
10. REMOVE LUGGAGE COMPARTMENT TRAY BRACKET FRONT
    1. Remove the 2 bolts, 2 nuts and 2 luggage compartment tray bracket fronts.
11. REMOVE NAVIGATION ECU
    1. Remove the bolt and 2 nuts.
    2. Disconnect the 3 connectors, then remove the navigation ECU.

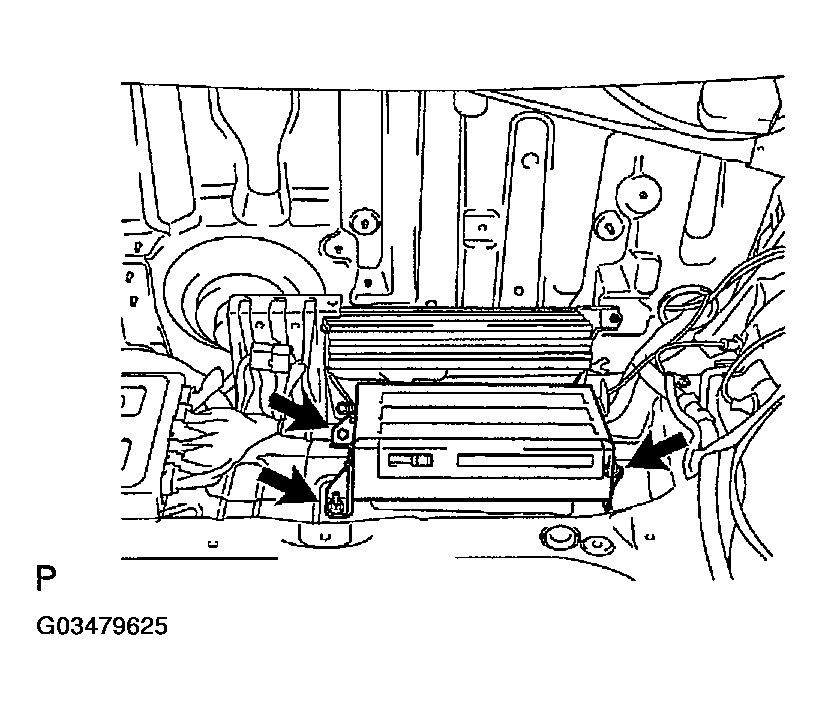

    Fig 1: Removing Navigation ECU

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE DISC PLAYER BRACKET
    1. Remove the 2 screws and disc player bracket.

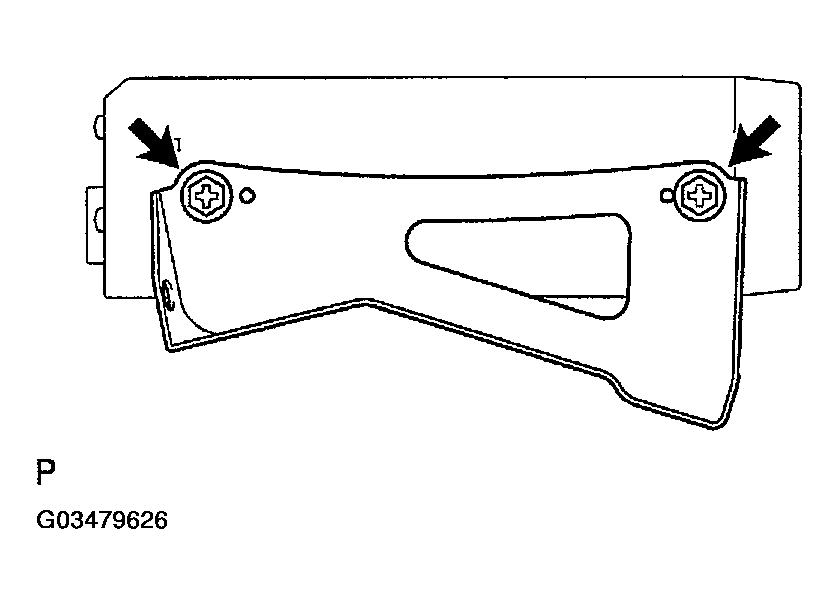

    Fig 2: Removing Disc Player Bracket

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE DISC PLAYER BRACKET NO. 2
    1. Remove the 2 screws and disc player bracket No. 2.

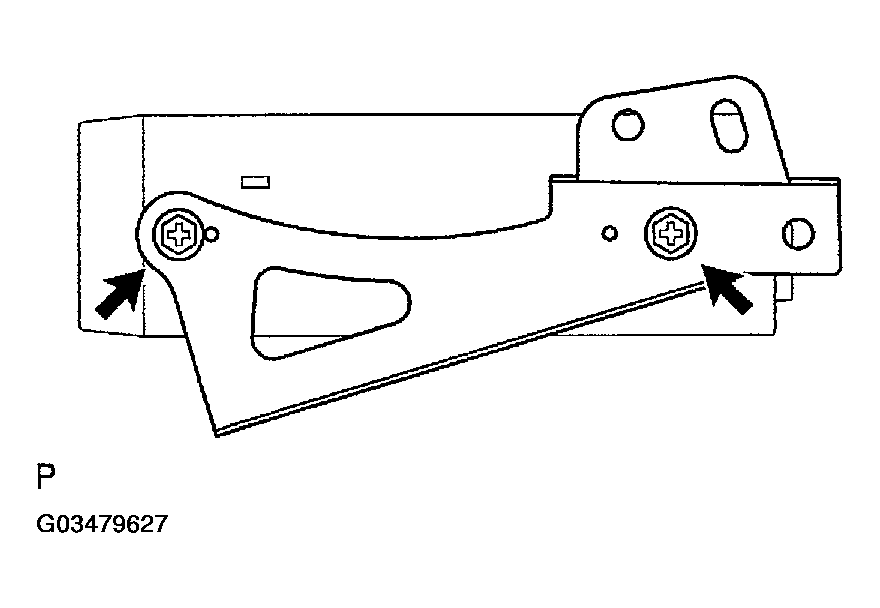

    Fig 3: Removing Disc Player Bracket No. 2

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
