Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE CONSOLE UPPER PANEL GARNISH REAR (See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE POWER POINT SOCKET ASSY
1. Pressing the claw of the power point socket assy in the direction of the arrow, push the power point socket assy toward the inside of the chamber and remove it.

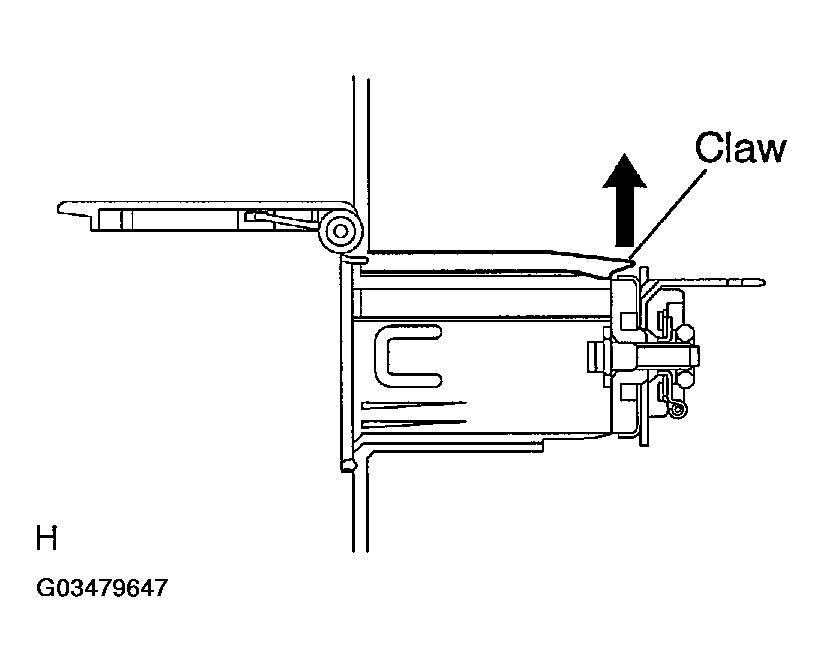

Fig 1: Removing Power Point Socket Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER POINT SOCKET COVER
1. Remove the power point socket cover from the console box assy.
INSTALL POWER POINT SOCKET ASSY

Align the claw of the power point socket assy with the cutout of the power point cover and fully push it to install.
