Stereo Component Amplifier ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE REAR FLOOR FINISH PLATE (See  OVERHAUL  )
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  OVERHAUL  )
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  OVERHAUL  )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  OVERHAUL  )
5. REMOVE SPARE WHEEL COVER ASSY (See  OVERHAUL  )
6. REMOVE TOOL BOX COVER (See  OVERHAUL  )
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  OVERHAUL  )
8. REMOVE TONNEAU COVER ASSY (See  OVERHAUL  )
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  OVERHAUL  )
10. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Remove the 2 bolts, 2 nuts and 2 luggage compartment tray bracket fronts.
11. REMOVE STEREO COMPONENT AMPLIFIER ASSY
    1. Remove the 2 bolts and nut.
    2. Disconnect the 2 connectors, then remove the stereo component amplifier assy.

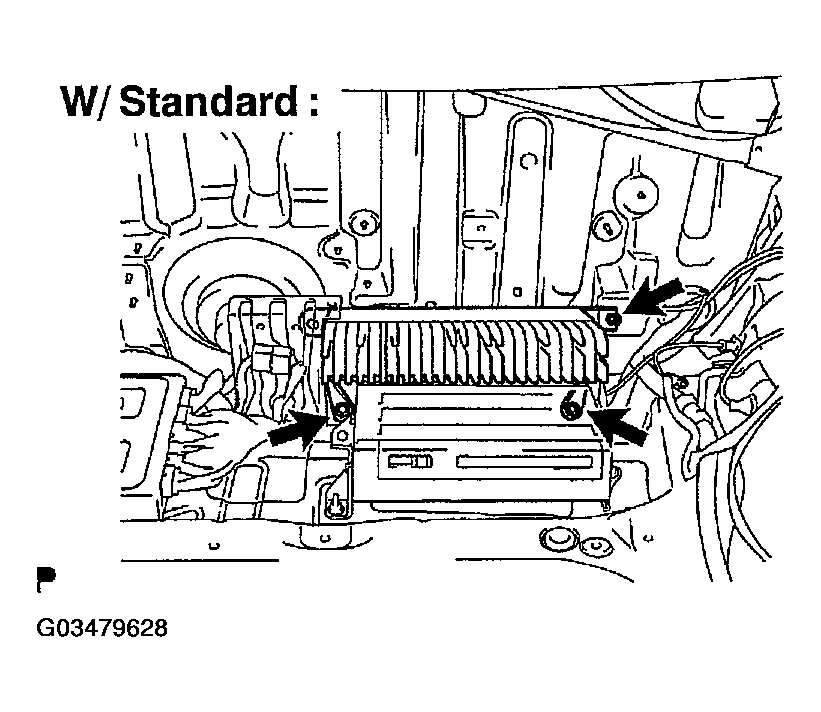

    Fig 1: Removing Stereo Component Amplifier Assy (W/Standard)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

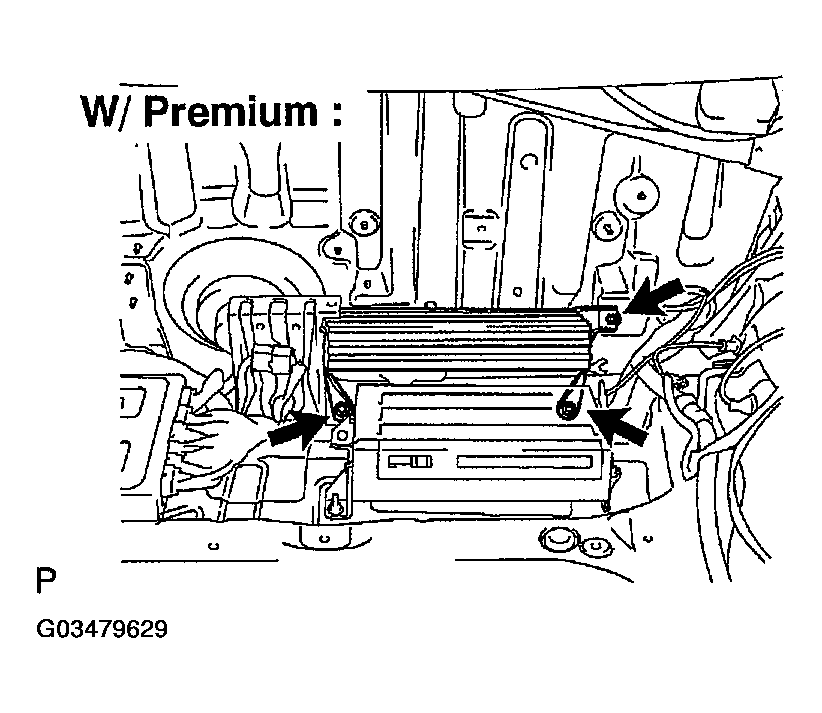

    Fig 2: Removing Stereo Component Amplifier Assy (W/Premium)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE AMPLIFIER BRACKET NO. 1
    1. Remove the 2 screws and amplifier bracket No. 1.

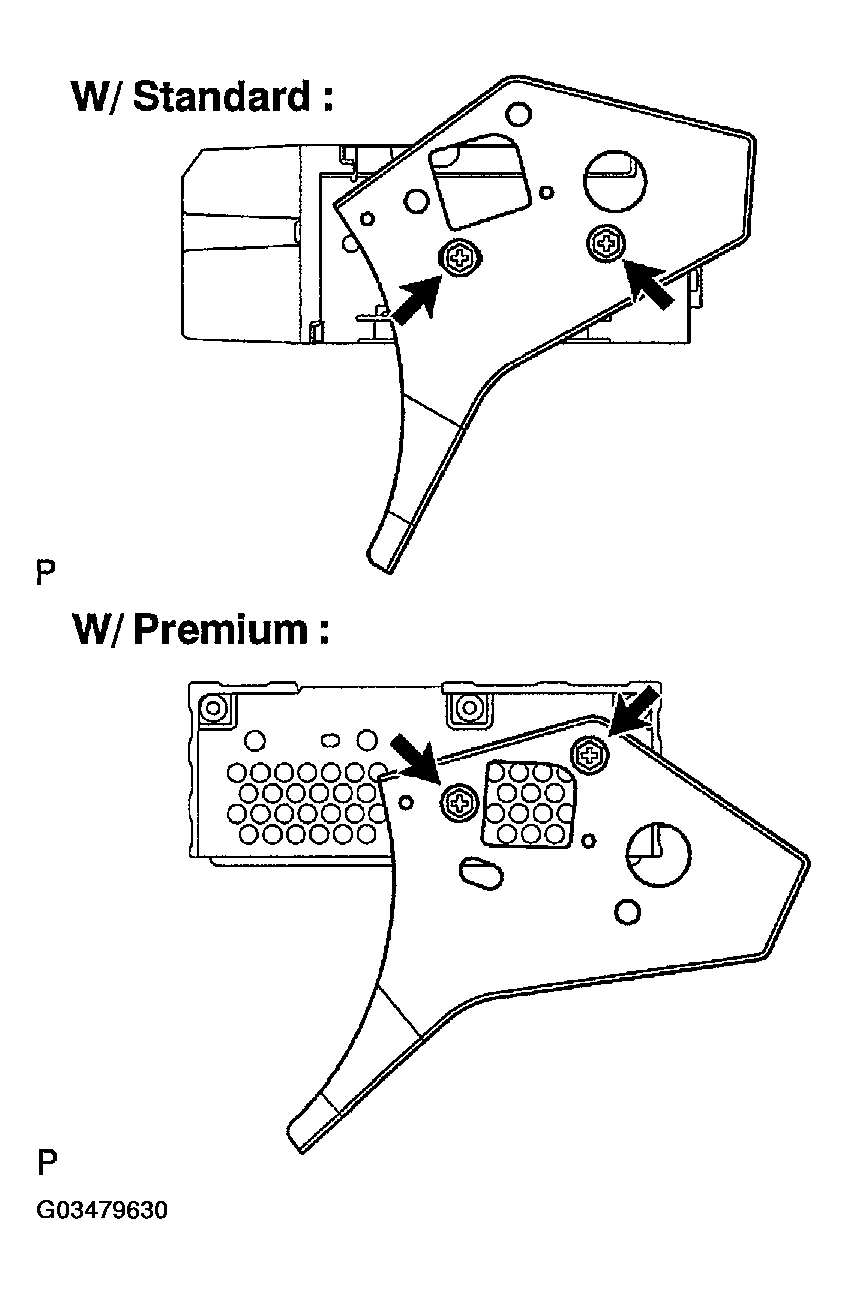

    Fig 3: Removing Amplifier Bracket No. 1

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE AMPLIFIER BRACKET NO. 2
    1. Remove the 2 screws and amplifier bracket No. 2.

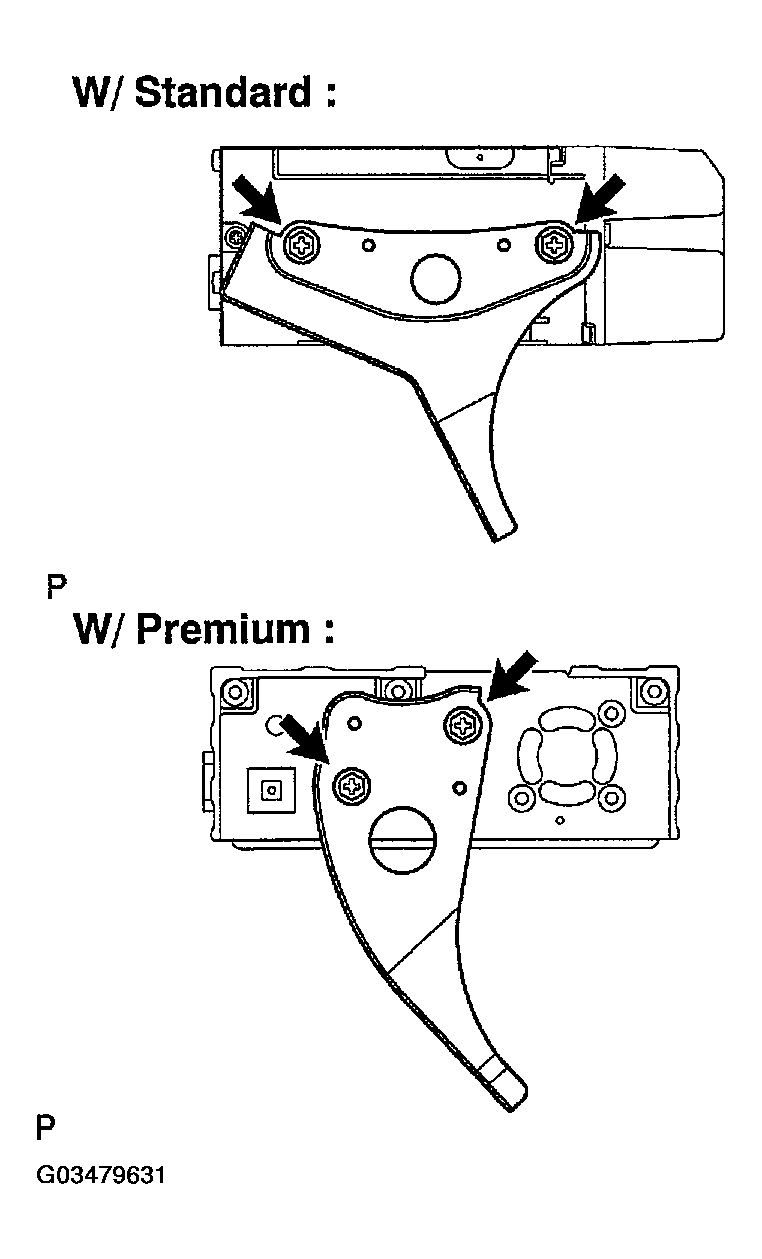

    Fig 4: Removing Amplifier Bracket No. 2

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
