Back Window Frame Sub-ASSY Upper: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

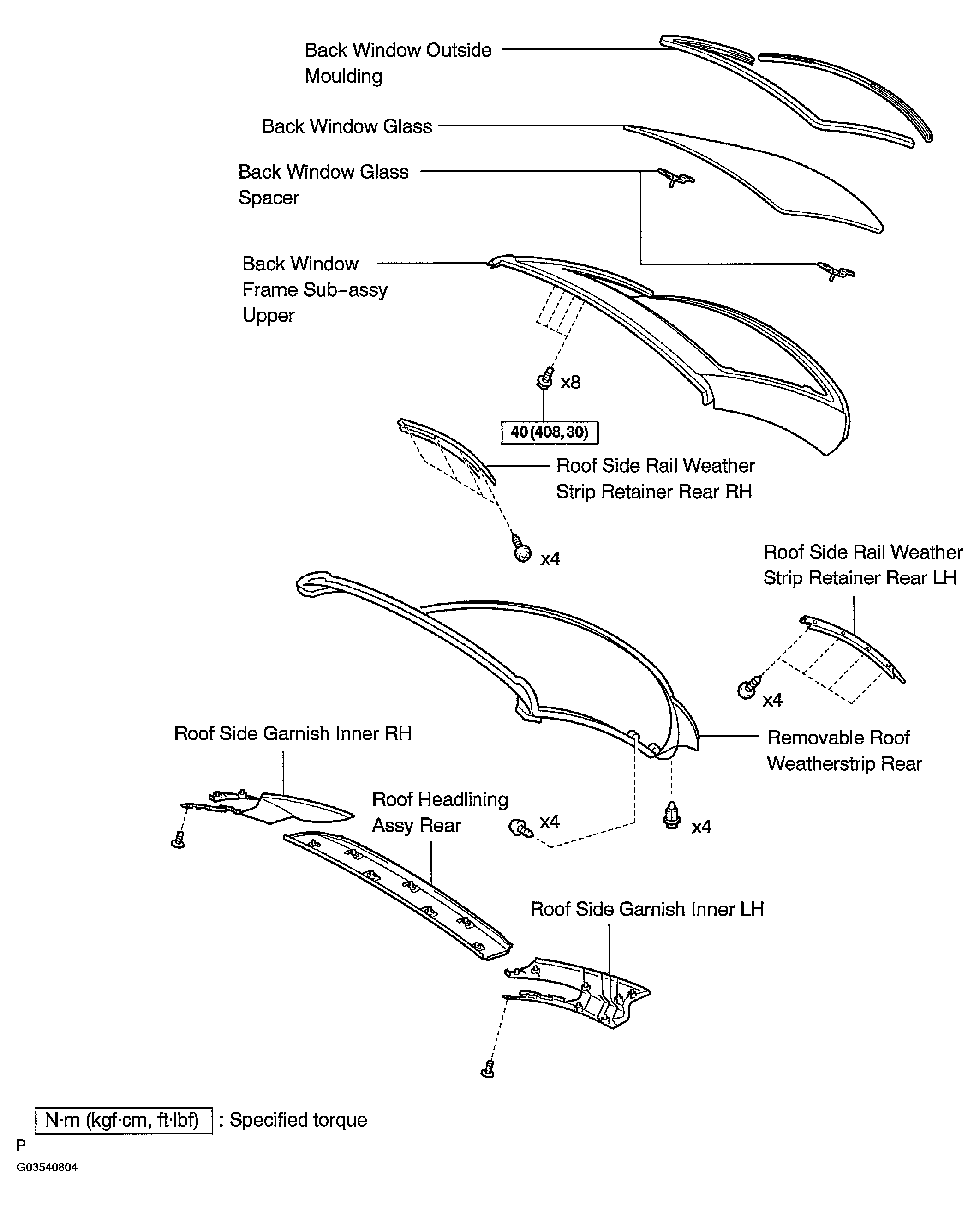

Fig 1: Identifying Back Window Frame Sub-Assy Upper Components
G03540804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
