Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus LX 470 and 2001 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

Fig 1: Wiring Diagram Master Cylinder Pressure Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

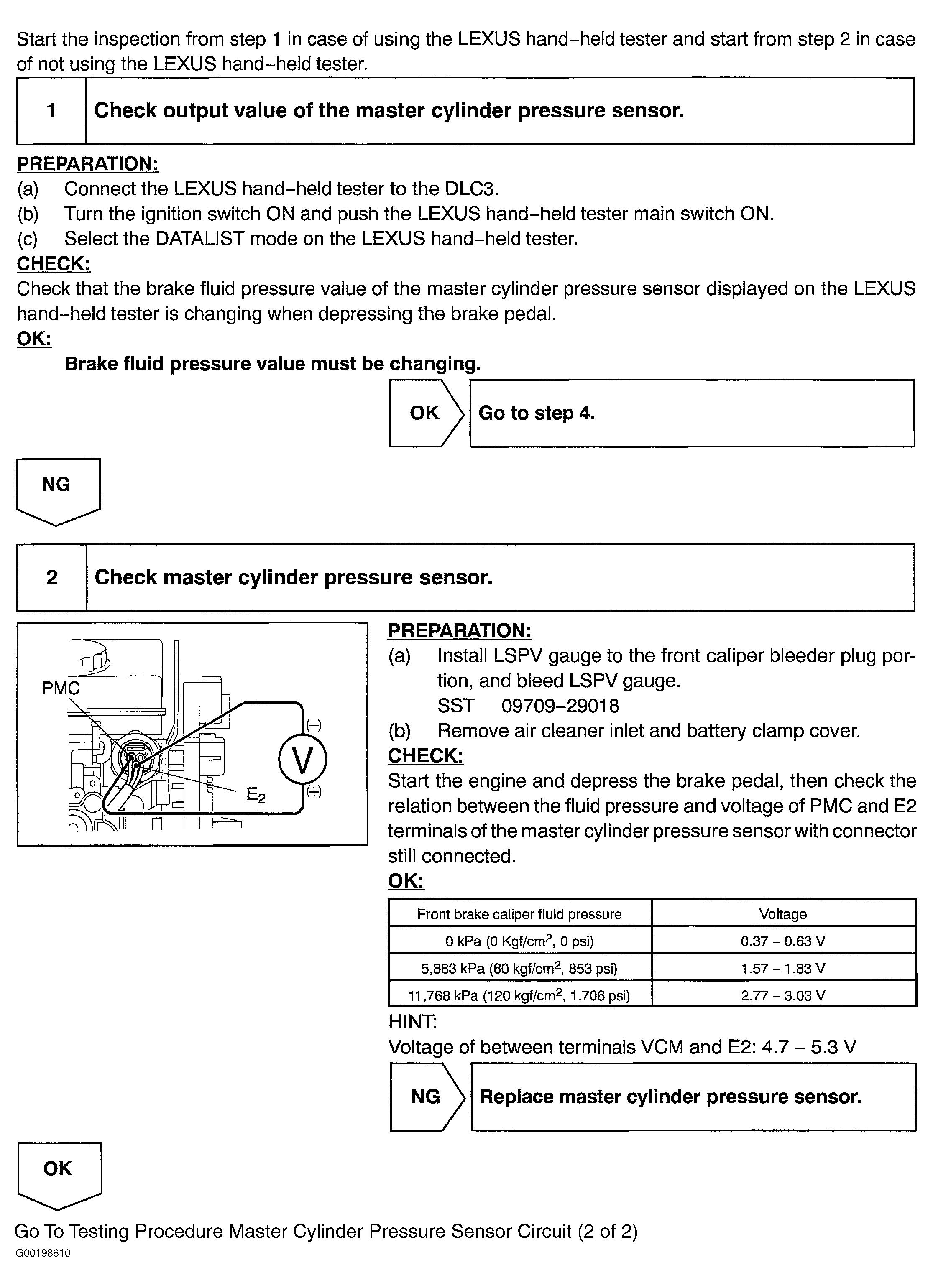

Fig 2: Testing Procedure Master Cylinder Pressure Sensor Circuit (1 Of 2)

Fig 3: Testing Procedure Master Cylinder Pressure Sensor Circuit (1 Of 2)
