Circuit Description
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

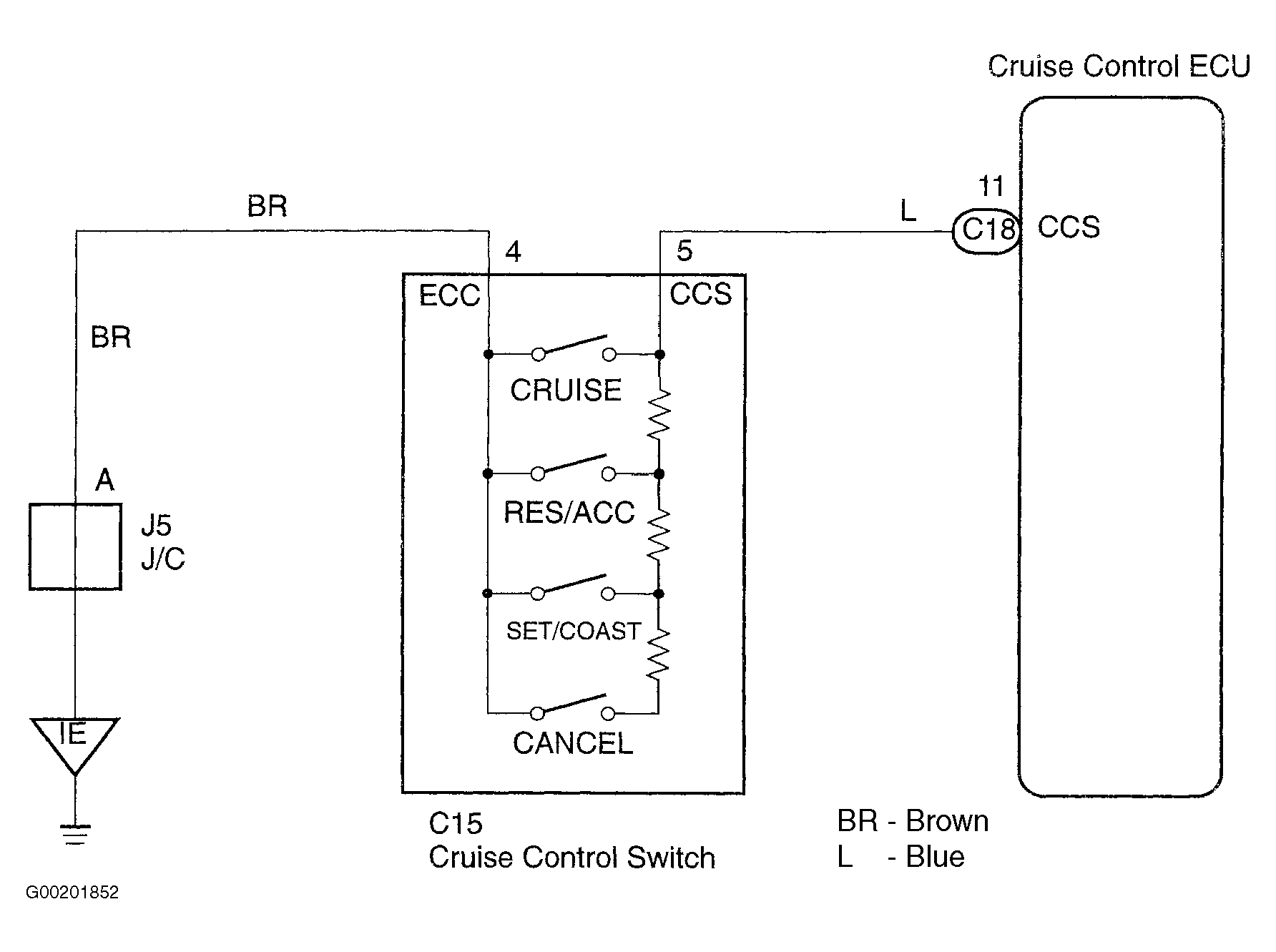

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU. See Fig 1.
