Diagnostic Tester Controller Area Network (Can) Interface Module (SS001-03)

Publication date: 2003-09-08
Reference number: SS001-03

DIAGNOSTIC TESTER CONTROLLER AREA NETWORK (CAN) INTERFACE MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS001-03, Date of Issue: September 8, 2003

LEXUS:	All Models
SECTION:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

Over the next three model years, all Lexus vehicles will begin using an all-new diagnostic communication protocol, Controller Area Network (CAN). CAN will be introduced on the 2004 LS 430 this fall. A CAN Interface Module has been distributed to all dealers as an essential Special Service Tool (SST) and will allow the Diagnostic Tester to communicate with CAN-equipped vehicles. Please use the following instructions to install the new CAN Interface Module as soon as it arrives at your dealership.

NOTE:

Version 10.2a or later Diagnostic Tester Software must be used to enable communication with CAN-equipped vehicles. Version 10.2a will be distributed to dealers via TIS before CAN-equipped vehicles arrive at dealers.
There is no need to remove the CAN Interface Module when working with non-CAN systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester will communicate with all DLC3/J1962 based systems with the CAN Interface Module installed.

Applicable Vehicles

All Models.

Required SST's

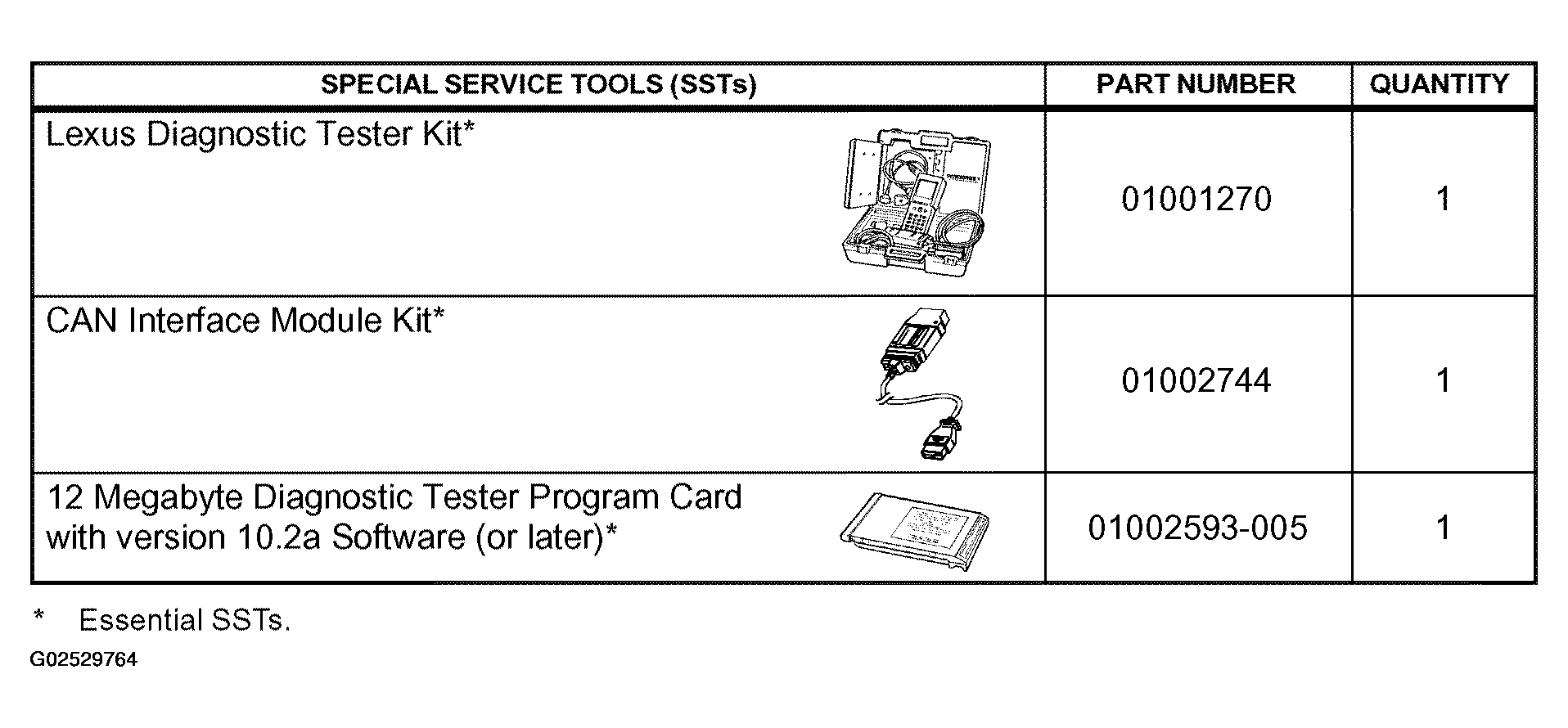

Fig 1: Special Service Tools

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards or SST's may be ordered by calling SPX/OTC at 1-800-933-8335.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	---	---	---	---

Installation Procedure

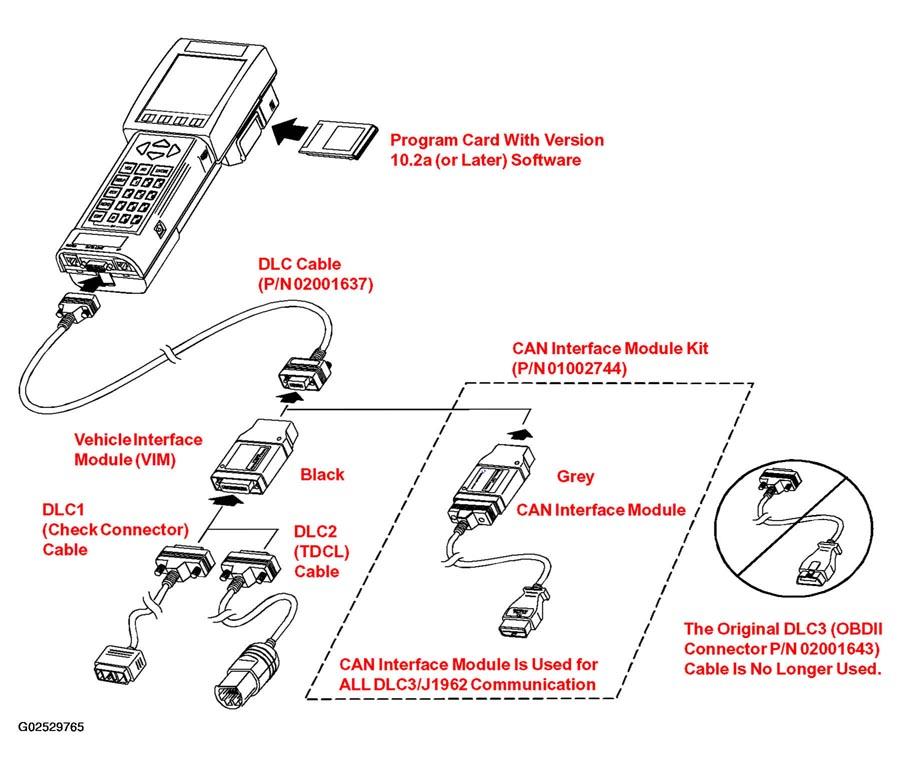

Fig 2: Diagnostic Tester And Attachments

Remove the original DLC3 Cable and store it in the Diagnostic Tester storage case.
Connect the CAN Interface Module to the DLC Cable.
Use the Diagnostic Tester with the CAN Module installed for all DLC3/J1962 based vehicle communication.
If you experience problems with the Diagnostic Tester or CAN Interface Module, please contact Lexus Special Service Tool Customer Support.

NOTE:

There is no need to remove the CAN Interface Module when working with non-CAN systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester will communicate with all DLC3/J1962 based systems with the CAN Interface Module installed.
For DLC1 and DLC2 communication you must continue to use the Vehicle Interface Module (VIM).
