Blank Map Screen In Navigation System (EL006-03)

Publication date: 2003-06-04
Reference number: EL006-03

BLANK MAP SCREEN IN NAVIGATION SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL006-03, Date of Issue: June 4, 2003

LEXUS:	All 2003 Models With Navigation System
SECTION:	ELECTRICAL
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

In some cases, when a vehicle arrives at a U.S. or Canadian port, and/or is in new inventory at the dealer, a blank map screen may occur, as shown in Fig 1, just after turning the ignition switch ON and then touching the "I agree" switch. The only items that can be seen are the touch switches, compass, and the vehicle icon.

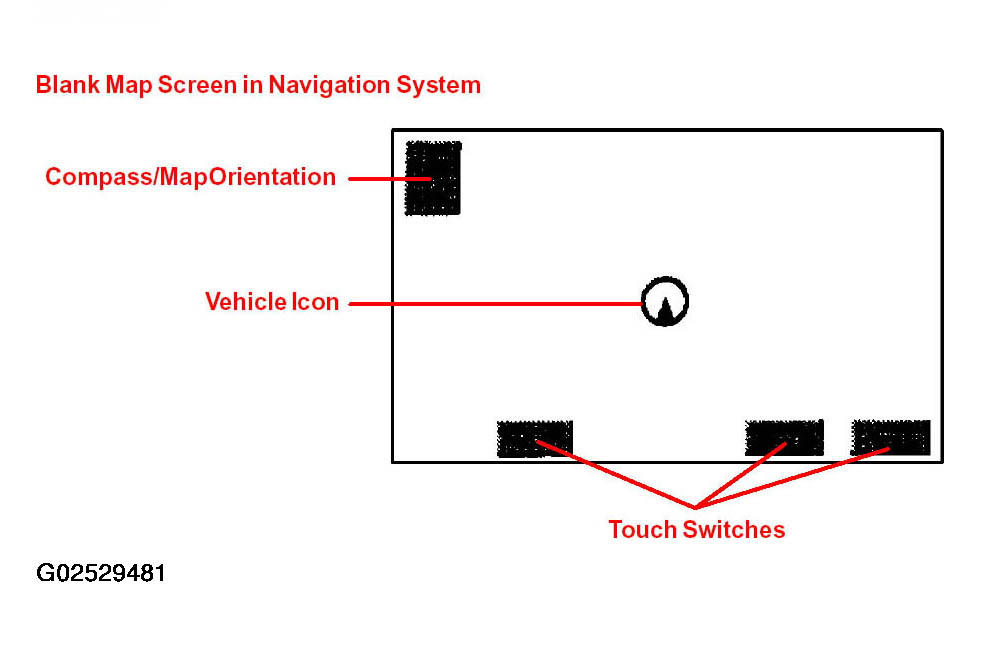

Fig 1: Blank Map Screen In Navigation System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This condition is not a system failure. This is due to the system position memory originally identifying a set location near the manufacturing plant in Japan when the vehicle is brand-new. To re-initialize the navigation system memory location, follow the instructions on Fig 2.

Applicable Vehicles

All 2003 model year Lexus vehicles with Navigation System.

WARRANTY INFORMATION

WARRANTY INFORMATIONS

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Repair Procedure

Follow the flow chart below to fix the blank map screen condition.

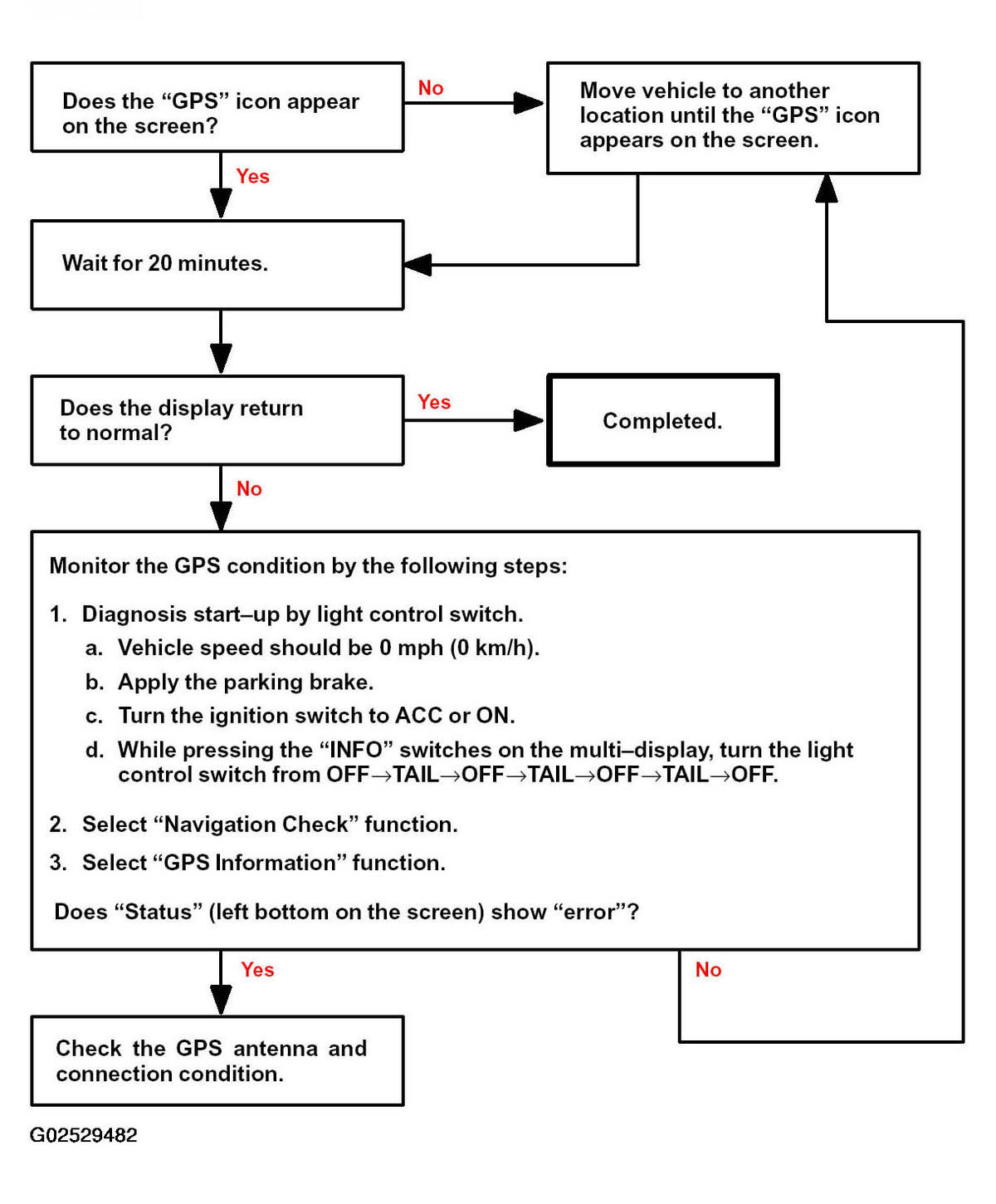

Fig 2: Flow Chart To Fix Blank Map Screen
