Rear Seat Belt: Components

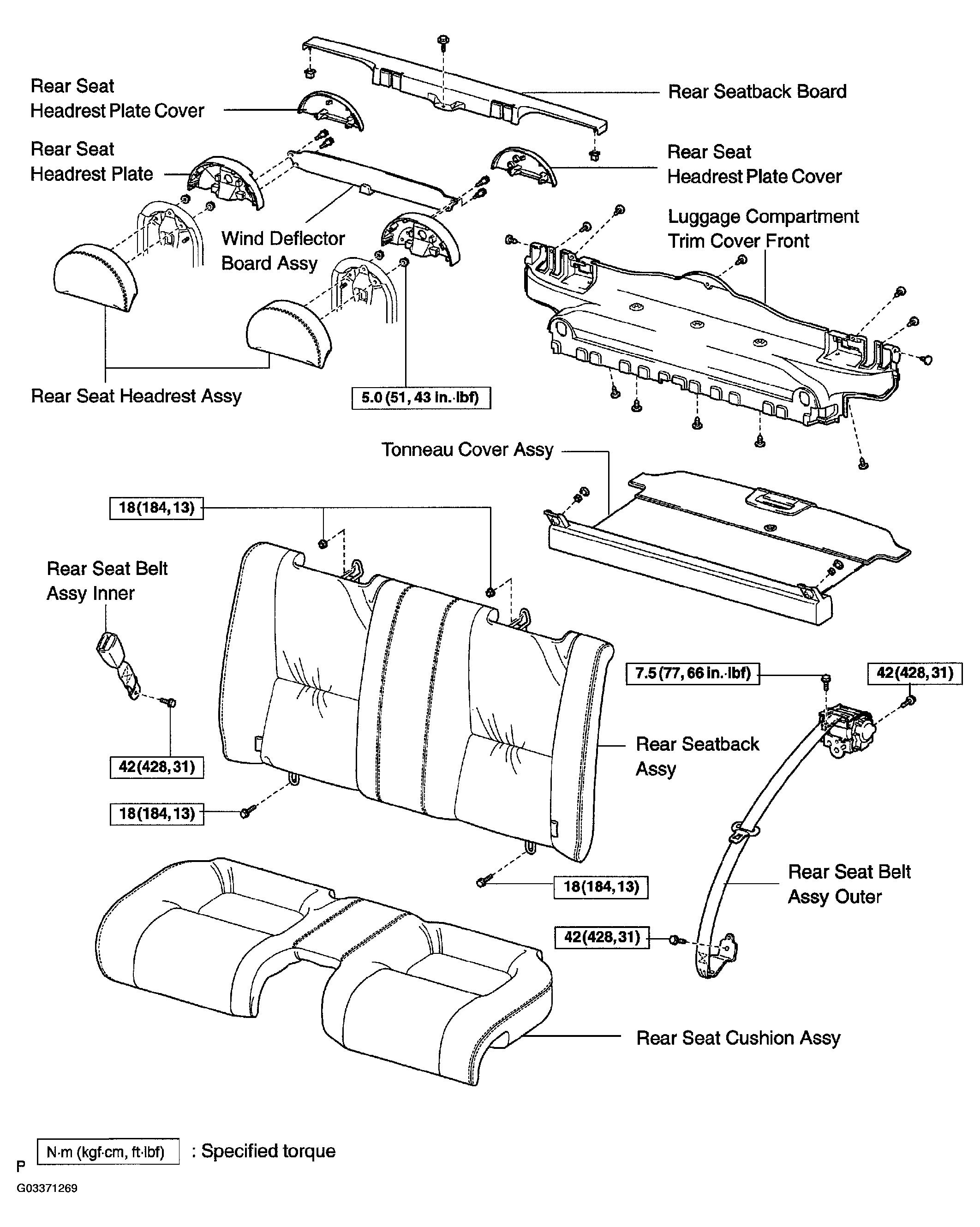

Fig 1: Identifying Rear Seat Belt Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
