Oil Pump, Engine

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:





Part 6:

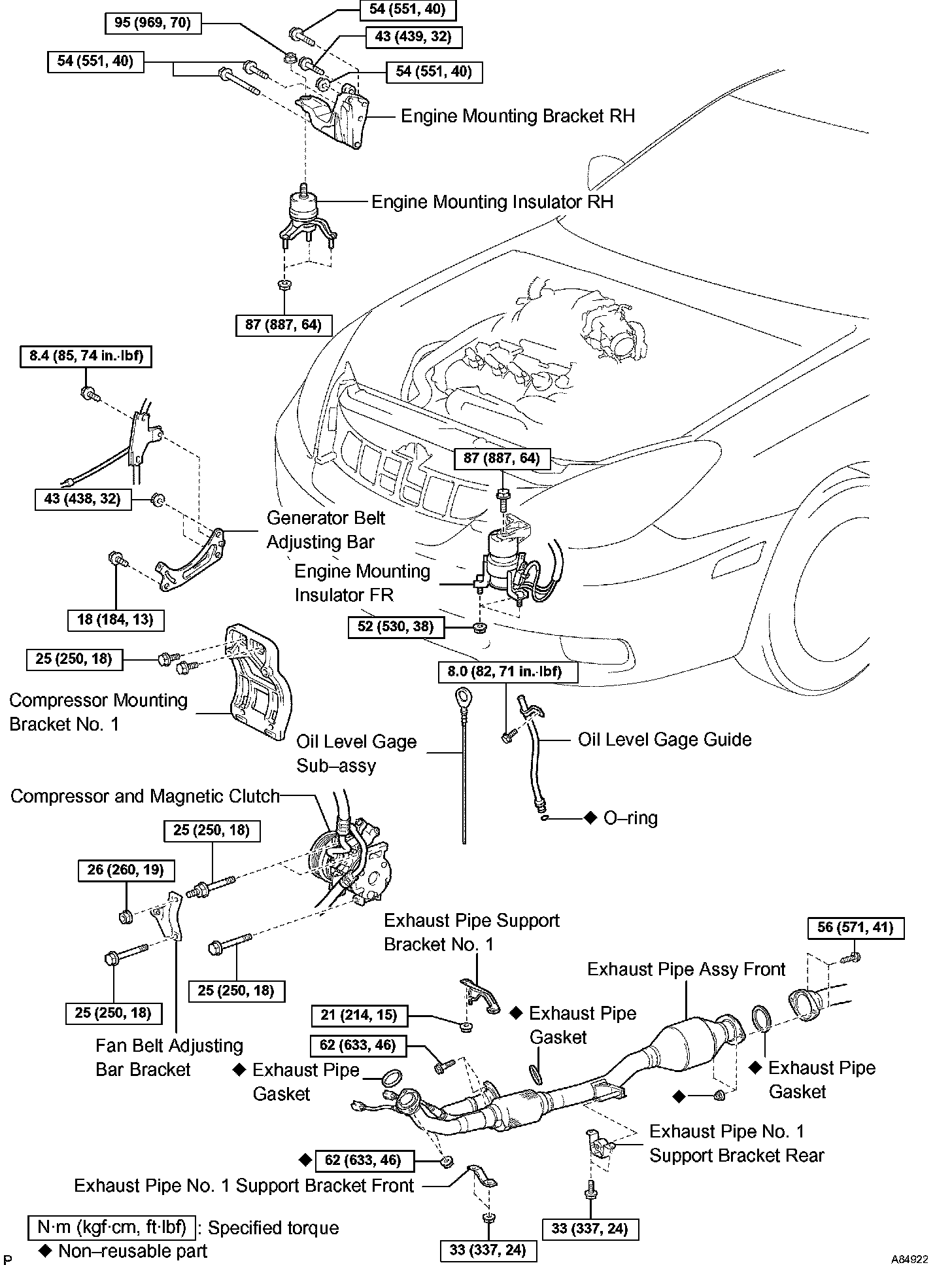

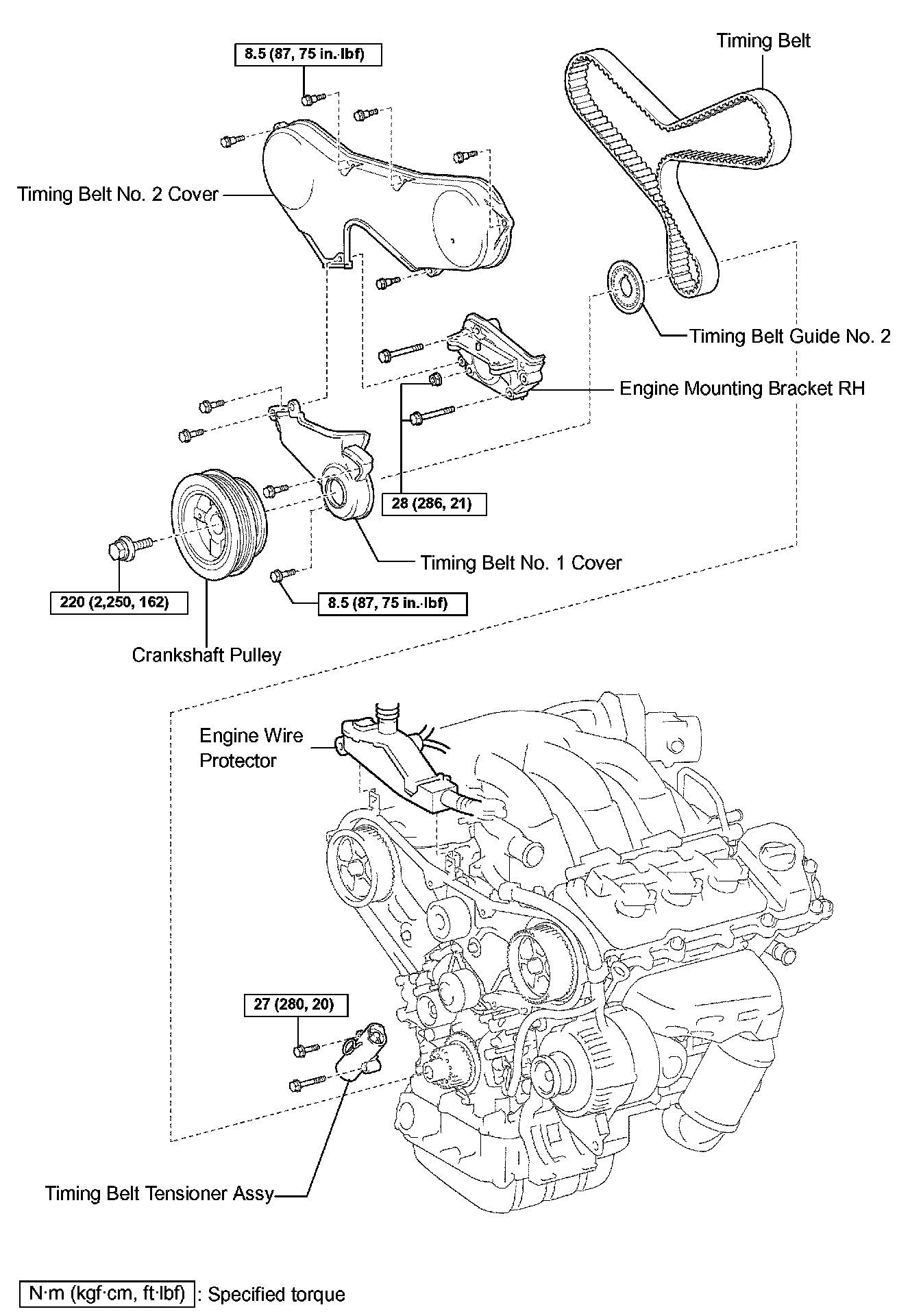

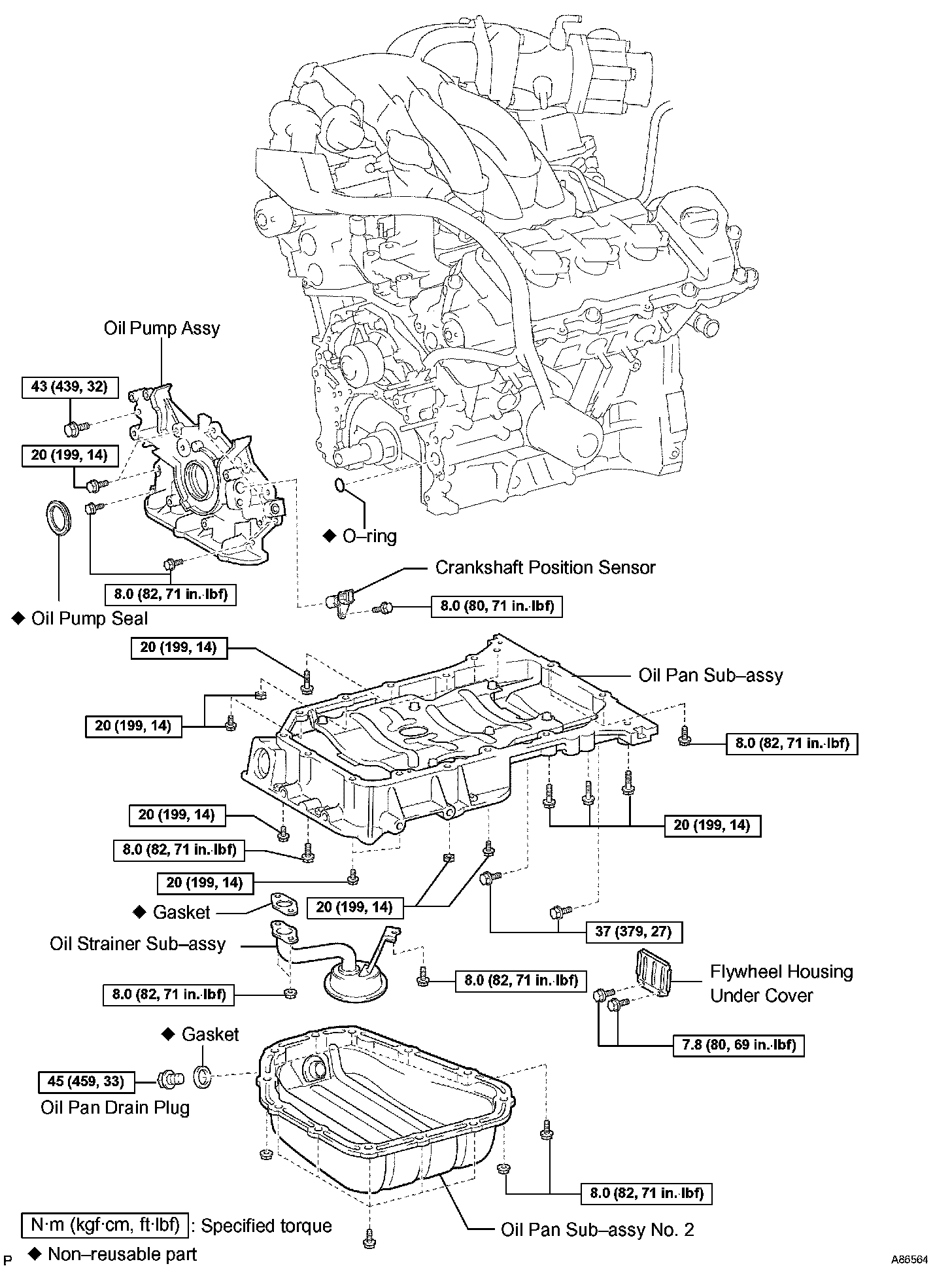

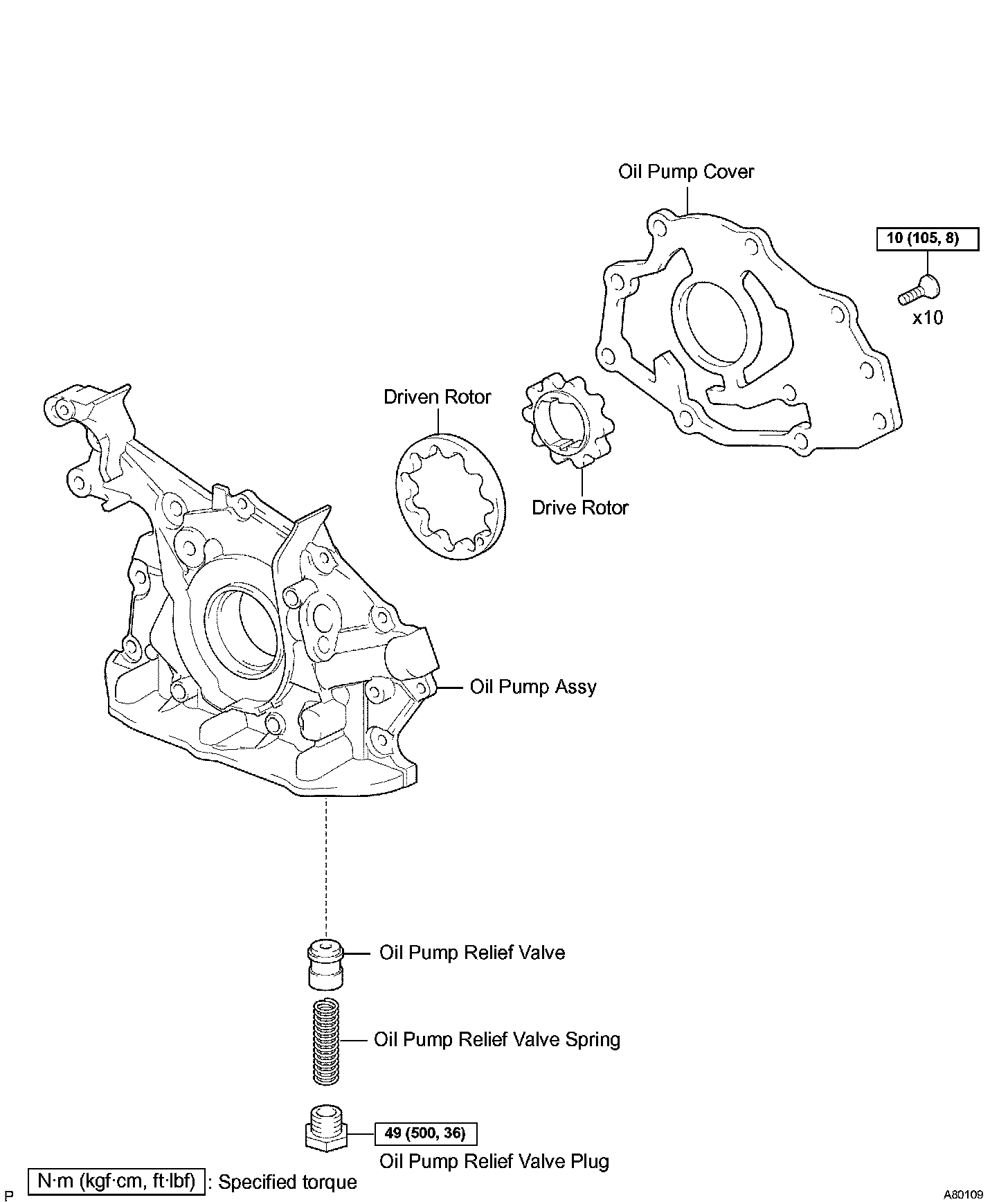

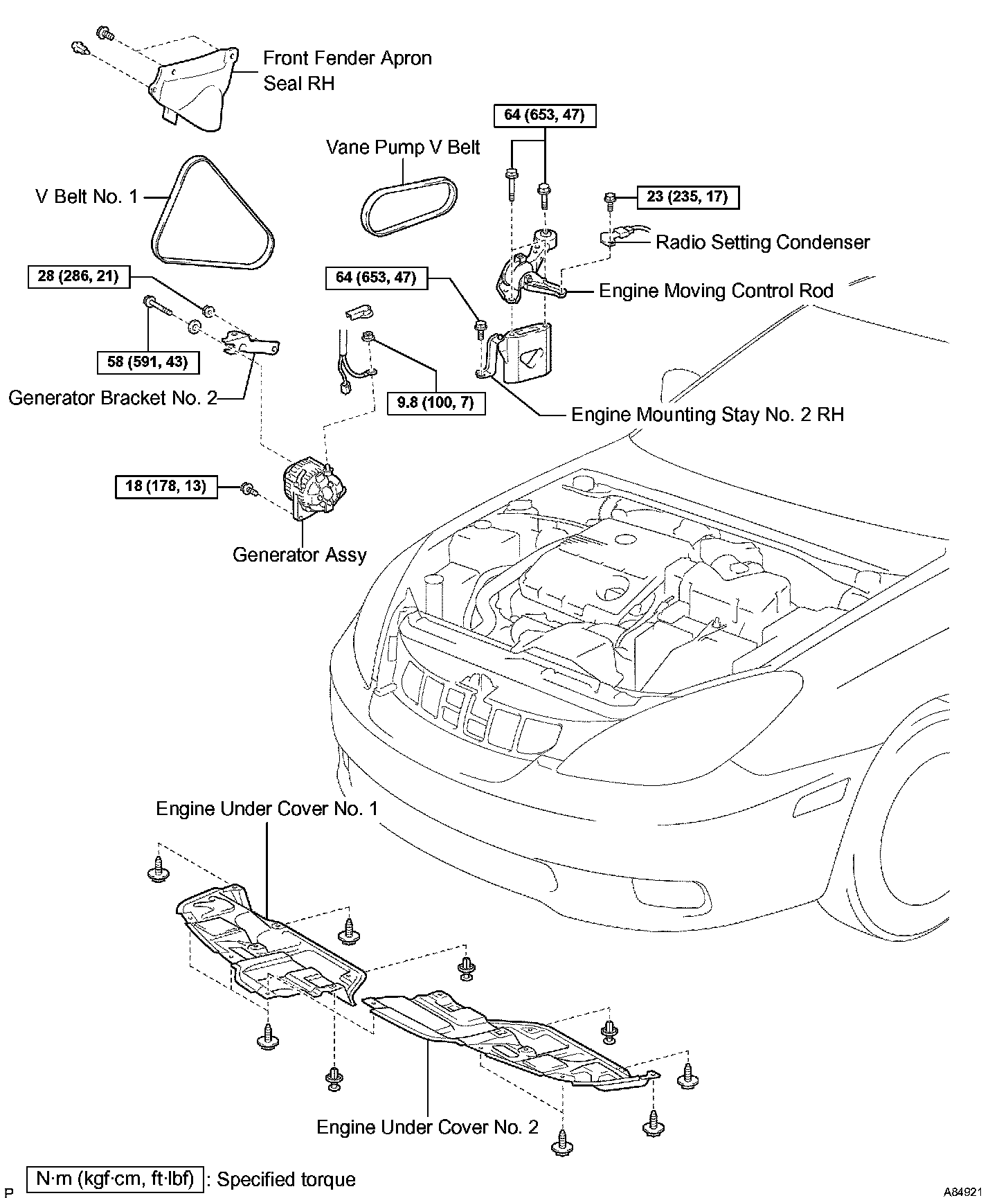

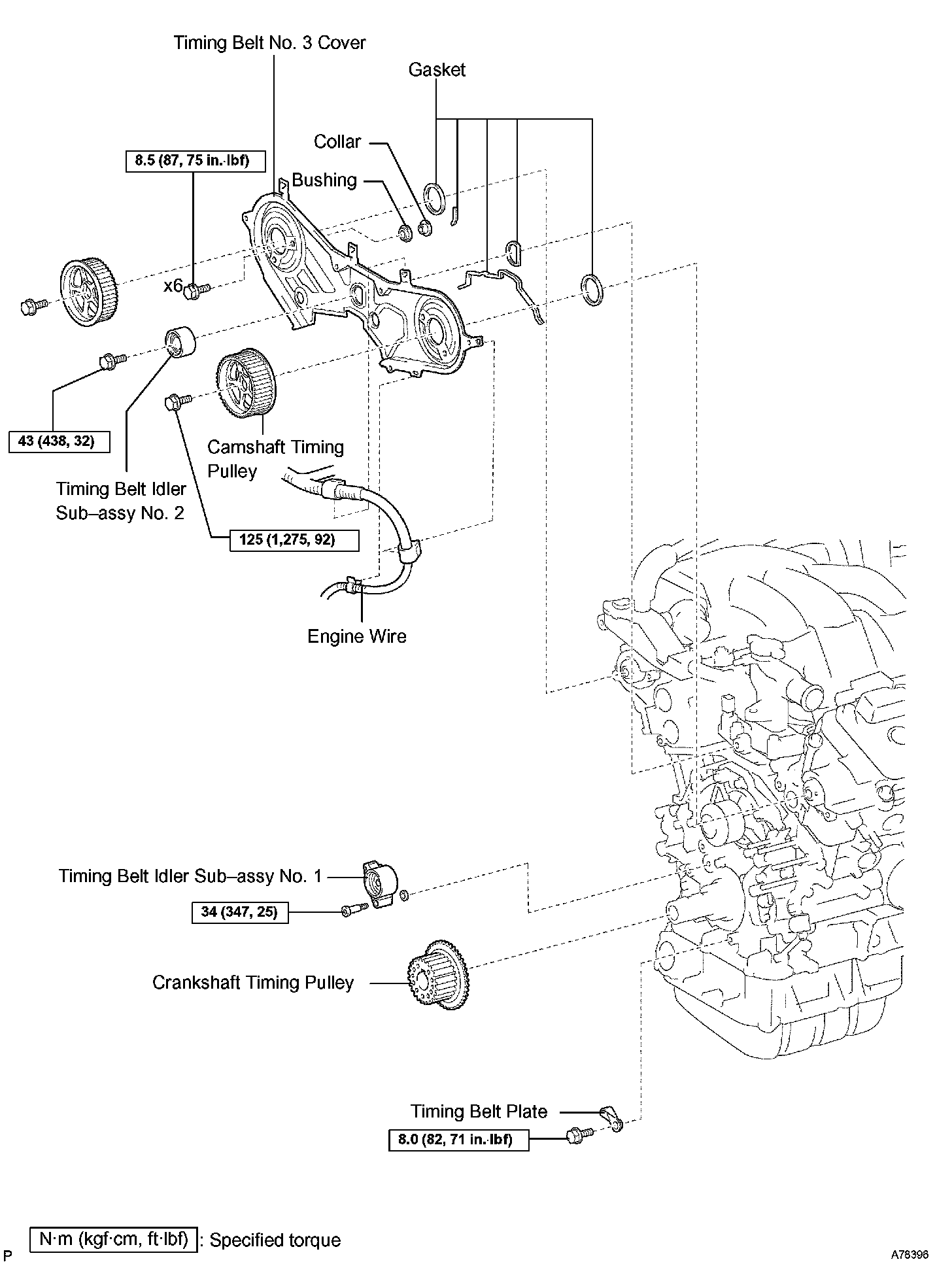

OIL PUMP ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
